D4NS-9AF datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Mechanical and electronic products> switch> D4NS-9AF

Preview

D4NS-9AF: DescriptionSafety Door Switch, SPST, Momentary, Screw Terminal, Panel Mount; CategoryMechanical and electronic products switch; File Size66KB，3 Pages; ManufacturerOMRON; Websitehttps://www.omron.com

Download Datasheet Parametric Compare View All

D4NS-9AF Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	D4NS-9AF	-	-	View	Buy Now

D4NS-9AF Overview

Safety Door Switch, SPST, Momentary, Screw Terminal, Panel Mount

D4NS-9AF Parametric

Parameter Name	Attribute value
Maker	OMRON
Reach Compliance Code	unknown
ECCN code	EAR99
Factory Lead Time	12 weeks
Other features	CONTACT RATING FOR AC: 10 A, 250 VAC
body width	30 mm
body height	96 mm
Body length or diameter	31 mm
Electrical life	300000 Cycle(s)
Manufacturer's serial number	D4NS
Installation features	PANEL MOUNT
Maximum operating temperature	70 °C
Minimum operating temperature	-30 °C
seal	IP67
surface mount	NO
Switch action	MOMENTARY
switch function	SPST
Switch type	SAFETY DOOR SWITCH
Termination type	SCREW
Base Number Matches	1

Preview

Download Datasheet

View All

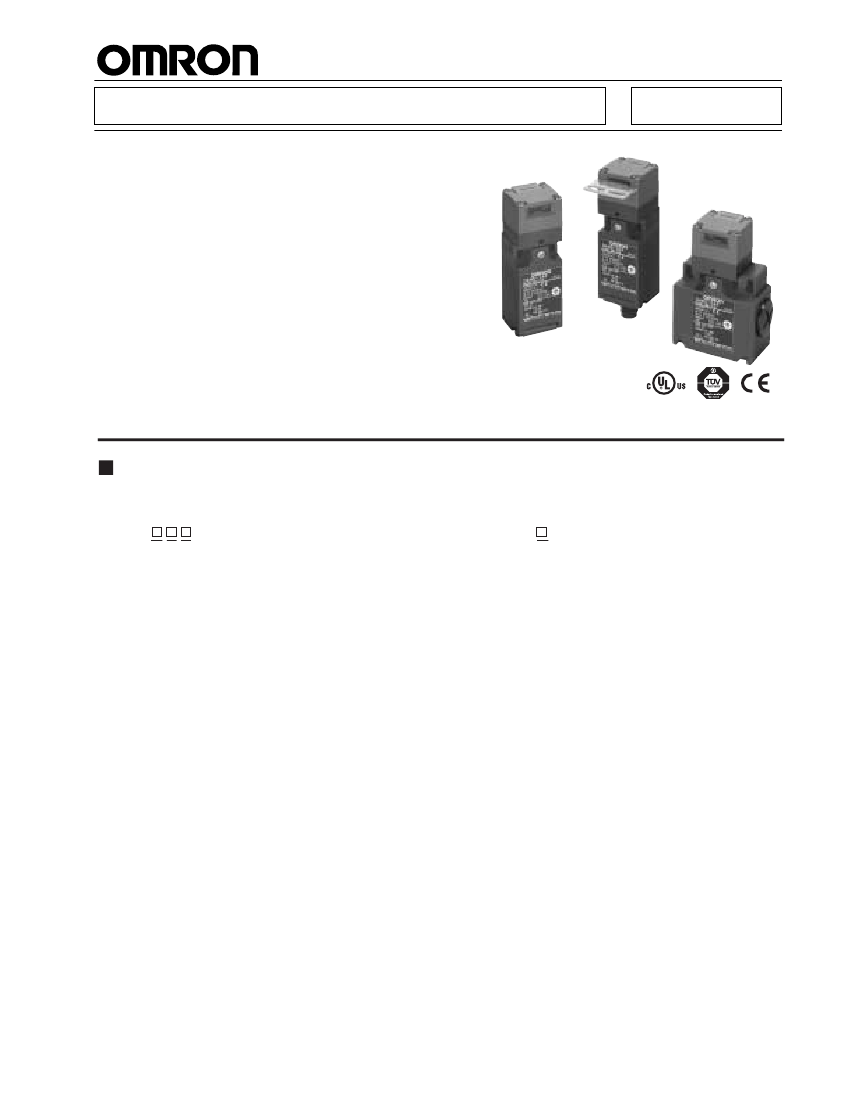

Safety-door Switch

Multi-contact, Labor-saving, En vironment-

friendly, Next-generation Safety-door Switch

• Lineup includes three contact models with 2NC/1NC and 3NC

contact forms in addition to the previous contact forms 1NC/

1NO, and 2NC.

• M12-connector models are available, saving on labor and sim-

plifying replacement.

• Standardized gold-clad contacts provide high contact reliability.

• Applicable to both standard loads and micro loads.

• Free of lead, cadmium, and hexavalent chrome, reducing the

burden on the environment.

D4NS

Model Number Structure

Model Number Legend

Switch

Operation Key

D4NS-

1 2 3

1. Conduit/Connector size

1: Pg13.5 (1-conduit)

2: G1/2 (1-conduit)

3: 1/2-14NPT (1-conduit), North America

4: M20 (1-conduit)

5: Pg13.5 (2-conduit)

6: G1/2 (2-conduit)

7:

1/2-14NPT (M20 2-conduit with 1/2"-14NPT adapter

included), North America

8: M20 (2-conduit)

9: M12 connector (1-conduit)

2. Built-in Switch

A: 1NC/1NO (slow-action)

B: 2NC (slow-action)

C: 2NC/1NO (slow-action)

D: 3NC (slow-action)

E: 1NC/1NO (MBB contact)

F: 2NC/1NO (MBB contact)

3. Head Mounting Direction

F: Four mounting directions possible (Fr ont-side mounting at

shipping)

Note:

An order for the head part or the switch part alone cannot be

accepted. The Operation Key is sold separately.

D4DS-K

1

1. Operation Key Type

1: Horizontal mounting

2: Vertical mounting

3: Adjustable mounting (Horizontal)

5: Adjustable mounting (Horizontal/ Vertical)

157

D4NS-9AF Related Products

	D4NS-9AF	D4NS-3DF
Description	Safety Door Switch, SPST, Momentary, Screw Terminal, Panel Mount	Safety Door Switch, 3PST, Momentary, Screw Terminal, Panel Mount,
Reach Compliance Code	unknown	unknown
ECCN code	EAR99	EAR99
Other features	CONTACT RATING FOR AC: 10 A, 250 VAC	CONTACT RATING FOR AC: 10 A, 250 VAC
body width	30 mm	30 mm
body height	96 mm	96 mm
Body length or diameter	31 mm	31 mm
Electrical life	300000 Cycle(s)	300000 Cycle(s)
Installation features	PANEL MOUNT	PANEL MOUNT
Maximum operating temperature	70 °C	70 °C
Minimum operating temperature	-30 °C	-30 °C
seal	IP67	IP67
surface mount	NO	NO
Switch action	MOMENTARY	MOMENTARY
switch function	SPST	3PST
Switch type	SAFETY DOOR SWITCH	SAFETY DOOR SWITCH
Termination type	SCREW	SCREW
Base Number Matches	1	1
