UT69RH051W-CX datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> UT69RH051W-CX

UT69RH051W-CX: DescriptionMicrocontroller, 8-Bit, 20MHz, CMOS, CDFP44, 0.670 X 0.800 INCH, 0.025 INCH PITCH, DFP-44; CategoryThe embedded processor and controller Microcontrollers and processors; File Size968KB，19 Pages; ManufacturerCobham Semiconductor Solutions

Download Datasheet Parametric Compare View All

UT69RH051W-CX Overview

Microcontroller, 8-Bit, 20MHz, CMOS, CDFP44, 0.670 X 0.800 INCH, 0.025 INCH PITCH, DFP-44

UT69RH051W-CX Parametric

Parameter Name	Attribute value
Parts packaging code	DFP
package instruction	DFP,
Contacts	44
Reach Compliance Code	unknown
ECCN code	3A001.A.2.C
Has ADC	NO
Address bus width	16
bit size	8
maximum clock frequency	20 MHz
DAC channel	NO
DMA channel	NO
External data bus width	8
JESD-30 code	R-CDFP-F44
length	20.32 mm
Number of I/O lines	32
Number of terminals	44
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
PWM channel	YES
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DFP
Package shape	RECTANGULAR
Package form	FLATPACK
Certification status	Not Qualified
Maximum seat height	2.794 mm
speed	20 MHz
Maximum slew rate	120 mA
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	MILITARY
Terminal form	FLAT
Terminal pitch	0.635 mm
Terminal location	DUAL
width	17.018 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER
Base Number Matches	1

Preview

Download Datasheet

View All

Standard Products

UT69RH051 Radiation-Hardened MicroController

Data Sheet

June 2004

FEATURES

Three 16-bit timer/counters

- High speed output

- Compare/capture

- Pulse width modulator

- Watchdog timer capabilities

256 bytes of on-chip data RAM

32 programmable I/O lines

7 interrupt sources

Programmable serial channel with:

- Framing error detection

- Automatic address recognition

TTL and CMOS compatible logic levels

64K external data and program memory space

MCS-51 fully compatible instruction set

Flexible clock operation

- 1Hz to 20MHz with external clock

- 2MHz to 20MHz using internal oscillator with external

crystal

Radiation-hardened process and design; total dose irradia-

tion testing MIL-STD-883 Method 1019

- Total dose: 1.0E6 rads(Si)

- Latchup immune

Packaging options:

- 40-pin 100-mil center DIP (0.600 x 2.00)

- 44-lead 25-mil center Flatpack (0.670 x 0.800)

Standard Microcircuit Drawing 5962-95638 available

- QML Q & V compliant

RAM ADDRESS

PORT 0

DRIVERS

PORT 2

DRIVERS

RAM

PORT 0

LATCH

PORT 2

LATCH

PROGRAM

ADDRESS

BUFFER

INCREMENTER

PROGRAM

COUNTER

DPTR

ACC

TMP2

ALU

TMP1

PSEN

ALE

RST

INSTRUCTION

MICRO-

SEQUENCER

PSW

TMP3

STACK

POINTER

SPECIAL FUNCTION

REGISTERS,

TIMERS,

PCA,

SERIAL PORT

PORT 1

LATCH

PORT 1

DRIVERS

PORT 3

LATCH

PORT 3

DRIVERS

OSC.

XTAL1

XTAL2

P1.0 - P1.7

P3.0 - P3.7

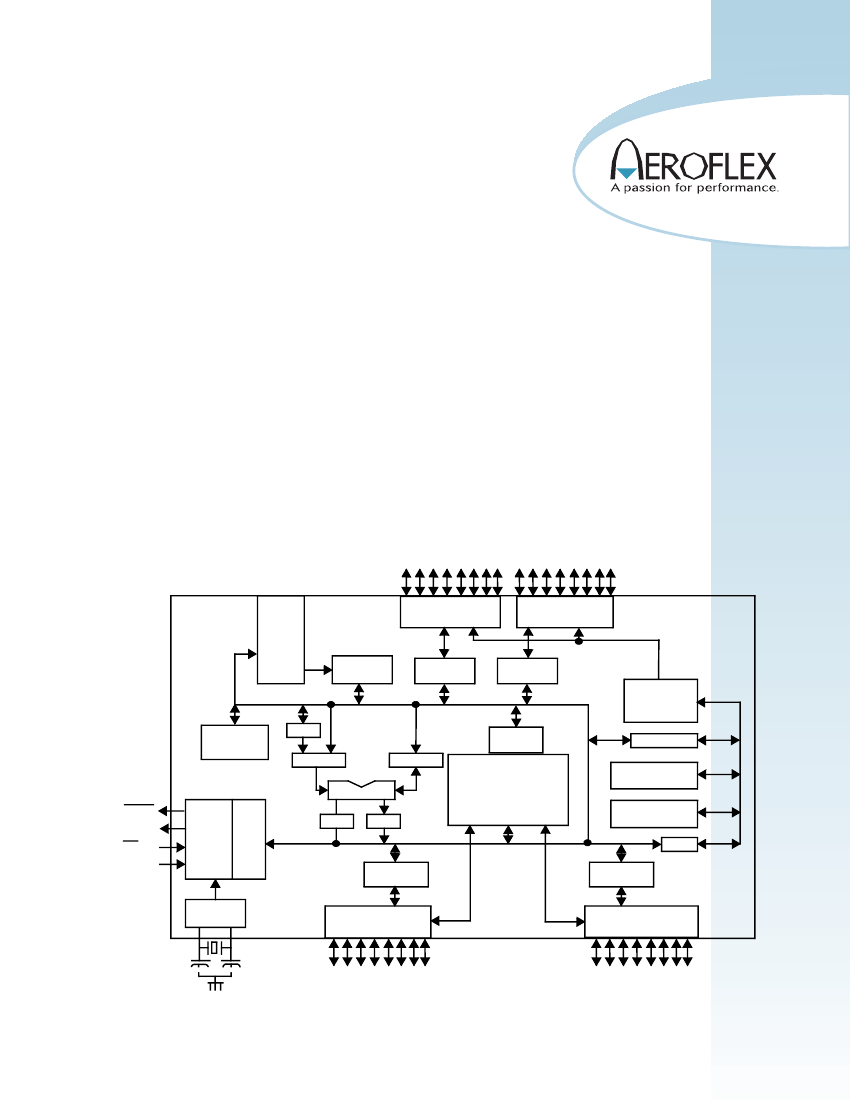

Figure 1. UT69RH051 MicroController Block Diagram

-1

UT69RH051W-CX Related Products

	UT69RH051W-CX	UT69RH051P-CX	UT69RH051W-CC	UT69RH051W-PA	UT69RH051W-PX	UT69RH051P-CC	UT69RH051W-CA
Description	Microcontroller, 8-Bit, 20MHz, CMOS, CDFP44, 0.670 X 0.800 INCH, 0.025 INCH PITCH, DFP-44	Microcontroller, 8-Bit, 20MHz, CMOS, CDIP40, 0.600 X 2 INCH, 0.100 INCH PITCH, SIDE BRAZED, DIP-40	Microcontroller, 8-Bit, 20MHz, CMOS, CDFP44, 0.670 X 0.800 INCH, 0.025 INCH PITCH, DFP-44	Microcontroller, 8-Bit, 20MHz, CMOS, CDFP44, 0.670 X 0.800 INCH, 0.025 INCH PITCH, DFP-44	Microcontroller, 8-Bit, 20MHz, CMOS, CDFP44, 0.670 X 0.800 INCH, 0.025 INCH PITCH, DFP-44	Microcontroller, 8-Bit, 20MHz, CMOS, CDIP40, 0.600 X 2 INCH, 0.100 INCH PITCH, SIDE BRAZED, DIP-40	Microcontroller, 8-Bit, 20MHz, CMOS, CDFP44, 0.670 X 0.800 INCH, 0.025 INCH PITCH, DFP-44
Parts packaging code	DFP	DIP	DFP	DFP	DFP	DIP	DFP
package instruction	DFP,	DIP,	DFP,	DFP,	DFP,	DIP,	DFP,
Contacts	44	40	44	44	44	40	44
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C
Has ADC	NO	NO	NO	NO	NO	NO	NO
Address bus width	16	16	16	16	16	16	16
bit size	8	8	8	8	8	8	8
maximum clock frequency	20 MHz	20 MHz	20 MHz	20 MHz	20 MHz	20 MHz	20 MHz
DAC channel	NO	NO	NO	NO	NO	NO	NO
DMA channel	NO	NO	NO	NO	NO	NO	NO
External data bus width	8	8	8	8	8	8	8
JESD-30 code	R-CDFP-F44	R-CDIP-T40	R-CDFP-F44	R-CDFP-F44	R-CDFP-F44	R-CDIP-T40	R-CDFP-F44
length	20.32 mm	50.8 mm	20.32 mm	20.32 mm	20.32 mm	50.8 mm	20.32 mm
Number of I/O lines	32	32	32	32	32	32	32
Number of terminals	44	40	44	44	44	40	44
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
PWM channel	YES	YES	YES	YES	YES	YES	YES
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DFP	DIP	DFP	DFP	DFP	DIP	DFP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLATPACK	IN-LINE	FLATPACK	FLATPACK	FLATPACK	IN-LINE	FLATPACK
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	2.794 mm	4.699 mm	2.794 mm	2.794 mm	2.794 mm	4.699 mm	2.794 mm
speed	20 MHz	20 MHz	20 MHz	20 MHz	20 MHz	20 MHz	20 MHz
Maximum slew rate	120 mA	120 mA	120 mA	120 mA	120 mA	120 mA	120 mA
Maximum supply voltage	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	NO	YES	YES	YES	NO	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY
Terminal form	FLAT	THROUGH-HOLE	FLAT	FLAT	FLAT	THROUGH-HOLE	FLAT
Terminal pitch	0.635 mm	2.54 mm	0.635 mm	0.635 mm	0.635 mm	2.54 mm	0.635 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
width	17.018 mm	15.24 mm	17.018 mm	17.018 mm	17.018 mm	15.24 mm	17.018 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER
Base Number Matches	1	1	1	1	1	-	-
