SKY73121-11

Description
Phase Locked Loop, 9 X 12 MM, GREEN, MCM-38
CategoryAnalog mixed-signal IC    The signal circuit
File Size259KB,22 Pages
ManufacturerSkyworks
Websitehttp://www.skyworksinc.com
Environmental Compliance
Download Datasheet Parametric View All

SKY73121-11 Overview

Phase Locked Loop, 9 X 12 MM, GREEN, MCM-38

SKY73121-11 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
Parts packaging codeMCM
package instructionQCCN,
Contacts38
Reach Compliance Codeunknown
Analog Integrated Circuits - Other TypesPHASE LOCKED LOOP
JESD-30 codeR-XQCC-N38
length12 mm
Number of functions1
Number of terminals38
Maximum operating temperature85 °C
Minimum operating temperature-40 °C
Package body materialUNSPECIFIED
encapsulated codeQCCN
Package shapeRECTANGULAR
Package formCHIP CARRIER
Peak Reflow Temperature (Celsius)NOT SPECIFIED
Certification statusNot Qualified
Maximum seat height1.85 mm
Maximum supply voltage (Vsup)5.25 V
Minimum supply voltage (Vsup)4.75 V
Nominal supply voltage (Vsup)5 V
surface mountYES
Temperature levelINDUSTRIAL
Terminal formNO LEAD
Terminal locationQUAD
Maximum time at peak reflow temperatureNOT SPECIFIED
width9 mm
Base Number Matches1
DATA SHEET
SKY73121-11: 1805–1890 MHz High Performance
VCO/Synthesizer With Integrated Switch
Applications
2G, 2.5G, and 3G base station transceivers:
GSM, EDGE, CDMA, WCDMA
General purpose RF systems
Description
Skyworks SKY73121-11 Voltage-Controlled Oscillator
(VCO)/Synthesizer is a fully integrated, high performance signal
source for high dynamic range transceivers. The device provides
ultra-fine frequency resolution, fast switching speed, and low
phase noise performance for 2G, 2.5G, and 3G base station
transceivers.
The SKY73121-11 VCO/Synthesizer is a key building block for
high-performance radio system designs that require low power
and a fine step size. Reference clock generators with an output
frequency up to 52 MHz can be used with the SKY73121-11. A
functional block diagram is shown in Figure 1. As indicated in this
diagram, the reference frequency is divided down by 1, 2, 4, or 8
in the R1 divider, depending on the value of the reference divisor
input (R1). Refer to the Reference Input Divider section (page 10)
for more information.
The SKY73121-11 VCO/Synthesizer is provided in a compact,
38-pin Multi-Chip Module (MCM). The device package and pinout
are shown in Figure 2. Signal pin assignments and functional pin
descriptions are provided in Table 1.
Features
Frequency operation range: 1805 to 1890 MHz
Process-tolerant compensation for VCO
24-bit
fractional-N synthesizer
Ultra-fine frequency resolution of 0.001 ppm
Flexible reference frequency selection
Three-wire serial interface up to 20 MHz clock frequency
Integrated PLL supply regulation for spur isolation
MCM (38-pin, 9 x 12 mm) SMT package (MSL3, 260 C per
JEDEC J-STD-020)
Varactor
Vtune
Lr
Cal
Lr
2
2
2
Buffer
VCO Out +
VCO Out –
Z = 1:4
RF Output
SW_EN
SR Out +
7
2
SR Out –
Vtune
cap
[6:0]
Flag
PLL
Low Pass Filter
3-Wire
Serial
Interface
CLK
LE
DAT
R1
SP1
SC1
CPO RF
FREF
R1
Divider
RF
PFD
RF Charge
Pump
N
PS
RF
IN
7
Mux
(LD/Test)
N
Divider
FN
ME
Divide-by-2
P/P+1
Prescaler
RF
INB
LD
ΔΣ
Modulator
Digital
Coarse
Calibration
cap
[6:0]
7
Calibration
Complete
S1040

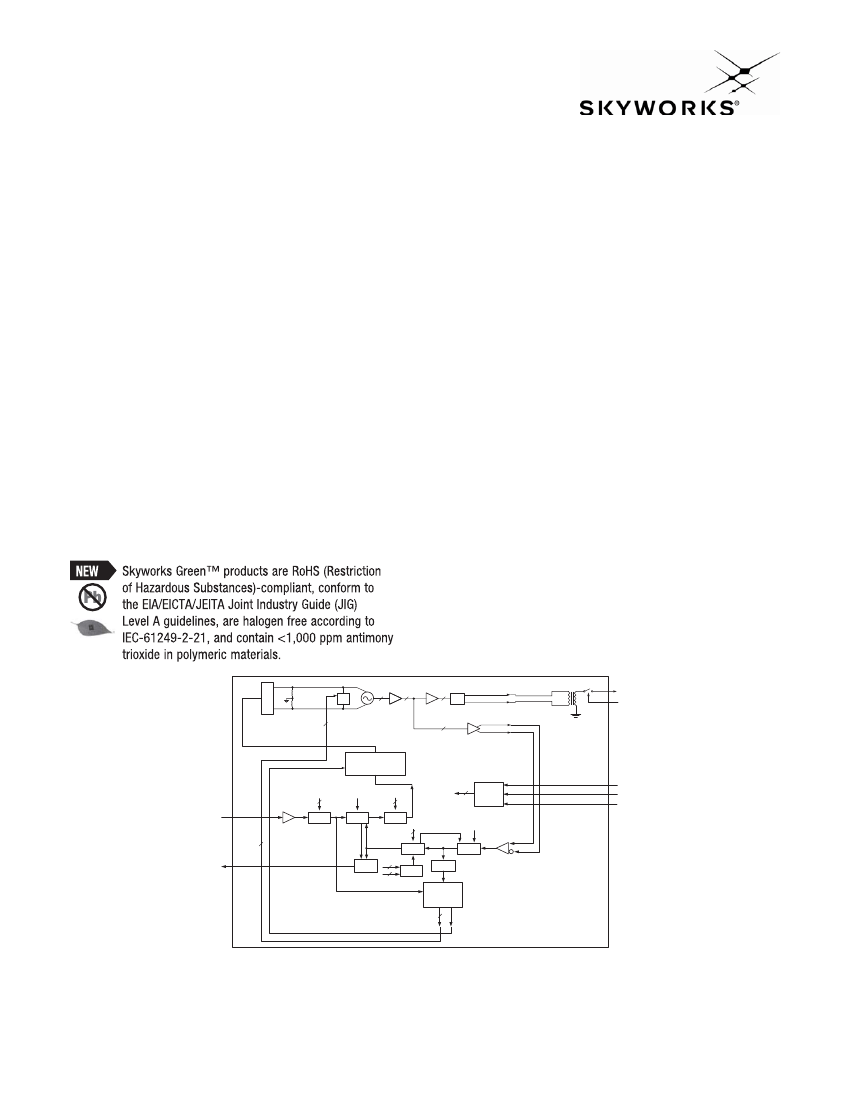

Figure 1. SKY73121-11 Functional Block Diagram
Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com
200888B • Skyworks Proprietary Information • Products and Product Information are Subject to Change Without Notice • December 1, 2009
1
