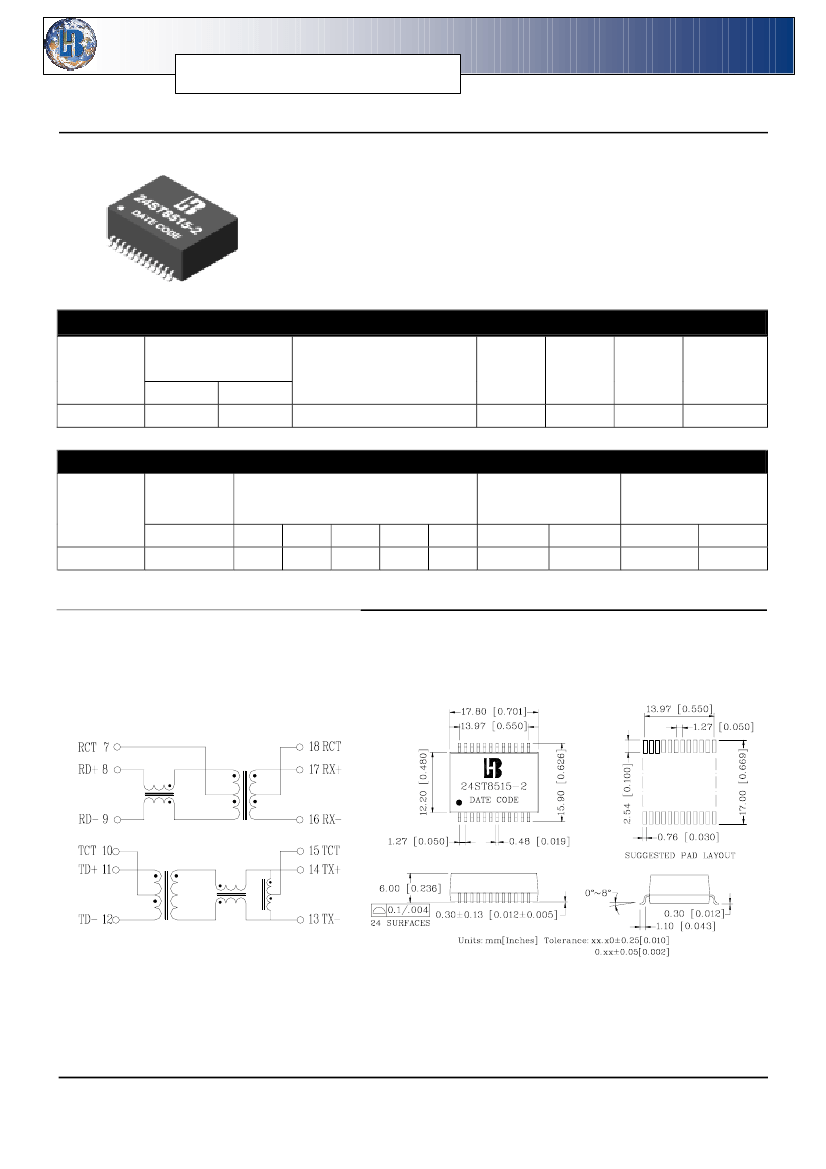

P/N: 24ST8515-2 DATA SHEET

Feature

!

Designed for 10/100 MB/s transmission over UTP-5 cable.

Cable interface for isolation and low common mode

Emissions.

24-PIN SMD package, pick and place compatible.

Operating temperature range: 0℃ to +70℃.

Storage temperature range: -25℃ to +125℃.

Electrical Specifications @ 25°C

Part

Number

TX

24ST8515-2

1CT:1

Turns Ratio

(±5%)

RX

1CT:1CT

OCL (uH Min)

@100KHz/0.1V

with 8mA DC Bias

350

L.L

(uH Max)

0.6

C

W/W

(pF Max)

28

Rise Time

10-90%

(nS Typ)

2.5

HI-POT

(Vrms)

1500

Continue

Part

Number

24ST8515-2

Insertion Loss

(dB Max)

0.3-100MHz

-1.15

Return Loss

(dB Min)

Cross talk Attenuation

(dB Min)

DCMR

TX/RX(dB Min)

0.3-60MHz 60-100MHz

-35/-30

30MHz 40MHz 50MHz 60MHz 80MHz 0.3-60MHz 60-80MHz

-16

-14

-13.5

-13

-12

-40

-30

Schematic

Mechanical
