MPV380S1QJFREQ datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> oscillator> MPV380S1QJFREQ

Preview

MPV380S1QJFREQ: DescriptionPECL Output Clock Oscillator, 30MHz Min, 800MHz Max; CategoryPassive components oscillator; File Size59KB，1 Pages; ManufacturerMtronPTI; Websitehttp://www.mtronpti.com

Download Datasheet Parametric View All

MPV380S1QJFREQ Overview

PECL Output Clock Oscillator, 30MHz Min, 800MHz Max

MPV380S1QJFREQ Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Reach Compliance Code	unknown
Other features	COMPLEMENTARY OUTPUT; ENABLE/DISABLE FUNCTION
Maximum control voltage	3.3 V
Minimum control voltage
maximum descent time	0.55 ns
Frequency Adjustment - Mechanical	NO
Frequency offset/pull rate	50 ppm
frequency stability	35%
linearity	10%
Installation features	SURFACE MOUNT
Maximum operating frequency	800 MHz
Minimum operating frequency	30 MHz
Maximum operating temperature	50 °C
Minimum operating temperature
Oscillator type	PECL
physical size	14.22mm x 9.78mm x 4.7mm
longest rise time	0.55 ns
Maximum supply voltage	3.465 V
Minimum supply voltage	3.135 V
Nominal supply voltage	3.3 V
surface mount	YES
maximum symmetry	40/60 %
Base Number Matches	1

Preview

Download Datasheet

View All

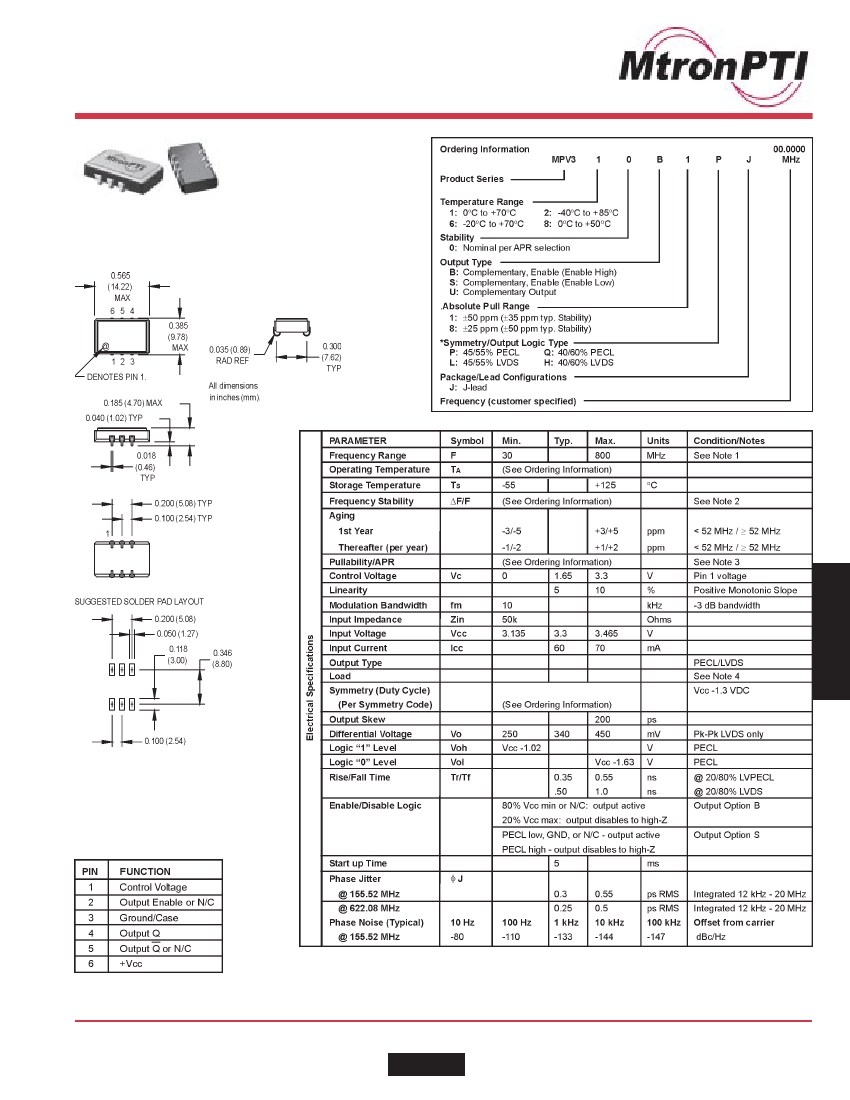

MPV3J Series

9x14 mm, 5.0 or 3.3 Volt, PECL/LVDS, VCXO

•

Ultra low jitter VCXO approaching

SAW jitter performance but with the

temperature stability advantage of a

crystal based resonator

V

C

X

O

Pin Connections

1. Consult factory for exact frequency availability.

2. Stability given for deviation over temperature.

3. APR specification inclusive of initial tolerance, deviation over temperature, shock, vibration, supply voltage, and aging.

4. PECL load - see load circuit diagram #5 on page 116. LVDS load - see load circuit diagram #9 on page 117.

MtronPTI reserves the right to make changes to the product(s) and service(s) described herein without notice. No liability is assumed as a result of their use or application.

Please see

www.mtronpti.com

for our complete offering and detailed datasheets. Contact us for your application specific requirements: MtronPTI

1-800-762-8800.
