D Subminiature Connector, 25 Contact(s), Male, 0.109 inch Pitch, Press Fit Terminal, Hole .112-.124, Receptacle, LEAD FREE

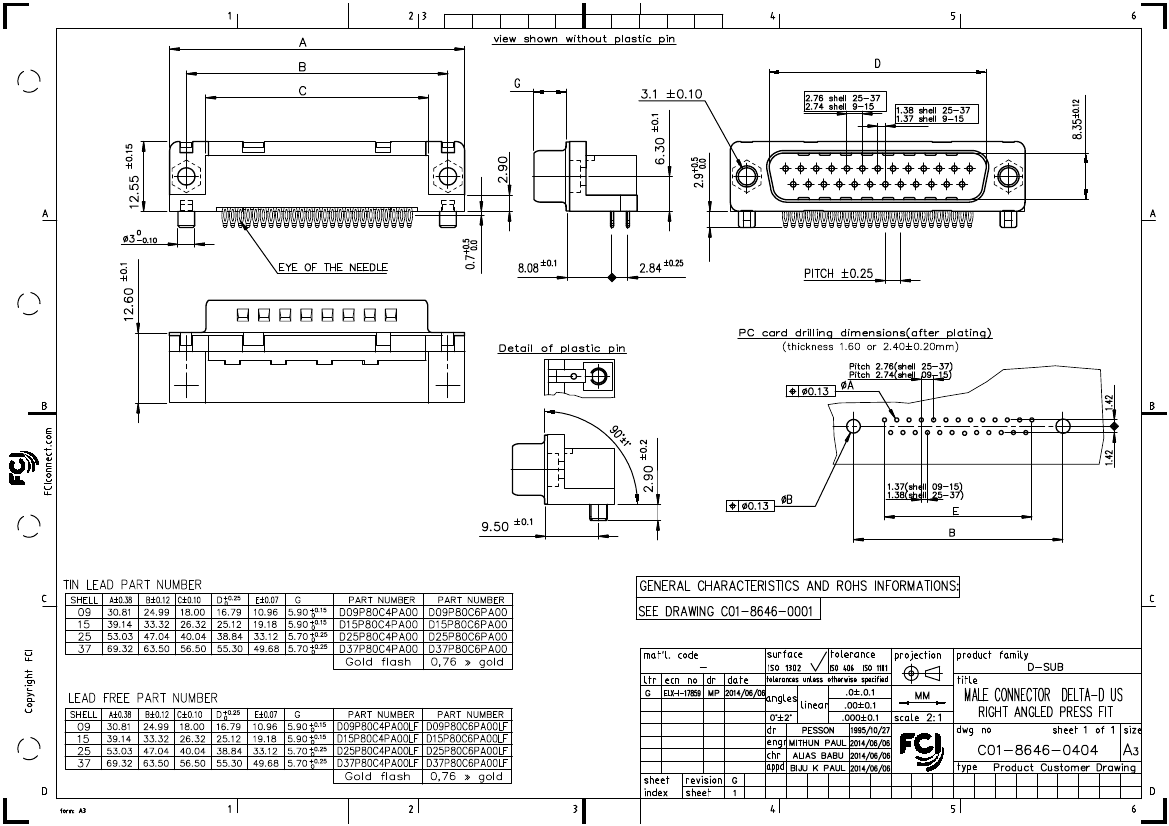

| Parameter Name | Attribute value |
| Is it lead-free? | Lead free |
| Is it Rohs certified? | conform to |
| package instruction | LEAD FREE |
| Reach Compliance Code | compliant |
| ECCN code | EAR99 |
| Other features | ROHS COMPLIANT |
| body width | 0.494 inch |
| subject depth | 0.496 inch |
| body length | 2.088 inch |
| Body/casing type | RECEPTACLE |
| Connector type | D SUBMINIATURE CONNECTOR |
| Contact to complete cooperation | NOT SPECIFIED |
| Contact point gender | MALE |
| Contact material | NOT SPECIFIED |
| contact mode | STAGGERED |
| Contact resistance | 10 mΩ |
| Contact style | RND PIN-SKT |
| DIN compliance | NO |
| Dielectric withstand voltage | 1400VAC V |
| empty shell | NO |
| Filter function | NO |
| IEC compliance | NO |
| maximum insertion force | 4.8928 N |
| Insulation resistance | 5000000000 Ω |
| insulator material | THERMOPLASTIC |
| MIL compliance | NO |
| Manufacturer's serial number | D |
| Plug contact pitch | 0.109 inch |
| Match contact row spacing | 0.112 inch |
| Mixed contacts | NO |
| Installation option 1 | HOLE .112-.124 |
| Installation option 2 | LOCKING |
| Installation method | RIGHT ANGLE |
| Installation type | BOARD |
| PCB row number | 2 |
| Number of rows loaded | 2 |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -55 °C |
| Options | GENERAL PURPOSE |
| PCB contact pattern | STAGGERED |
| PCB contact row spacing | 2.8448 mm |
| Plating thickness | FLASH inch |
| Rated current (signal) | 5 A |
| Guideline | UL |
| reliability | COMMERCIAL |
| Shell surface | TIN |
| Shell material | STEEL |
| Housing size | 3/B |
| Terminal length | 0.114 inch |
| Terminal pitch | 2.7686 mm |
| Termination type | PRESS FIT |
| Total number of contacts | 25 |
| Evacuation force-minimum value | .3058 N |
| Base Number Matches | 1 |
| D25P80C4PA00LF | D15P80C4PA00LF | D15P80C4PA00 | D25P80C4PA00 | |
|---|---|---|---|---|
| Description | D Subminiature Connector, 25 Contact(s), Male, 0.109 inch Pitch, Press Fit Terminal, Hole .112-.124, Receptacle, LEAD FREE | D Subminiature Connector, 15 Contact(s), Male, 0.108 inch Pitch, Press Fit Terminal, Hole .112-.124, Receptacle, LEAD FREE | D Subminiature Connector, 15 Contact(s), Male, Press Fit Terminal | D Subminiature Connector, 25 Contact(s), Male, Press Fit Terminal, |
| Reach Compliance Code | compliant | compliant | compliant | compliant |
| ECCN code | EAR99 | EAR99 | EAR99 | EAR99 |
| Connector type | D SUBMINIATURE CONNECTOR | D SUBMINIATURE CONNECTOR | D SUBMINIATURE CONNECTOR | D SUBMINIATURE CONNECTOR |
| Contact to complete cooperation | NOT SPECIFIED | NOT SPECIFIED | GOLD FLASH | GOLD FLASH |
| Contact point gender | MALE | MALE | MALE | MALE |
| DIN compliance | NO | NO | NO | NO |
| empty shell | NO | NO | NO | NO |
| Filter function | NO | NO | NO | NO |
| IEC compliance | NO | NO | NO | NO |
| insulator material | THERMOPLASTIC | THERMOPLASTIC | POLYETHYLENE | POLYETHYLENE |
| MIL compliance | NO | NO | NO | NO |
| Mixed contacts | NO | NO | NO | NO |
| Installation type | BOARD | BOARD | BOARD | BOARD AND PANEL |
| Options | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE |
| Shell surface | TIN | TIN | TIN | TIN |
| Shell material | STEEL | STEEL | STEEL | STEEL |
| Housing size | 3/B | 2/A | 2/A | 3/B |
| Termination type | PRESS FIT | PRESS FIT | PRESS FIT | PRESS FIT |
| Total number of contacts | 25 | 15 | 15 | 25 |
| body width | 0.494 inch | 0.494 inch | - | 0.494 inch |
| subject depth | 0.496 inch | 0.496 inch | - | 0.496 inch |
| body length | 2.088 inch | 1.541 inch | - | 2.07 inch |
| contact mode | STAGGERED | STAGGERED | - | STAGGERED |
| Contact style | RND PIN-SKT | RND PIN-SKT | - | RND PIN-SKT |
| Plug contact pitch | 0.109 inch | 0.108 inch | - | 0.109 inch |
| Match contact row spacing | 0.112 inch | 0.112 inch | - | 0.112 inch |
| Installation option 1 | HOLE .112-.124 | HOLE .112-.124 | - | HOLE .122 |
| Installation option 2 | LOCKING | LOCKING | - | LOCKING |
| Installation method | RIGHT ANGLE | RIGHT ANGLE | - | RIGHT ANGLE |
| PCB row number | 2 | 2 | - | 2 |
| Number of rows loaded | 2 | 2 | - | 2 |
| Maximum operating temperature | 125 °C | 125 °C | - | 125 °C |
| Minimum operating temperature | -55 °C | -55 °C | - | -55 °C |
| PCB contact pattern | STAGGERED | STAGGERED | - | STAGGERED |
| PCB contact row spacing | 2.8448 mm | 2.8448 mm | - | 2.84 mm |
| Rated current (signal) | 5 A | 5 A | - | 5 A |
| Terminal pitch | 2.7686 mm | 2.7432 mm | - | 2.76 mm |
| Base Number Matches | 1 | 1 | 1 | - |
