Frontier Electronics Corp.
667 E. COCHRAN STREET, SIMI VALLEY, CA 93065
TEL: (805) 522-9998
FAX: (805) 522-9989
E-mail: frontiersales@frontierusa.com
Web: frontierusa.com
Insert Molded Coil—
2433 series

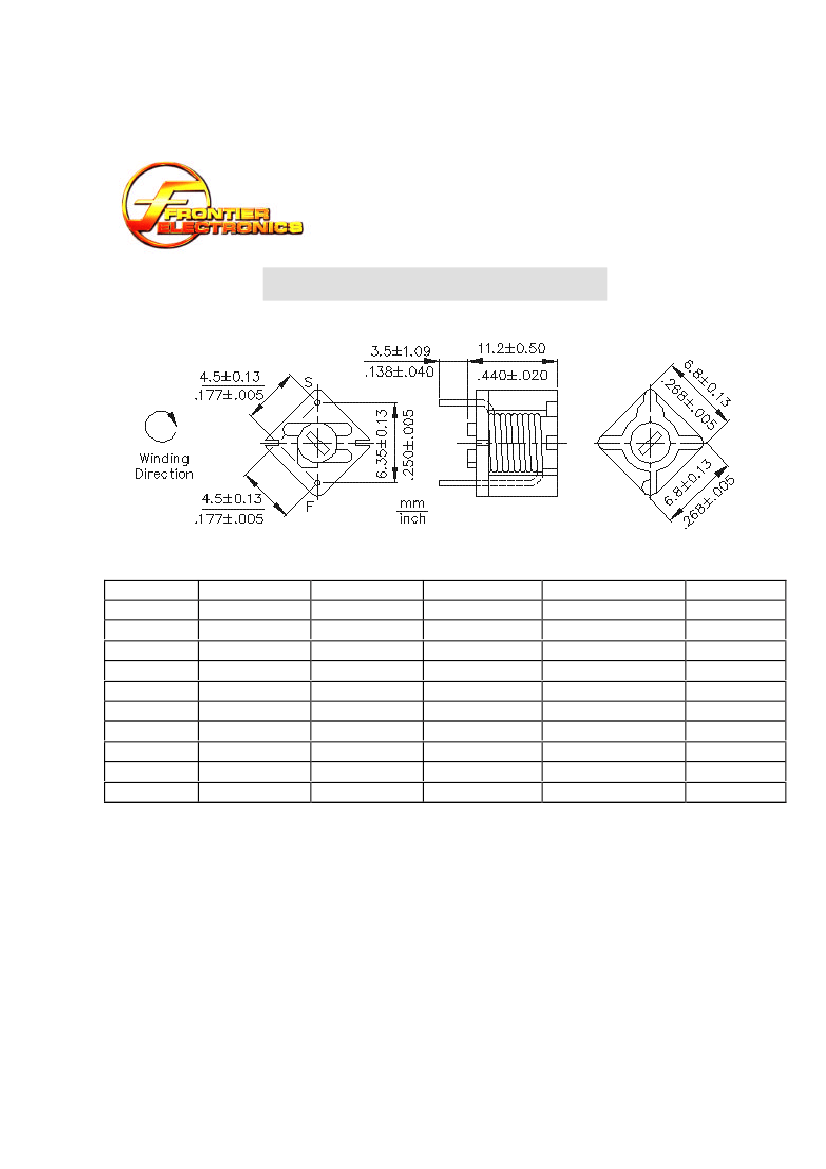

A. Mechanical Drawing:
B. Electrical Specification:
Part No.
2433-01
2433-02
2433-03
2433-04
2433-05
2433-06
2433-07
2433-08
2433-09
2433-10
C. Features:
1. Plastic molded.
2. High reliability.
3. Low cost.
L Min. (uH)
0.047
0.068
0.090
0.117
0.148
0.188
0.231
0.272
0.330
0.390
L Nom. (uH)
0.048
0.078
0.108
0.146
0.190
0.240
0.292
0.342
0.405
0.465
L Max. (uH)
0.049
0.085
0.126
0.175
0.232
0.292
0.350
0.412
0.480
0.540
Q Min. @ L Nom.
90 @ 50MHz
100 @ 50MHz
100 @ 50MHz
94 @ 50MHz
88 @ 50 MHz
78 @ 50 MHz
72 @ 50 MHz
68 @ 50 MHz
66 @ 40 MHz
60 @ 40 MHz
Color
Brown
Red
Orange
Yellow
Green
Blue
Violet
Gray
White
Black
D. Measurement:
1. Q and L measured with ½” long of TCW#16 soldered along the coil leads and with one end flush with the
bottom of the coil then bent ¼” down from stand off at an angle of 90°.
2. L min. measured with core halfway out of the top of the form.
3. Inductance greater than 0.1uH read at recommended Q meter frequency.
4. Inductance below 0.1uH calculated from readings taken at 50MHz.
E. Test equipment:
Q meter (HP 4342A)
IMC 2433 series
Mar. 15, 2002 Page 1 of 1
