MIL-DTL-38999
Connectors
MIL-DTL-38999 Series III
Filter Connector
Product Code
240-383E

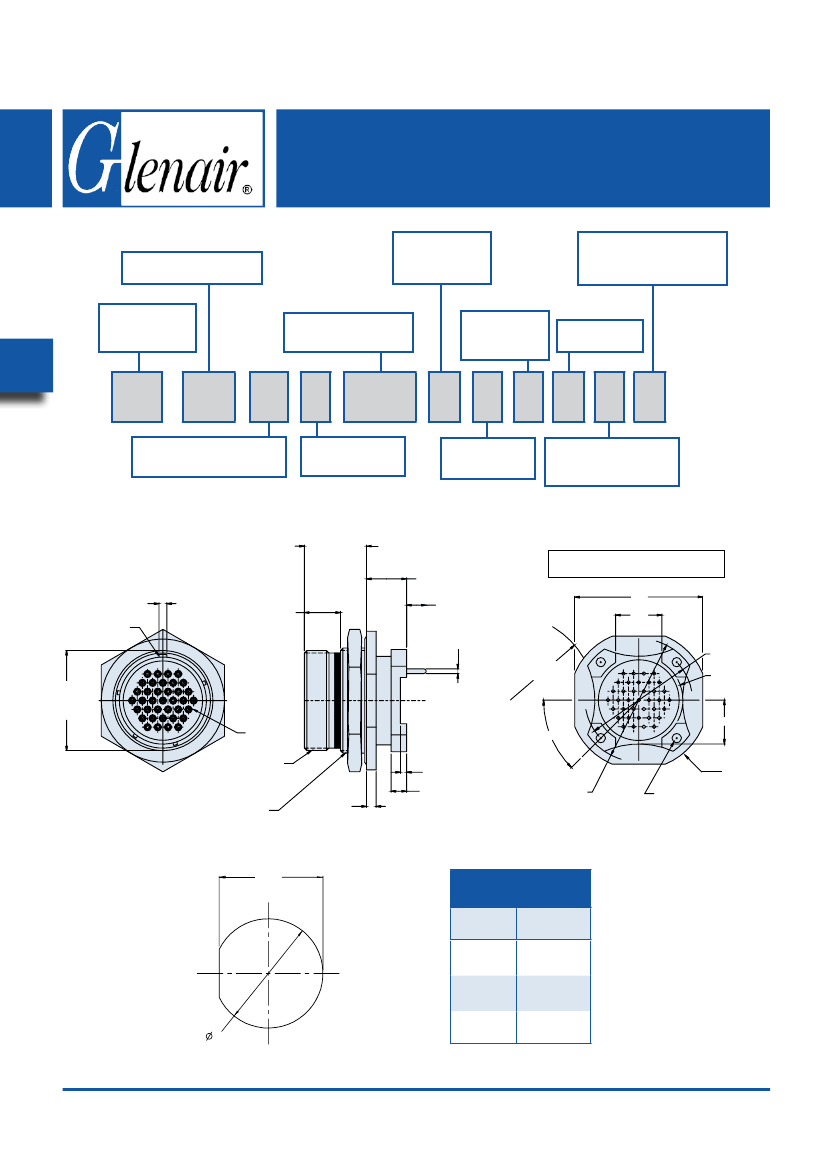

MIL-DTL-38999 Series III Filter Connector
Dual Flange Jam Nut Receptacle
Contact Gender
P
- Pin
S
- Socket
Alternate Key Position
Per MIL-DTL-38999
A, B, C, D, E, N = Normal
B
Insert Arrangement
IAW MIL-STD-1560
Filter Type
P
- Pi Circuit
C
- C Circuit
Capacitance
(See Table II)
240 - 383
E
P
15-35
P
P
P
A
N
N
Shell Style
E
- Dual Flange Jam Nut
Connector Class
(See Table I)
Termination
P
- PC Tail
Flange Mounting Style
N
- Not Applicable
.835/.825
(21.2/21.0)
.130/.120 (3.3/3.0)
.131/.125 (3.3/3.2)
Master
Keyway
.675/.671 (17.1/17.0)
.172/.132
(4.4/3.4)
U
(see Table IV)
Radius H
4 Places
10
16
28
33
37
34
29
23
16
23
28
29
33
34
37
10
E
- Dual Flange Jam Nut
F
2 Places
P
4 Places
Interrupted
K Dia
1
5
4
9
15
22
.510 (13.0)
Max Red Band
Full Mate Indicator
4
9
15
22
1
5
D
Flat
Interrupted
L Dia
See
Note 3
Thread B
N (4 Places)
45° 4 Places
.100 (2.5)
.110
(2.8)
.250 (6.4)
Interrupted J Dia
Ø
E
Thread R
4-40 Helicoils
Installed per NASM 33537
Tang Removed
J Flat
TABLE IV:
PC TAIL DIAMETER
Contact
Size
22D
20
Ø
U
.018/.021
(0.5/0.5)
.029/.031
(0.7/0.8)
.038/.042
(1.0/1.1)
H
16
© 2008 Glenair, Inc.
www.glenair.com
CAGE CODE 06324
Printed in U.S.A.
E-Mail: sales@glenair.com
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
B-32
240-383E
MIL-DTL-38999 Series III Filter Connector
Dual Flange Jam Nut Receptacle
TABLE I: CONNECTOR CLASS
SYM
M
MT
NF
P
XM
XMT
XW
ZN
H2*
CLASS
Environmental
Environmental
Environmental
Environmental
Environmental
Environmental
Environmental
Environmental
Hermetic
MATERIAL
Aluminum
Aluminum
Aluminum
Stainless
Composite
Composite
Composite
Aluminum
Stainless
FINISH DESCRIPTION
Electroless Nickel
Nickel Fluorocarbon Polymer (Ni-PTFE)
MIL-DTL-38999 Series III
Jam Nut Panel Cutout
SHELL
SIZE
09
11
13
15
17
H
.710 (18.0)
.700 (17.8)
.835 (21.2)
.825 (21.0)
1.020 (25.9)
1.010 (25.7)
1.145 (29.1)
1.135 (28.8)
1.270 (32.3)
1.260 (32.0)
1.395 (35.4)
1.385 (35.2)
1.520 (38.6)
1.510 (38.4)
1.645 (41.8)
1.635 (41.5)
1.770 (45.0)
1.760 (44.7)
J
.670 (17.0)
.660 (16.8)
.771 (19.6)
.761 (19.3)
.955 (24.3)
.945 (24.0)
1.085 (27.6)
1.075 (27.3)
1.210 (30.7)
1.200 (30.5)
1.335 (33.9)
1.325 (33.7)
1.460 (37.1)
1.450 (36.8)
1.585 (40.3)
1.575 (40.0)
1.710 (43.4)
1.700 (43.2)
Cad. O.D. Over Electroless Nickel
Electro-Deposited Nickel
Electroless Nickel
Nickel Fluorocarbon Polymer (Ni-PTFE)
Cad. O.D. Over Electroless Nickel
Zinc-Nickel Over Electroless Nickel
Electroless Nickel
* Some dimensions do not apply, see sales drawing 240-383JH2
TABLE II: CAPACITOR ARRAY CODE
CAPACITANCE RANGE
CLASS
X*
Y*
Z*
A
B
C
D
E
F
G
PI - CIRCUIT (pF)
160,000 - 240,000
80,000 - 120,000
60,000 - 90,000
38,000 - 56,000
32,000 - 45,000
18,000 - 33,000
8,000 - 12,000
3,300 - 5,000
800 - 1,300
400 - 600
C - CIRCUIT (pF)
80,000 - 120,000
40,000 - 60,000
30,000 - 45,000
19,000 - 28,000
16,000 - 22,500
9,000 - 16,500
4,000 - 6,000
1,650 - 2,500
400 - 650
200 - 300
19
21
23
25
Consult Factory for
Additional Filter Types,
TVS Diodes, and other
Custom Configurations.
* Reduced DWV – Please consult factory.
TABLE III: DIMENSIONS
SHELL
B Thread (Plated)
SIZE
9
11
13
15
17
19
21
23
25
D
+ .005
ØE
+ .012
F
+ .016
P
+.010
(0.25)
R Thread
Metric
(Plated)
J Dia
+.005
(0.13)
K Dia
Basic
L Dia
+.005
(0.13)
.532 (13.5)
.595 (15.1)
.720 (18.3)
H
+.020
(0.51)
.225 (5.7)
.250 (6.4)
.375 (9.5)
N
+.020
(0.51)
.275 (7.0)
.290 (7.4)
.370 (9.4)
.625- . 1P- .3L-TS-2A .651 (16.5) 1.250 (31.8) 1.063 (27.0) .225 (5.7) M17 x 1-6g-0.10R 1.016 (25.8) .752 (19.1)
.7500- .1P- .3L-TS-2A .751 (19.1) 1.377 (35.0) 1.259 (32.0) .250 (6.4) M20 x 1-6g-0.10R 1.062 (27.0) .850 (21.6)
.8750- .1P- .3L-TS-2A .937 (23.8) 1.500 (38.1) 1.374 (34.9) .250 (6.4) .M25 x 1-6g-0.10R 1.250 (31.8) .994 (25.2)
1.0000- .1P- .3L-TS-2A 1.063 (27.0) 1.625 (41.3) 1.500 (38.1) .325 (8.2) M28 x 1-6g-0.10R 1.375 (34.9) 1.119 (28.4) .843 (21.4) .438 (11.1) .440 (11.2)
1.8750- .1P- .3L-TS-2A 1.187 (30.2) 1.750 (44.5) 1.625 (41.3) .375 (9.5) M32 x 1-6g-0.10R 1.500 (38.1) 1.237 (31.4) 1.000 (25.4) .562 (14.3) .495 (12.6)
1.2500- .1P- .3L-TS-2A 1.311 (33.3) 1.937 (49.2) 1.822 (46.3) .500 (12.7) M35 x 1-6g-0.10R 1.625 (41.3) 1.379 (35.0) 1.125 (28.6) .875 (22.2) .540 (13.7)
1.3750- .1P- .3L-TS-2A 1.434 (36.4) 2.063 (52.4) 1.940 (49.3) .562 (14.3) M38 x 1-6g-0.10R 1.750 (44.5) 1.489 (37.8) 1.240 (31.5) 1.170 (29.7) .625 (15.9)
1.5000- .1P- .3L-TS-2A 1.561 (39.7) 2.190 (55.6) 2.073 (52.7) .688 (17.5) M41 x 1-6g-0.10R 1.875 (47.6) 1.619 (41.1) 1.328 (33.7) 1.250 (31.8) .660 (16.8)
1.6250- .1P- .3L-TS-2A 1.687 (42.9) 2.311 (58.7) 2.189 (55.6) .750 (19.1) M44 x 1-6g-0.10R 2.000 (50.8) 1.744 (44.3) 1.453 (36.9) 1.375 (34.9) .740 (18.8)
