SS-718804S-A-PG4-BC datasheet, PDF

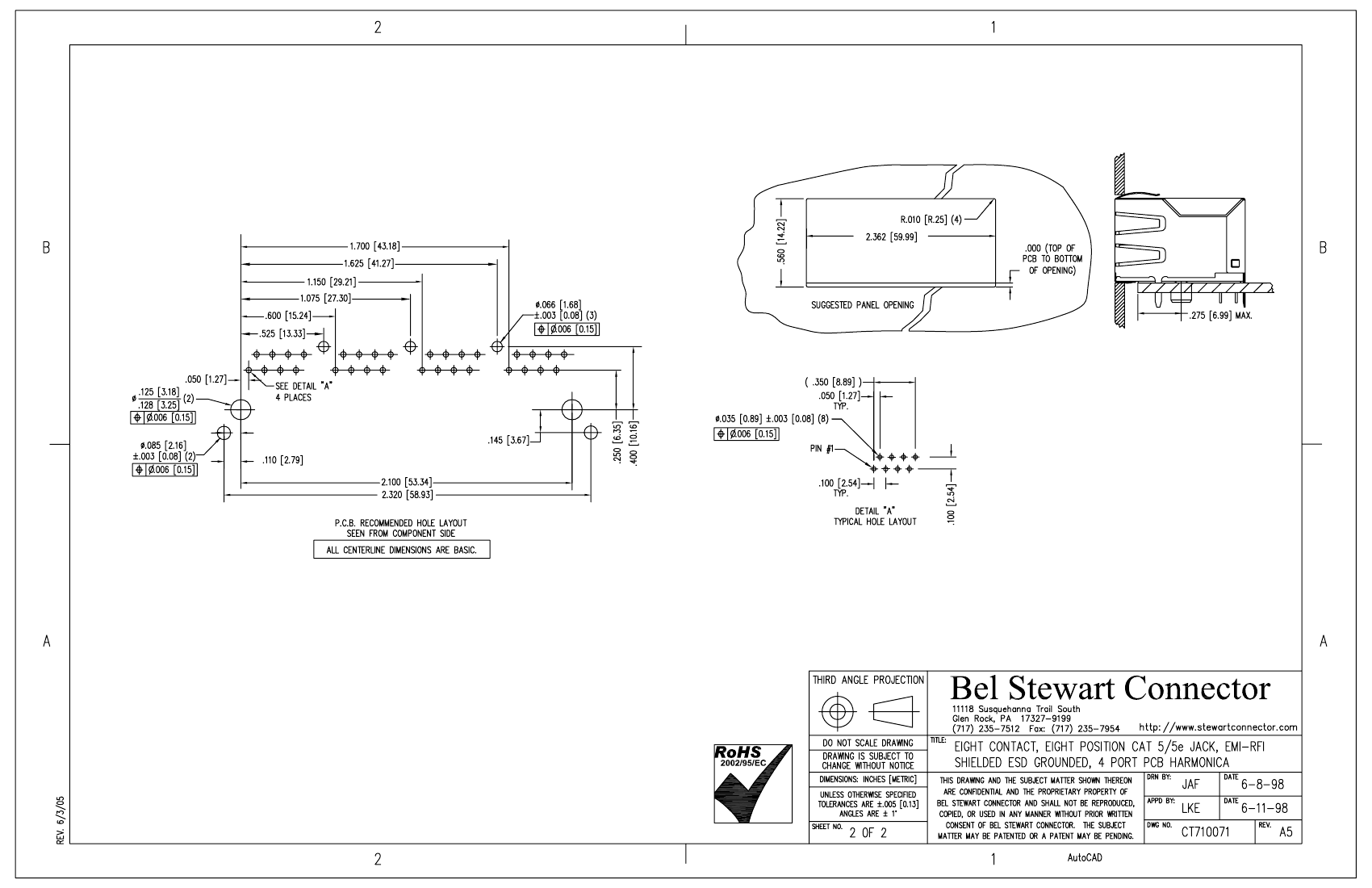

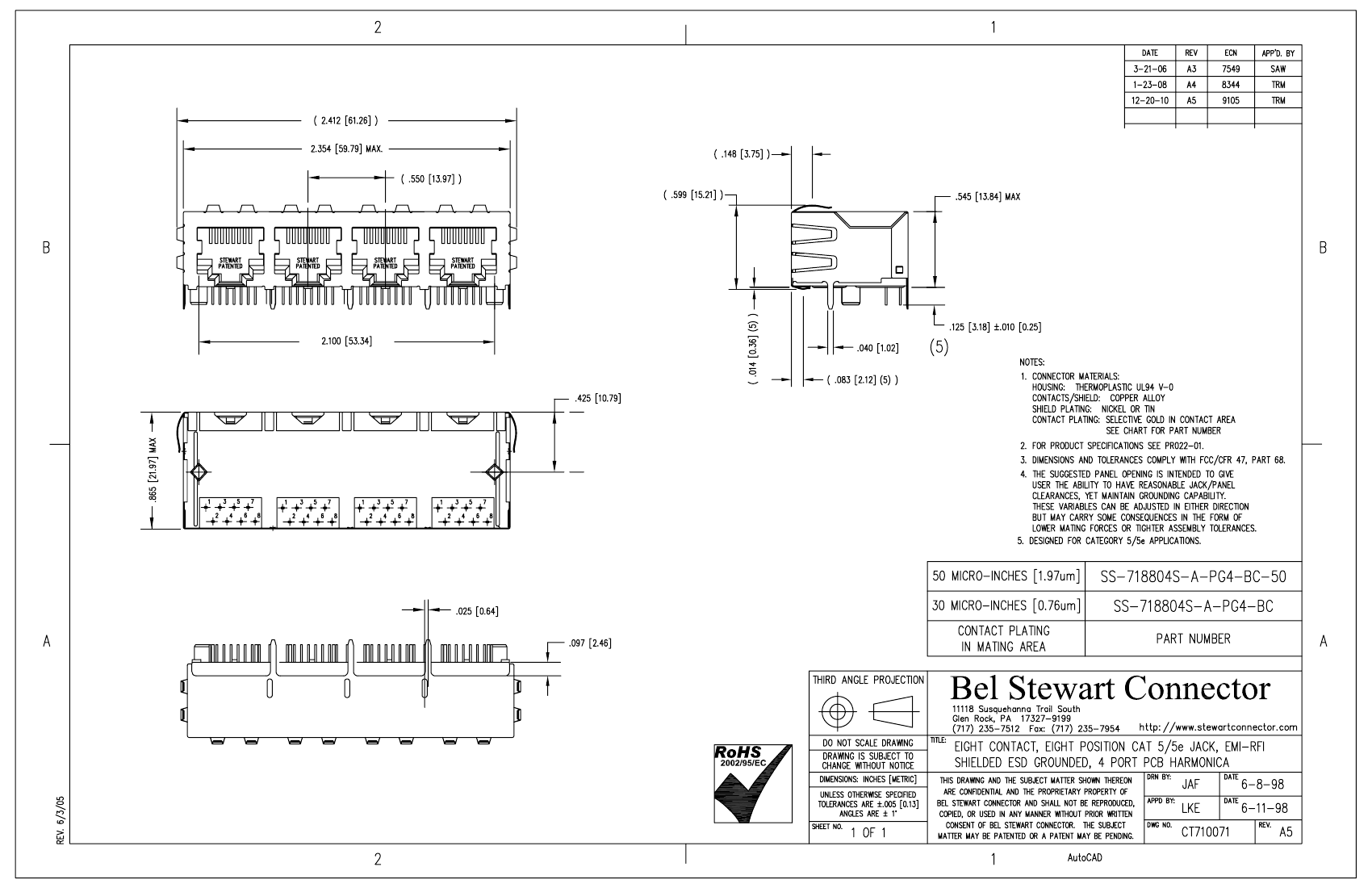

SS-718804S-A-PG4-BC: DescriptionTelecom and Datacom Connector, 32 Contact(s), Female, Right Angle, Solder Terminal, Locking, Jack, ROHS COMPLIANT; CategoryThe connector The connector; File Size172KB，2 Pages; ManufacturerBel Fuse; Environmental Compliance

Download Datasheet Parametric Compare View All

SS-718804S-A-PG4-BC Overview

Telecom and Datacom Connector, 32 Contact(s), Female, Right Angle, Solder Terminal, Locking, Jack, ROHS COMPLIANT

Parameter Name	Attribute value
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	4 PORT, 8-POSITION EACH, EMI SHIELDED
Board mount options	COMPLIANT BOARDLOCK & PEGS
body width	0.599 inch
subject depth	0.865 inch
body length	2.354 inch
Body/casing type	JACK
Connector type	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	GOLD (30)
Contact point gender	FEMALE
Contact material	COPPER ALLOY
Contact resistance	15 mΩ
Contact style	TELCOM, MODULAR
DIN compliance	NO
Dielectric withstand voltage	1000VAC V
empty shell	NO
Filter function	NO
IEC compliance	NO
Insulation resistance	500000000 Ω
insulator material	POLYETHYLENE
MIL compliance	NO
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD AND PANEL
Number of ports	4
Maximum operating temperature	85 °C
Minimum operating temperature	-20 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
Plating thickness	30u inch
Rated current (signal)	1.5 A
Guideline	UL, CSA
reliability	COMMERCIAL
Shell surface	NICKEL/TIN
Shell material	COPPER ALLOY
Terminal length	0.125 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	32
UL Flammability Code	94V-0
Base Number Matches	1

	SS-718804S-A-PG4-BC	SS-718804S-S-PG4-BC-50
Description	Telecom and Datacom Connector, 32 Contact(s), Female, Right Angle, Solder Terminal, Locking, Jack, ROHS COMPLIANT	Telecom and Datacom Connector, 32 Contact(s), Female, Right Angle, Solder Terminal, Jack, ROHS COMPLIANT
package instruction	ROHS COMPLIANT	ROHS COMPLIANT
Reach Compliance Code	compliant	compliant
Other features	4 PORT, 8-POSITION EACH, EMI SHIELDED	4 PORT, 8-POSITION EACH, EMI SHIELDED
Body/casing type	JACK	JACK
Connector type	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR
Contact point gender	FEMALE	FEMALE
DIN compliance	NO	NO
empty shell	NO	NO
Filter function	NO	NO
IEC compliance	NO	NO
insulator material	POLYETHYLENE	POLYETHYLENE
MIL compliance	NO	NO
Mixed contacts	NO	NO
Installation method	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD AND PANEL	BOARD AND PANEL
Number of ports	4	4
Options	GENERAL PURPOSE	GENERAL PURPOSE
Shell surface	NICKEL/TIN	NICKEL/TIN
Shell material	COPPER ALLOY	COPPER ALLOY
Termination type	SOLDER	SOLDER
Total number of contacts	32	32
UL Flammability Code	94V-0	94V-0
