M-980-01SMTR datasheet, PDF - EEWORLD Datasheet

M-980-01SMTR: DescriptionTone Decoder Circuit, PDSO16,; CategoryWireless rf/communication Telecom circuit; File Size165KB，5 Pages; ManufacturerIndustrial Defender Inc

Download Datasheet Parametric Compare View All

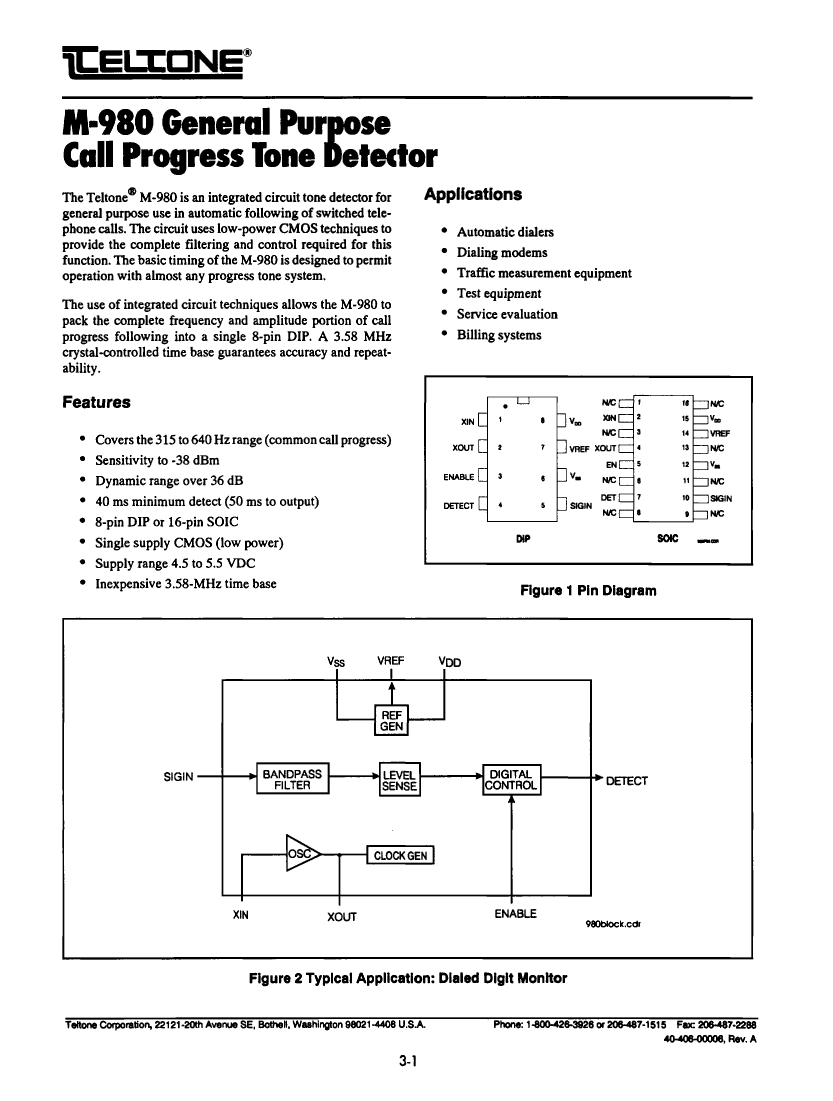

M-980-01SMTR Overview

Tone Decoder Circuit, PDSO16,

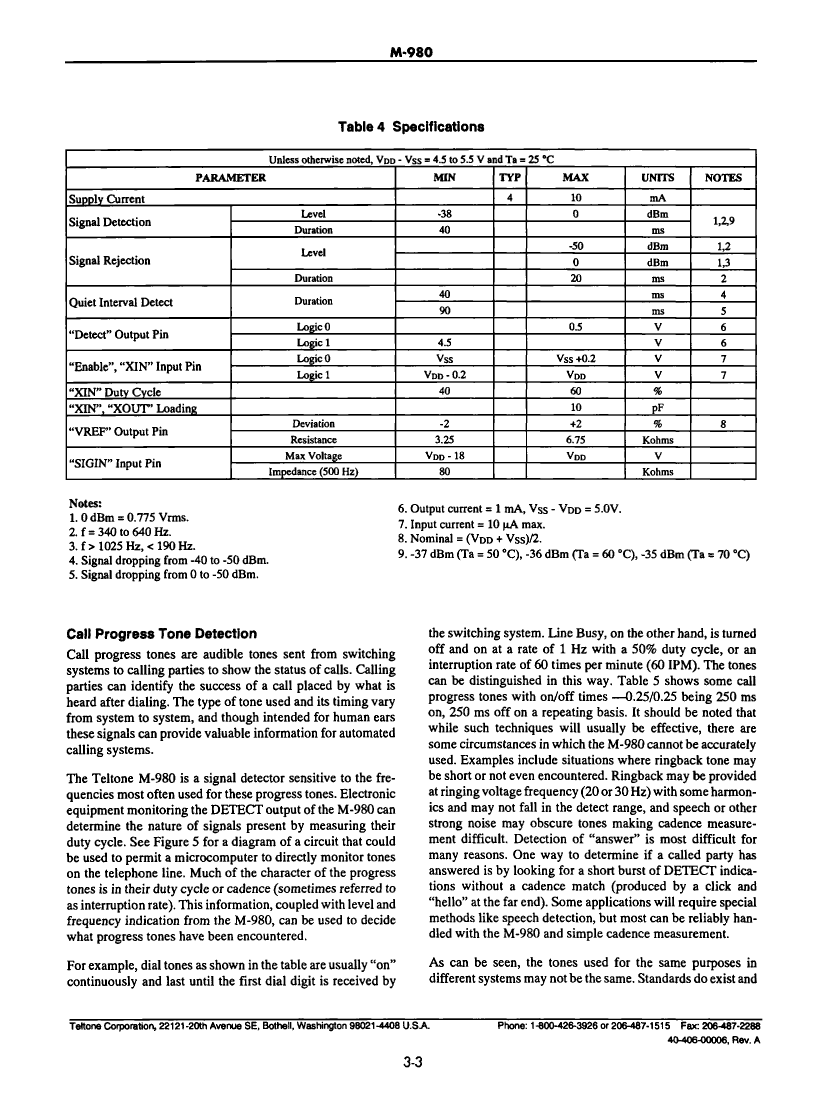

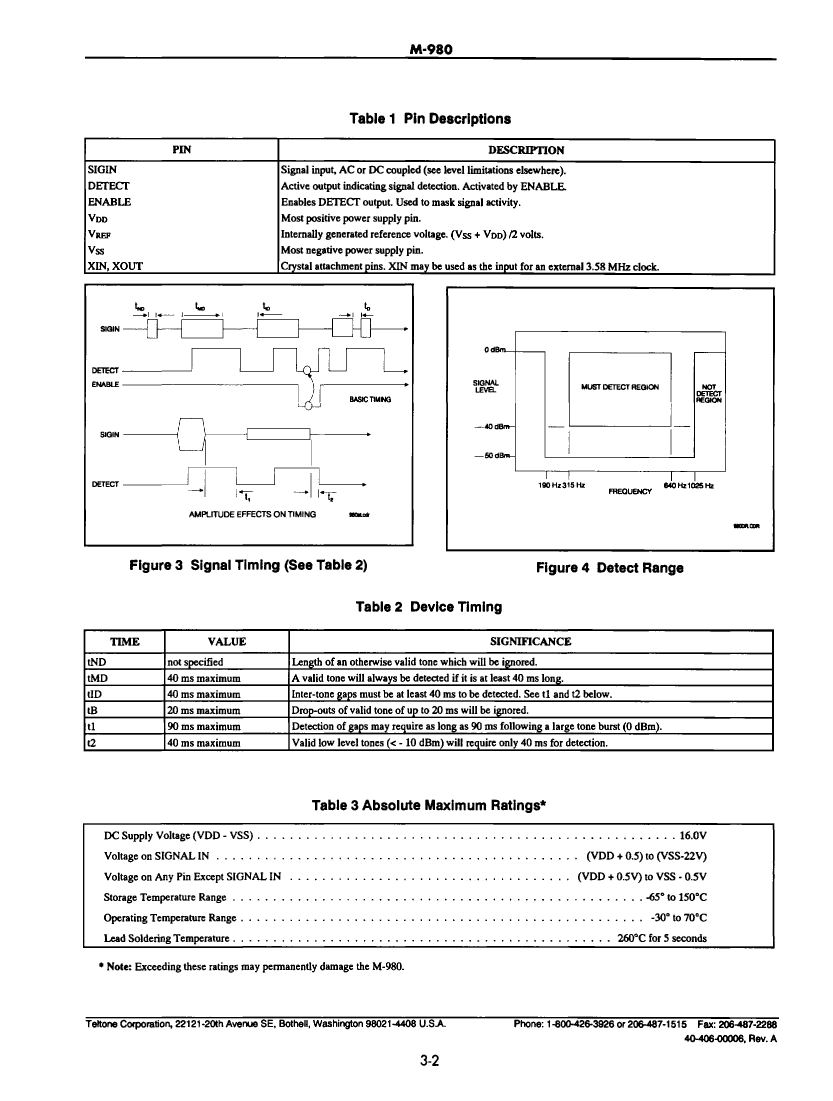

Parameter Name	Attribute value
package instruction	,
Reach Compliance Code	unknown
JESD-30 code	R-PDSO-G16
Number of functions	1
Number of terminals	16
Maximum operating temperature	70 °C
Minimum operating temperature	-30 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Certification status	Not Qualified
Maximum slew rate	10 mA
Nominal supply voltage	5 V
surface mount	YES

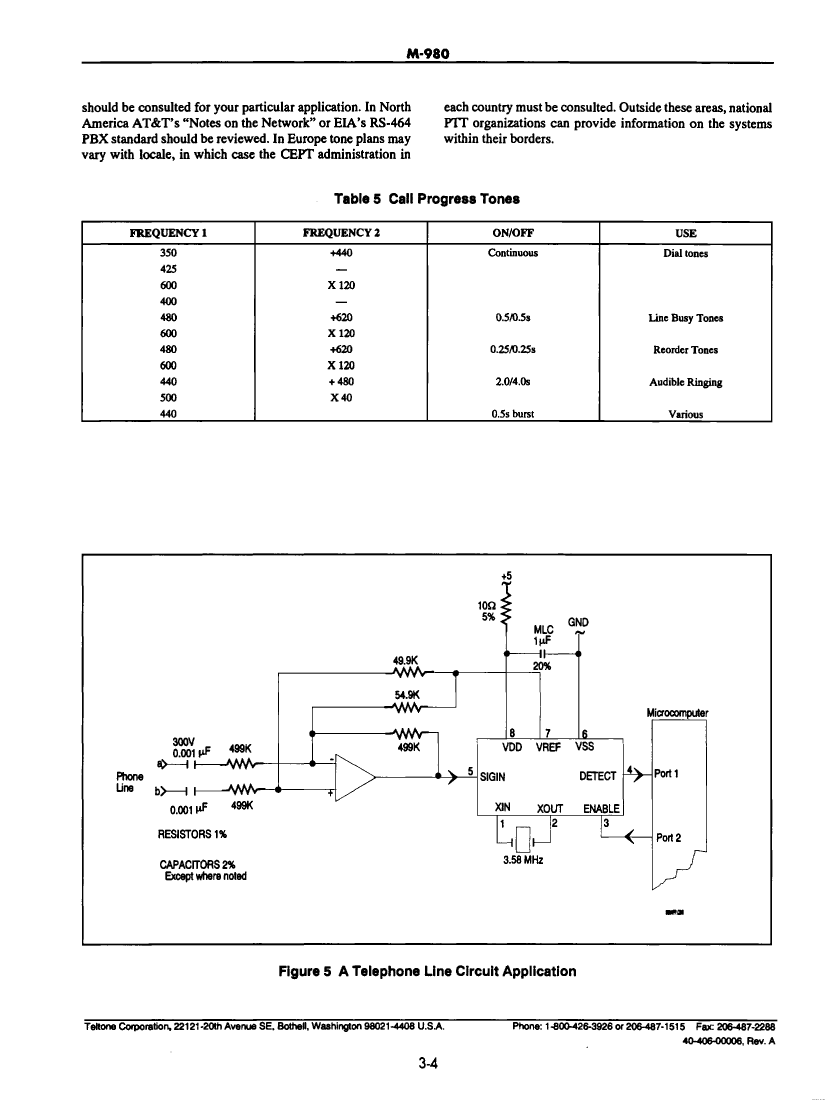

Telecom integrated circuit types	TONE DECODER CIRCUIT
Temperature level	OTHER
Terminal form	GULL WING
Terminal location	DUAL
Base Number Matches	1

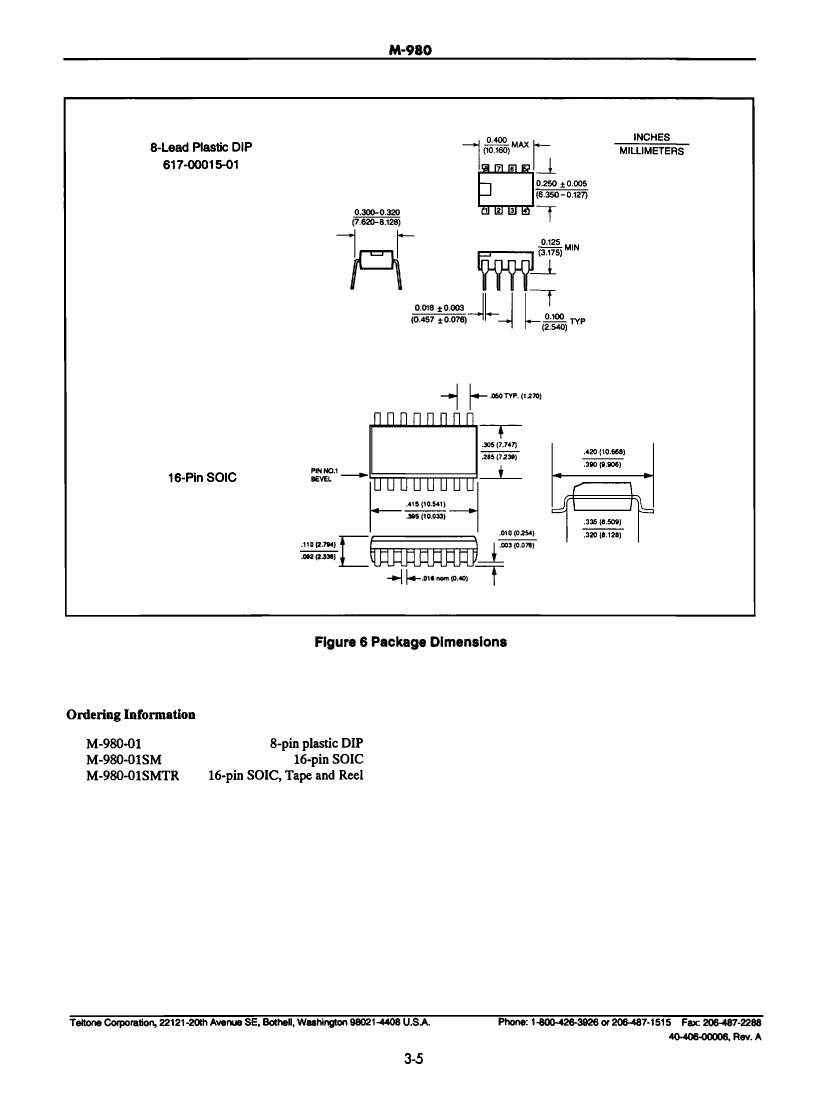

	M-980-01SMTR	M-980-01SM	M-980-01
Description	Tone Decoder Circuit, PDSO16,	Tone Decoder Circuit, PDSO16,	Tone Decoder Circuit, CMOS, PDIP8,
Reach Compliance Code	unknown	unknown	unknown
JESD-30 code	R-PDSO-G16	R-PDSO-G16	R-PDIP-T8
Number of functions	1	1	1
Number of terminals	16	16	8
Maximum operating temperature	70 °C	70 °C	70 °C
Minimum operating temperature	-30 °C	-30 °C	-30 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	IN-LINE
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum slew rate	10 mA	10 mA	10 mA
Nominal supply voltage	5 V	5 V	5 V
surface mount	YES	YES	NO
Telecom integrated circuit types	TONE DECODER CIRCUIT	TONE DECODER CIRCUIT	TONE DECODER CIRCUIT
Temperature level	OTHER	OTHER	OTHER
Terminal form	GULL WING	GULL WING	THROUGH-HOLE
Terminal location	DUAL	DUAL	DUAL
Base Number Matches	1	1	1
