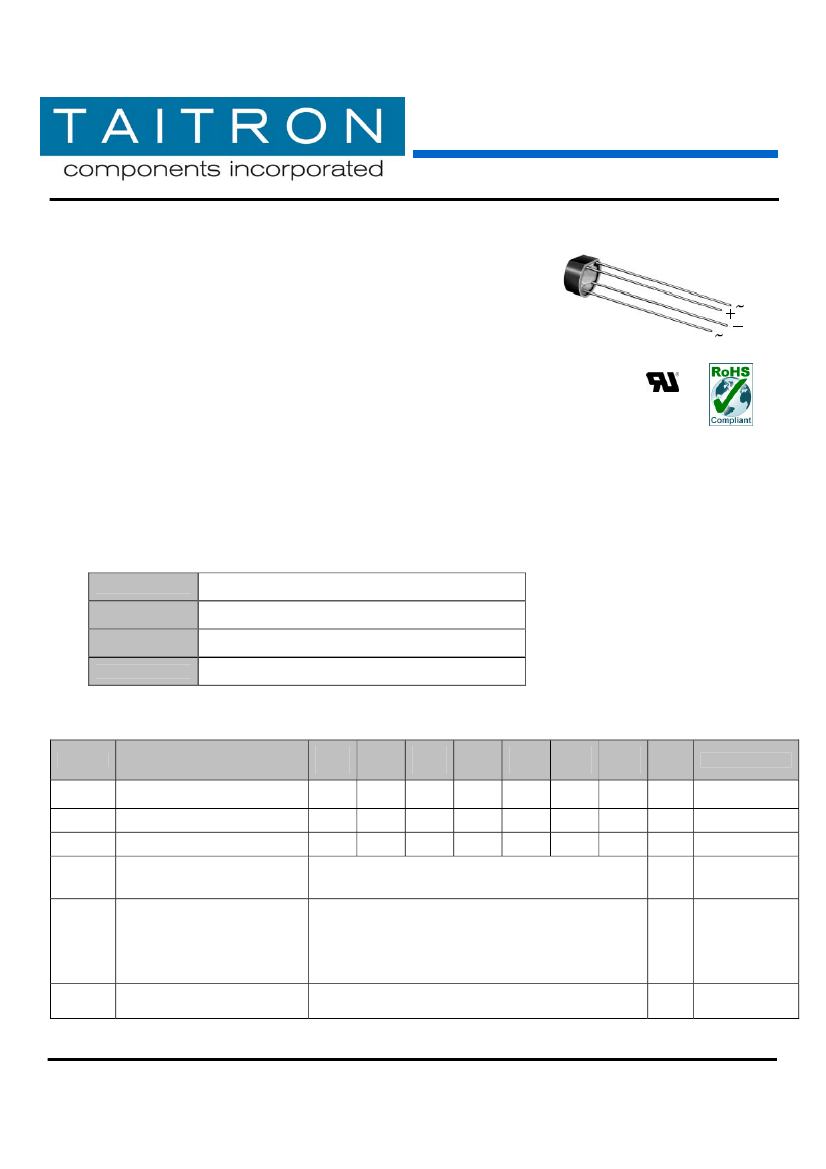

2A Glass Passivated
Bridge Rectifier
2W005G – 2W10G
2A Glass Passivated Bridge Rectifier
Features
•
Glass passivated chip junction
•
High case dielectric strength
•
•
•
•
Typical I
R
less than 0.5µA
High surge current capability
Ideal for printed circuit boards
High temperature soldering guaranteed: 260˚C/10 seconds
0.375” (9.5mm) lead length at 5lbs.(2.3kg) tension
WOG
•
This series is UL recognized under component index,
File number E194718
•
RoHS compliant
Mechanical Data
Case:
Terminals:
Polarity:
Weight:
WOG, Epoxy meets UL 94V-0 flammability rating
Plated leads solderable per MIL-STD-750, Method 2026
As marked on case
0.04 ounce, 1.1 grams
Maximum Ratings And Electrical Characteristics
(T
amb
=25˚C)
Symbols
Parameter
Maximum Repetitive Peak
Reverse Voltage
Maximum RMS Voltage
Maximum DC Blocking Voltage
Maximum Average Forward
Rectified Current at 0.375”
(9.5mm) lead length
2W
005G
50
35
50
2W
01G
100
70
100
2W
02G
200
140
200
2W
04G
400
280
400
2.0
2W
06G
600
420
600
2W
08G
800
560
800
2W
10G
1000
700
1000
Unit
V
V
V
A
8.3ms Single
Sine-wave
Superimposed
on Rated Load
(JEDEC
Method)
Conditions
V
RRM
V
RMS
V
DC
I
(AV)
I
FSM
Peak Forward Surge Current
60
A
I²
t
Rating for Fusing (t<8.3ms)
15
A²sec
TAITRON COMPONENTS INCORPORATED
www.taitroncomponents.com
Tel: (800)-TAITRON (800)-824-8766 (661)-257-6060
Fax: (800)-TAITFAX (800)-824-8329 (661)-257-6415
Rev. A/AH 2008-01-22
Page 1 of 4
2A Glass Passivated Bridge Rectifier
2W005G – 2W10G
Symbols
Parameter
Maximum Instantaneous
Forward Voltage Drop per leg
Maximum DC Reverse Current
at Rated DC Blocking Voltage
per leg
Typical Junction Capacitance
per leg
Typical Thermal Resistance per
leg
Operating Junction and Storage
Temperature Range
40
40
˚C/W
15
-55 to 150
˚C
Note 1
2W
005G
2W
01G
2W
02G
2W
04G
1.1
5.0
500
20
2W
06G
2W
08G
2W
10G
Unit
V
µA
pF
Conditions
I
F
=2.0A
T
A
=25°C
T
A
=125°C
V
R
=4V, f=1MHz
V
F
I
R
C
J
R
θJA
R
θJL
T
J,
T
STG
Note: 1. Thermal resistance from junction to ambient and from junction to lead at 0.375” (9.5mm) lead
length P.C.B. mounting.

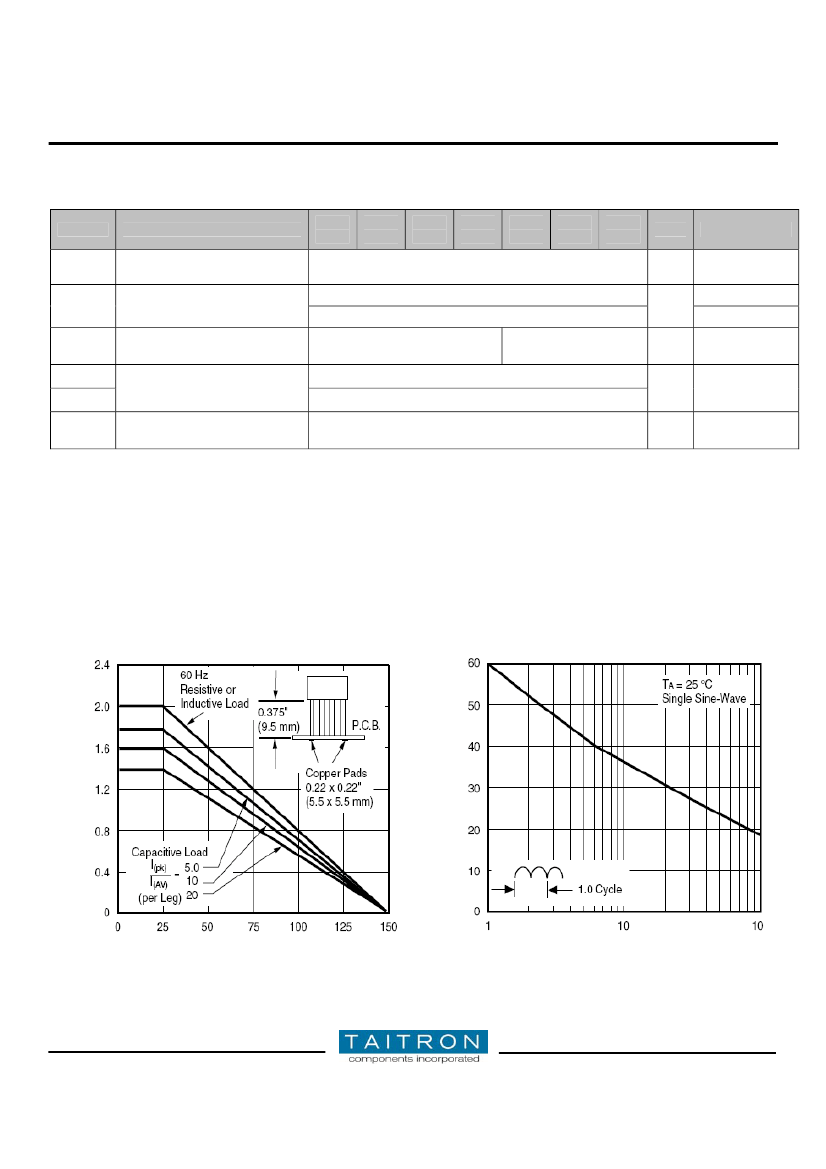

Rating and Characteristic Curves
I
(AV)
, Average Forward Output Current (A)
Fig.1- Derating Curve Output
Rectified Current
I
FSM
, Peak Forward Surge Current (A)
Fig.2-Maximum Non-Repetitive Peak
Forward Surge Current per leg
Ambient Temperature (°C)
Number of Cycles at 60 Hz
Rev. A/AH 2008-01-22
www.taitroncomponents.com
Page 2 of 5
2A Glass Passivated Bridge Rectifier
2W005G – 2W10G

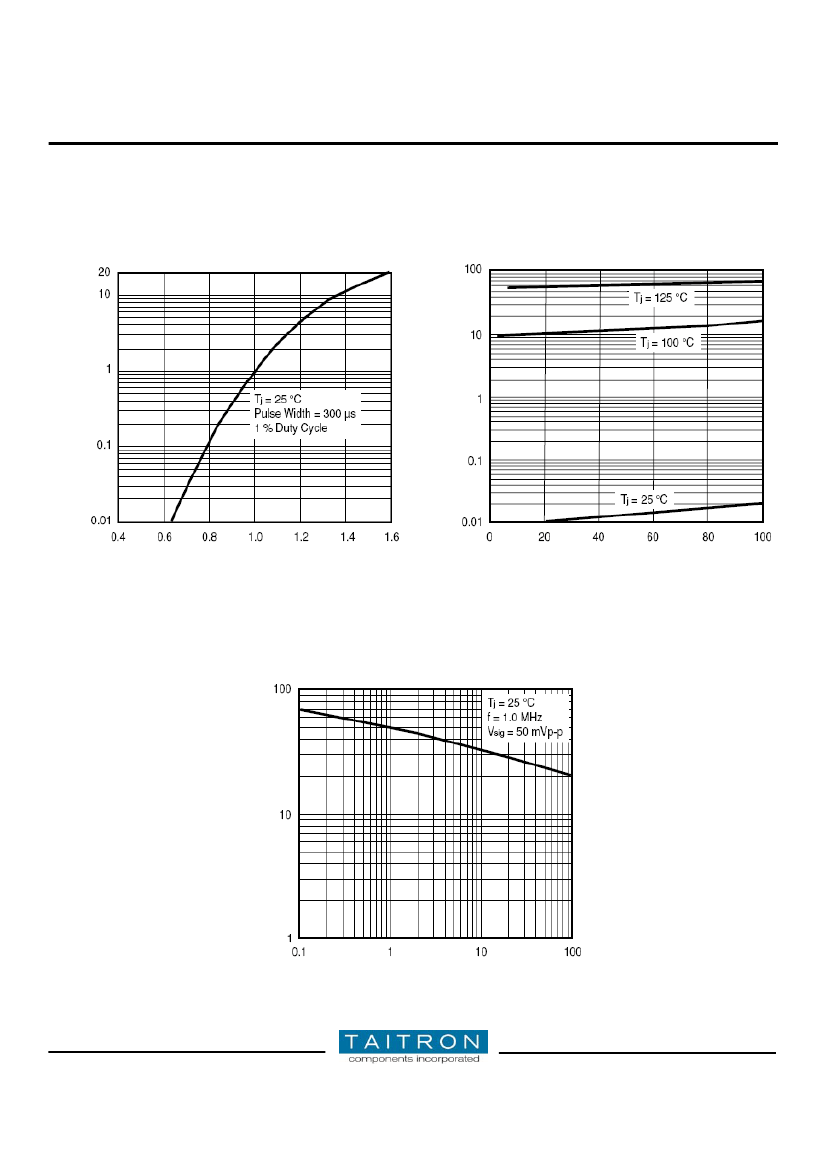

Fig.3-Typical Forward Characteristics
per leg
I
R
, Instantaneous Reverse Current (µA)
Fig.4-Typical Reverse Leakage Characteristics
per leg
I
F
, Instantaneous Forward Current (A)
V
F,
Instantaneous Forward Voltage (V)
Percent of Rated Peak Reverse Voltage (%)
Fig.5-Typical Junction Capacitance
per leg
C
J
, Junction Capacitance (pF)
V
R,
Reverse Voltage (V)
Rev. A/AH 2008-01-22
www.taitroncomponents.com
Page 3 of 5
2A Glass Passivated Bridge Rectifier
2W005G – 2W10G

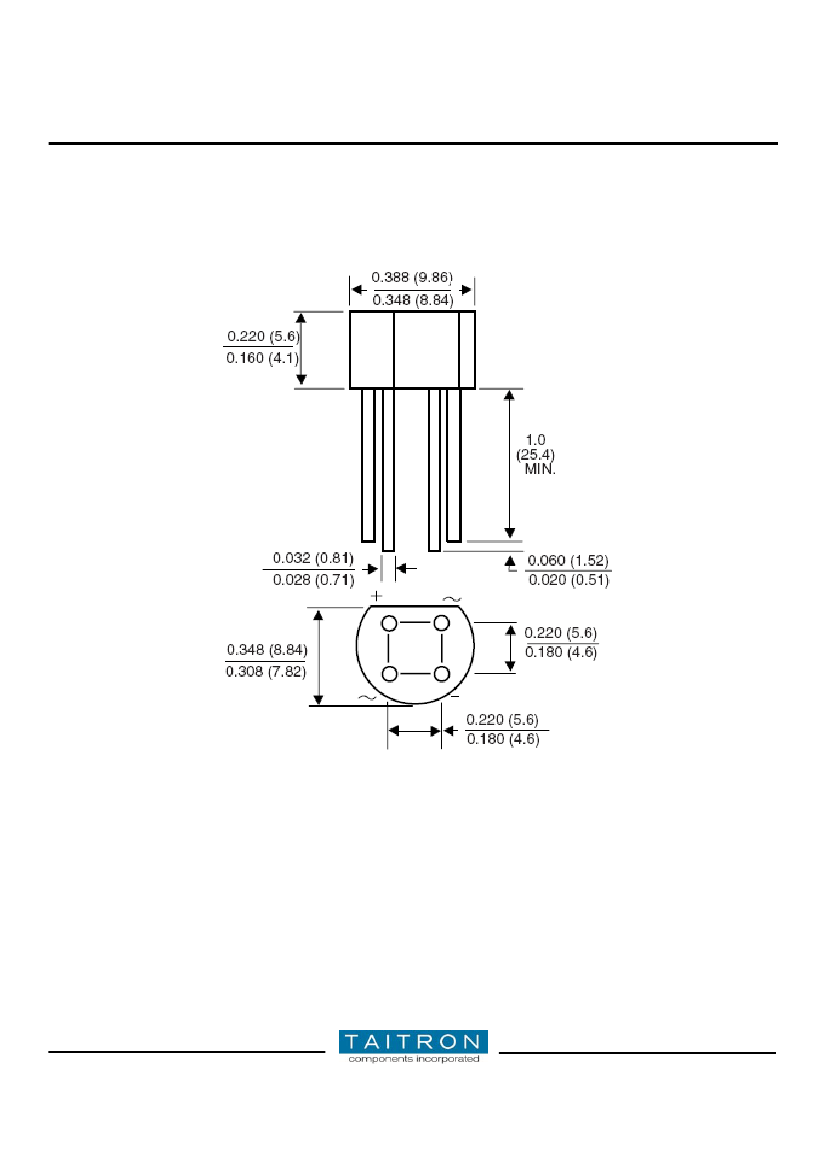

Dimensions in inch (mm)
Case Style WOG
Rev. A/AH 2008-01-22
www.taitroncomponents.com
Page 4 of 5
2A Glass Passivated Bridge Rectifier
2W005G – 2W10G
