GFOCA
Connectors
Product Series
Basic Number
Cable Diameter Configuration
(Table I)
Termini Ferrule I.D.
(Table II)
Insert Cap Key Configuration
(Table III)
Alignment Sleeve Style
(Table IV)
Dust Cover Configuration
(Table V)
Mating
Plane
Seal
“H”Dust Cover
(See Table V)

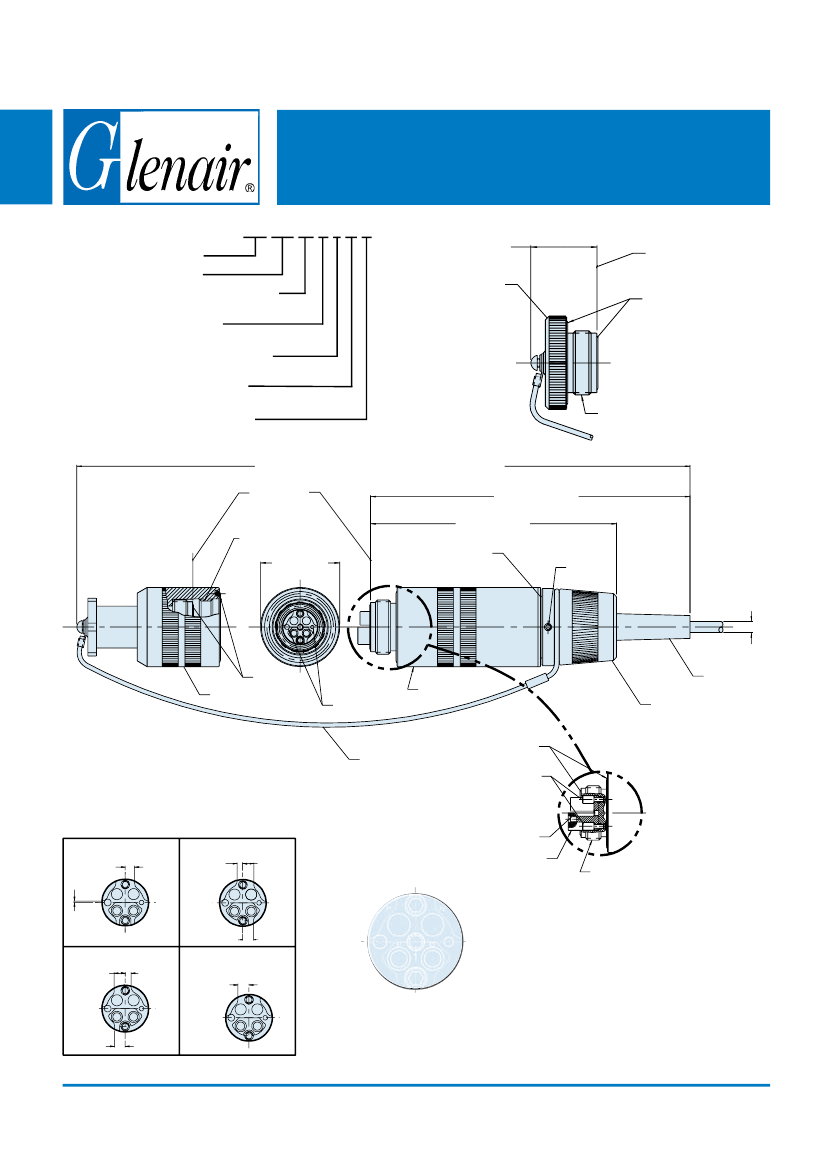

4 Channel Hermaphroditic with Optional Dust Cover
180-116-01-A-1-M-H
180-116
M83526/16 Style GFOCA Plug Connector
1.250 (31.8)
Max
“M” Dust Cover
(See Table V)
Mating Plane
Seal
1.0625-.1P-.2L-DS-2A
9.127 (231.8) Max (When Dust Cap Installed)
6.750 (171.5)
Max
4.800 (121.9)
Max
Wave Washer
Set
Screw
1.0625-1P-2L-DS-2B
1.555 (39.5)
Max Dia
Cable Dia
(See Table I)
Coupling Nut
Alignment Pin
Seal
Screw
Flexible
Boot
Compression
Nut
Lanyard
KEY
1
.137 (3.5)
2X
.139 (3.5)
P1
P2
S1
S2
1
.082 (2.1)
.084 (2.1)
KEY 2
Alignment Sleeve
.160 (4.1)
.162 (4.1)
Removable
Insert Cap
1.0625-.1P-.2L-DS-2A
P1
P2
S1
S2
2
.043 (1.1)
.002 (0.1)
TYP
.157 (4.0)
.159 (4.0)
KEY 3
.160 (4.1)
.162 (4.1)
.082 (2.1)
.084 (2.1)
.160 (4.1)
2X
.162 (4.1)
KEY "U"
UNIVERSAL
P1
P2
S1
S2
3
P1
P2
S1
S2
U
REMOVABLE INSERT CAP
KEY 1 SHOWN
.157 (4.0)
.159 (4.0)
© 2006 Glenair, Inc.
CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
E-Mail: sales@glenair.com
www.glenair.com
F-4
4 Channel Hermaphroditic with Optional Dust Cover
TABLE I:
CABLE DIAMETER
Dash
No.
01
02
03
04
05
06
07
Inch
Cable Dia
Millimeter
4.83 - 6.07
6.10 - 7.09
7.11 - 8.00
8.03 - 8.79
8.81 - 9.63
9.65 - 10.74
10.77 - 11.81
TABLE II:
TERMINI FERRULE I.D.
Dash
Sym
A
B
C
D
W
Ferrule I.D.
Max (mm) Min (mm)
.1270
.1280
.1430
.2340
.1260
.1270
.1420
.2300
TABLE III:
INSERT CAP KEY
CONFIGURATION
Dash
No.
1
2
3
4
Configuration
1
2
3
U
.190 - .239
.240 - .279
.280 - .315
.316 - .346
.347 - .379
.380 - .423
.424 - .465
No Termini Supplied
TABLE IV:
ALIGNMENT SLEEVE
CONFIGURATION
Dash
Sym
M
S
N
Configuration
Solid
Split
None
TABLE V:
DUST COVER
CONFIGURATION
Dash
Sym
H
M
N
Configuration
Hermaphroditic
Male
None
APPLICATION NOTES
1. Assembly identified with manufacturer’s name and P/N, space
permitting.
2. Glenair 180-116 Connector Features:
A. Plug Barrel, Shell, Coupling Nut, Backshell, Removable Insert
Cap - Al Alloy
B. Lanyard: Coated Stainless Steel Cable
C. Misc. Hardware: Stainless Steel/Passivated
D. Termini: See 181-050 (Page F-3)
E. Operating & Transit Temperature range:-65°C to +160°C
storage temperature range: -70°C to +185°C
3. Metric dimensions (mm) are indicated in parentheses.
