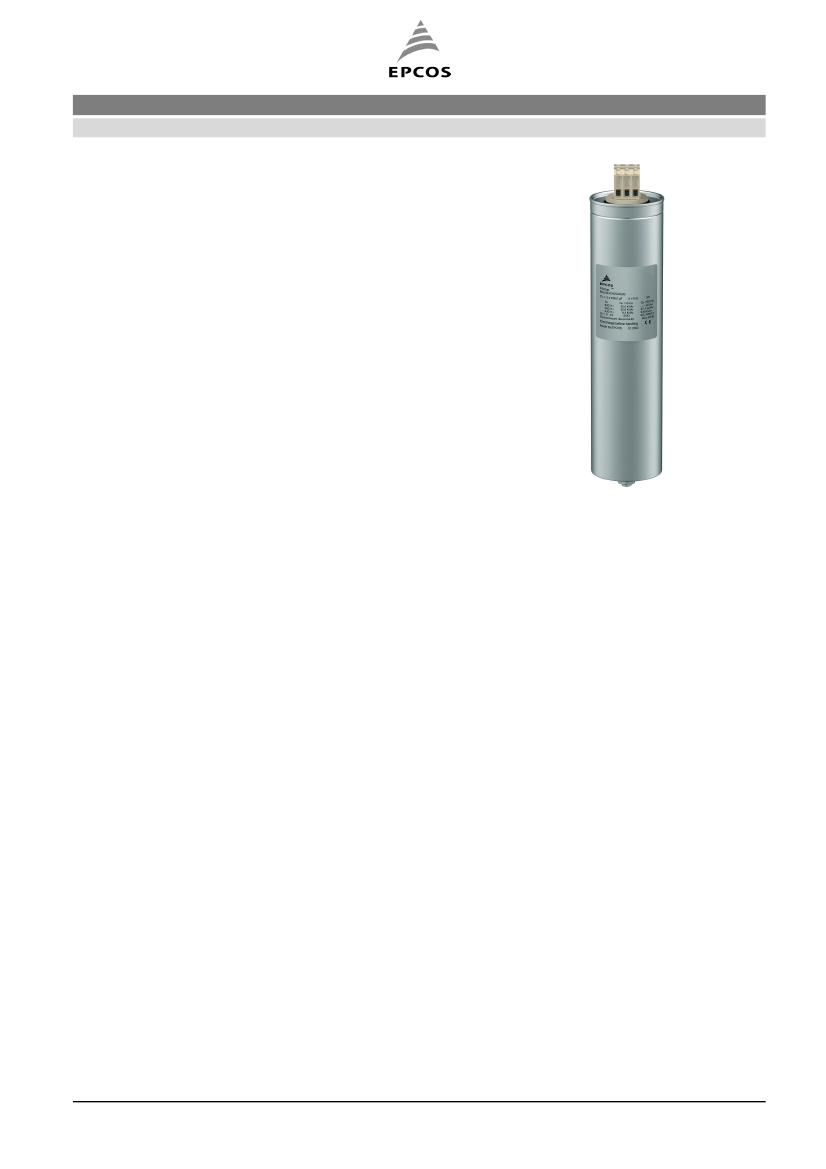

Power Capacitors
Power Factor Correction
Preliminary data
Construction
Dielectric: Polypropylene film
Non PCB, biodegradable soft resin
Extruded round aluminium can with stud
Provided with discharge resistors
B32344C
Features
Three phase, delta connected
Naturally air cooled (or forced air cooling)
Indoor mounting
Typical applications
PFC and detuned systems
Terminals
SIGUT Terminals
Mounting parts
Threaded stud at bottom of can
(
Max. torque = 10 Nm for M12)
FK PM PFC
Page 1 of 6
September 2004
Power Capacitors
Power Factor Correction
Preliminary data
Technical data and specifications
Standard
Rated Capacitance
C
N
&
Q
R
Tolerance (%)
Rated voltage
U
R
Rated frequency
f
R
Mean life expectancy
Maximum ratings
Maximum permissible overvoltage
U
max
IEC 831-1+2, IS: 13340/41
UL 810 5 edition
According to dimensions table
-5 / +10
According to dimensions table
50/60 Hz
Up to 100 000 operating hours
th
B32344C
Maximum permissible overcurrent
I
max
U
R
+ 10% (up to 8 h daily)
U
R
+ 15% (up to 30 min daily)
U
R
+ 20% (up to 5 min daily)
U
R
+ 30% (up to 1 min daily)
1.5 x I
R
(I
R
: rated current), including combined
effects of harmonics, overvoltages and
capacitance
Max. 5 000 switchings per year according
IEC 831
Up to 200 x I
R
< 0.2 W/kvar
< 0.45 W/kvar
2.15 x U
R
, 10 s
3 000 V
AC
, 10 s
-25/D
Max. temp. 55 °C
Max. mean 24 h = 45 °C
Max. mean 1 year = 35 °C
Number of switching operations
Transient inrush current (max)
I
S
Losses:
Dielectric
Total
Test voltage, terminal/terminal
U
TT
Test voltage, terminal/case
U
TC
Temperature class
Safety
Self-healing technology, overpressure
disconnector, maximum allowed fault current
10 000 A in accordance with UL 810-standard
Aluminum/cylindrical
IP00, IP20, optionally IP54
95%
4 000 m above sea level
Upright

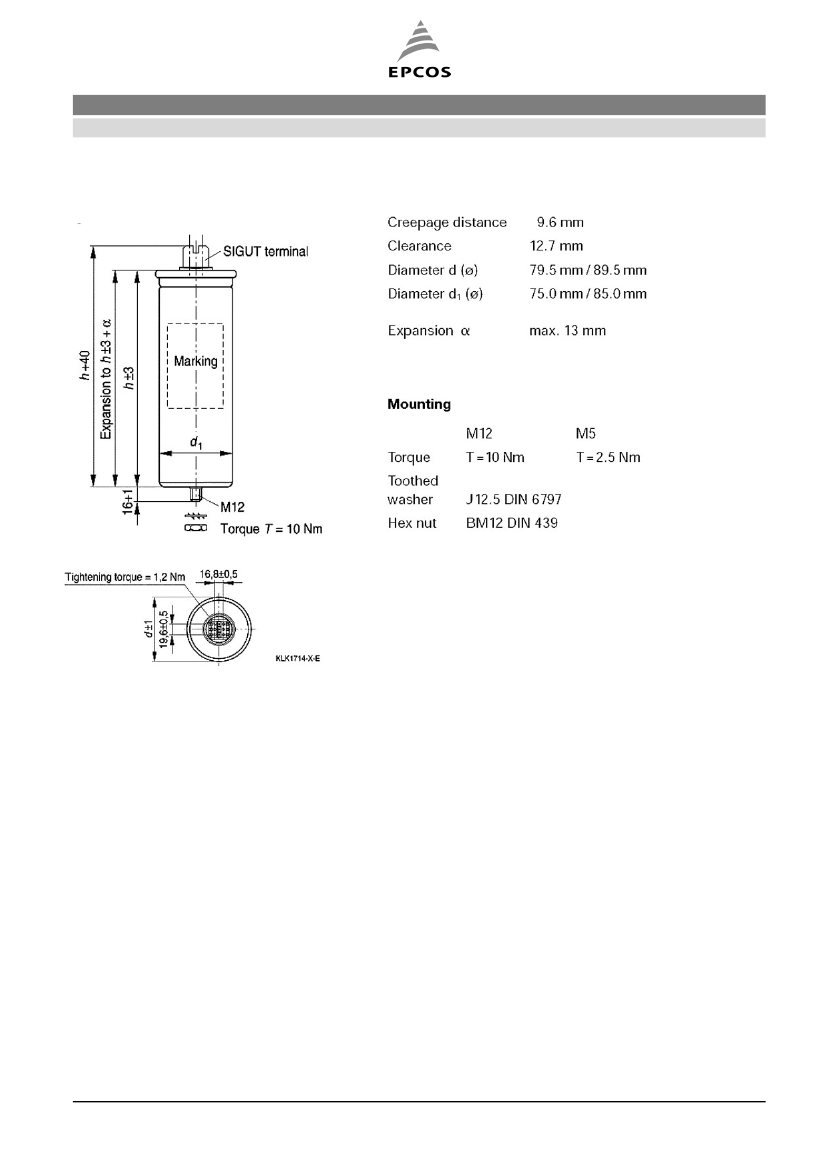

Threaded M 12 (10 Nm)
Case/shape
Enclosure
Permissible maximum humidity
Maximum permissible altitude
Mounting position
Mounting and grounding
FK PM PFC
Page 2 of 6
September 2004
Power Capacitors
Power Factor Correction
Preliminary data
Rated Voltage: 230 VAC, 50/60 Hz, delta connection
Type
50 Hz
Output
kvar
2.5
5.0
7.5
10.0
I
R
A
6.3
12.6
18.8
25.1
60 Hz
Output
kvar
3.0
6.0
9.0
12.0
I
R
A
7.6
15.1
22.6
30.2
C
N
µF
3 * 50
3 * 100
3 * 150
3 * 200
dxh
Weight
B32344C
Ordering code
mm
79.5 x 198
89.5 x 273
89.5 x 273
89.5 x 348
kg
0.60
1.75
2.10
2.10
B32344C2022A530
B32344C2052A030
B32344C2072A530
B32344C2102A030
MKP230-D-2.5
MKP230-D-5.0
MKP230-D-7.5
MKP230-D-10.0
Rated Voltage: 400 VAC, 50/60 Hz, delta connection
Type
50 Hz
Output
kvar
6.3
7.5
8.3
10.0
12.5
15.0
20.0
25.0
I
R
A
9.1
10.9
12.0
14.4
18.1
21.7
28.9
36.1
60 Hz
Output
kvar
7.5
9.0
10.0
12.0
15.0
18.0
24.0
30.0
I
R
A
10.8
13.1
14.4
17.3
21.7
26.0
34.7
43.3
C
N
µF
3 * 42
3 * 50
3 * 55
3 * 66
3 * 83
3 * 99
3 * 132
3 * 166
dxh
mm
79.5 x 198
79.5 x 198
79.5 x 198
79.5 x 198
89.5 x 273
89.5 x 273
89.5 x 348
89.5 x 348
Weight
Ordering code
kg
0.60
0.90
0.90
0.90
1.30
1.70
2.10
2.10
B32344C4071A500
B32344C4072A500
B32344C4101A000
B32344C4102A000
B32344C4122A500
B32344C4152A000
B32344C4202A000
B32344C4252A000
MKP400-D-6.3
MKP400-D-7.5
MKP400-D-8.3
MKP400-D-10.0
MKP400-D-12.5
MKP400-D-15.0
MKP400-D-20.0
MKP400-D-25.0
Rated Voltage: 415 VAC, 50/60 Hz, delta connection
Type
50 Hz
Output
kvar
6.3
7.5
10.0
12.5
15.0
20.0
25.0
I
R
A
8.8
10.4
13.9
17.4
20.9
27.8
34.8
60 Hz
Output
kvar
7.5
9.0
12.0
15.0
18.0
24.0
30.0
I
R
A
10.6
12.5
16.7
20.9
25.1
33.4
41.7
C
N
µF
3 * 39
3 * 46
3 * 62
3 * 77
3 * 92
3 * 123.5
3 * 154
dxh
mm
79.5 x 198
79.5 x 198
79.5 x 198
89.5 x 273
89.5 x 273
89.5 x 348
89.5 x 348
Weight
Ordering code
kg
0.60
0.60
0.80
1.30
1.30
2.10
2.10
B32344C4071A510
B32344C4072A510
B32344C4102A010
B32344C4122A510
B32344C4152A010
B32344C4202A010
B32344C4252A010
MKP415-D-6.3
MKP415-D-7.5
MKP415-D-10.0
MKP415-D-12.5
MKP415-D-15.0
MKP415-D-20.0
MKP415-D-25.0
FK PM PFC
Page 4 of 6
September 2004
Power Capacitors
Power Factor Correction
Preliminary data
Rated Voltage: 440 VAC, 50/60 Hz, delta connection
Type
Output
kvar
6.3
7.5
8.3
10.0
10.4
12.5
15.0
16.7
20.8
25.0
28.0
50 Hz
I
R
A
8.2
9.8
10.9
13.1
13.6
16.4
19.7
21.9
27.3
31.9
36.7
Output
kvar
7.5
9.0
10.0
12.0
12.5
15.0
18.0
20.0
25.0
30.0
--
60 Hz
I
R
A
9.9
11.8
14.4
15.7
16.4
19.7
23.6
26.3
32.8
38.4
--
C
N
µF
3 * 34
3 * 41
3 * 45
3 * 55
3 * 57
3 * 68
3 * 82
3 * 91
3 * 114
3 * 138
3 * 154
dxh
mm
79.5 x 198
79.5 x 198
79.5 x 198
79.5 x 198
89.5 x 273
89.5 x 273
89.5 x 273
89.5 x 348
89.5 x 348
94.0 x 348
94.0 x 348
Weight
B32344C
Ordering code
kg
0.70
0.80
0.90
1.10
1.70
1.70
1.70
2.10
2.10
2.10
2.10
B32344C4071A540
B32344C4072A540
B32344C4101A040
B32344C4102A040
B32344C4121A540
B32344C4151A040
B32344C4152A040
B32344C4251A040
B32344C4201A040
B32344C4252A040
B32344C4282A040
MKP440-D-6.3
MKP440-D-7.5
MKP440-D-8.3
MKP440-D-10.0
MKP440-D-10.4
MKP440-D-12.5
MKP440-D-15.0
MKP440-D-16.7
MKP440-D-20.8
MKP440-D-25.0
MKP440-D-28.0
Rated voltage: 480 VAC, 50/60 Hz, delta connection
Type
50 Hz
Output
kvar
5.0
6.3
7.5
8.3
10.4
12.5
15.0
16.7
20.8
I
R
A
6.0
7.6
9.1
10.0
12.5
15.0
18.1
20.0
25
60 Hz
Output
kvar
6.0
7.5
8.9
10.0
12.5
15.0
18.0
20.0
25.0
I
R
A
7.2
9.1
10.8
13.0
15.0
18.0
21.7
24.0
30.0
C
N
µF
3 * 23
3 * 29
3 * 34
3 * 38
3 * 48
3 * 57
3 * 69
3 * 77
3 * 96
dxh
mm
79.5 x 198
89.5 x 273
89.5 x 273
89.5 x 273
89.5 x 273
89.5 x 348
89.5 x 348
89.5 x 348
89.5 x 348
Weight
Ordering code
kg
0.80
0.80
0.80
1.70
2.10
2.10
1.70
1.80
2.0
B32344C4052A080
B32344C4071A580
B32344C4072A580
B32344C4101A080
B32344C4121A580
B32344C4151A080
B32344C4152A080
B32344C4162A780
B32344C4251A080
MKP480-D-5.0
MKP480-D-6.3
MKP480-D-7.5
MKP480-D-8.3
MKP480-D-10.4
MKP480-D-12.5
MKP480-D-15.0
MKP480-D-16.7
MKP480-D-20.8
Rated voltage: 525 VAC, 50/60 Hz, delta connection
Type
50 Hz
Output
kvar
5.0
6.3
8.3
10.4
12.5
16.7
20.0
25.0
I
R
A
5.5
6.9
9.1
11.5
13.7
18.3
22.9
27.5
60 Hz
Output
kvar
6.0
7.5
10.0
12.5
15.0
20.0
25.0
30.0
I
R
A
6.6
8.3
11.0
13.7
16.5
22.5
27.5
33.0
C
N
µF
3 * 19
3 * 24
3 * 32
3 * 40
3 * 48
3 * 64
3 * 77
3 * 96
dxh
mm
79.5 x 198
79.5 x 198
89.5 x 273
89.5 x 273
89.5 x 273
89.5 x 348
89.5 x 273
89.5 x 348
Weight
Ordering code
kg
0.44
0.80
1.30
2.10
2.10
2.10
2.0
2.10
B32344C5061A020
B32344C5071A520
B32344C5101A020
B32344C5121A520
B32344C5151A020
B32344C5201A020
B32344C5202A020
B32344C5252A020
MKP525-D-5.0
MKP525-D-6.3
MKP525-D-8.3
MKP525-D-10.4
MKP525-D-12.5
MKP525-D-16.7
MKP525-D-20.0
MKP525-D-25.0
FK PM PFC
Page 5 of 6
September 2004
