CDPH4D19FNP-150MB datasheet, PDF

Datasheet> All Categories > Passive components> inductor> CDPH4D19FNP-150MB

CDPH4D19FNP-150MB: DescriptionGeneral Purpose Inductor, 15uH, 20%, 1 Element, SMD, 1919, ROHS COMPLIANT; CategoryPassive components inductor; File Size135KB，2 Pages; ManufacturerSUMIDA; Websitehttp://www.sumida.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

CDPH4D19FNP-150MB Overview

General Purpose Inductor, 15uH, 20%, 1 Element, SMD, 1919, ROHS COMPLIANT

CDPH4D19FNP-150MB Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	1919
Reach Compliance Code	unknown
ECCN code	EAR99
uppercase and lowercase codes	1919
structure	Magnetically Shielded
DC Resistance	0.095 Ω
Nominal inductance(L)	15 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Manufacturer's serial number	CDPH4D19F
Number of functions	1
Number of terminals	2
Package height	2 mm
Package length	4.9 mm
Package form	SMT
Package width	4.9 mm
method of packing	Box
Maximum rated current	1.88 A
series	CDPH4D19F
Shape/Size Description	RECTANGULAR PACKAGE
shield	YES
surface mount	YES
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	0.1 MHz
Tolerance	20%
Base Number Matches	1

Preview

Download Datasheet

View All

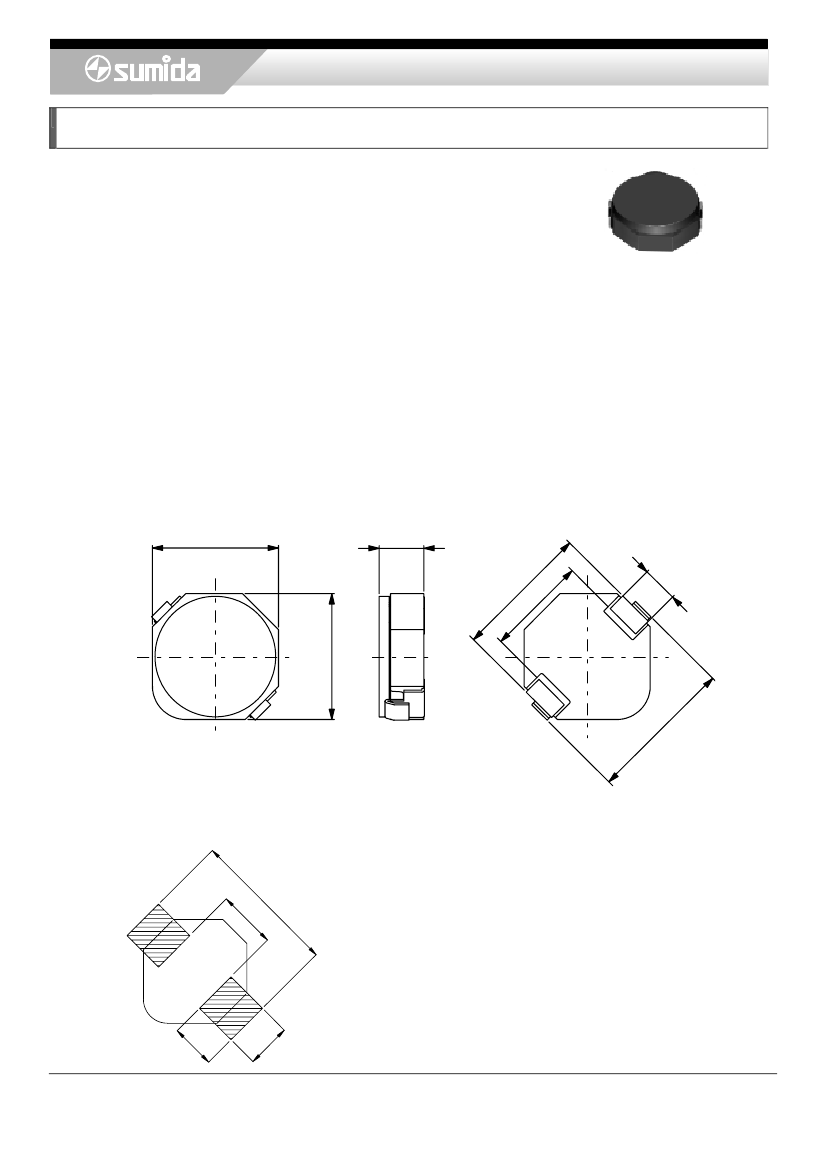

POWER INDUCTORS <SMD Type: CDPH***F Series>

Type: CDPH4D19F

◆

Product Description

・5.2×5.2mm

Max. (L×W), 2.0mm Max. height

・Inductance

Range : 3.3½47μH

・Rated

Current Range : 0.36½1.5A

・In

addition to the standard versions of inductors shown here, custom inductors are available

to meet your exact requirement

◆

Feature

・Magnetically

shielded construction.

・Ideally

Used in Notebook PC,MP3, Mobile Phone, DSC/DVC, etc as DC-DC Converter

inductors.

・RoHS

Compliance

◆

Dimensions (mm)

4.9 ±0.3

MAX.2.0

4.9 ±0.3

②

◆

Land Pattern (mm)

Please refer to the sales offices on our website for a representative near you

www.sumida.com

①

- 0 0.5

1/2

CDPH4D19FNP-150MB Related Products

	CDPH4D19FNP-150MB	CDPH4D19FNP-8R0MB	CDPH4D19FNP-6R8MB	CDPH4D19FNP-4R7MB	CDPH4D19FNP-220MB	CDPH4D19FNP-470MB	CDPH4D19FNP-100MB	CDPH4D19FNP-330MB	CDPH4D19FNP-3R3MB
Description	General Purpose Inductor, 15uH, 20%, 1 Element, SMD, 1919, ROHS COMPLIANT	General Purpose Inductor, 8uH, 20%, 1 Element, SMD, 1919, ROHS COMPLIANT	General Purpose Inductor, 6.8uH, 20%, 1 Element, SMD, 1919, ROHS COMPLIANT	General Purpose Inductor, 4.7uH, 20%, 1 Element, SMD, 1919, ROHS COMPLIANT	General Purpose Inductor, 22uH, 20%, 1 Element, SMD, 1919, ROHS COMPLIANT	General Purpose Inductor, 47uH, 20%, 1 Element, SMD, 1919, ROHS COMPLIANT	General Purpose Inductor, 10uH, 20%, 1 Element, SMD, 1919, ROHS COMPLIANT	General Purpose Inductor, 33uH, 20%, 1 Element, SMD, 1919, ROHS COMPLIANT	General Purpose Inductor, 3.3uH, 20%, 1 Element, SMD, 1919, ROHS COMPLIANT
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
package instruction	1919	1919	1919	1919	1919	1919	1919	1919	1919
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
uppercase and lowercase codes	1919	1919	1919	1919	1919	1919	1919	1919	1919
structure	Magnetically Shielded	Magnetically Shielded	Magnetically Shielded	Magnetically Shielded	Magnetically Shielded	Magnetically Shielded	Magnetically Shielded	Magnetically Shielded	Magnetically Shielded
DC Resistance	0.095 Ω	0.056 Ω	0.05 Ω	0.038 Ω	0.135 Ω	0.293 Ω	0.065 Ω	0.2 Ω	0.033 Ω
Nominal inductance(L)	15 µH	8 µH	6.8 µH	4.7 µH	22 µH	47 µH	10 µH	33 µH	3.3 µH
Inductor Applications	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR
Manufacturer's serial number	CDPH4D19F	CDPH4D19F	CDPH4D19F	CDPH4D19F	CDPH4D19F	CDPH4D19F	CDPH4D19F	CDPH4D19F	CDPH4D19F
Number of functions	1	1	1	1	1	1	1	1	1
Number of terminals	2	2	2	2	2	2	2	2	2
Package height	2 mm	2 mm	2 mm	2 mm	2 mm	2 mm	2 mm	2 mm	2 mm
Package length	4.9 mm	4.9 mm	4.9 mm	4.9 mm	4.9 mm	4.9 mm	4.9 mm	4.9 mm	4.9 mm
Package form	SMT	SMT	SMT	SMT	SMT	SMT	SMT	SMT	SMT
Package width	4.9 mm	4.9 mm	4.9 mm	4.9 mm	4.9 mm	4.9 mm	4.9 mm	4.9 mm	4.9 mm
method of packing	Box	Box	Box	Box	Box	Box	Box	Box	Box
Maximum rated current	1.88 A	2.68 A	3.02 A	3.3 A	1.44 A	1.03 A	2.32 A	1.25 A	3.8 A
series	CDPH4D19F	CDPH4D19F	CDPH4D19F	CDPH4D19F	CDPH4D19F	CDPH4D19F	CDPH4D19F	CDPH4D19F	CDPH4D19F
Shape/Size Description	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE
shield	YES	YES	YES	YES	YES	YES	YES	YES	YES
surface mount	YES	YES	YES	YES	YES	YES	YES	YES	YES
Terminal location	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED
Terminal shape	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND
Test frequency	0.1 MHz	0.1 MHz	0.1 MHz	0.1 MHz	0.1 MHz	0.1 MHz	0.1 MHz	0.1 MHz	0.1 MHz
Tolerance	20%	20%	20%	20%	20%	20%	20%	20%	20%
Base Number Matches	1	1	1	1	1	1	-	-	-
