EQUD13E6J5-13.000M datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> EQUD13E6J5-13.000M

EQUD13E6J5-13.000M: DescriptionClipped, Temperature Compensated Voltage Controlled Quartz Crystal Clock Oscillators TCVCXO Clipped Sinewave 3.3Vdc 4 Pad 5.0mm x 7.0mm Ceramic Surface Mount (SMD) Temperature Compensated Voltage Controlled Quartz Crystal Clock Oscillators TCVCXO Clipped Sinewave 3.3Vdc 4 Pad 5.0mm x 7.0mm Ceramic Surface Mount (SMD); CategoryPassive components oscillator; File Size666KB，5 Pages; ManufacturerECLIPTEK; Websitehttp://www.ecliptek.com; Environmental Compliance

Download Datasheet Parametric View All

EQUD13E6J5-13.000M Overview

Clipped, Temperature Compensated Voltage Controlled Quartz Crystal Clock Oscillators TCVCXO Clipped Sinewave 3.3Vdc 4 Pad 5.0mm x 7.0mm Ceramic Surface Mount (SMD) Temperature Compensated Voltage Controlled Quartz Crystal Clock Oscillators TCVCXO Clipped Sinewave 3.3Vdc 4 Pad 5.0mm x 7.0mm Ceramic Surface Mount (SMD)

EQUD13E6J5-13.000M Parametric

Parameter Name	Attribute value
Brand Name	Ecliptek
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Parts packaging code	SMD 5.0mm x 7.0mm
package instruction	SMD, 4 PIN
Contacts	4
Manufacturer packaging code	SMD 5.0mm x 7.0mm
Reach Compliance Code	not_compliant
Other features	BULK; TAPE
Ageing	1 PPM/YEAR
Maximum control voltage	2.5 V
Minimum control voltage	0.5 V
Frequency Adjustment - Mechanical	NO
Frequency offset/pull rate	5 ppm
frequency stability	1%
JESD-609 code	e4
Installation features	SURFACE MOUNT
Nominal operating frequency	13 MHz
Maximum operating temperature	75 °C
Minimum operating temperature	-30 °C
Oscillator type	CLIPPED SINE
Output impedance	10000 Ω
Output level	0.8 V
physical size	7.0mm x 5.0mm x 2.5mm
Maximum supply voltage	3.465 V
Minimum supply voltage	3.135 V
Nominal supply voltage	3.3 V
surface mount	YES
Terminal surface	Nickel/Gold (Ni/Au)
Base Number Matches	1

Preview

Download Datasheet

View All

EQUD13E6J5-13.000M

REGULATORY COMPLIANCE

2011/65 +

2015/863

(Data Sheet downloaded on Aug 31, 2020)

191 SVHC

ITEM DESCRIPTION

Temperature Compensated Voltage Controlled Quartz Crystal Clock Oscillators TCVCXO Clipped Sinewave 3.3Vdc 4 Pad 5.0mm

x 7.0mm Ceramic Surface Mount (SMD) 13.000MHz -30°C to +75°C

ELECTRICAL SPECIFICATIONS

Nominal Frequency

Frequency Stability

Frequency Stability vs. Frequency

Tolerance

Frequency Stability vs. Input Voltage

Frequency Stability vs. Load

Frequency Stability vs. Reflow

Frequency Stability vs. Aging

Operating Temperature Range

Supply Voltage

Input Current

Output Voltage

Load Drive Capability

Output Logic Type

Control Voltage

Frequency Deviation

Linearity

Transfer Function

Modulation Bandwidth

Input Impedance

Phase Noise

13.000MHz

±1.0ppm Maximum (Inclusive of Operating Temperature Range, at Vdd=3.3Vdc and Vc=1.5Vdc)

±1.0ppm Maximum (at 25°C ±2°C, at Vdd=3.3Vdc, and Vc=1.5Vdc, Pre-Reflow)

±0.2ppm Maximum (±5%)

±0.2ppm Maximum (±1kOhm//±1pF)

±1ppm Maximum (at 25°C, 24 hours after reflow, 1 time)

±1ppm/Year Maximum (at 25°C)

-30°C to +75°C

3.3Vdc ±5%

2.0mA Maximum

0.8Vp-p Clipped Sinewave Minimum (External DC-Cut capacitor required, 1000pF recommended)

10kOhms//10pF

Clipped Sinewave

1.5Vdc ±1.0Vdc

±5ppm Minimum

10% Maximum

Positive Transfer Characteristic

10kHz Minimum at -3dB

500kohm Minimum

All Values are Typical

-80dBc/Hz at 10Hz Offset

-115dBc/Hz at 100Hz Offset

-135dBc/Hz at 1kHz Offset

-138dBc/Hz at 10kHz Offset

0.7pSec Typical, 1pSec Maximum (Fj = 12kHz to 20MHz (Random))

5mSec Maximum

-40°C to +85°C

RMS Phase Jitter

Start Up Time

Storage Temperature Range

ENVIRONMENTAL & MECHANICAL SPECIFICATIONS

ESD Susceptibility

Fine Leak Test

Flammability

Gross Leak Test

Mechanical Shock

Moisture Resistance

Moisture Sensitivity

Resistance to Soldering Heat

Resistance to Solvents

Solderability

MIL-STD-883, Method 3015, Class 1, HBM: 1500V

MIL-STD-883, Method 1014, Condition A

UL94-V0

MIL-STD-883, Method 1014, Condition C

MIL-STD-883, Method 2002, Condition B

MIL-STD-883, Method 1004

J-STD-020, MSL 1

MIL-STD-202, Method 210, Condition K

MIL-STD-202, Method 215

MIL-STD-883, Method 2003

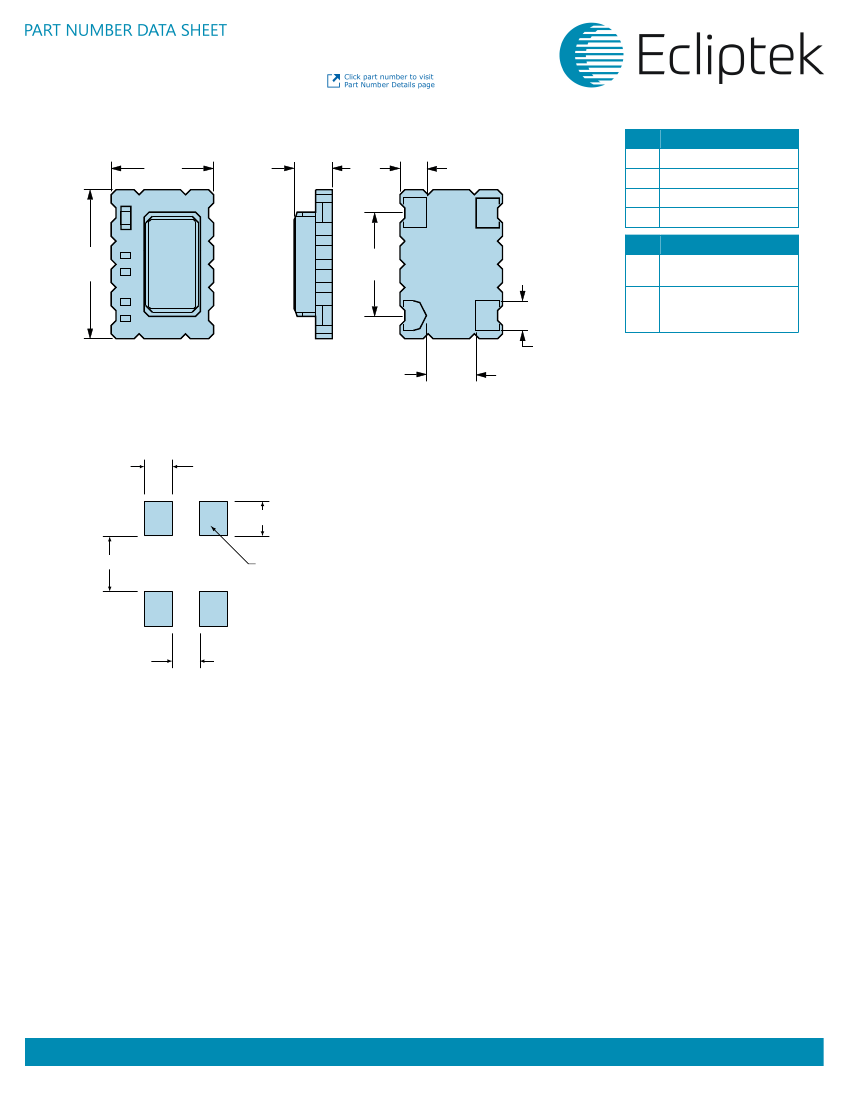

www.ecliptek.com | Specification Subject to Change Without Notice | Revision B 03/20/2015 | Page 1 of 5

Ecliptek, LLC

5458 Louie Lane, Reno, NV 89511

1-800-ECLIPTEK or 714.433.1200
