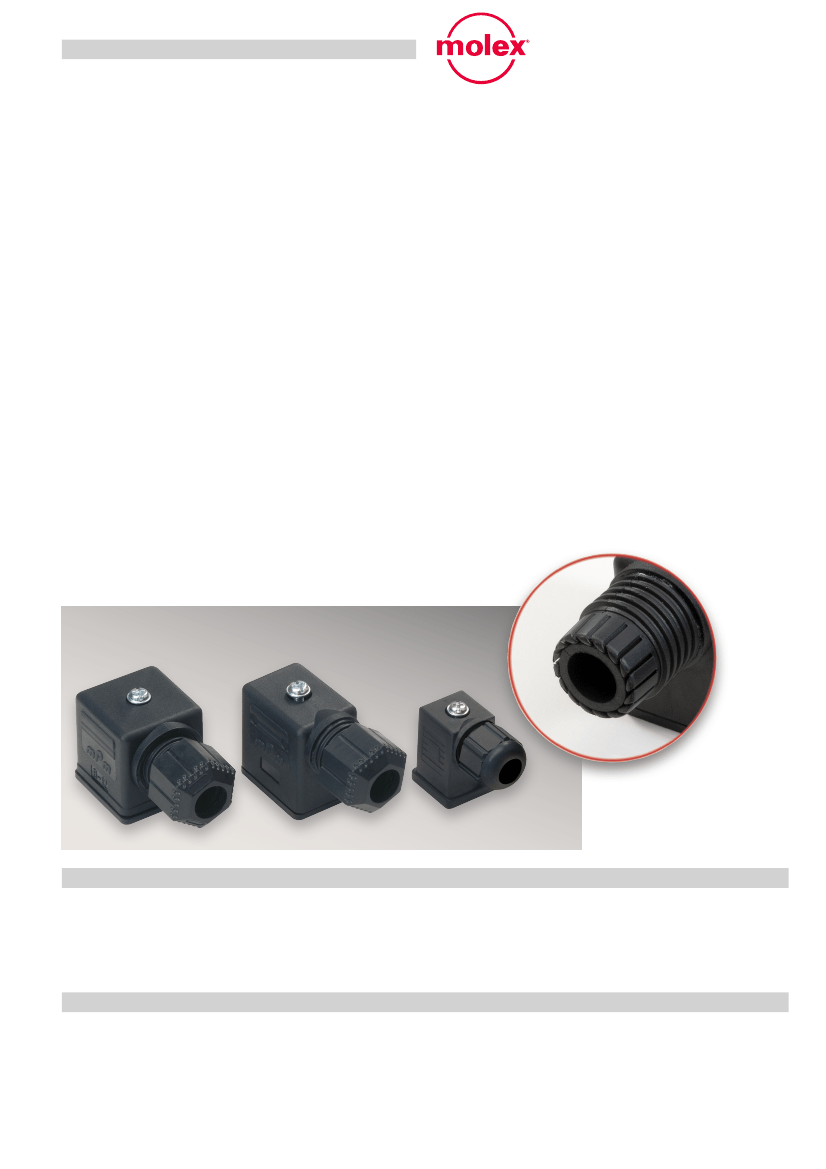

The new generation of DIN Valve Connectors with unsurpassed IP67 sealing performance and
superior cable retention, designed to improve performance and reliability and reduce overall
implied costs in hydraulic, pneumatic and electro magnetic devices.
The Brad
®
product line extends its range by
introducing the new generation of external thread,
field attachable DIN valve connectors. The mPm
®
range of connectors conforms to Industry Standard
EN 175301-803 (formerly DIN43650). The DIN valve
connector is designed to save time and money, while
improving overall performance and reliability. This
innovative design reduces the number of components,
making it easier to assemble with fewer parts to stock.
Traditional connectors are supplied pre-assembled
requiring the operator to disassemble the connector
before terminating the cable. This new generation
of connectors is supplied in single set or bulk
components, reducing dis-assembly time and cost.
The Brad
®
mPm
®
products are recognised throughout
the industry for their performance and reliability. The
new generation design has an external nut to provide
greater and consistent torque which ensures good
cable retention, high reliability and together with
the integrated front gasket, a sealing performance
from dust and water to IP67. Cable retention force
is increased by up to 115% when compared with
traditional internal nuts. Traditional Form A and B
connectors require three different styles for PG7, PG9
and PG11cable. However, the new external nut design
can accomodate both PG9 and PG11 cable and up to
9mm cable outer diameter and since one size fits all,
the customer can reduce their connector inventory.
Molex new generation of DIN connectors is currently
available in field attachable Form A and Form B.
Form C is under development and will be released
late 2009.
Features and BeneFIts
Unsurpassed IP67 sealing performance
Accomodates PG9, PG11 and up to 9mm cable
outer diameter
Integrated front gasket within the housing
Ergonomic external nut design
applIcatIons
Industrial
Solenoid valves
Pneumatics
Hydraulics
Gas valves
Pressure switches
Transducers
Cylinders
non automotive-transport
Garbage trucks
On truck crane and lifting equipment
Used across all markets where signal and power
connections are required to perform in a rugged
environment
Cable retention is increased by 115% compared
with internal nut designs
Fewer components reduces customer inventory
and simplifies assembly
Product is supplied in a ready-to-use condition
which saves the customer an estimated 20
seconds dis-assembly time per connector

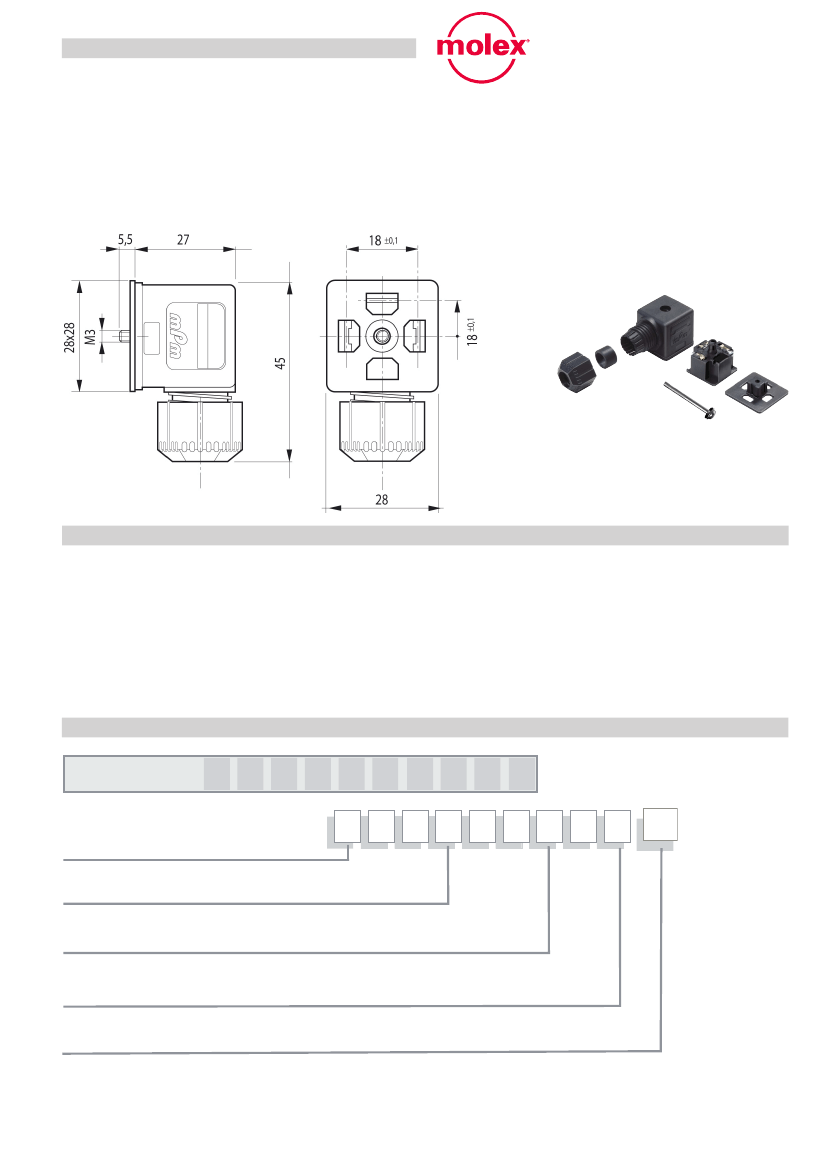

technIcal descrIptIon
Brad
®
mpm
®
dIn Valve
connectors
new Generation -
under development
available late 2009

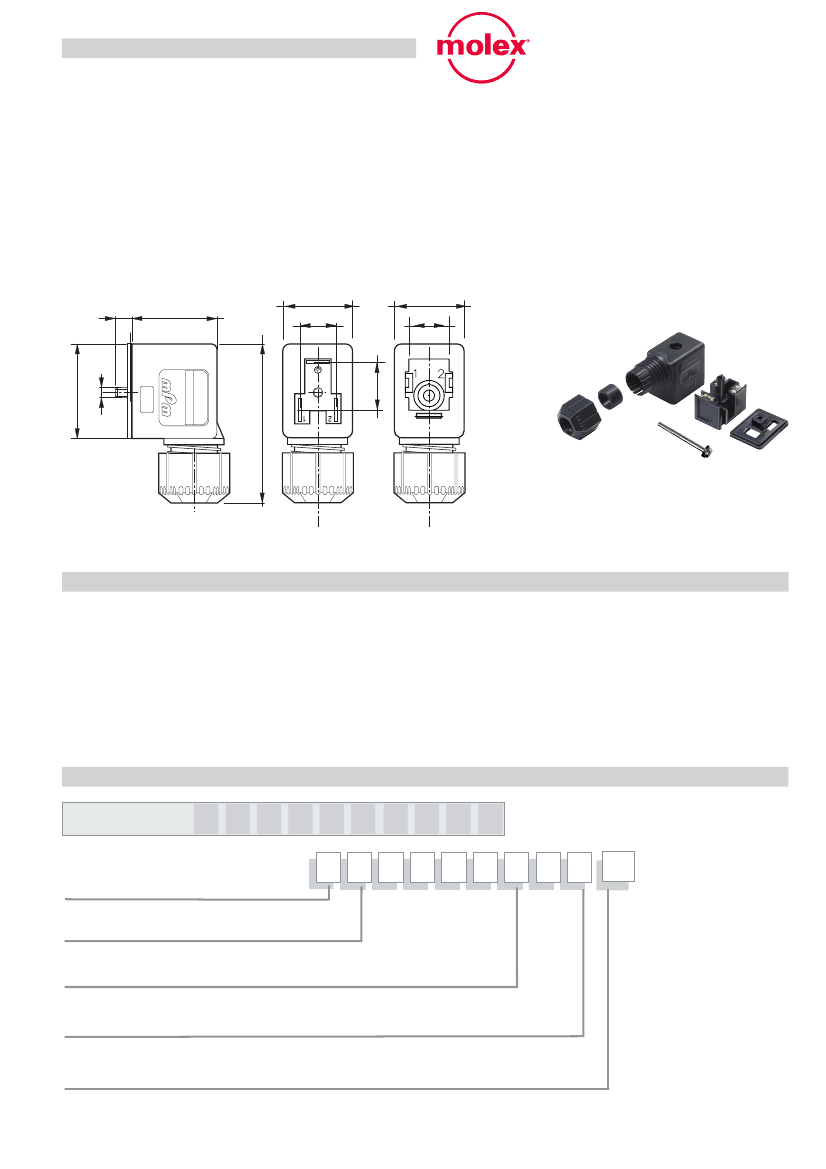

Series C252/253
Series S252
Series C292/293
Series S292
2/3 poles + ground
2 poles + ground
ELECTRONIC CIRCUIT*
2/3 poles + ground
2 poles + ground
ELECTRONIC CIRCUIT*

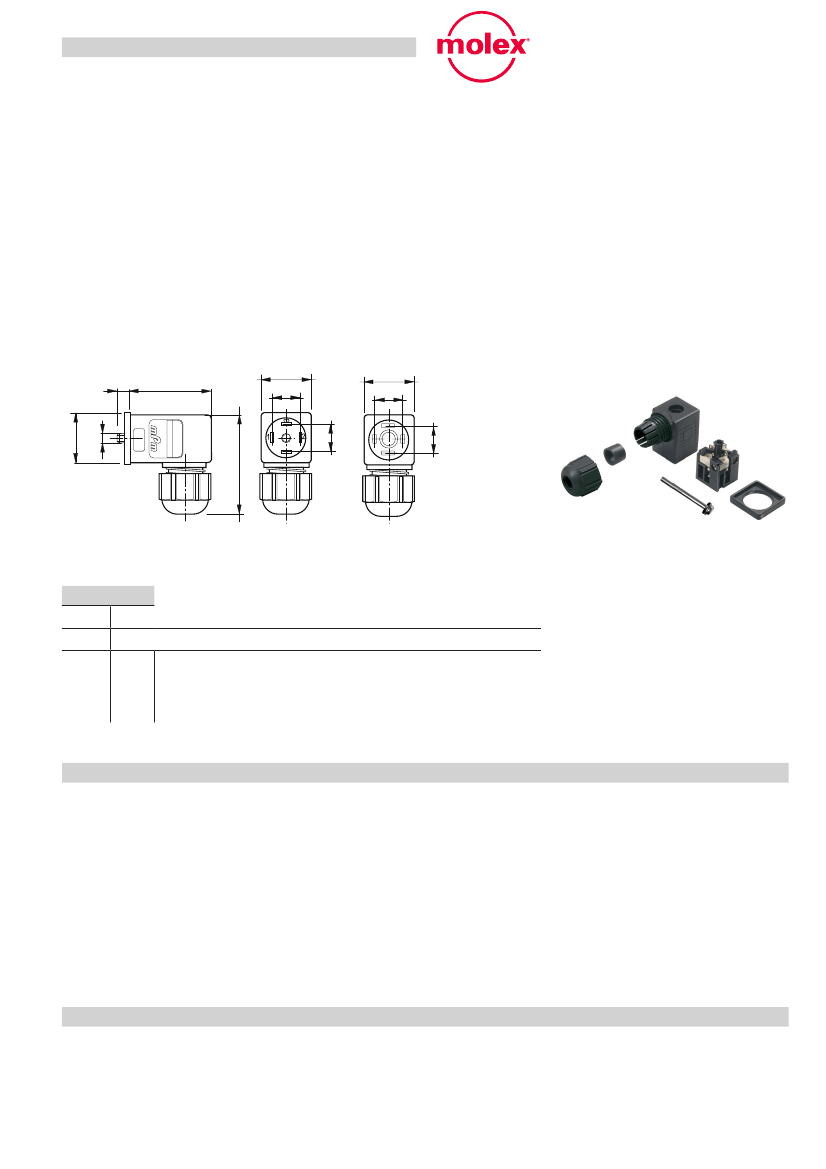

EN175301-803
(ex DIN 43650), Form C:
dIn Form c
dIn Form c+circuit
dIn Form Micro
dIn Form
Micro+circuit
4
26
(1)
15,5
15,5
B
B
32
A
A
15,5
M3
C 293
C253
Note
A
B
(1)
8mm contact distance
9,4mm contact distance
26mm Height
30% increase in the internal volume, previous height was 23,5mm of the housings im-
proves handling, wire routing and speed of assembly. As the housing does not protrude
past the toe of the nut, the external ‚volume‘ has not increased and thus has no impact
on the customer application
specIFIcatIons
Reference Information
Packaging: Single pack or bulk components
Mechanical
Contact distance:
252/253
292/293
Housing:
Ø cable range:
Electrical
Voltage rating:
AC
DC
Max. current 10.0A
Contact resistance
Max. conductor
Environmental
Protection class:
Max. 250V
Max. 300V
≤
4mOhm
0,75mm²/AWG18
Gasket material:
Nitrile Rubber:
Silicon:
IP67 EN60529
-40 to +90°C
-40 to +125°C
8 ±0,1
9,4 ±0,1
Glass-filled Polyamide
3.00 to 5,5mm
*
An extensive range of standard electronic circuit will be available. For example LED illuminating devices, VDR diodes to offer protection against overvoltage or peaks.
www.molex.com/link/dinvalve.html
