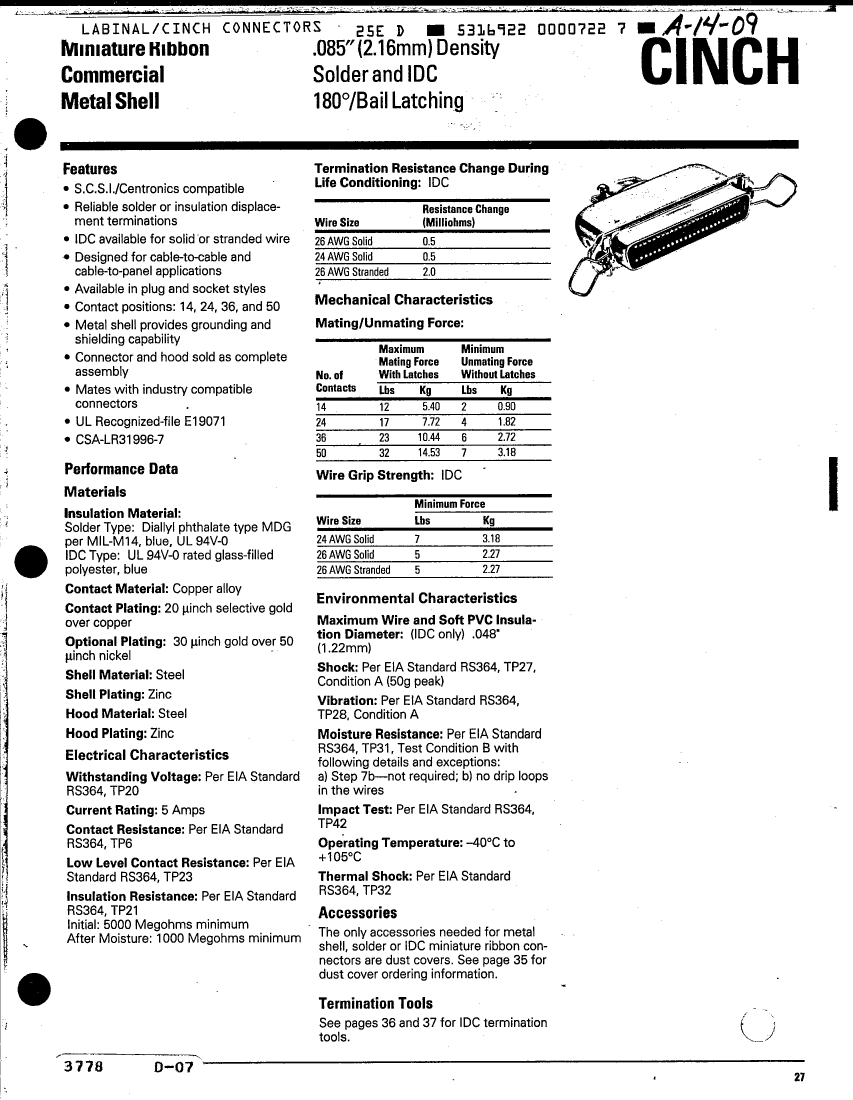

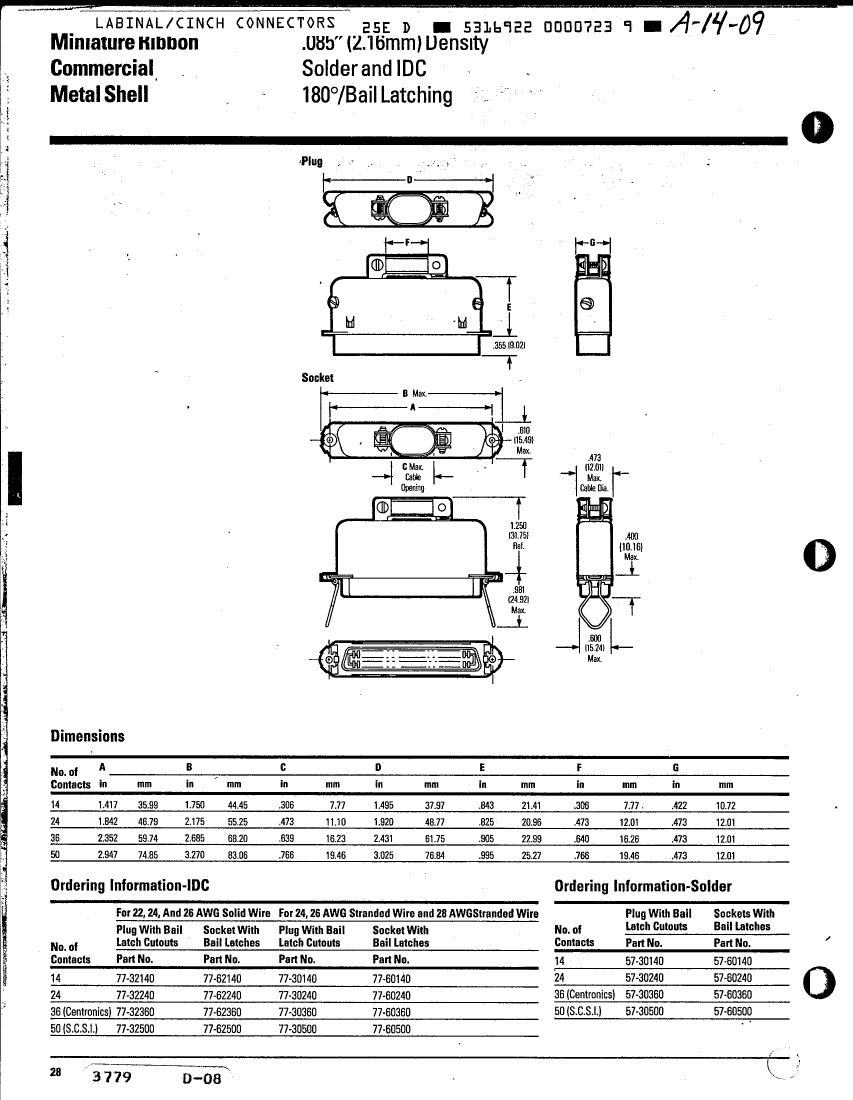

77-32140: DescriptionD Type Connector, 14 Contact(s), Male, 0.085 inch Pitch, IDC Terminal, Receptacle; CategoryThe connector The connector; File Size197KB，2 Pages; ManufacturerBel Fuse

Download Datasheet Parametric View All

77-32140 Overview

D Type Connector, 14 Contact(s), Male, 0.085 inch Pitch, IDC Terminal, Receptacle

Parameter Name	Attribute value
Maker	Bel Fuse
Reach Compliance Code	compliant
Other features	BACKSHELL INCLUDED
body length	1.75 inch
Body/casing type	RECEPTACLE
Contactor design	PREASSEM CONN
Contact to complete cooperation	AU ON CU
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact style	DUAL PRONG
maximum insertion force	3.8086 N
Insulation resistance	1000000000 Ω
Insulator color	BLUE
insulator material	GLASS FILLED POLYESTER
Manufacturer's serial number	77
Plug contact pitch	0.085 inch
Installation type	CABLE
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Plating thickness	20u inch
Rated current (signal)	5 A
Guideline	UL, CSA
reliability	COMMERCIAL
Shell surface	ZINC
Shell material	STEEL
Termination type	IDC
Total number of contacts	14
Maximum wire diameter	22 AWG
Minimum wire diameter	26 AWG
Evacuation force-minimum value	.6394 N
Base Number Matches	1
