OPT-1250A1F2RD datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Optical fiber> OPT-1250A1F2RD

OPT-1250A1F2RD: DescriptionTransceiver, 1270nm Min, 1355nm Max, 1250Mbps(Tx), 1250Mbps(Rx), SC Connector, Through Hole Mount, ROHS COMPLIANT PACKAGE; CategoryWireless rf/communication Optical fiber; File Size303KB，11 Pages; ManufacturerDelta Electronics; Environmental Compliance

Download Datasheet Parametric View All

OPT-1250A1F2RD Overview

Transceiver, 1270nm Min, 1355nm Max, 1250Mbps(Tx), 1250Mbps(Rx), SC Connector, Through Hole Mount, ROHS COMPLIANT PACKAGE

OPT-1250A1F2RD Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Delta Electronics
Reach Compliance Code	unknown
body width	25.4 mm
body height	9.8 mm
Body length or diameter	39 mm
Built-in features	AMPLIFIER
Communication standards	SDH
Connection Type	SC CONNECTOR
Data rate (receive)	1250 Mbps
Data rate (send)	1250 Mbps
Emitter/Detector Type	LASER
Fiber optic equipment types	TRANSCEIVER
Fiber type	50/125, MMF
Installation features	THROUGH HOLE MOUNT
Maximum operating temperature	70 °C
Minimum operating temperature
Maximum operating wavelength	1355 nm
Minimum operating wavelength	1270 nm
Nominal operating wavelength	1310 nm
Nominal optical power output	0.211 mW
Sensitivity	-17 dBm
Maximum supply voltage	5.25 V
Minimum supply voltage	4.75 V
Nominal supply voltage	5 V
surface mount	NO
Base Number Matches	1

Preview

Download Datasheet

View All

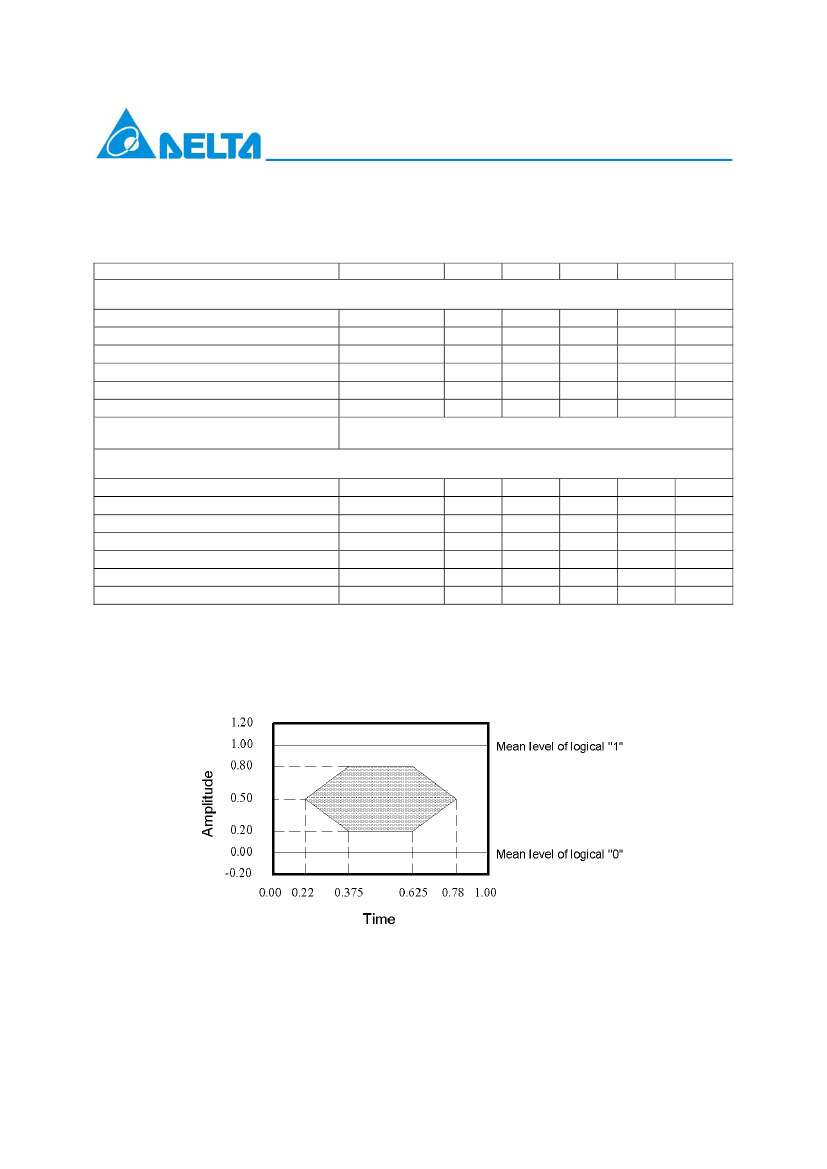

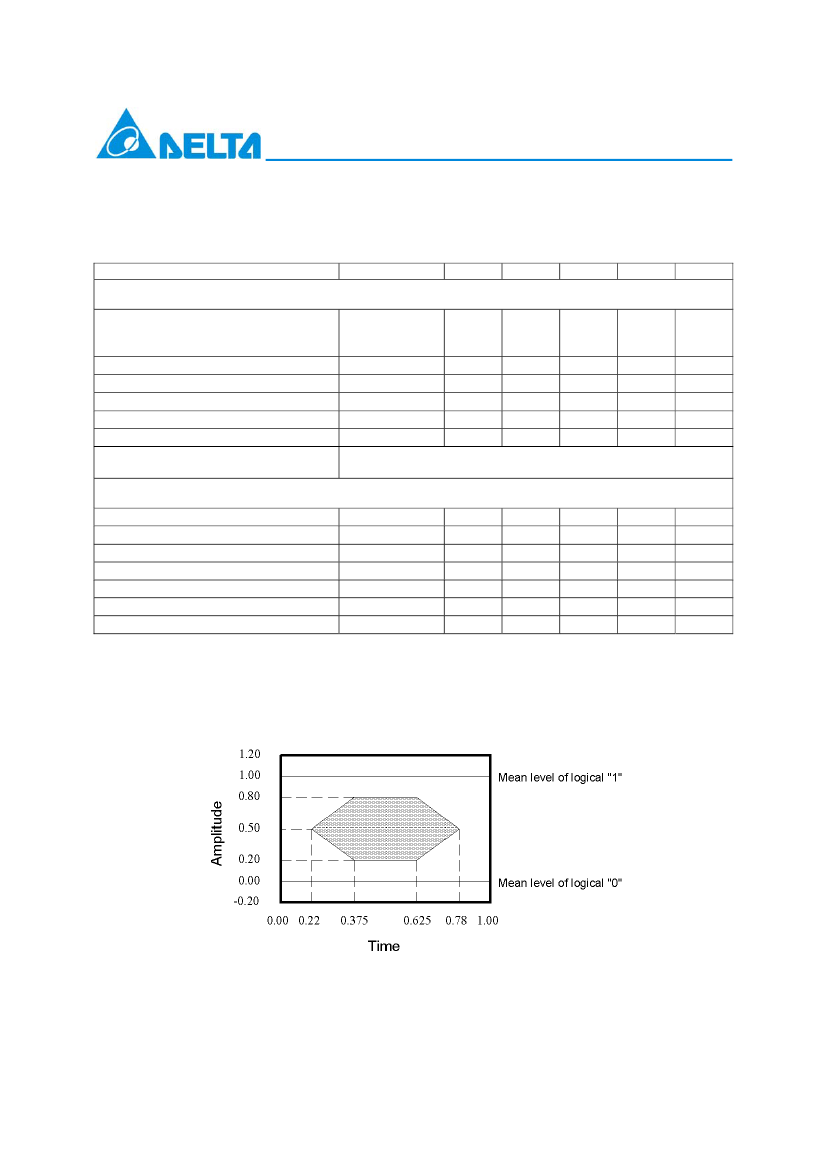

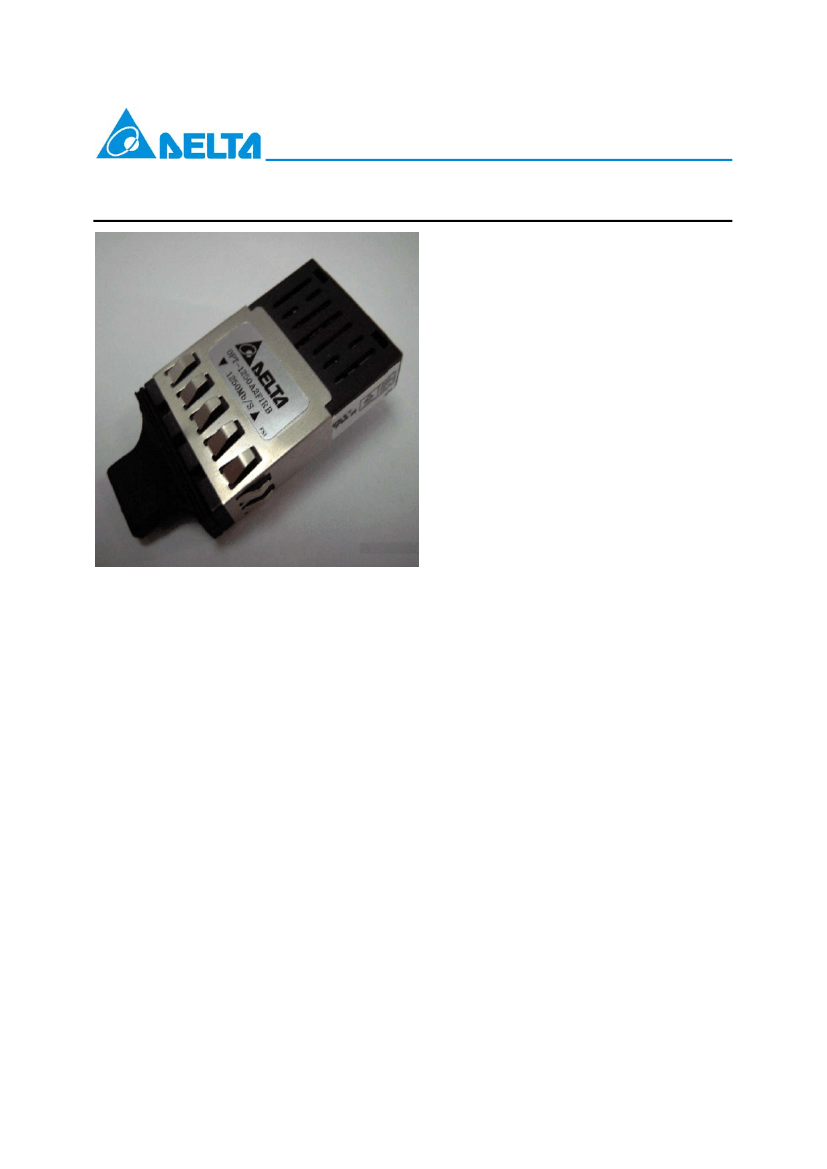

OPT-1250xxxx Series

RoHS Compliant 1X9 SC Duplex Receptacle Transceiver Module for

Gigabit Ethernet

Features

Industry Standard 1 x 9 Footprint and duplex SC

Connector interface

Compliant with Specifications for IEEE 802.3z

Gigabit Ethernet

OPT-1250Bxxx compliant with the 1.0625GBd

Fiber Channel 100-SM-LC-L FC-PI Rev.13

OPT-1250Axxx compliant with the 1.0625GBd

Fiber Channel FC-PI 100-M5-SN-I Rev.13

Single +3.3V or 5V Power Supply

PECL or TTL Receiver Signal Detect Indicator

Wave Solderable and Aqueous Washable

Laser Class 1 Product which comply with the

requirements of IEC 60825-1 and IEC 60825-2

RoHS Compliant per Directive 2002/95/EC.

Description

The OPT-1250xxxx series from DELTA is a 1X9

transceiver module designed expressly for

high-speed communication applications that

require rates of up to 1.25Gbit/sec. It is compliant

with the Gigabit Ethernet standards as well as 1x

Fiber channel standards.

The OPT-1250xxxx transceivers are provided with

the SC receptacle that is compatible with the

industry standard SC connector.

The post-amplifier of the OPT-1250xxxx also

includes a Signal Detect circuit that provides a

PECL or TTL logic-Low output when an unusable

optical signal level is detected. (see order

information)

The OPT-1250xxxx transceiver is a Class 1 eye

safety product. The optical power levels, under

normal operation, are at eye safe level.

Applications

Gigabit Ethernet/Fast Ethernet

Switched backplane applications

Performance

OPT-1250AxFxx:

850nm VCSEL, up to 500m in 50/125μm MMF

850nm VCSEL, up to 220m in 62.5/125μm

MMF

OPT-1250BxQxx:

1310nm FP laser, Data Link up to 10km in

9/125um SMF

1310nm FP laser, up to 550m in 50/125μm

MMF

1310nm FP laser, up to 550m in 62.5/125μm

MMF

DELTA ELECTRONICS, INC.

Jan., 2008

Rev. 0H

www.deltaww.com
