FSJ9260R3 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> The transistor> FSJ9260R3

FSJ9260R3: DescriptionPower Field-Effect Transistor, 27A I(D), 200V, 0.13ohm, 1-Element, P-Channel, Silicon, Metal-oxide Semiconductor FET, TO-254AA, HERMETIC SEALED, METAL, TO-254AA, 3 PIN; CategoryDiscrete semiconductor The transistor; File Size213KB，6 Pages; ManufacturerHarris; Websitehttp://www.harris.com/

Download Datasheet Parametric Compare View All

FSJ9260R3 Overview

Power Field-Effect Transistor, 27A I(D), 200V, 0.13ohm, 1-Element, P-Channel, Silicon, Metal-oxide Semiconductor FET, TO-254AA, HERMETIC SEALED, METAL, TO-254AA, 3 PIN

FSJ9260R3 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Harris
package instruction	FLANGE MOUNT, S-MSFM-P3
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	RADIATION HARDENED
Configuration	SINGLE WITH BUILT-IN DIODE
Minimum drain-source breakdown voltage	200 V
Maximum drain current (Abs) (ID)	27 A
Maximum drain current (ID)	27 A
Maximum drain-source on-resistance	0.13 Ω
FET technology	METAL-OXIDE SEMICONDUCTOR
JEDEC-95 code	TO-254AA
JESD-30 code	S-MSFM-P3
JESD-609 code	e0
Number of components	1
Number of terminals	3
Operating mode	ENHANCEMENT MODE
Maximum operating temperature	150 °C
Package body material	METAL
Package shape	SQUARE
Package form	FLANGE MOUNT
Polarity/channel type	P-CHANNEL
Maximum power consumption environment	192 W
Maximum power dissipation(Abs)	192 W
Maximum pulsed drain current (IDM)	81 A
Certification status	Not Qualified
surface mount	NO
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	PIN/PEG
Terminal location	SINGLE
transistor applications	SWITCHING
Transistor component materials	SILICON
Maximum off time (toff)	160 ns
Maximum opening time (tons)	85 ns
Base Number Matches	1

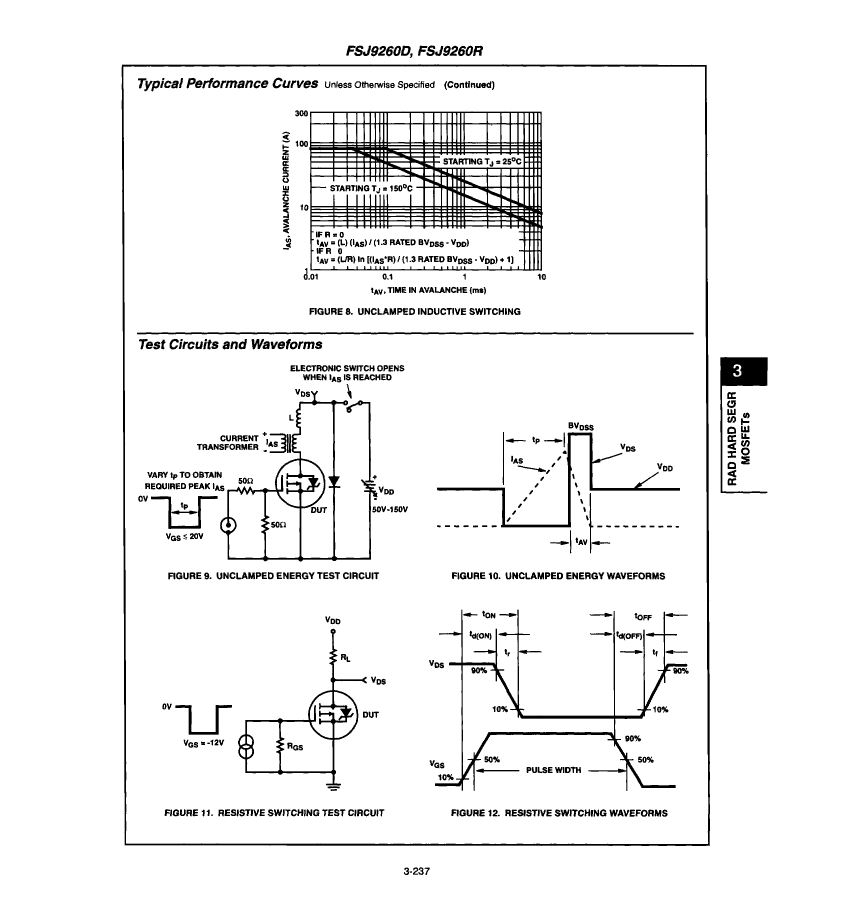

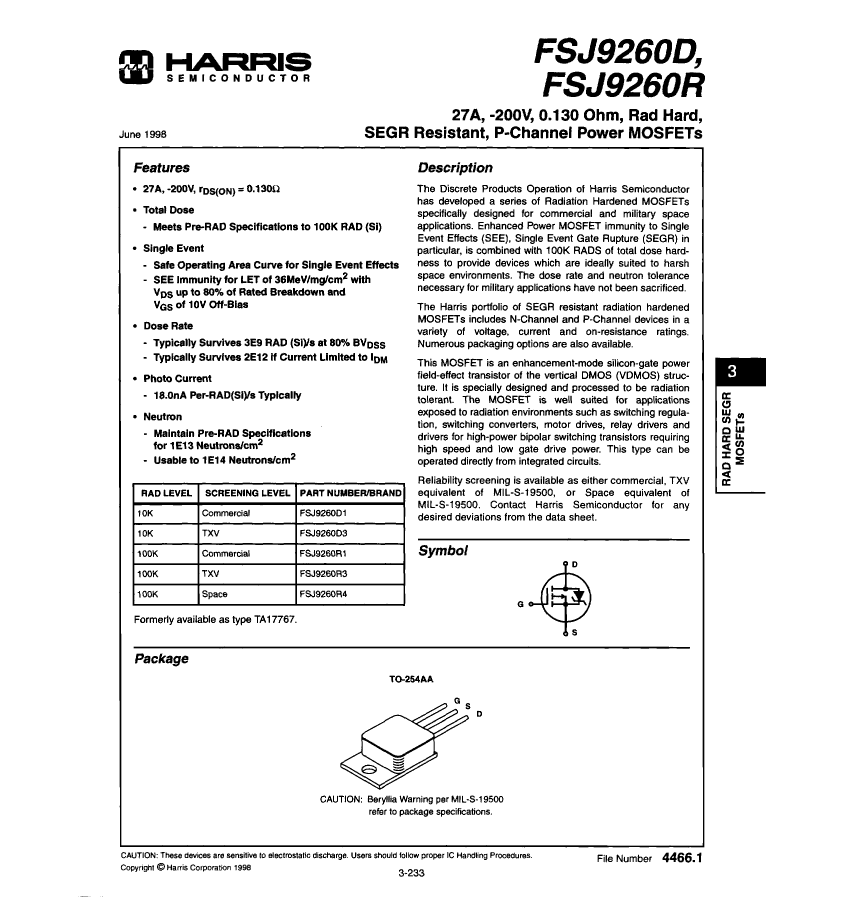

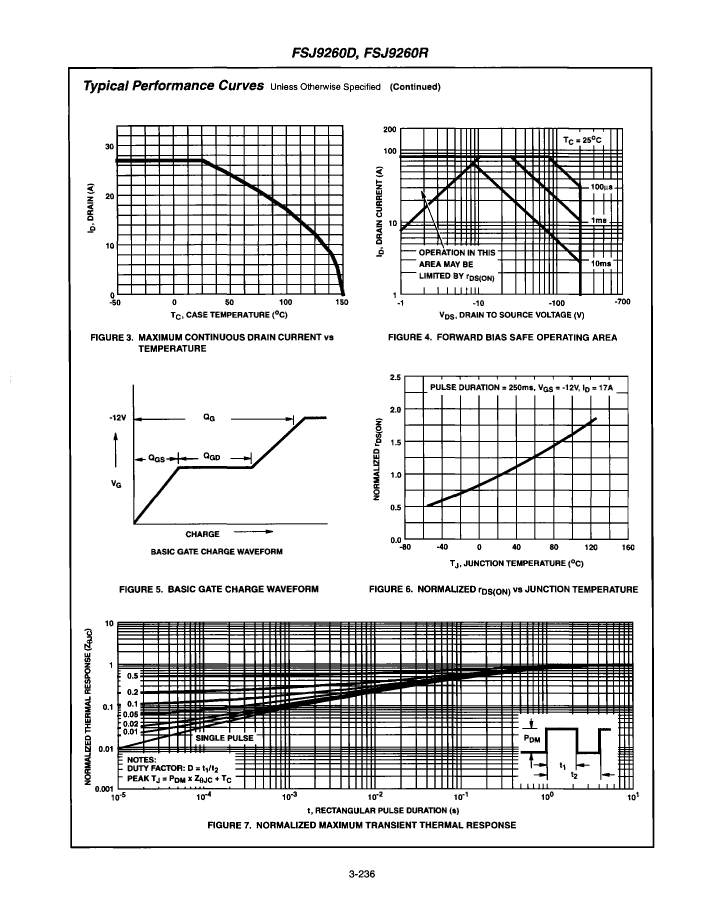

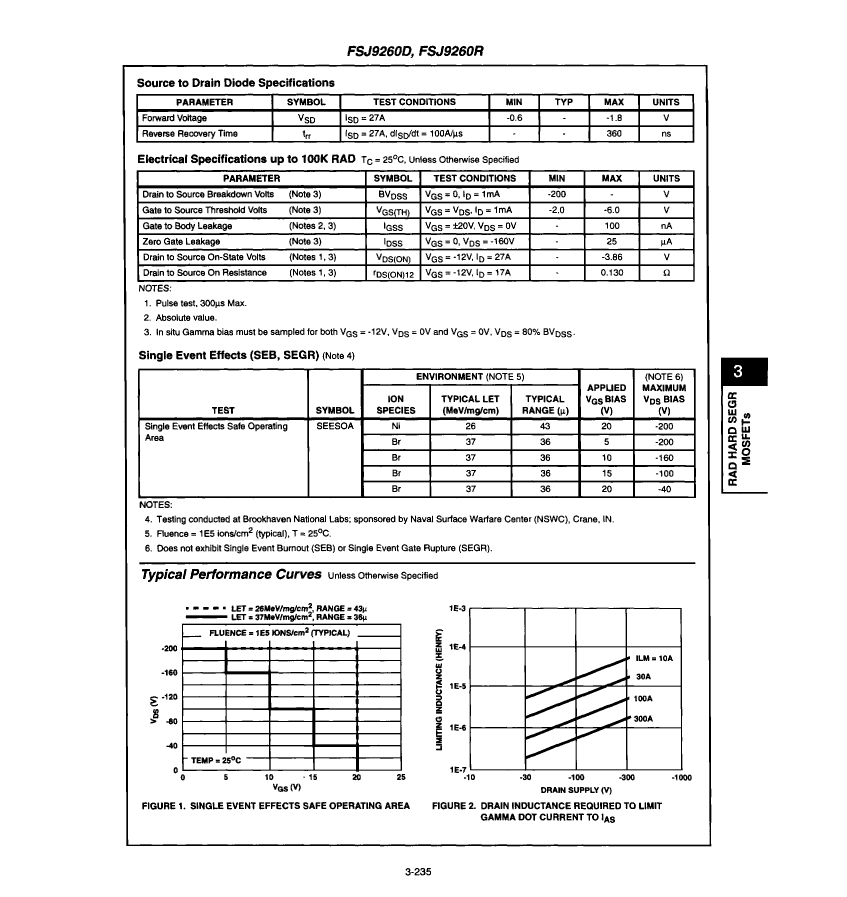

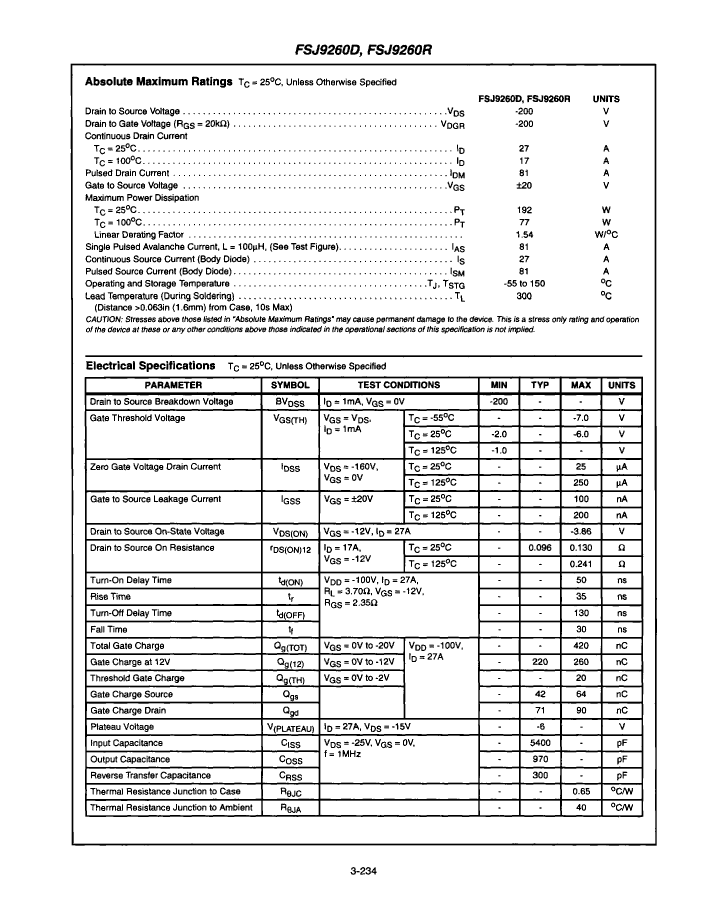

Preview

Download Datasheet

View All

FSJ9260R3 Related Products

	FSJ9260R3	FSJ9260R1	FSJ9260D3	FSJ9260D1	FSJ9260R4
Description	Power Field-Effect Transistor, 27A I(D), 200V, 0.13ohm, 1-Element, P-Channel, Silicon, Metal-oxide Semiconductor FET, TO-254AA, HERMETIC SEALED, METAL, TO-254AA, 3 PIN	Power Field-Effect Transistor, 27A I(D), 200V, 0.13ohm, 1-Element, P-Channel, Silicon, Metal-oxide Semiconductor FET, TO-254AA, HERMETIC SEALED, METAL, TO-254AA, 3 PIN	Power Field-Effect Transistor, 27A I(D), 200V, 0.13ohm, 1-Element, P-Channel, Silicon, Metal-oxide Semiconductor FET, TO-254AA, HERMETIC SEALED, METAL, TO-254AA, 3 PIN	Power Field-Effect Transistor, 27A I(D), 200V, 0.13ohm, 1-Element, P-Channel, Silicon, Metal-oxide Semiconductor FET, TO-254AA, HERMETIC SEALED, METAL, TO-254AA, 3 PIN	Power Field-Effect Transistor, 27A I(D), 200V, 0.13ohm, 1-Element, P-Channel, Silicon, Metal-oxide Semiconductor FET, TO-254AA, HERMETIC SEALED, METAL, TO-254AA, 3 PIN
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	Harris	Harris	Harris	Harris	Harris
package instruction	FLANGE MOUNT, S-MSFM-P3	FLANGE MOUNT, S-MSFM-P3	FLANGE MOUNT, S-MSFM-P3	FLANGE MOUNT, S-MSFM-P3	FLANGE MOUNT, S-MSFM-P3
Reach Compliance Code	unknown	unknown	unknown	unknown	unknow
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	RADIATION HARDENED	RADIATION HARDENED	RADIATION HARDENED	RADIATION HARDENED	RADIATION HARDENED
Configuration	SINGLE WITH BUILT-IN DIODE	SINGLE WITH BUILT-IN DIODE	SINGLE WITH BUILT-IN DIODE	SINGLE WITH BUILT-IN DIODE	SINGLE WITH BUILT-IN DIODE
Minimum drain-source breakdown voltage	200 V	200 V	200 V	200 V	200 V
Maximum drain current (Abs) (ID)	27 A	27 A	27 A	27 A	27 A
Maximum drain current (ID)	27 A	27 A	27 A	27 A	27 A
Maximum drain-source on-resistance	0.13 Ω	0.13 Ω	0.13 Ω	0.13 Ω	0.13 Ω
FET technology	METAL-OXIDE SEMICONDUCTOR	METAL-OXIDE SEMICONDUCTOR	METAL-OXIDE SEMICONDUCTOR	METAL-OXIDE SEMICONDUCTOR	METAL-OXIDE SEMICONDUCTOR
JEDEC-95 code	TO-254AA	TO-254AA	TO-254AA	TO-254AA	TO-254AA
JESD-30 code	S-MSFM-P3	S-MSFM-P3	S-MSFM-P3	S-MSFM-P3	S-MSFM-P3
JESD-609 code	e0	e0	e0	e0	e0
Number of components	1	1	1	1	1
Number of terminals	3	3	3	3	3
Operating mode	ENHANCEMENT MODE	ENHANCEMENT MODE	ENHANCEMENT MODE	ENHANCEMENT MODE	ENHANCEMENT MODE
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C	150 °C
Package body material	METAL	METAL	METAL	METAL	METAL
Package shape	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE
Package form	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT
Polarity/channel type	P-CHANNEL	P-CHANNEL	P-CHANNEL	P-CHANNEL	P-CHANNEL
Maximum power consumption environment	192 W	192 W	192 W	192 W	192 W
Maximum power dissipation(Abs)	192 W	192 W	192 W	192 W	192 W
Maximum pulsed drain current (IDM)	81 A	81 A	81 A	81 A	81 A
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	NO	NO	NO	NO	NO
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG
Terminal location	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
transistor applications	SWITCHING	SWITCHING	SWITCHING	SWITCHING	SWITCHING
Transistor component materials	SILICON	SILICON	SILICON	SILICON	SILICON
Maximum off time (toff)	160 ns	160 ns	160 ns	160 ns	160 ns
Maximum opening time (tons)	85 ns	85 ns	85 ns	85 ns	85 ns
