CQDD-12MBK datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Trigger device> CQDD-12MBK

CQDD-12MBK: Description4 Quadrant Logic Level TRIAC, 600V V(DRM), 12A I(T)RMS, PLASTIC, D2PAK-3; CategoryAnalog mixed-signal IC Trigger device; File Size3MB，2 Pages; ManufacturerCentral Semiconductor

Download Datasheet Parametric Compare View All

CQDD-12MBK Overview

4 Quadrant Logic Level TRIAC, 600V V(DRM), 12A I(T)RMS, PLASTIC, D2PAK-3

CQDD-12MBK Parametric

Parameter Name	Attribute value
Maker	Central Semiconductor
Parts packaging code	D2PAK
package instruction	SMALL OUTLINE, R-PSSO-G2
Contacts	3
Reach Compliance Code	compliant
Shell connection	MAIN TERMINAL 2
Configuration	SINGLE
Critical rise rate of minimum off-state voltage	10 V/us
Maximum DC gate trigger current	20 mA
Maximum DC gate trigger voltage	1.5 V
Maximum holding current	25 mA
JESD-30 code	R-PSSO-G2
JESD-609 code	e0
Maximum leakage current	0.5 mA
Number of components	1
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Certification status	Not Qualified
Maximum rms on-state current	12 A
Off-state repetitive peak voltage	600 V
surface mount	YES
Terminal surface	TIN LEAD
Terminal form	GULL WING
Terminal location	SINGLE
Trigger device type	4 QUADRANT LOGIC LEVEL TRIAC
Base Number Matches	1

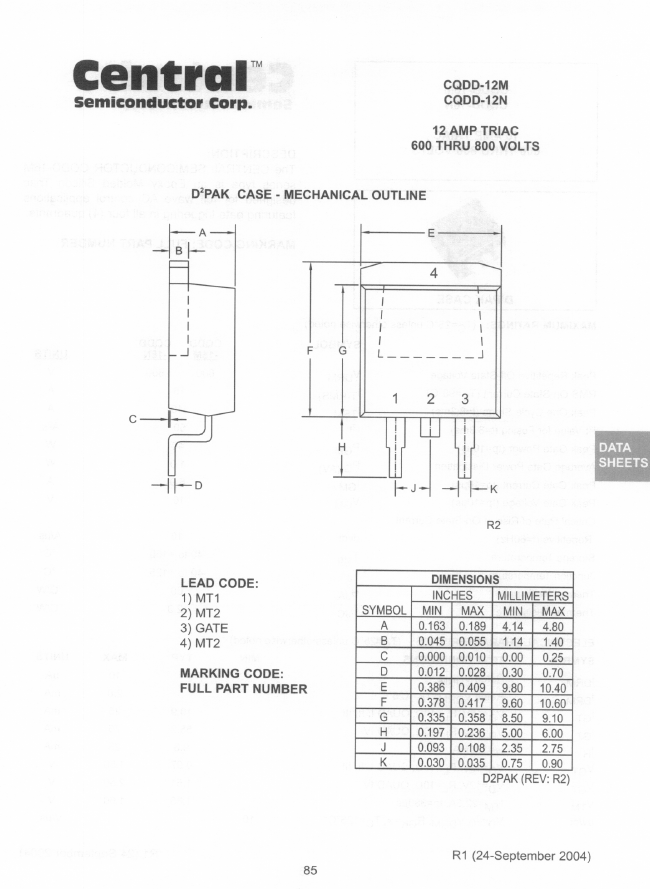

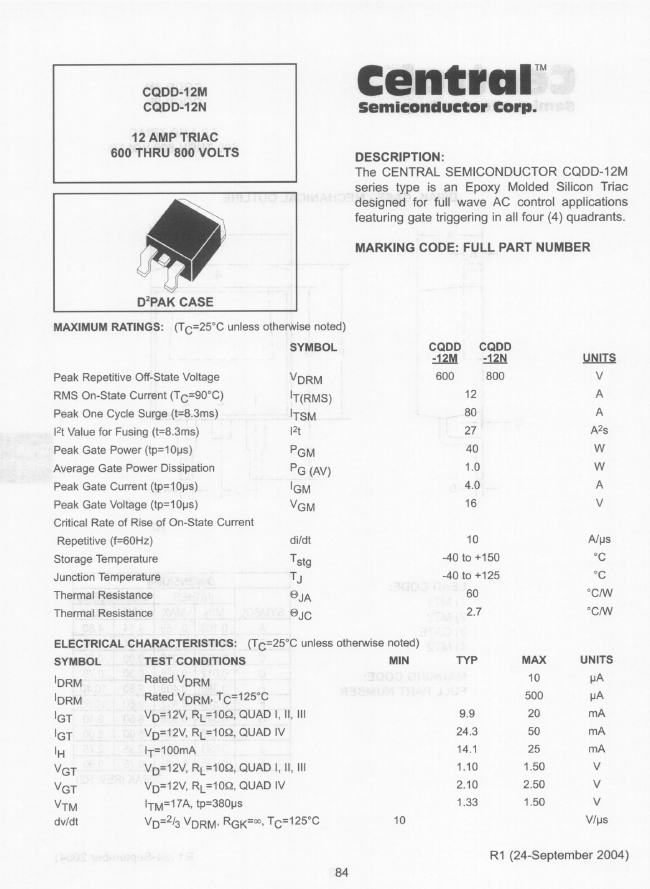

Preview

Download Datasheet

View All

CQDD-12MBK Related Products

	CQDD-12MBK	CQDD-12MTR13	CQDD-12NBK	CQDD-12NTR13
Description	4 Quadrant Logic Level TRIAC, 600V V(DRM), 12A I(T)RMS, PLASTIC, D2PAK-3	4 Quadrant Logic Level TRIAC, 600V V(DRM), 12A I(T)RMS, PLASTIC, D2PAK-3	4 Quadrant Logic Level TRIAC, 800V V(DRM), 12A I(T)RMS, PLASTIC, D2PAK-3	4 Quadrant Logic Level TRIAC, 800V V(DRM), 12A I(T)RMS, PLASTIC, D2PAK-3
Parts packaging code	D2PAK	D2PAK	D2PAK	D2PAK
package instruction	SMALL OUTLINE, R-PSSO-G2	SMALL OUTLINE, R-PSSO-G2	SMALL OUTLINE, R-PSSO-G2	SMALL OUTLINE, R-PSSO-G2
Contacts	3	3	3	3
Reach Compliance Code	compliant	compliant	compliant	compliant
Shell connection	MAIN TERMINAL 2	MAIN TERMINAL 2	MAIN TERMINAL 2	MAIN TERMINAL 2
Configuration	SINGLE	SINGLE	SINGLE	SINGLE
Critical rise rate of minimum off-state voltage	10 V/us	10 V/us	10 V/us	10 V/us
Maximum DC gate trigger current	20 mA	20 mA	20 mA	20 mA
Maximum DC gate trigger voltage	1.5 V	1.5 V	1.5 V	1.5 V
Maximum holding current	25 mA	25 mA	25 mA	25 mA
JESD-30 code	R-PSSO-G2	R-PSSO-G2	R-PSSO-G2	R-PSSO-G2
JESD-609 code	e0	e0	e0	e0
Maximum leakage current	0.5 mA	0.5 mA	0.5 mA	0.5 mA
Number of components	1	1	1	1
Number of terminals	2	2	2	2
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum rms on-state current	12 A	12 A	12 A	12 A
Off-state repetitive peak voltage	600 V	600 V	800 V	800 V
surface mount	YES	YES	YES	YES
Terminal surface	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING
Terminal location	SINGLE	SINGLE	SINGLE	SINGLE
Trigger device type	4 QUADRANT LOGIC LEVEL TRIAC	4 QUADRANT LOGIC LEVEL TRIAC	4 QUADRANT LOGIC LEVEL TRIAC	4 QUADRANT LOGIC LEVEL TRIAC
Base Number Matches	1	1	1	1
