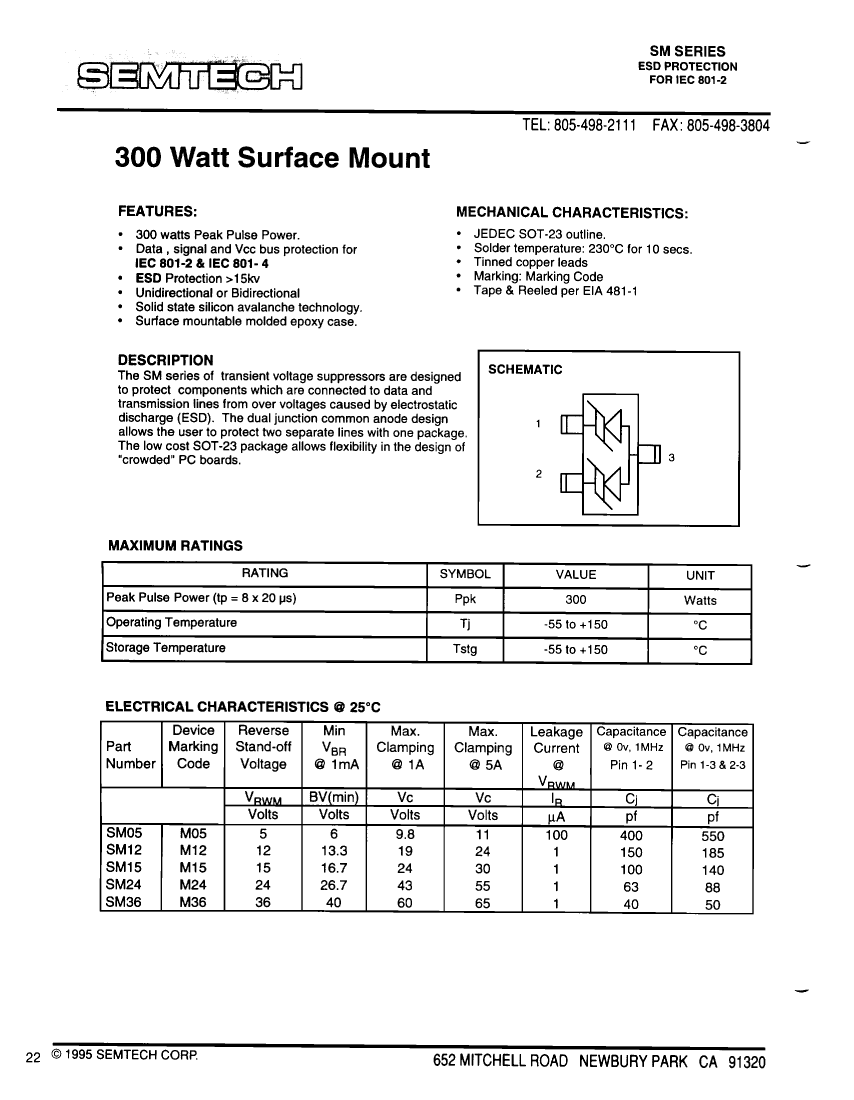

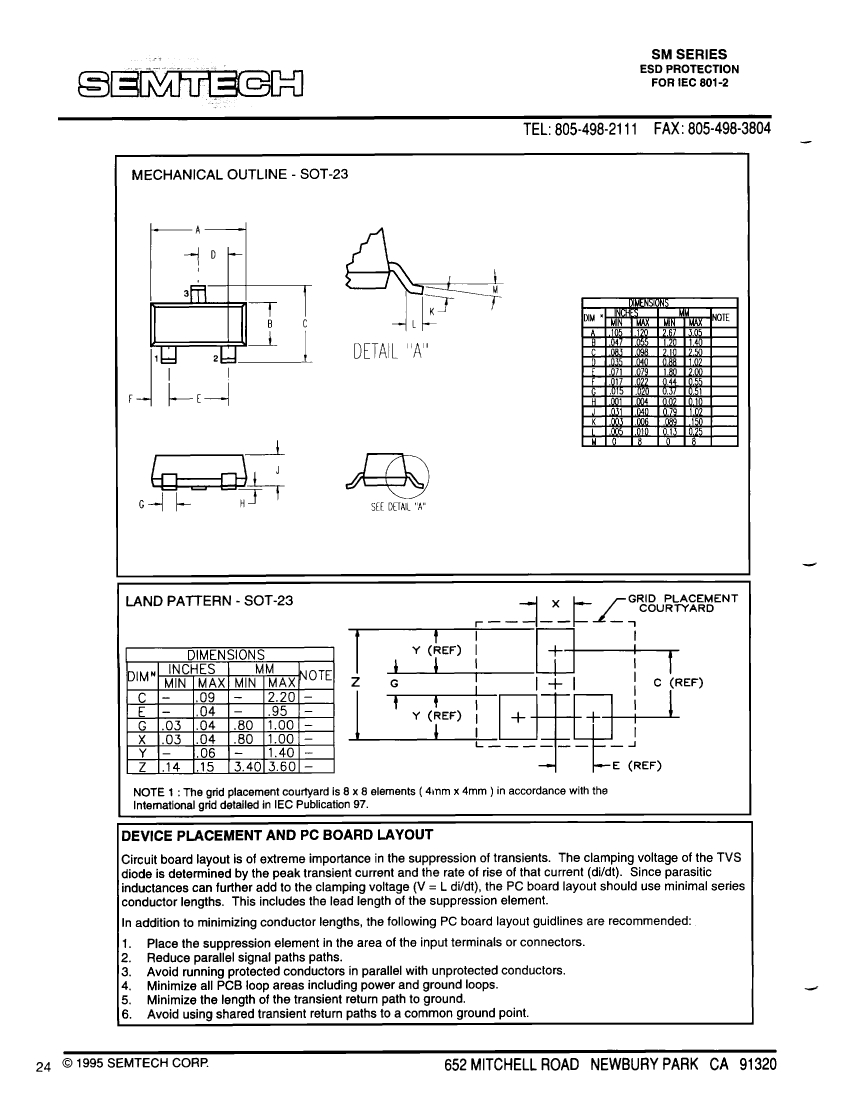

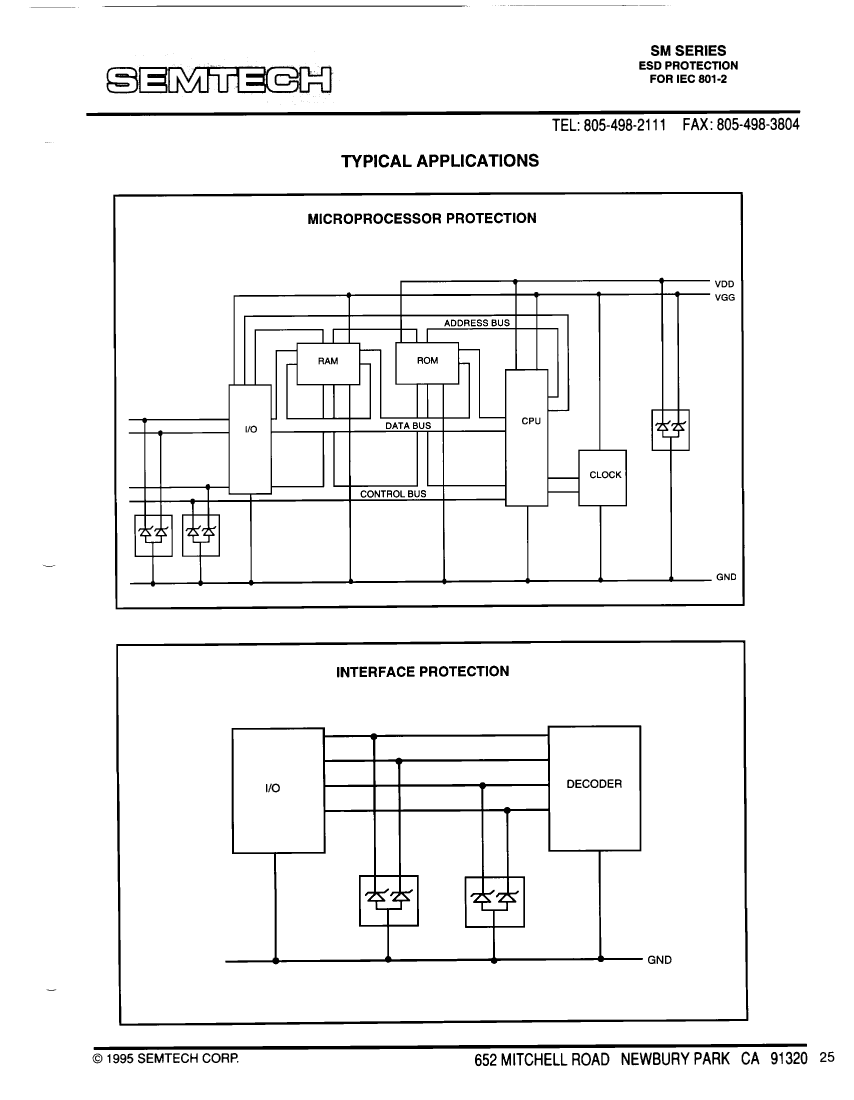

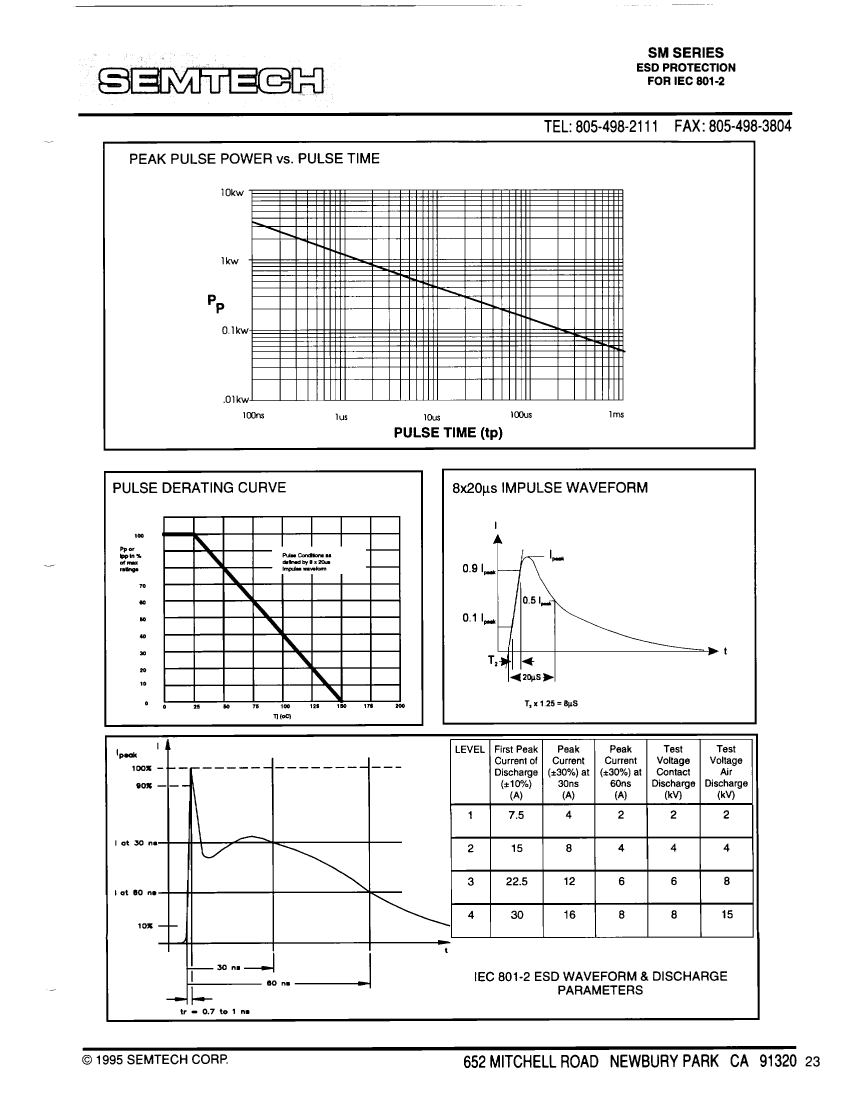

Trans Voltage Suppressor Diode, 300W, Bidirectional, 1 Element, Silicon
| Parameter Name | Attribute value |
| Maker | SEMTECH |
| Reach Compliance Code | unknown |
| ECCN code | EAR99 |
| Minimum breakdown voltage | 16.7 V |
| Maximum clamping voltage | 30 V |
| Configuration | SINGLE |
| Minimum diode capacitance | 100 pF |
| Diode component materials | SILICON |
| Diode type | TRANS VOLTAGE SUPPRESSOR DIODE |
| JESD-30 code | R-PDSO-G3 |
| Maximum non-repetitive peak reverse power dissipation | 300 W |
| Number of components | 1 |
| Number of terminals | 3 |
| Maximum operating temperature | 150 °C |
| Minimum operating temperature | -55 °C |
| Package body material | PLASTIC/EPOXY |
| Package shape | RECTANGULAR |
| Package form | SMALL OUTLINE |
| polarity | BIDIRECTIONAL |
| Certification status | Not Qualified |
| Maximum reverse current | 1 µA |
| surface mount | YES |
| technology | AVALANCHE |
| Terminal form | GULL WING |
| Terminal location | DUAL |
| Base Number Matches | 1 |
| SM15C.TC | SM12C.TG | SM15C.TG | SM36C.TG | SM05C.TC | SM05C.TG | SM24C.TC | SM12C.TC | SM36C.TC | |
|---|---|---|---|---|---|---|---|---|---|
| Description | Trans Voltage Suppressor Diode, 300W, Bidirectional, 1 Element, Silicon | Trans Voltage Suppressor Diode, 300W, Bidirectional, 1 Element, Silicon, | Trans Voltage Suppressor Diode, 300W, Bidirectional, 1 Element, Silicon | Trans Voltage Suppressor Diode, 300W, Bidirectional, 1 Element, Silicon | Trans Voltage Suppressor Diode, 300W, Bidirectional, 1 Element, Silicon | Trans Voltage Suppressor Diode, 300W, Bidirectional, 1 Element, Silicon | Trans Voltage Suppressor Diode, 300W, Bidirectional, 1 Element, Silicon | Trans Voltage Suppressor Diode, 300W, Bidirectional, 1 Element, Silicon, | Trans Voltage Suppressor Diode, 300W, Bidirectional, 1 Element, Silicon |
| Reach Compliance Code | unknown | unknown | unknown | unknown | unknown | unknown | unknown | unknown | unknown |
| ECCN code | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 |
| Minimum breakdown voltage | 16.7 V | 13.3 V | 16.7 V | 40 V | 6 V | 6 V | 26.7 V | 13.3 V | 40 V |
| Maximum clamping voltage | 30 V | 24 V | 30 V | 62 V | 11 V | 11 V | 55 V | 24 V | 62 V |
| Configuration | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE |
| Minimum diode capacitance | 100 pF | 150 pF | 100 pF | 40 pF | 400 pF | 400 pF | 63 pF | 150 pF | 40 pF |
| Diode component materials | SILICON | SILICON | SILICON | SILICON | SILICON | SILICON | SILICON | SILICON | SILICON |
| Diode type | TRANS VOLTAGE SUPPRESSOR DIODE | TRANS VOLTAGE SUPPRESSOR DIODE | TRANS VOLTAGE SUPPRESSOR DIODE | TRANS VOLTAGE SUPPRESSOR DIODE | TRANS VOLTAGE SUPPRESSOR DIODE | TRANS VOLTAGE SUPPRESSOR DIODE | TRANS VOLTAGE SUPPRESSOR DIODE | TRANS VOLTAGE SUPPRESSOR DIODE | TRANS VOLTAGE SUPPRESSOR DIODE |
| JESD-30 code | R-PDSO-G3 | R-PDSO-G3 | R-PDSO-G3 | R-PDSO-G3 | R-PDSO-G3 | R-PDSO-G3 | R-PDSO-G3 | R-PDSO-G3 | R-PDSO-G3 |
| Maximum non-repetitive peak reverse power dissipation | 300 W | 300 W | 300 W | 300 W | 300 W | 300 W | 300 W | 300 W | 300 W |
| Number of components | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Number of terminals | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 |
| Maximum operating temperature | 150 °C | 150 °C | 150 °C | 150 °C | 150 °C | 150 °C | 150 °C | 150 °C | 150 °C |
| Minimum operating temperature | -55 °C | -55 °C | -55 °C | -55 °C | -55 °C | -55 °C | -55 °C | -55 °C | -55 °C |
| Package body material | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | SMALL OUTLINE | SMALL OUTLINE | SMALL OUTLINE | SMALL OUTLINE | SMALL OUTLINE | SMALL OUTLINE | SMALL OUTLINE | SMALL OUTLINE | SMALL OUTLINE |
| polarity | BIDIRECTIONAL | BIDIRECTIONAL | BIDIRECTIONAL | BIDIRECTIONAL | BIDIRECTIONAL | BIDIRECTIONAL | BIDIRECTIONAL | BIDIRECTIONAL | BIDIRECTIONAL |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Maximum reverse current | 1 µA | 1 µA | 1 µA | 1 µA | 100 µA | 100 µA | 1 µA | 1 µA | 1 µA |
| surface mount | YES | YES | YES | YES | YES | YES | YES | YES | YES |
| technology | AVALANCHE | AVALANCHE | AVALANCHE | AVALANCHE | AVALANCHE | AVALANCHE | AVALANCHE | AVALANCHE | AVALANCHE |
| Terminal form | GULL WING | GULL WING | GULL WING | GULL WING | GULL WING | GULL WING | GULL WING | GULL WING | GULL WING |
| Terminal location | DUAL | DUAL | DUAL | DUAL | DUAL | DUAL | DUAL | DUAL | DUAL |
| Maker | SEMTECH | - | - | - | - | SEMTECH | SEMTECH | SEMTECH | SEMTECH |
| Base Number Matches | 1 | 1 | 1 | 1 | 1 | - | - | - | - |
| package instruction | - | R-PDSO-G3 | R-PDSO-G3 | R-PDSO-G3 | R-PDSO-G3 | R-PDSO-G3 | - | - | R-PDSO-G3 |
