SDR646CTMDB datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> SDR646CTMDB

SDR646CTMDB: DescriptionRectifier Diode, 1 Phase, 2 Element, 40A, 600V V(RRM), Silicon, TO-254AA, HERMETIC SEALED, TO-254, 3 PIN; CategoryDiscrete semiconductor diode; File Size65KB，2 Pages; ManufacturerSSDI; Websitehttp://www.ssdi-power.com/

Download Datasheet Parametric View All

SDR646CTMDB Overview

Rectifier Diode, 1 Phase, 2 Element, 40A, 600V V(RRM), Silicon, TO-254AA, HERMETIC SEALED, TO-254, 3 PIN

SDR646CTMDB Parametric

Parameter Name	Attribute value
Maker	SSDI
Parts packaging code	TO-254AA
package instruction	S-MSFM-P3
Contacts	3
Reach Compliance Code	compliant
ECCN code	EAR99
application	ULTRA FAST RECOVERY
Configuration	COMMON CATHODE, 2 ELEMENTS
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	1.17 V
JEDEC-95 code	TO-254AA
JESD-30 code	S-MSFM-P3
Maximum non-repetitive peak forward current	400 A
Number of components	2
Phase	1
Number of terminals	3
Maximum operating temperature	200 °C
Maximum output current	40 A
Package body material	METAL
Package shape	SQUARE
Package form	FLANGE MOUNT
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	600 V
Maximum reverse recovery time	0.06 µs
surface mount	NO
Terminal form	PIN/PEG
Terminal location	SINGLE
Base Number Matches	1

Preview

Download Datasheet

View All

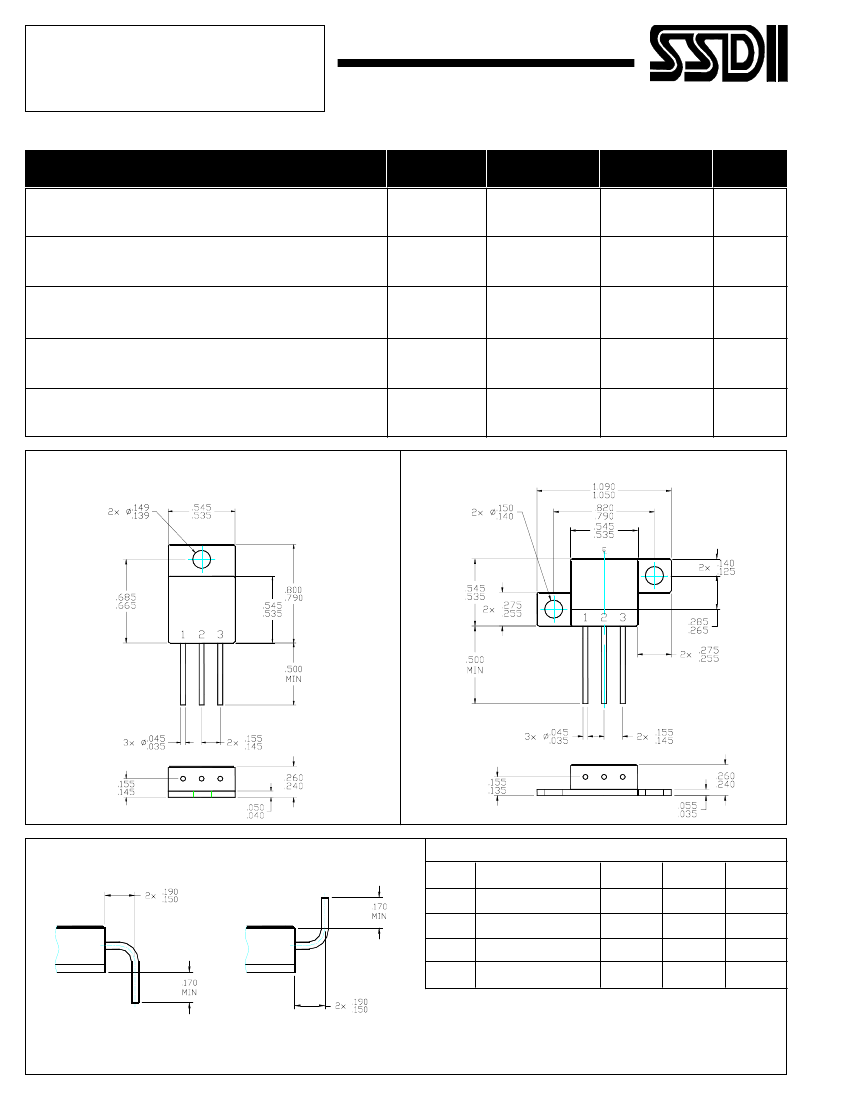

SOLID STATE DEVICES, INC.

14830 Valley View Blvd * La Mirada, Ca 90638

Phone: (562) 404-7855 * Fax: (562) 404-1773

SDR646CTM & Z

thru

SDR647CTM & Z

40AMPS

600 - 700 VOLTS

60 nsec

ULTRA FAST

CENTERTAP RECTIFIER

TO-254 (M)

TO-254Z (Z)

Designer's Data Sheet

FEATURES:

Ultra Fast Recovery: 60 nsec Maximum

High Surge Rating

Low Reverse Leakage Current

Low Junction Capacitance

Hermetically Sealed Package

Gold Eutectic Die Attach Available

Ultrasonic Aluminum Wire Bonds

Also Available in following configurations:

Common Anode: SDR646CAM & CAZ

SDR647CAM & CAZ

• TX, TXV and Space Level Screening Available

•

Maximum Ratings

Peak Repetitive Reverse and DC Blocking Voltage

SDR646CTM & Z

SDR647CTM & Z

Average Rectified Forward Current.

(Resistive load, 60Hz, Sine Wave, T

=25

C) 1/

Peak Surge Current

(8.3 ms Pulse, Half Sine Wave, T

= 25

C) 1/

Operating and Storage Temperature

Maximum Thermal Resistance

Junction to Case, 1/

Junction to Case, 2/

NOTE:

Both Legs Tied Together

Per Leg.

SYMBOL

RRM

RWM

FSM

& Tstg

VALUE

UNITS

600

700

400

-65 TO +200

Volts

Amps

2JC

2.0

3.5

C/W

NOTE:

All specifications are subject to change without notification.

SCD's for these devices should be reviewed by SSDI prior to release.

DATA SHEET #: RU0089D
