FM17-1200-48 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> FM17-1200-48

FM17-1200-48: DescriptionDC-DC Regulated Power Supply Module, 1 Output, 50W, Hybrid,; CategoryPower/power management The power supply circuit; File Size158KB，2 Pages; ManufacturerSemiconductor Circuits Inc; Environmental Compliance

Download Datasheet Parametric Compare View All

FM17-1200-48 Overview

DC-DC Regulated Power Supply Module, 1 Output, 50W, Hybrid,

FM17-1200-48 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Semiconductor Circuits Inc
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99
Analog Integrated Circuits - Other Types	DC-DC REGULATED POWER SUPPLY MODULE
Maximum input voltage	72 V
Minimum input voltage	20 V
Nominal input voltage	48 V
JESD-30 code	R-XDMA-P6
Maximum load regulation	1%
Number of functions	1
Output times	1
Number of terminals	6
Maximum operating temperature	60 °C
Minimum operating temperature	-40 °C
Maximum output voltage	3.333 V
Minimum output voltage	3.267 V
Nominal output voltage	3.3 V
Package body material	UNSPECIFIED
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
surface mount	NO
technology	HYBRID
Temperature level	OTHER
Terminal form	PIN/PEG
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Maximum total power output	50 W
Fine-tuning/adjustable output	NO
Base Number Matches	1

Preview

Download Datasheet

View All

765432121098765432109876543210987654321

ENVIRONMENTAL

GENERAL

OUTPUT

INPUT

Ripple and Noise

Short Circuit Protection

Temperature Coefficient

Regulation:

Line

Load

Efficiency

I/O Isolation

Switching Frequency

Voltage Tolerance

Operating Temperature

Max Baseplate Temp

Storage Temperature

All specifications are typical at nominal line and full load at 25°C unless

otherwise noted and are subject to change without notice.

Voltage Range

Filtering

Reverse Polarity Protected

Remote On/Off Control

DP Series

FM Series

Main

0.5%

1.0%

80 to 84%

1500 Vdc

300khz (typ)

± 1% Main

± 3% Auxiliary

50mV pk-pk

Continuous Power Cycle

0.02% / °C

-40°C to +60°C No Derating

+105°C

-40°C to +105°C

20-72Vdc

All Models

To Nominal Input Current

External Fuse Required

All Models

Aux

1.0%

5.0%

UL 1950 recognized

Remote shutdown

300kHz switching frequency

Continuous short circuit

protection

Six-sided shielding

These units are ideally suited for

telecommunications and applications

having a widely varying input voltage

such as automotive test equipment,

process control, minicomputers and

geosurvey equipment.

Applications

he 50-Watt FM series offer single

and triple outputs, high efficiency

and low cost. These converters

were designed for rugged environ-

ments. Internal filtering is provided to

reduce the magnitude of the reflected

ripple current. Single output models

can be used in parallel for higher power

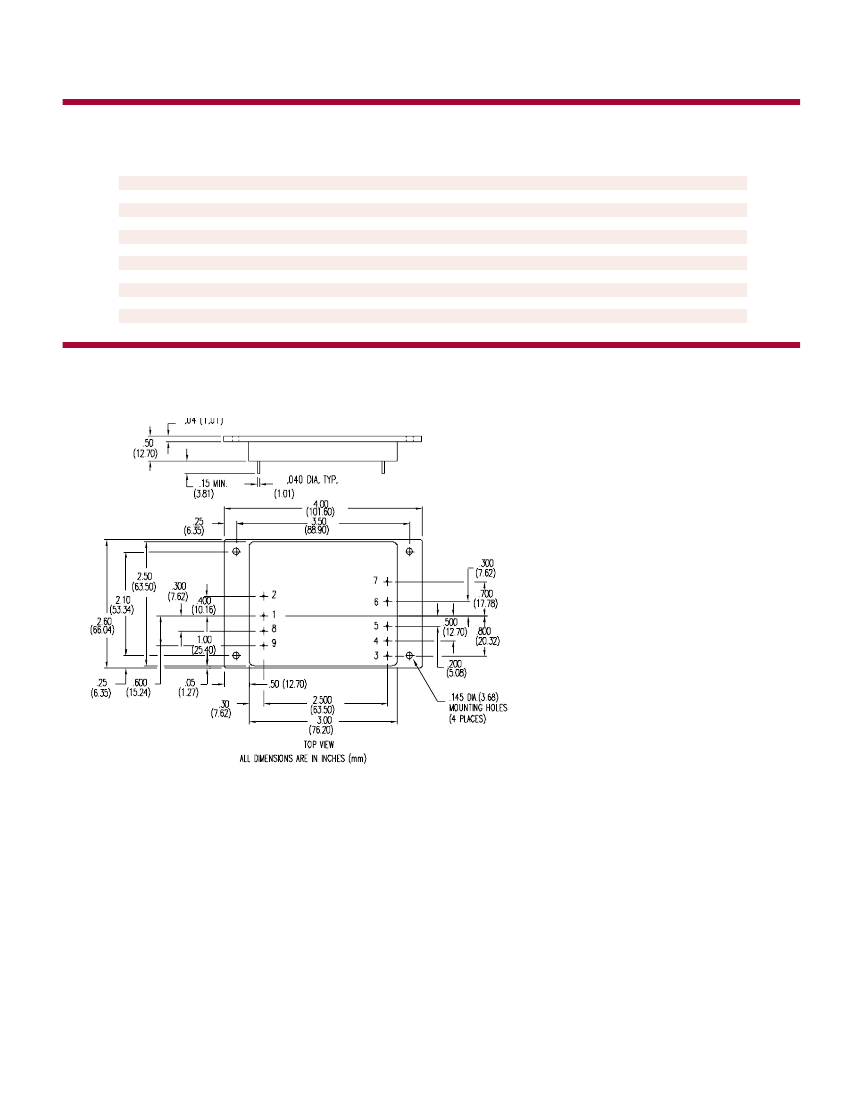

applications. The FM series is pack-

aged in a 4.0” x 2.6” x 0.5” six-sided

shielded case.

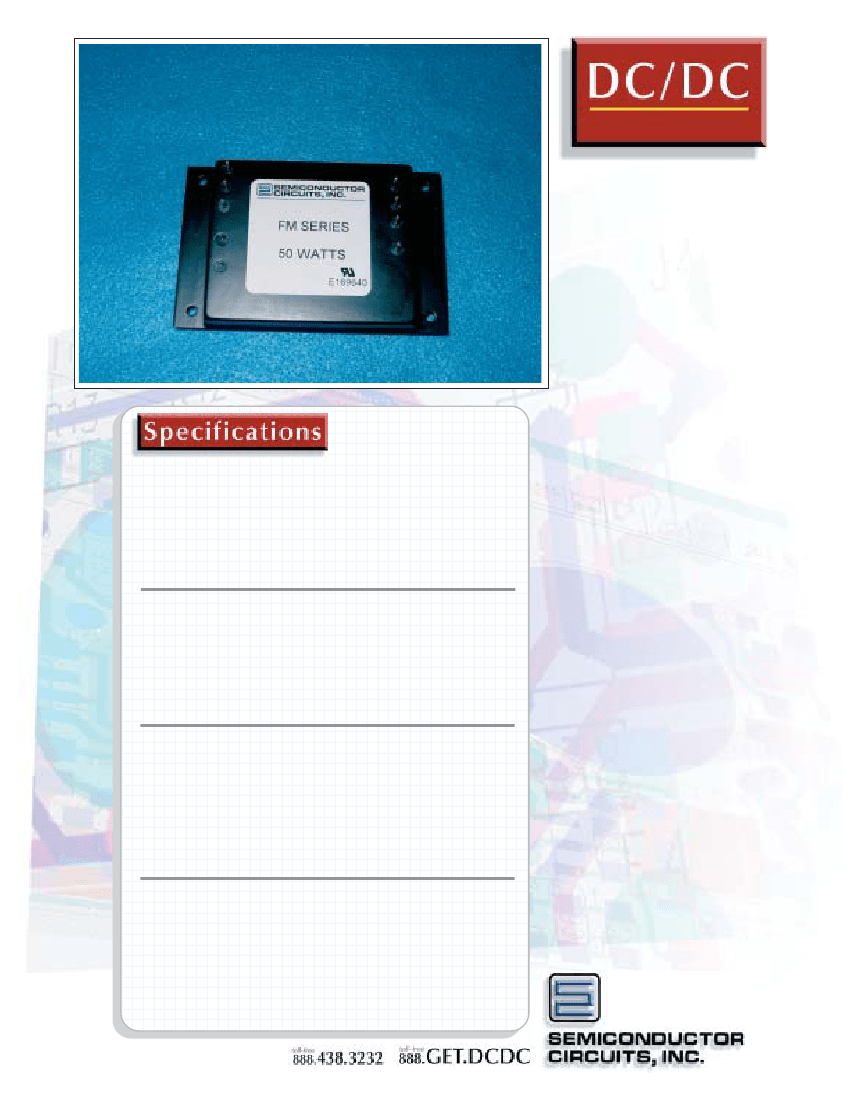

Single/Triple Outputs

50 Watts

FM17-1200-48 Related Products

	FM17-1200-48	FM13-340-48	FM34-750-48	FM35-730-48	FM11-1000-48
Description	DC-DC Regulated Power Supply Module, 1 Output, 50W, Hybrid,	DC-DC Regulated Power Supply Module, 1 Output, 50W, Hybrid,	DC-DC Regulated Power Supply Module, 3 Output, 50W, Hybrid,	DC-DC Regulated Power Supply Module, 3 Output, 50W, Hybrid,	DC-DC Regulated Power Supply Module, 1 Output, 50W, Hybrid,
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
Analog Integrated Circuits - Other Types	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE
Maximum input voltage	72 V	72 V	72 V	72 V	72 V
Minimum input voltage	20 V	20 V	20 V	20 V	20 V
Nominal input voltage	48 V	48 V	48 V	48 V	48 V
JESD-30 code	R-XDMA-P6	R-XDMA-P6	R-XDMA-P9	R-XDMA-P9	R-XDMA-P6
Maximum load regulation	1%	1%	1%	1%	1%
Number of functions	1	1	1	1	1
Output times	1	1	3	3	1
Number of terminals	6	6	9	9	6
Maximum operating temperature	60 °C	60 °C	60 °C	60 °C	60 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Maximum output voltage	3.333 V	15.15 V	5.05 V	5.05 V	5.05 V
Minimum output voltage	3.267 V	14.85 V	4.95 V	4.95 V	4.95 V
Nominal output voltage	3.3 V	15 V	5 V	5 V	5 V
Package body material	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	NO	NO	NO	NO	NO
technology	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID
Temperature level	OTHER	OTHER	OTHER	OTHER	OTHER
Terminal form	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Maximum total power output	50 W	50 W	50 W	50 W	50 W
Fine-tuning/adjustable output	NO	NO	NO	NO	NO
Maker	Semiconductor Circuits Inc	-	Semiconductor Circuits Inc	Semiconductor Circuits Inc	Semiconductor Circuits Inc
Efficiency (main output)	-	82%	82%	82%	82%
Maximum grid adjustment rate	-	0.5%	0.5%	0.5%	0.5%
Protect	-	CURRENT; OUTPUT OVER VOLTAGE	CURRENT; OUTPUT OVER VOLTAGE	CURRENT; OUTPUT OVER VOLTAGE	CURRENT; OUTPUT OVER VOLTAGE
