MURS360CF: DescriptionSuper Fast Recovery Rectifier, VRRM MAX (V): 600V; IAV MAX (A): 3A; VFM MAX (V): 1.25V; @ IF (A): 3A; IFSM MAX (A): 125A; IR MAX (UA): 10uA; @VR (V): 600V; TRR MAX (NS): 50ns; Package: SMCF; CategoryDiscrete semiconductor diode; File Size373KB，4 Pages; ManufacturerGalaxy Microelectronics; Environmental Compliance

Download Datasheet Parametric Compare View All

MURS360CF Overview

Super Fast Recovery Rectifier, VRRM MAX (V): 600V; IAV MAX (A): 3A; VFM MAX (V): 1.25V; @ IF (A): 3A; IFSM MAX (A): 125A; IR MAX (UA): 10uA; @VR (V): 600V; TRR MAX (NS): 50ns; Package: SMCF

MURS360CF Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Galaxy Microelectronics
Parts packaging code	SMCF
package instruction	SMCF, 2 PIN
Reach Compliance Code	unknown
application	SUPER FAST RECOVERY
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	1.25 V
JESD-30 code	R-PDSO-F2
Maximum non-repetitive peak forward current	125 A
Number of components	1
Phase	1
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
Maximum output current	3 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Maximum repetitive peak reverse voltage	600 V
Maximum reverse current	10 µA
Maximum reverse recovery time	0.05 µs
surface mount	YES
Terminal form	FLAT
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Base Number Matches	1
category
VRRM (V) max	600
IF (A) max	3
VF (V) max	1.25
Condition1_IF (A)	3
IFSM (A) max	125
IR (uA) max	10
Condition2_VR (V)	600
trr (ns) max	50
AEC Qualified	-
Maximum operating temperature	150
Minimum operating temperature	-55
MSL level	-
Is it lead-free?	Yes
Comply with Reach	Yes
RoHS compliant	Yes
ECCN code	EAR99
Package Outlines	SMCF

Preview

Download Datasheet

View All

Production specification

Super-Fast Rectifiers

Features



For surface mounted applications

Ideal for automated placement

Low forward voltage drop

High surge current capability

RoHS Compliant

Case: SMCF molded plastic

MURS340CF--MURS360CF

Mechanical Data

Molding compound, UL flammability classification rating 94V-0

Terminals: Solder plated, solderable per MIL- STD-202,Method 208

Polarity: Color band denotes cathode end

Maximum Ratings

(@T

= 25°C unless otherwise specified)

Characteristic

Peak repetitive reverse voltage

RMS reverse voltage

DC blocking voltage

Maximum average forward output current

Peak forward surge current,

8.3ms single half-sine-wave

Symbol

RRM

RMS

F(AV)

FSM

MURS340CF

400

280

400

3.0

125

MURS360CF

600

420

600

Units

Thermal Characteristics

Parameter

Typical thermal resistance

(Note 1)

Operating junction temperature range

Storage temperature range

Symbol

ΘJA

ΘJC

ΘJL

STG

MURS340CF

- 55 ---- + 150

°C

°C /W

MURS360CF

Units

Note:

1. Device mounted on PCB with 10 mm x 20 mm x 0.1mm copper pad areas

SCF109AA

Rev.B

www.gmesemi.com

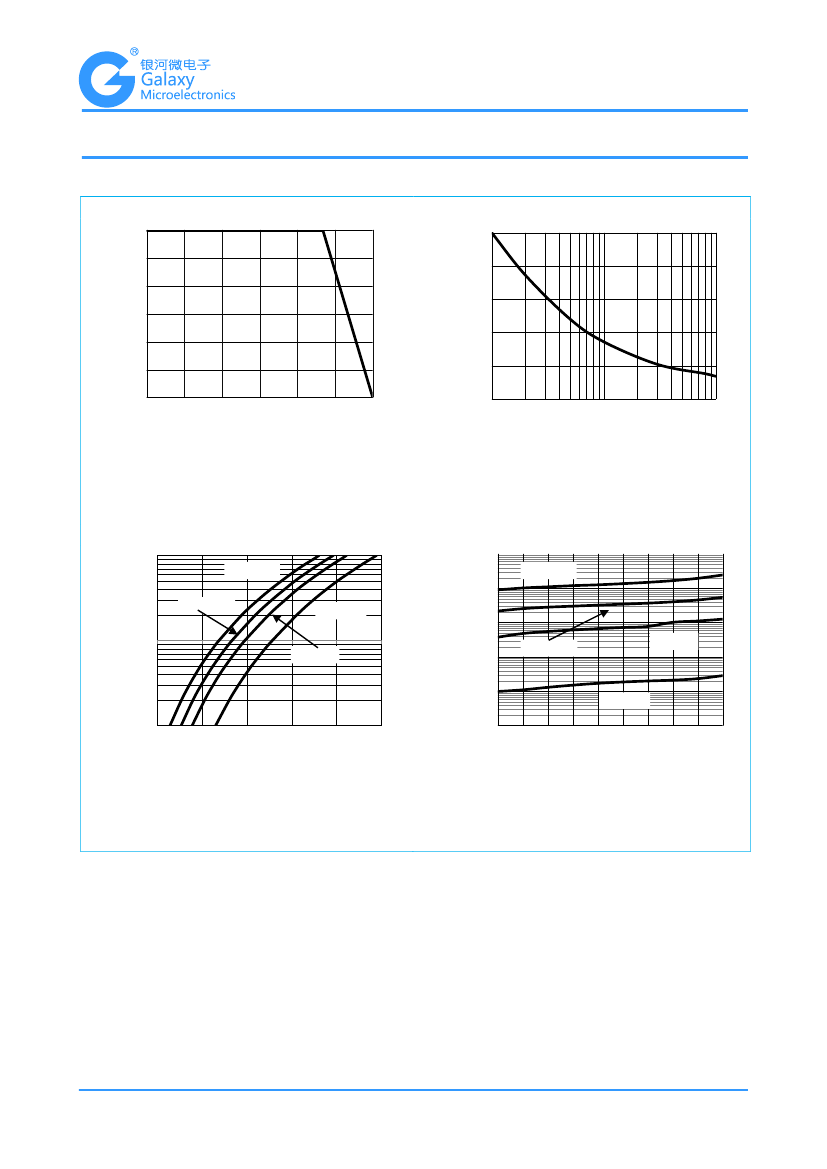

MURS360CF Related Products

	MURS360CF	MURS340CF
Description	Super Fast Recovery Rectifier, VRRM MAX (V): 600V; IAV MAX (A): 3A; VFM MAX (V): 1.25V; @ IF (A): 3A; IFSM MAX (A): 125A; IR MAX (UA): 10uA; @VR (V): 600V; TRR MAX (NS): 50ns; Package: SMCF	Surface Mount Fast Recovery Rectifiers, Diodes, Single, 400V, 3A, 1.25V, 3A, 125A
Is it Rohs certified?	conform to	conform to
Maker	Galaxy Microelectronics	Galaxy Microelectronics
Parts packaging code	SMCF	SMCF
package instruction	SMCF, 2 PIN	SMCF, 2 PIN
Reach Compliance Code	unknown	unknown
application	SUPER FAST RECOVERY	SUPER FAST RECOVERY
Configuration	SINGLE	SINGLE
Diode component materials	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	1.25 V	1.25 V
JESD-30 code	R-PDSO-F2	R-PDSO-F2
Maximum non-repetitive peak forward current	125 A	125 A
Number of components	1	1
Phase	1	1
Number of terminals	2	2
Maximum output current	3 A	3 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED
Maximum repetitive peak reverse voltage	600 V	400 V
Maximum reverse current	10 µA	10 µA
Maximum reverse recovery time	0.05 µs	0.05 µs
surface mount	YES	YES
Terminal form	FLAT	FLAT
Terminal location	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED
VRRM (V) max	600	400
IF (A) max	3	3
VF (V) max	1.25	1.25
Condition1_IF (A)	3	3
IFSM (A) max	125	125
IR (uA) max	10	10
Condition2_VR (V)	600	400
trr (ns) max	50	50
Is it lead-free?	Yes	Yes
Comply with Reach	Yes	Yes
RoHS compliant	Yes	Yes
ECCN code	EAR99	EAR99
Package Outlines	SMCF	SMCF
Maximum operating temperature	150	150
Minimum operating temperature	-55	-55
