Part Number

Search

241009

Description
Telecom and Datacom Connector, 4 Contact(s), Female, Right Angle, Solder Terminal, Detent, Socket,
CategoryThe connector    The connector
File Size341KB,1 Pages
ManufacturerLumberg
Websitehttp://www.lumberg.com/zh/
Environmental Compliance
Download Datasheet Parametric View All

241009 Overview

Telecom and Datacom Connector, 4 Contact(s), Female, Right Angle, Solder Terminal, Detent, Socket,

241009 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerLumberg
Reach Compliance Codenot_compliant
ECCN codeEAR99
Board mount optionsSOLDERABLE RETENTION CLIPS
body width0.615 inch
subject depth0.668 inch
body length0.571 inch
Body/casing typeSOCKET
Connector typeTELECOM AND DATACOM CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact point genderFEMALE
Contact materialNOT SPECIFIED
Contact resistance30 mΩ
Contact styleUSB, SER A FLAT
DIN complianceNO
empty shellNO
Filter functionNO
IEC complianceNO
Insulation resistance1000000000 Ω
insulator materialGLASS FILLED POLYETHYLENE
MIL complianceNO
Plug informationMULTIPLE MATING PARTS AVAILABLE
Mixed contactsNO
Installation option 1DETENT
Installation option 2LOCKING
Installation methodRIGHT ANGLE
Installation typeBOARD
Number of connectorsONE
PCB row number1+1
Maximum operating temperature105 °C
Minimum operating temperature-55 °C
OptionsGENERAL PURPOSE
PCB contact patternRECTANGULAR
polarization keyPOLARIZED HOUSING
Rated current (signal)1 A
reliabilityCOMMERCIAL
Shell surfaceNICKEL
Shell materialCOPPER ALLOY
Terminal length0.112 inch
Termination typeSOLDER
Total number of contacts4
UL Flammability Code94V-0
Base Number Matches1
USB-2.0-Steckverbinder
USB 2.0 connectors
Connecteurs USB 2.0
2410 09
Doppelte USB-2.0-Einbaukupplung Typ A, abgewinkelte
Ausführung, mit Massekontakten vorne, für Leiterplatten
1. Temperaturbereich
2. Werkstoffe
Kontaktträger
Kontaktfeder
Gehäuse
3. Mechanische Daten
Kontaktierung mit
4. Elektrische Daten
Durchgangswiderstand
Bemessungsstrom
Bemessungsspannung
Prüfspannung
Isolationswiderstand
30 mΩ
1A
30 V AC (RMS)
750 V AC
1 GΩ
USB-Stecker 2410 07, 2410 08, 2431,
2480, 2482
Thermoplast GF, V0 nach UL 94
Cu-Legierung, unternickelt und ver-
goldet
Cu-Legierung, vernickelt
-55 °C/+105 °C
2410 09

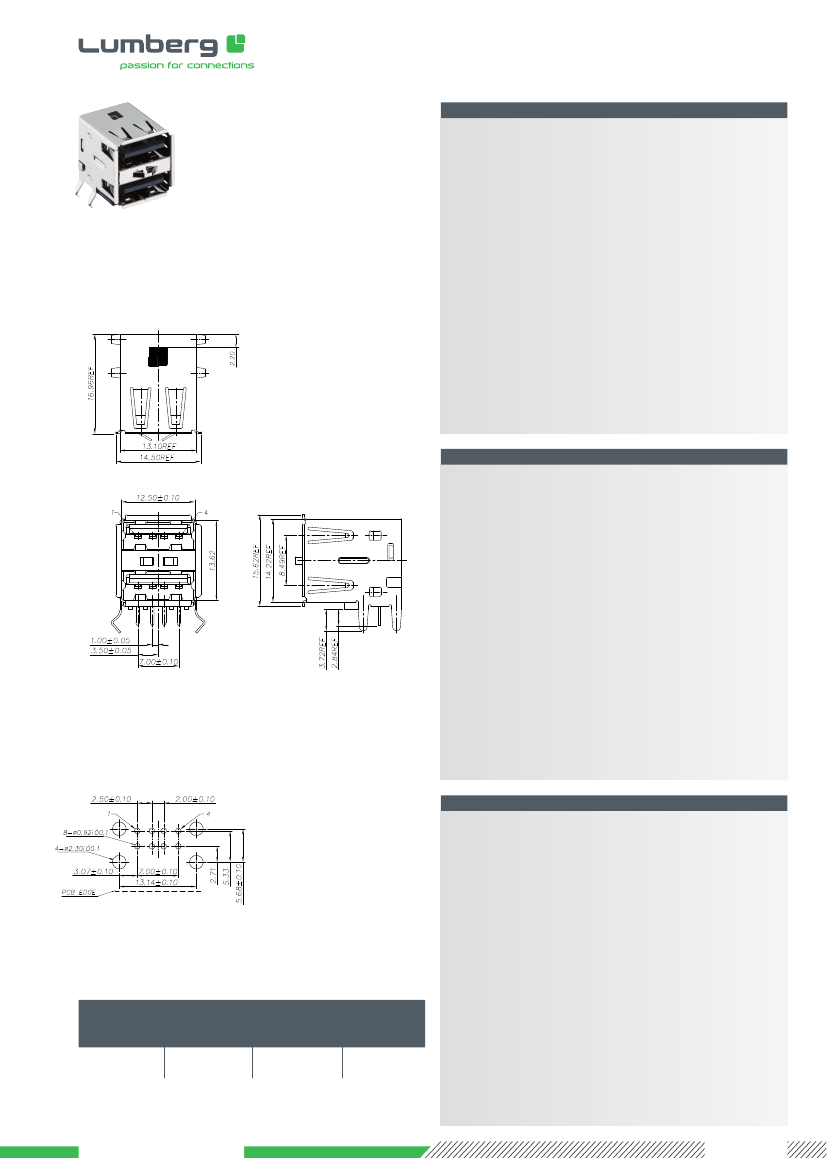

Double USB 2.0 chassis socket type A, angular version, with
ground contacts at the front, for printed circuit boards
1. Temperature range
2. Materials
Insulating body
Contact spring
Housing
3. Mechanical data
Mating with
4. Electrical data
Contact resistance
Rated current
Rated voltage
Test voltage
Insulation resistance
30 mΩ
1A
30 V AC (RMS)
750 V AC
1 GΩ
USB plug 2410 07, 2410 08, 2431,
2480, 2482
thermoplastic GF, V0 acc. to UL 94
Cu alloy, pre-nickeled and gold-plated
Cu alloy, nickel-plated
-55 °C/+105 °C
*a
2410 09
Embase femelle double USB 2.0, version angulaire, avec
contacts de mise à la masse au front, pour cartes imprimées
1. Température d’utilisation
2. Matériaux
Corps isolant
Ressort de contact
Boîtier
3. Caractéristiques mécaniques
Raccordement avec
4. Caractéristiques électriques
Bestellbezeichnung
Designation
Désignation
Polzahl
Poles
Pôles
Verpackungseinheit
Package unit
Unité d’emballage
Résistance de contact
Courant assigné
Tension assignée
Tension d’essai
Résistance d’isolement
30 mΩ
1A
30 V AC (RMS)
750 V AC
1 GΩ
connecteur mâle USB 2410 07,
2410 08, 2431, 2480, 2482
thermoplastique GF, V0 suivant UL 94
Cu alliage, sous-nickelé et doré
Cu alliage, nickelé
-55 °C/+105 °C
*a Leiterplattenlayout, von der Bestückungsseite gesehen
printed circuit board layout, component side view
modèle de la carte imprimée, vu du côté à équiper
2410 09
4
120
Verpackung: im Tablett
Packaging: in tray
Emballage: en tableau
www.lumberg.com
06/2013
