560015 datasheet, PDF - EEWORLD Datasheet

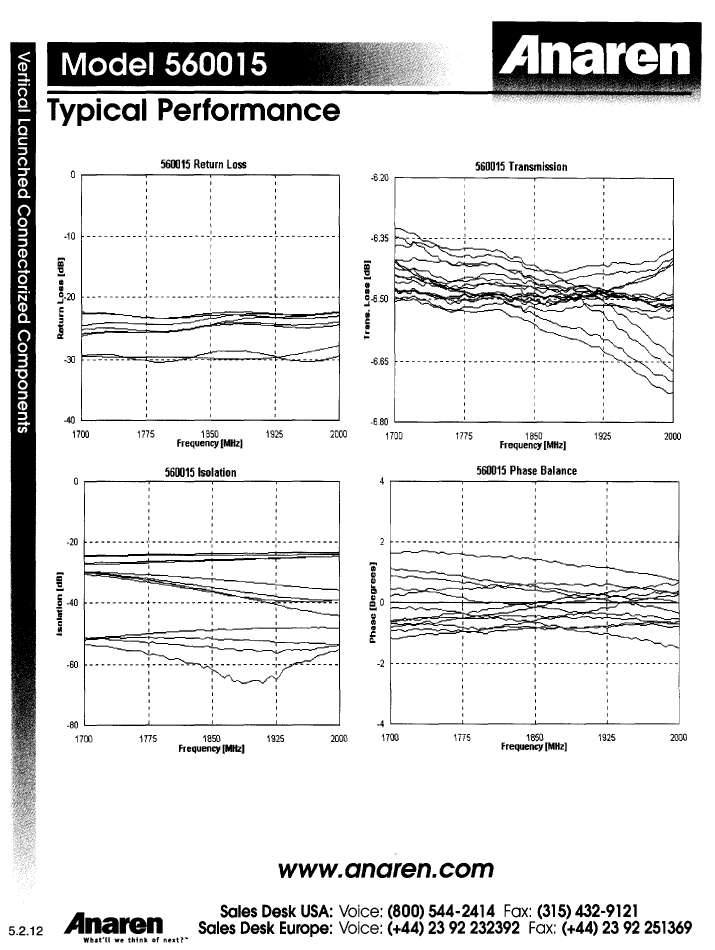

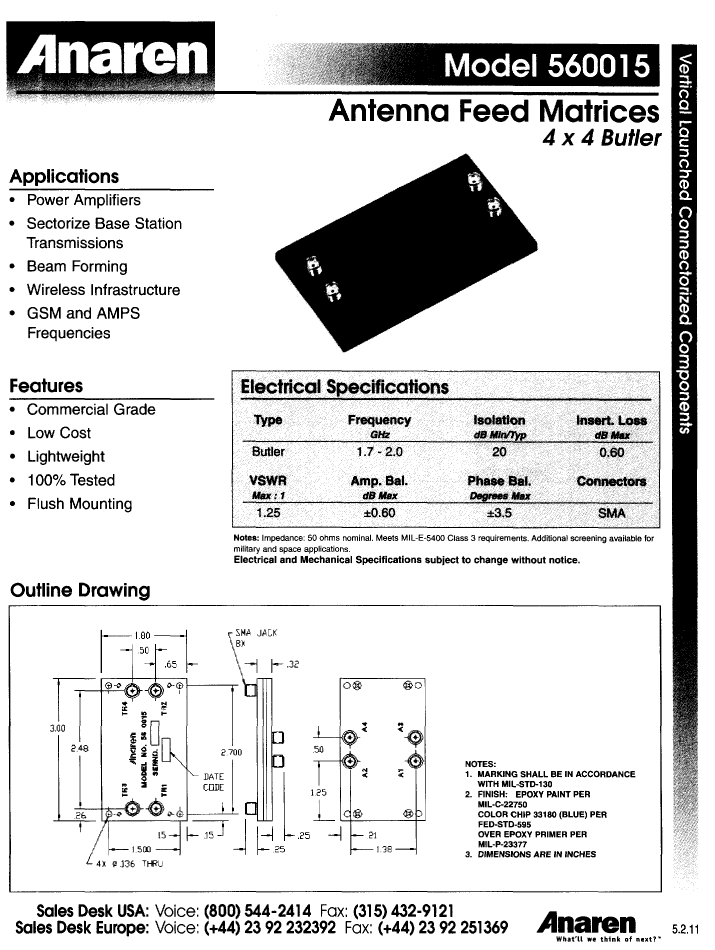

560015: Description90 Degree Hybrid Coupler, 1700MHz Min, 2000MHz Max, 0.6dB Insertion Loss-Max; CategoryWireless rf/communication Radio frequency and microwave; File Size292KB，2 Pages; ManufacturerAnaren; Websitehttp://www.anaren.com/

Download Datasheet Parametric View All

560015 Overview

90 Degree Hybrid Coupler, 1700MHz Min, 2000MHz Max, 0.6dB Insertion Loss-Max

Parameter Name	Attribute value
Maker	Anaren
Reach Compliance Code	unknown
Characteristic impedance	50 Ω
Maximum insertion loss	0.6 dB
Maximum operating frequency	2000 MHz
Minimum operating frequency	1700 MHz
RF/Microwave Device Types	90 DEGREE HYBRID COUPLER
Maximum voltage standing wave ratio	1.25
Base Number Matches	1
