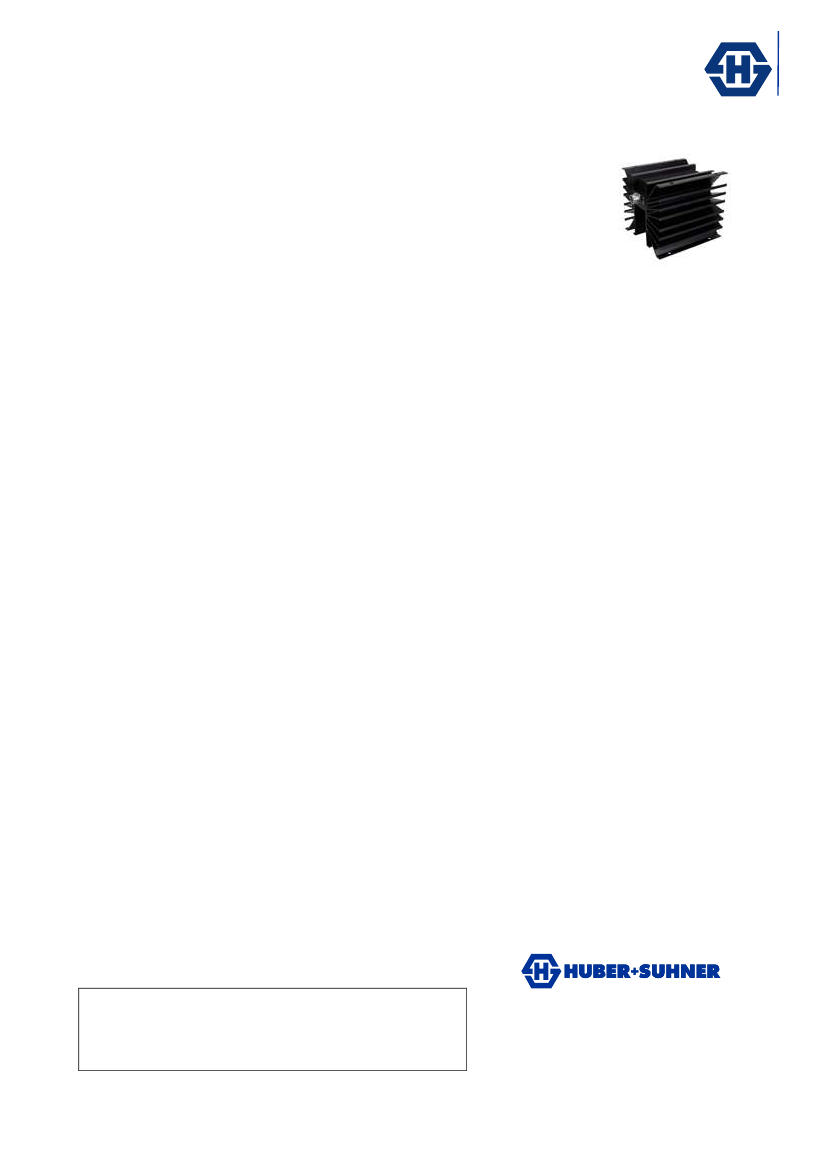

HUBER+SUHNER
®
DATA SHEET
RF ATTENUATOR: Type 5906_N-50-200/19-_N
Description
Standard Attenuator, High Power
Rev.: D
Product Configuration
Connectors (side 1 / side 2)
Interface standard
Technical Data
Electrical Data
N plug (male) / N jack (female)
IEC 60169-16_MIL-STD-348A/304_CECC 22210
Nominal impedance
Nominal attenuation
Frequency range
Frequency sub range (GHz)
Attenuation deviation (±dB)
VSWR max.
Power rating
Mechanical Data
Weight
50
Ω
6 dB
DC to 4 GHz
DC to 1.5
1.5 to 2.5
2.5 to 4
0.5
0.5
0.75
1.15
1.25
1.35
200 Watt average power up to 25 ˚C ambient temperature, linearly derated to 40 Watt at
125 ˚C ambient temperature.
Free airflow convection necessary to ensure power performances. Unit is unidirectional,
therefore don't swap input with output (note: input is usually on the male side, otherwise
follow instructions on the heatsink)
2000 Watt peak power, 5
µs
pulse, 0.05 % duty cycle
kg
-54 to 125
compliant
Material
Copper Beryllium Alloy
Stainless Steel
Aluminium
Stainless Steel
Surface Plating
Gold Plating (without Nickel underplating)
Passivated (Plating)
Anodized
Passivated (Plating)
Environmental Data
Material Data
Operating temperature (˚C)
2002/95/EC (RoHS)
Piece Part
(side 1)
Centre contact
Outer contact
Body
Coupling nut
Piece Part
(side 2)
Centre contact
Outer contact
Body
Outline drawing
Related Documents
Ordering Information
Single packaging
Material
Copper Beryllium Alloy
Stainless Steel
Aluminium
DOU-00122366
Surface Plating
Gold Plating (without Nickel underplating)
Passivated (Plating)
Anodized
5906_N-50-200/19-_NE
HUBER+SUHNER is certified according to ISO 9001 and ISO 14001
WAIVER!
It is exclusively in written agreements that we provide our customers with warrants and
representations as to the technical specifications and/or the fitness for any particular purpose. The
facts and figures contained herein are carefully compiled to the best of our knowledge, but they are
intended for general informational purposes only.
HUBER+SUHNER AG
RF Industrial
9100 Herisau, Switzerland
Phone +41 (0)71 353 41 11
Fax
+41 (0)71 353 45 90
www.hubersuhner.com
Uncontrolled Copy
Page 1/1
Document: DOC-0000279941 H
HUBER+SUHNER – Excellence in Connectivity Solutions
Issued: 28.11.2011 15:11:44
