10115593-003LF

Description
Rectangular Power Connector, 22 Contact(s), Female, Solder Terminal, Receptacle, LEAD FREE
CategoryThe connector    The connector
File Size394KB,4 Pages
ManufacturerAmphenol
Websitehttp://www.amphenol.com/
Environmental Compliance
Download Datasheet Parametric View All

10115593-003LF Online Shopping

Suppliers Part Number Price MOQ In stock
10115593-003LF - - View Buy Now

10115593-003LF Overview

Rectangular Power Connector, 22 Contact(s), Female, Solder Terminal, Receptacle, LEAD FREE

10115593-003LF Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerAmphenol
package instructionLEAD FREE
Reach Compliance Codecompliant
Factory Lead Time6 weeks
Board mount optionsSPLIT BOARD LOCK
body width0.779 inch
subject depth1.406 inch
body length2.559 inch
Body/casing typeRECEPTACLE
Connector typeRECTANGULAR POWER CONNECTOR
Contact arrangementS16P6
Contact to complete cooperationNOT SPECIFIED
Contact point genderFEMALE
Contact materialNOT SPECIFIED
Contact resistance0.5 mΩ
Contact styleHYBRID
DIN complianceNO
Dielectric withstand voltage2500VAC V
Durability200 Cycles
empty shellNO
Filter functionNO
IEC complianceNO
Insulation resistance500000000 Ω
Insulator colorBLACK
insulator materialTHERMOPLASTIC
MIL complianceNO
Mixed contactsYES
Installation option 1LOCKING
Installation methodRIGHT ANGLE
Installation typeBOARD
Number of connectorsONE
Maximum operating temperature105 °C
Minimum operating temperature-65 °C
OptionsGENERAL PURPOSE
Plating thickness30u inch
GuidelineUL
reliabilityCOMMERCIAL
Shell materialPOLYETHYLENE
Terminal length0.135 inch
Termination typeSOLDER
Total number of contacts22
UL Flammability Code94V-0
Base Number Matches1

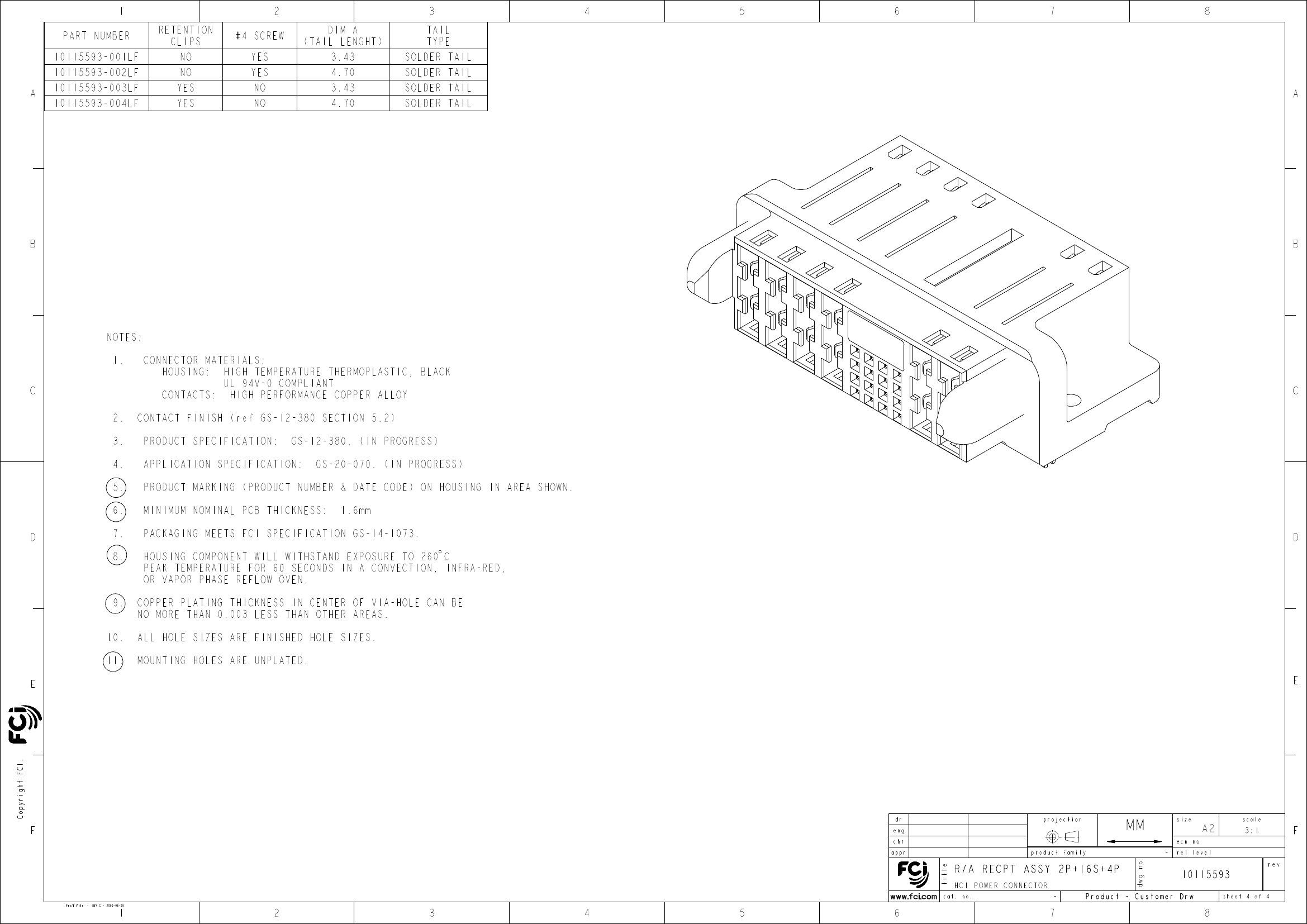

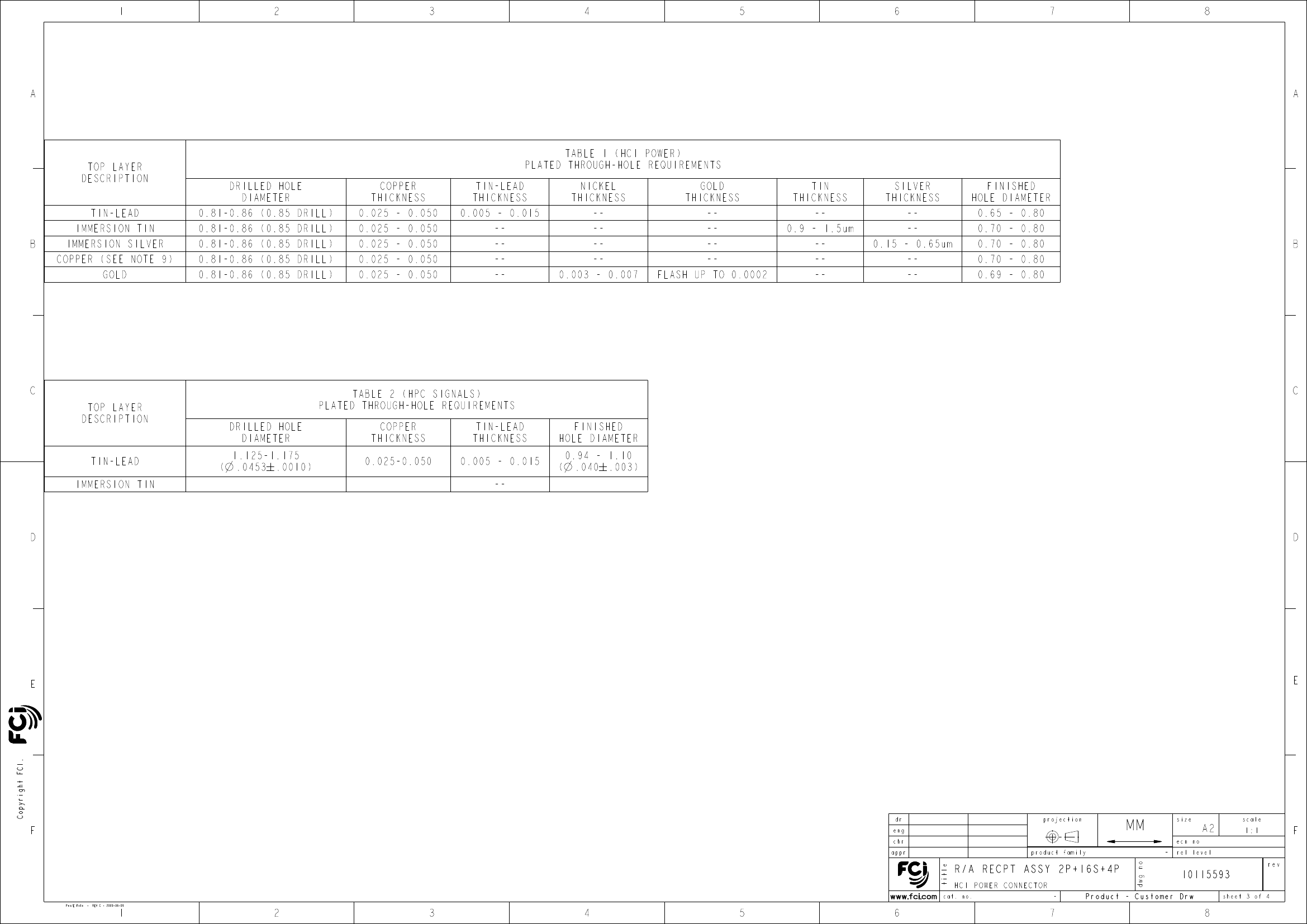

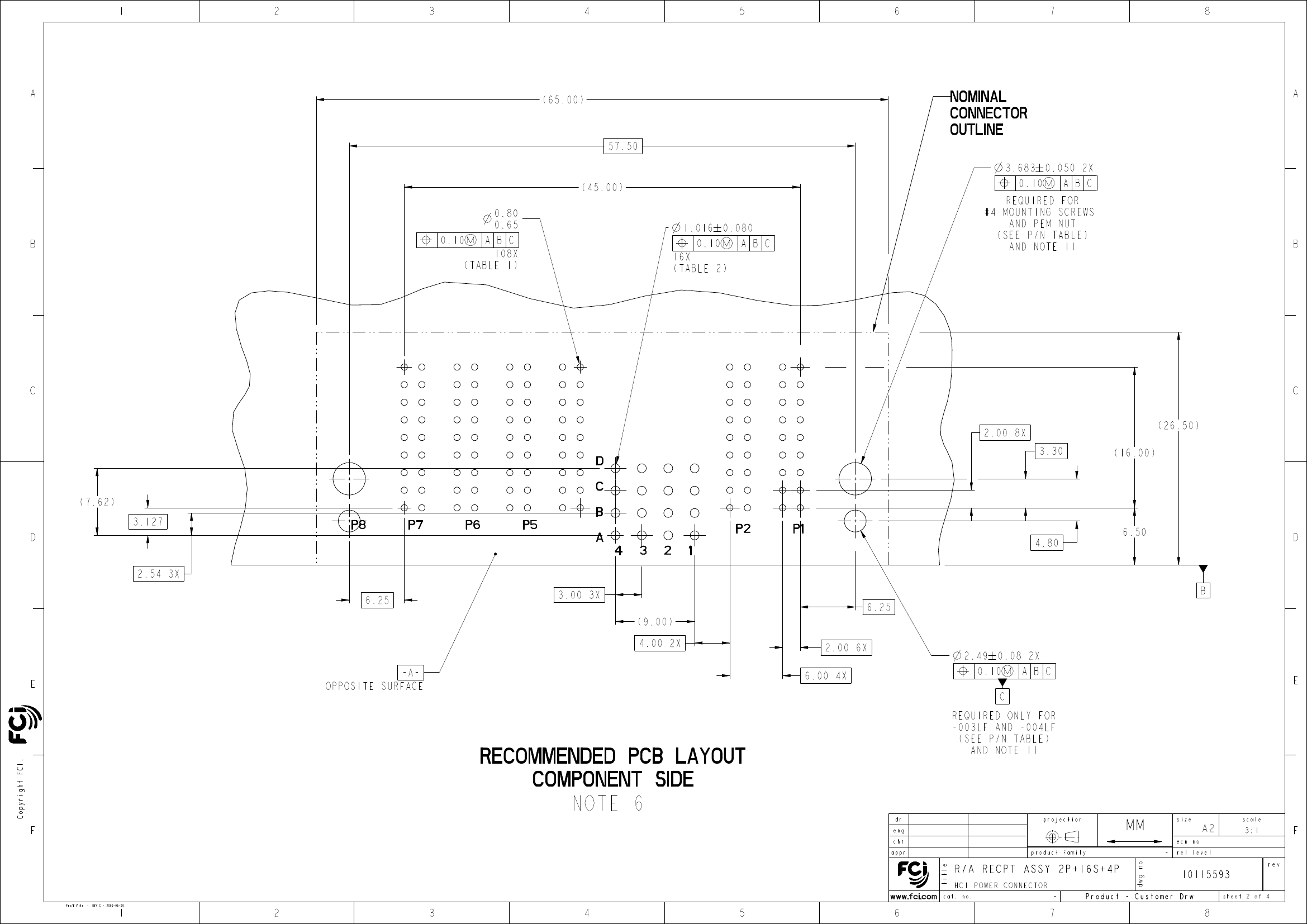

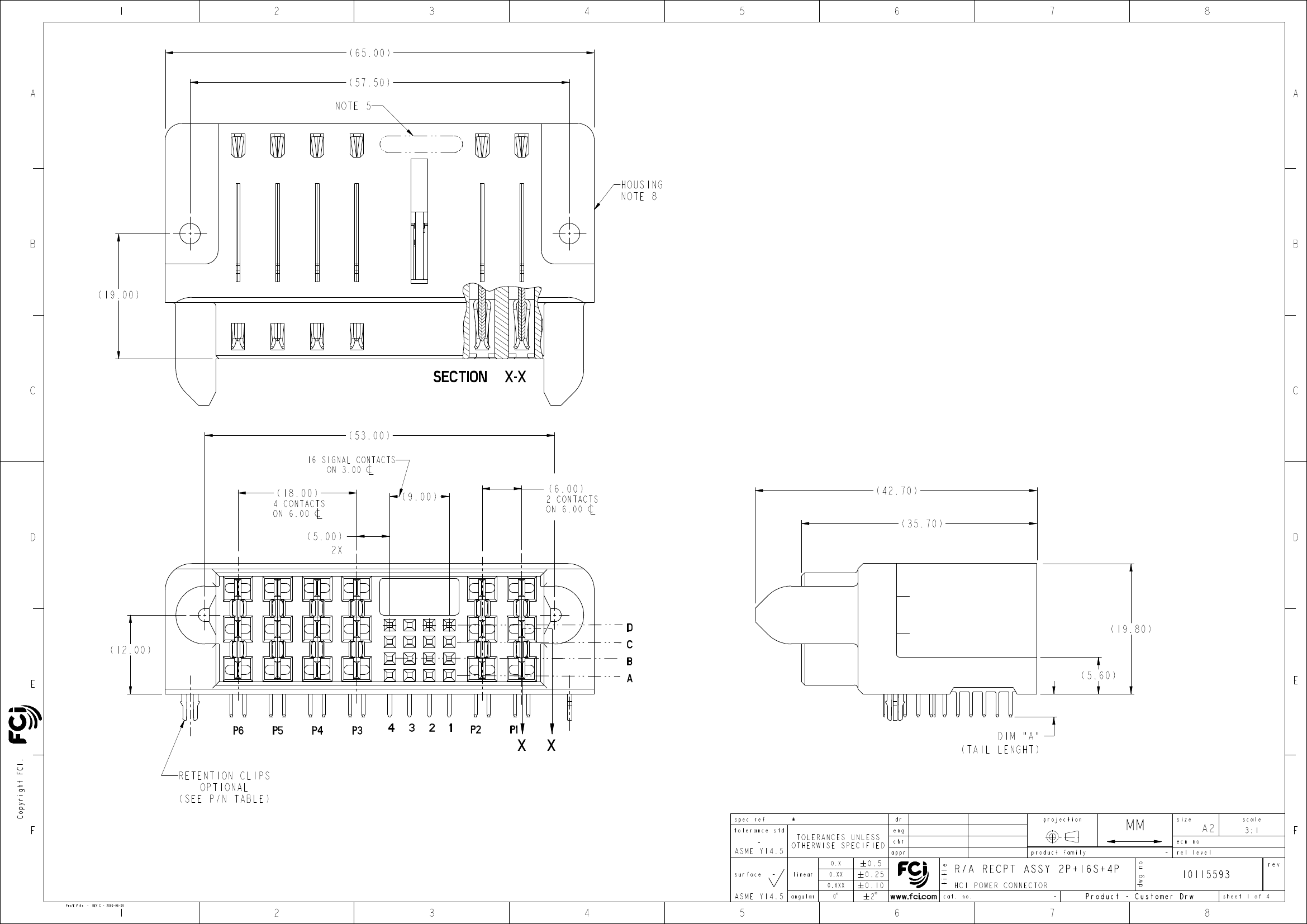

NotFound DuWa
De-Ming Lu
-
Pei-Ming Zheng
2010/07/29
2014/12/28
-
2014/12/29
ELX-DG-19849-1
Released
B
PDS: Rev :B
STATUS:Released
Printed: Dec 29, 2014
