www.cristek.com
NO. OF
NO. OF SPACES .010
CONTACTS
04
1
.10
06
2
.20
08
3
.30
10
4
.40
12
5
.50
14
6
.60
16
7
.70
18
8
.80
20
9
.90
22
10
1.00
24
11
1.10
26
12
1.20
28
1.30
13
30
14
1.40
32
15
1.50
34
16
1.60
A
B
NO. OF
NO. OF SPACES .010
CONTACTS
36
1.70
17
18
1.80
38
40
19
1.90
20
2.00
42
2.10
21
44
2.20
46
22
48
23
2.30
24
2.40
50
2.50
52
25
54
26
2.60
27
56
2.70
58
2.80
28
29
2.90
60
62
30
3.00
3.10
64
31
66
32
3.20
A
B
NO. OF
NO. OF SPACES .010
CONTACTS
68
33
3.30
34
3.40
70
72
35
3.50
36
74
3.60
3.70
76
37
3.80
38
78
80
39
3.90
82
40
4.00
41
84
4.10
86
42
4.20
88
4.30
43
44
4.40
90
4.50
92
45
46
4.60
94
96
47
4.70
4.80
98
48
A
B
NO. OF
NO. OF SPACES .010
CONTACTS
100
49
4.90
5.00
102
50
104
51
5.10
52
5.20
106
108
53
5.30
110
54
5.40
112
5.50
55
114
56
5.60
116
57
5.70
58
118
5.80
120
59
5.90
60
122
6.00
6.10
124
61
6.20
126
62
6.30
128
63
130
64
6.40
A
B
XX - 123 - XXX - X - MIL - T
HOT SOLDER DIPPED TERMINATION AREA
- BY ADDING THE "-T" SUFFIX, MIL PLATED CONTACTS MAY BE
ORDERED WITH SOLDER DIP AS A "VALUE ADDED" OPTION
WITHOUT THE PROCESS BEING INDICATED IN THE MIL PART NUMBER
( DO NOT USE WITH SD PLATING OPTION)
QPL'D CONNECTOR
- SEE CROSS REFERENCE SHEET FOR P/N
CONTACT TAIL LENGTH
A = .115 .010
B = .175 .010
C = .145 .010
CONNECTOR SIZE
04 THRU 130 (EVEN NUMBERS)
CRISTEK PRODUCT SERIES
CONTACT PLATING
MATERIALS AND FINISHES ARE IAW MIL-DTL-55302
FOR DETAILS SEE MIL SPEC OR WWW.CRISTEK.COM
1. MATERIALS:
INSULATOR - PHENOLIC PER MIL-M-14
CONTACT - COPPER ALLOY
3. SPECIFICATIONS:
2. FINISH:
CONTACT PLATING OPTIONS
53 = POINT OF CONTACT TO BE PLATED PER MIL-G-45204 TYPE II,
CLASS 1, GRADE C OVER NICKEL PER QQ-N-290 CLASS 2
.000050 MIN, REMAINDER OF CONTACT TO HAVE A FLASH OF
GOLD OVER NICKEL.
55 = ENTIRE CONTACT TO BE PLATED PER MIL-G-45204 TYPE II,
CLASS 1, GRADE C OVER NICKEL PER QQ-N-290 CLASS 2
.000050 MIN.
SD = HOT SOLDER DIPPED TERMINATION AREA, POINT OF
CONTACT TO BE PLATED PER MIL-G-45204 TYPE II, CLASS 1
GRADE C OVER NICKEL PER QQ-N-290 CLASS 2 .000050 MIN.
CURRENT RATING ------------------ 3 AMPS MAX
TEMPERATURE RATING ---------- -65° C TO +125° C
INSULATION RESISTANCE -------- 5000 MEGOHMS MIN AT 500 VDC
DWV AT SEA LEVEL ---------------- 750 VAC
CONTACT RESISTANCE ------------ 12 MILLIOHMS MAX AT 3 AMPS
INSERTION FORCE ------------------ 6 oz MAX
WITHDRAWAL FORCE -------------- 0.75 oz MIN
4. MARKING
IDENTIFY CONNECTOR IN ACCORDANCE
WITH MIL-STD-1285. THE FIRST AND LAST
CIRCUIT SHALL BE NUMBERED AND EVERY
FIFTH CIRCUIT SHALL HAVE AN IDENTIFIABLE
MARK IN THE TOP SURFACE OF THE
HOUSING. BEGINNING WITH THE LEFT (NO.1),
LOOKING AT THE MATING FACE OF THE
CONNECTOR.
FOR MORE OPTIONS AND CONFIGURATIONS,
CONTACT CRISTEK.
5. ADDITIONAL INFORMATION
TOLERANCE: .XXX ±.005
.XX ±.01
ANGLE ±1°

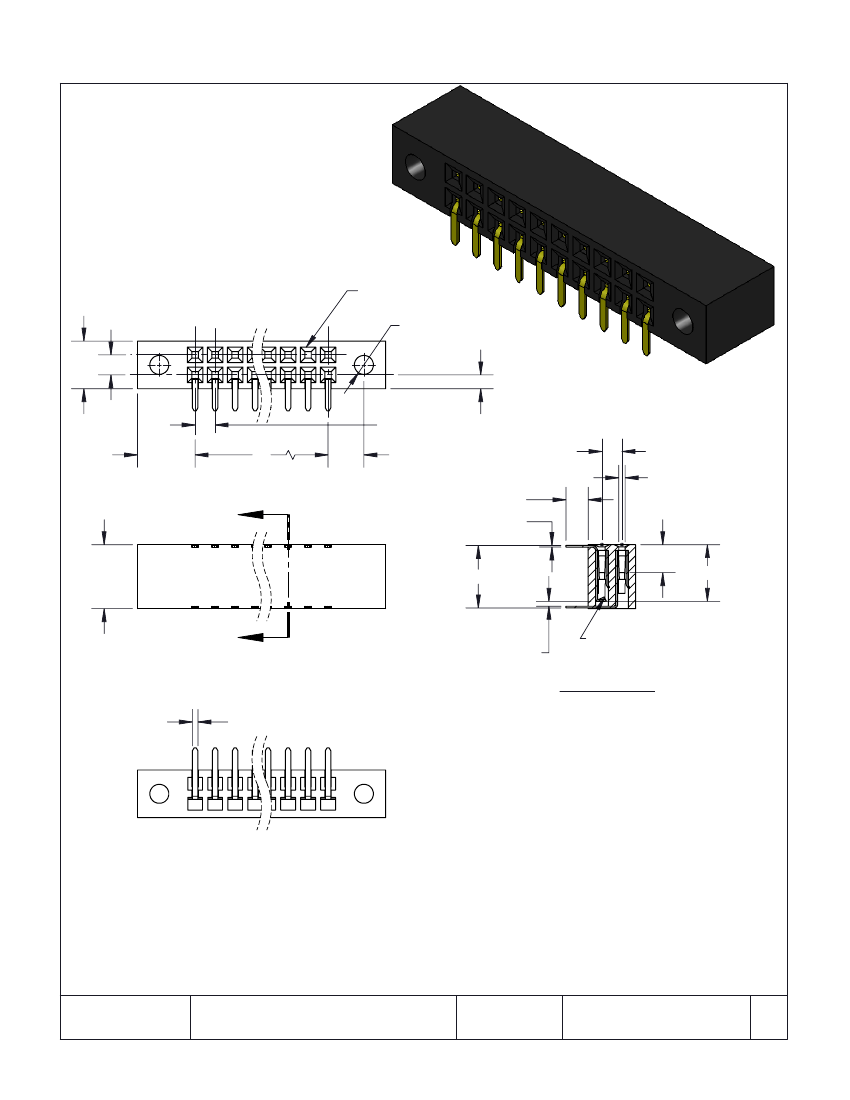

TITLE
MILITARY
DOUBLE ROW BOX
W/HOLES
DWG. NO.
SHT
REV
2
OF
5
M55302/128XX3X
D
www.cristek.com
M55302/128 P/N
M55302/128-AA3C
M55302/128-AB3C
M55302/128-AC3C
M55302/128-AD3C
M55302/128-AE3C
M55302/128-AF3C
M55302/128-AG3C
M55302/128-AH3C
M55302/128-AJ3C
M55302/128-AK3C
M55302/128-AL3C
M55302/128-AM3C
M55302/128-AN3C
M55302/128-AP3C
M55302/128-AQ3C
M55302/128-AR3C
M55302/128-BA3C
M55302/128-BB3C
M55302/128-BC3C
M55302/128-BD3C
M55302/128-BE3C
M55302/128-BF3C
M55302/128-BG3C
M55302/128-BH3C
M55302/128-BJ3C
M55302/128-BK3C
M55302/128-BL3C
M55302/128-BM3C
M55302/128-BN3C
M55302/128-BP3C
M55302/128-BQ3C
M55302/128-BR3C
M55302/128-CA3C
M55302/128-CB3C
M55302/128-CC3C
M55302/128-CD3C
M55302/128-CE3C
M55302/128-CF3C
M55302/128-CG3C
M55302/128-CH3C
M55302/128-CJ3C
M55302/128-CK3C
M55302/128-CL3C
CRISTEK P/N
53-123-04-C-MIL
53-123-06-C-MIL
53-123-08-C-MIL
53-123-10-C-MIL
53-123-12-C-MIL
53-123-14-C-MIL
53-123-16-C-MIL
53-123-18-C-MIL
53-123-20-C-MIL
53-123-22-C-MIL
53-123-24-C-MIL
53-123-26-C-MIL
53-123-28-C-MIL
53-123-30-C-MIL
53-123-32-C-MIL
53-123-34-C-MIL
53-123-36-C-MIL
53-123-38-C-MIL
53-123-40-C-MIL
53-123-42-C-MIL
53-123-44-C-MIL
53-123-46-C-MIL
53-123-48-C-MIL
53-123-50-C-MIL
53-123-52-C-MIL
53-123-54-C-MIL
53-123-56-C-MIL
53-123-58-C-MIL
53-123-60-C-MIL
53-123-62-C-MIL
53-123-64-C-MIL
53-123-66-C-MIL
53-123-68-C-MIL
53-123-70-C-MIL
53-123-72-C-MIL
53-123-74-C-MIL
53-123-76-C-MIL
53-123-78-C-MIL
53-123-80-C-MIL
53-123-82-C-MIL
53-123-84-C-MIL
53-123-86-C-MIL
53-123-88-C-MIL
M55302/128 P/N
M55302/128-CM3C
M55302/128-CN3C
M55302/128-CP3C
M55302/128-CQ3C
M55302/128-CR3C
M55302/128-DA3C
M55302/128-DB3C
M55302/128-DC3C
M55302/128-DD3C
M55302/128-DE3C
M55302/128-DF3C
M55302/128-DG3C
M55302/128-DH3C
M55302/128-DJ3C
M55302/128-DK3C
M55302/128-DL3C
M55302/128-DM3C
M55302/128-DN3C
M55302/128-DP3C
M55302/128-DQ3C
M55302/128-DR3C
M55302/128-AA3B
M55302/128-AB3B
M55302/128-AC3B
M55302/128-AD3B
M55302/128-AE3B
M55302/128-AF3B
M55302/128-AG3B
M55302/128-AH3B
M55302/128-AJ3B
M55302/128-AK3B
M55302/128-AL3B
M55302/128-AM3B
M55302/128-AN3B
M55302/128-AP3B
M55302/128-AQ3B
M55302/128-AR3B
M55302/128-BA3B
M55302/128-BB3B
M55302/128-BC3B
M55302/128-BD3B
M55302/128-BE3B
M55302/128-BF3B
CRISTEK P/N
53-123-90-C-MIL
53-123-92-C-MIL
53-123-94-C-MIL
53-123-96-C-MIL
53-123-98-C-MIL
53-123-100-C-MIL
53-123-102-C-MIL
53-123-104-C-MIL
53-123-106-C-MIL
53-123-108-C-MIL
53-123-110-C-MIL
53-123-112-C-MIL
53-123-114-C-MIL
53-123-116-C-MIL
53-123-118-C-MIL
53-123-120-C-MIL
53-123-122-C-MIL
53-123-124-C-MIL
53-123-126-C-MIL
53-123-128-C-MIL
53-123-130-C-MIL
55-123-04-A-MIL
55-123-06-A-MIL
55-123-08-A-MIL
55-123-10-A-MIL
55-123-12-A-MIL
55-123-14-A-MIL
55-123-16-A-MIL
55-123-18-A-MIL
55-123-20-A-MIL
55-123-22-A-MIL
55-123-24-A-MIL
55-123-26-A-MIL
55-123-28-A-MIL
55-123-30-A-MIL
55-123-32-A-MIL
55-123-34-A-MIL
55-123-36-A-MIL
55-123-38-A-MIL
55-123-40-A-MIL
55-123-42-A-MIL
55-123-44-A-MIL
55-123-46-A-MIL
M55302/128 P/N
M55302/128-BG3B
M55302/128-BH3B
M55302/128-BJ3B
M55302/128-BK3B
M55302/128-BL3B
M55302/128-BM3B
M55302/128-BN3B
M55302/128-BP3B
M55302/128-BQ3B
M55302/128-BR3B
CRISTEK P/N
55-123-48-A-MIL
55-123-50-A-MIL
55-123-52-A-MIL
55-123-54-A-MIL
55-123-56-A-MIL
55-123-58-A-MIL
55-123-60-A-MIL
55-123-62-A-MIL
55-123-64-A-MIL
55-123-66-A-MIL
M55302/128-CA3B 55-123-68-A-MIL
M55302/128-CB3B 55-123-70-A-MIL
M55302/128-CC3B 55-123-72-A-MIL
M55302/128-CD3B 55-123-74-A-MIL
M55302/128-CE3B
55-123-76-A-MIL
M55302/128-CF3B 55-123-78-A-MIL
M55302/128-CG3B 55-123-80-A-MIL
M55302/128-CH3B 55-123-82-A-MIL
M55302/128-CJ3B
55-123-84-A-MIL
M55302/128-CK3B
55-123-86-A-MIL
M55302/128-CL3B
55-123-88-A-MIL
M55302/128-CM3B 55-123-90-A-MIL
M55302/128-CN3B 55-123-92-A-MIL
55-123-94-A-MIL
M55302/128-CP3B
M55302/128-CQ3B 55-123-96-A-MIL
M55302/128-CR3B 55-123-98-A-MIL
M55302/128-DA3B 55-123-100-A-MIL
M55302/128-DB3B
M55302/128-DC3B
M55302/128-DD3B
M55302/128-DE3B
M55302/128-DF3B
M55302/128-DG3B
M55302/128-DH3B
M55302/128-DJ3B
M55302/128-DK3B
M55302/128-DL3B
M55302/128-DM3B
M55302/128-DN3B
M55302/128-DP3B
M55302/128-DQ3B
M55302/128-DR3B
55-123-102-A-MIL
55-123-104-A-MIL
55-123-106-A-MIL
55-123-108-A-MIL
55-123-110-A-MIL
55-123-112-A-MIL
55-123-114-A-MIL
55-123-116-A-MIL
55-123-118-A-MIL
55-123-120-A-MIL
55-123-122-A-MIL
55-123-124-A-MIL
55-123-126-A-MIL
55-123-128-A-MIL
55-123-130-A-MIL
M55302 TO CRISTEK PART NUMBER REFERENCE
TOLERANCE: .XXX ±.005
.XX ±.01
ANGLE ±1°
TITLE
MILITARY
DOUBLE ROW BOX
W/HOLES
DWG. NO.
SHT
REV
4
OF
5
M55302/128XX3X
D
www.cristek.com
M55302/128 P/N
M55302/128-AA3F
M55302/128-AB3F
M55302/128-AC3F
M55302/128-AD3F
M55302/128-AE3F
M55302/128-AF3F
M55302/128-AG3F
M55302/128-AH3F
M55302/128-AJ3F
M55302/128-AK3F
M55302/128-AL3F
M55302/128-AM3F
M55302/128-AN3F
M55302/128-AP3F
M55302/128-AQ3F
M55302/128-AR3F
M55302/128-BA3F
M55302/128-BB3F
M55302/128-BC3F
M55302/128-BD3F
M55302/128-BE3F
M55302/128-BF3F
M55302/128-BG3F
M55302/128-BH3F
M55302/128-BJ3F
M55302/128-BK3F
M55302/128-BL3F
M55302/128-BM3F
M55302/128-BN3F
M55302/128-BP3F
M55302/128-BQ3F
M55302/128-BR3F
M55302/128-CA3F
M55302/128-CB3F
M55302/128-CC3F
M55302/128-CD3F
M55302/128-CE3F
M55302/128-CF3F
M55302/128-CG3F
M55302/128-CH3F
M55302/128-CJ3F
M55302/128-CK3F
M55302/128-CL3F
CRISTEK P/N
55-123-04-B-MIL
55-123-06-B-MIL
55-123-08-B-MIL
55-123-10-B-MIL
55-123-12-B-MIL
55-123-14-B-MIL
55-123-16-B-MIL
55-123-18-B-MIL
55-123-20-B-MIL
55-123-22-B-MIL
55-123-24-B-MIL
55-123-26-B-MIL
55-123-28-B-MIL
55-123-30-B-MIL
55-123-32-B-MIL
55-123-34-B-MIL
55-123-36-B-MIL
55-123-38-B-MIL
55-123-40-B-MIL
55-123-42-B-MIL
55-123-44-B-MIL
55-123-46-B-MIL
55-123-48-B-MIL
55-123-50-B-MIL
55-123-52-B-MIL
55-123-54-B-MIL
55-123-56-B-MIL
55-123-58-B-MIL
55-123-60-B-MIL
55-123-62-B-MIL
55-123-64-B-MIL
55-123-66-B-MIL
55-123-68-B-MIL
55-123-70-B-MIL
55-123-72-B-MIL
55-123-74-B-MIL
55-123-76-B-MIL
55-123-78-B-MIL
55-123-80-B-MIL
55-123-82-B-MIL
55-123-84-B-MIL
55-123-86-B-MIL
55-123-88-B-MIL
M55302/128 P/N
M55302/128-CM3F
M55302/128-CN3F
M55302/128-CP3F
M55302/128-CQ3F
M55302/128-CR3F
M55302/128-DA3F
M55302/128-DB3F
M55302/128-DC3F
M55302/128-DD3F
M55302/128-DE3F
M55302/128-DF3F
M55302/128-DG3F
M55302/128-DH3F
M55302/128-DJ3F
M55302/128-DK3F
M55302/128-DL3F
M55302/128-DM3F
M55302/128-DN3F
CRISTEK P/N
M55302/128 P/N
M55302/128-BG3D
M55302/128-BH3D
M55302/128-BJ3D
M55302/128-BK3D
M55302/128-BL3D
M55302/128-BM3D
M55302/128-BN3D
M55302/128-BP3D
M55302/128-BQ3D
M55302/128-BR3D
M55302/128-CA3D
M55302/128-CB3D
M55302/128-CC3D
M55302/128-CD3D
M55302/128-CE3D
M55302/128-CF3D
M55302/128-CG3D
M55302/128-CH3D
M55302/128-CJ3D
M55302/128-CK3D
M55302/128-CL3D
M55302/128-CM3D
M55302/128-CN3D
M55302/128-CP3D
M55302/128-CQ3D
M55302/128-CR3D
M55302/128-DA3D
M55302/128-DB3D
M55302/128-DC3D
M55302/128-DD3D
M55302/128-DE3D
M55302/128-DF3D
M55302/128-DG3D
M55302/128-DH3D
M55302/128-DJ3D
M55302/128-DK3D
M55302/128-DL3D
M55302/128-DM3D
M55302/128-DN3D
M55302/128-DP3D
M55302/128-DQ3D
M55302/128-DR3D
CRISTEK P/N
55-123-48-C-MIL
55-123-50-C-MIL
55-123-52-C-MIL
55-123-54-C-MIL
55-123-56-C-MIL
55-123-58-C-MIL
55-123-60-C-MIL
55-123-62-C-MIL
55-123-64-C-MIL
55-123-66-C-MIL
55-123-68-C-MIL
55-123-70-C-MIL
55-123-72-C-MIL
55-123-74-C-MIL
55-123-76-C-MIL
55-123-78-C-MIL
55-123-80-C-MIL
55-123-82-C-MIL
55-123-84-C-MIL
55-123-86-C-MIL
55-123-88-C-MIL
55-123-90-C-MIL
55-123-92-C-MIL
55-123-94-C-MIL
55-123-96-C-MIL
55-123-98-C-MIL
55-123-100-C-MIL
55-123-102-C-MIL
55-123-104-C-MIL
55-123-106-C-MIL
55-123-108-C-MIL
55-123-110-C-MIL
55-123-112-C-MIL
55-123-114-C-MIL
55-123-116-C-MIL
55-123-118-C-MIL
55-123-120-C-MIL
55-123-122-C-MIL
55-123-124-C-MIL
55-123-126-C-MIL
55-123-128-C-MIL
55-123-130-C-MIL
55-123-90-B-MIL
55-123-92-B-MIL
55-123-94-B-MIL
55-123-96-B-MIL
55-123-98-B-MIL
55-123-100-B-MIL
55-123-102-B-MIL
55-123-104-B-MIL
55-123-106-B-MIL
55-123-108-B-MIL
55-123-110-B-MIL
55-123-112-B-MIL
55-123-114-B-MIL
55-123-116-B-MIL
55-123-118-B-MIL
55-123-120-B-MIL
55-123-122-B-MIL
55-123-124-B-MIL
M55302/128-DP3F 55-123-126-B-MIL
M55302/128-DQ3F 55-123-128-B-MIL
M55302/128-DR3F 55-123-130-B-MIL
M55302/128-AA3D 55-123-04-C-MIL
M55302/128-AB3D 55-123-06-C-MIL
M55302/128-AC3D 55-123-08-C-MIL
M55302/128-AD3D 55-123-10-C-MIL
M55302/128-AE3D 55-123-12-C-MIL
M55302/128-AF3D 55-123-14-C-MIL
M55302/128-AG3D 55-123-16-C-MIL
M55302/128-AH3D 55-123-18-C-MIL
M55302/128-AJ3D 55-123-20-C-MIL
M55302/128-AK3D 55-123-22-C-MIL
M55302/128-AL3D 55-123-24-C-MIL
M55302/128-AM3D 55-123-26-C-MIL
M55302/128-AN3D 55-123-28-C-MIL
M55302/128-AP3D 55-123-30-C-MIL
M55302/128-AQ3D 55-123-32-C-MIL
M55302/128-AR3D 55-123-34-C-MIL
M55302/128-BA3D 55-123-36-C-MIL
M55302/128-BB3D 55-123-38-C-MIL
M55302/128-BC3D 55-123-40-C-MIL
M55302/128-BD3D 55-123-42-C-MIL
M55302/128-BE3D 55-123-44-C-MIL
M55302/128-BF3D 55-123-46-C-MIL
M55302 TO CRISTEK PART NUMBER REFERENCE
TOLERANCE: .XXX ±.005
.XX ±.01
ANGLE ±1°
TITLE
MILITARY
DOUBLE ROW BOX
W/HOLES
DWG. NO.
SHT
REV
5
OF
5
M55302/128XX3X
D
京公网安备 11010802033920号
EEWORLD
