LC503TPG1-30H-A1 datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> LC503TPG1-30H-A1

Preview

LC503TPG1-30H-A1: DescriptionOptoelectronic Device,; CategoryLED optoelectronic/LED photoelectric; File Size1MB，2 Pages; ManufacturerCree; Websitehttp://www.cree.com/; Environmental Compliance

Download Datasheet Parametric View All

LC503TPG1-30H-A1 Overview

Optoelectronic Device,

LC503TPG1-30H-A1 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	unknown
color@wavelength	Green
Maximum forward voltage	4 V
total height	8.8 mm
perspective	30 deg
Base Number Matches	1

Preview

Download Datasheet

View All

LC503

Features:

High ESD resistance maximize life span

Available in an assortment of colors

Suitable for operations under high electrical current

Applications:

Count down timer displays

Lighting & signals

Variable Message Signs (VMS)

Ball and arrow traffic signals

Pachinko machines

All items are Pb free

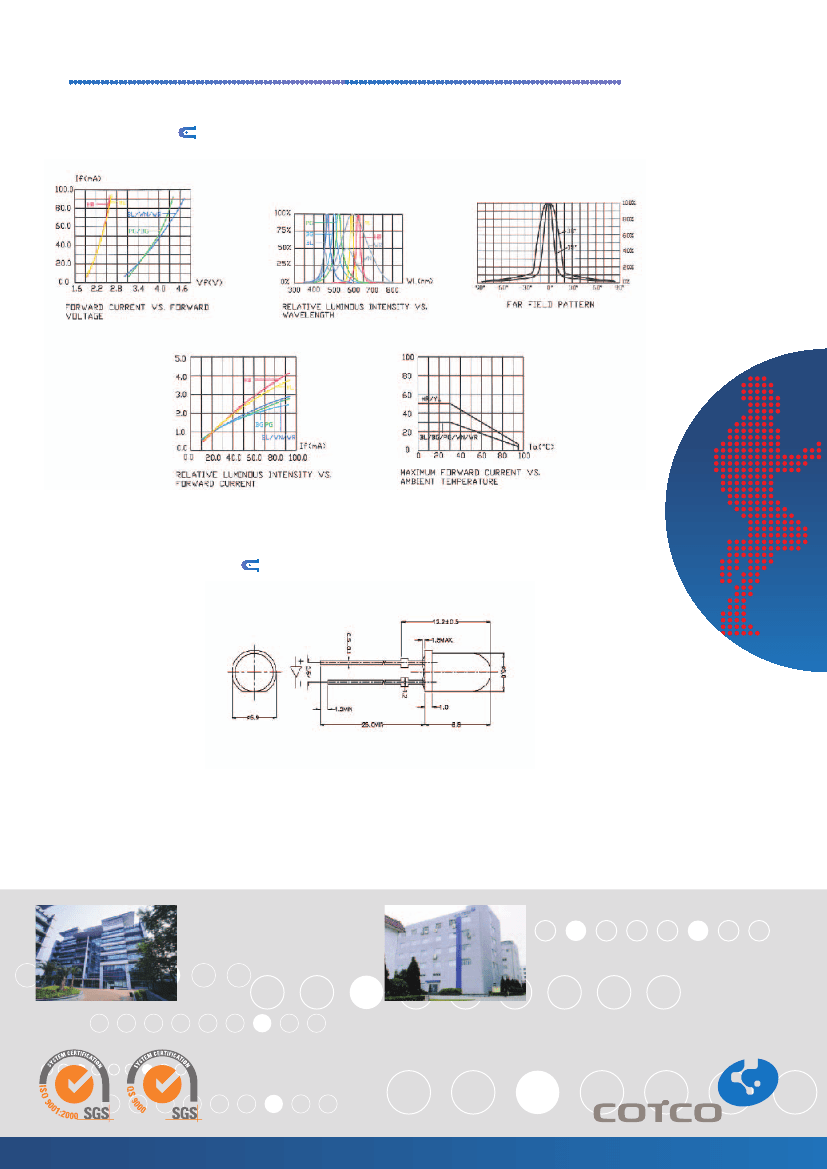

Typical Electrical - Optical Characteristics:

Part Number

Size (mm)

Color

Viewing

Angle

15

30

27

Luminous

Intensity(mcd)

Min.

5860

12000

3000

8200

12000

2130

4180

1520

3000

4180

Typ.

11000

23000

7000

16000

20000

3500

7500

2100

4500

7000

Dominant

Wavelength(nm)

Typ.

624

527

470

591

505

624

527

470

591

505

Typ.

2.1

3.4

2.1

3.4

2.1

3.4

2.1

3.4

Forward Voltage

(DC) (V)

Max.

2.6

4.0

2.6

4.0

2.6

4.0

2.6

4.0

LC503AHR1-15Q-A

LC503TPG1-15H-A1

LC503TBL1-15H-A1

LC503AYL1-15Q-A

LC503TBG1-15H-A

LC503AHR2-30Q-A

LC503TPG1-30H-A1

LC503TBL1-30H-A1

LC503AYL2-30Q-A

LC503TBG1-30H-A

V0106

5

Red

Green

Blue

Yellow

Bluish green

Red

Green

Blue

Yellow

Bluish green
