DS3026 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> DS3026

DS3026: DescriptionGeneral Purpose Inductor, 6800uH, 20%, 1 Element, SMD, CHIP, 2618; CategoryPassive components inductor; File Size85KB，2 Pages; ManufacturerFalco Electronics

Download Datasheet Parametric View All

DS3026 Overview

General Purpose Inductor, 6800uH, 20%, 1 Element, SMD, CHIP, 2618

DS3026 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
ECCN code	EAR99
DC Resistance	25 Ω
Nominal inductance(L)	6800 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Manufacturer's serial number	SDSP0402
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Minimum quality factor (at nominal inductance)	50
Maximum rated current	0.04 A
self resonant frequency	1 MHz
Shape/Size Description	RECTANGULAR PACKAGE
shield	YES
surface mount	YES
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	0.1 MHz
Tolerance	20%
Base Number Matches	1

Preview

Download Datasheet

View All

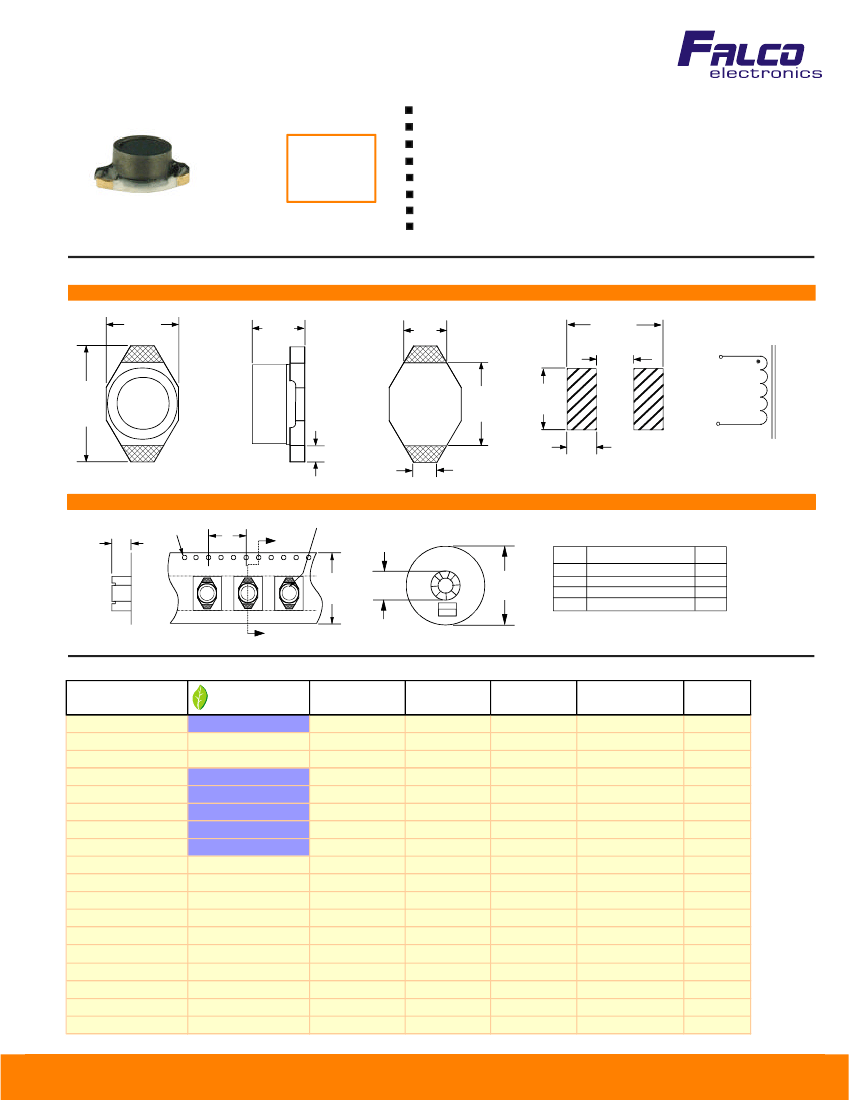

Power Inductors Shielded-SMT Drum 4 x 2 mm

POWER INDUCTORS

( SDSP0402 Series )

Used in high frequency DC/DC converters.

Magnetically shielded for low EMI radiation.

Low profile design.

Low resistance and high energy storage.

Robust base for reflow soldering.

Inductance range from 1.0 µH to 10 mH.

Energy storage limit of 5 µJ.

Tape & Reel : 2500 pcs/Reel, 5 Reels/Box.

MAX. DIM :

L = 6.60 mm

W= 4.45 mm

H = 2.92 mm

MECHANICAL SPECIFICATIONS

Top View

0.175

[4.45]

max

Side View

0.115

[2.92]

max

Bottom View

0.120

[3.05]

PCB Layout (Top)

0.270

[6.86]

0.160

[4.06]

Schematic

0.260

[6.60]

max

0.040

[1.02]

0.170

[4.32]

0.140

[3.56]

0.055

[1.40]

0.050

[1.27]

*FINAL DESIGN FOR PCB LAYOUT

IS LEFT TO THE USER

INCHES [mm]

Packaging Information

3.20 mm

1.6 mm

Pin #1 Indicator.

ITEM

Tape & Reel

DESCRIPTION

QTY. PER REEL

QTY. PER BOX

PITCH

TAPE WIDTH

QTY.

101.6

FALCO ELECTRONICS MEXICO

C/O FALCO USA,INC

4970 SW 72 AVE #105

MIAMI FL. 33155 U.S.A.

PH (305) 662-7276 / FAX (305)667-6377

330

FPN:

QTY:

REV:

DATE CODE:

2500

12500

8 mm

16 mm

SECTION A-A

Carrier tape thickness 0.30 mm

See tape and reel information 125-002

ELECTRICAL SPECIFICATIONS

FALCO PART

NUMBER

DS3003

DS3009

DS3010

DS3011

DS3012

DS3005

DS3006

DS3007

DS3008

DS3013

DS3014

DS3015

DS3016

DS3017

DS3018

DS3019

DS3020

DS3021

RoHS PART

NUMBER

DS3L03

OCL(µH)

± 20%

1.0

1.5

2.2

3.3

4.7

6.8

100

150

220

330

470

680

DCR

(

max)

Ω

0.042

0.045

0.050

0.055

0.060

0.065

0.075

0.090

0.110

0.190

0.230

0.290

0.480

0.600

0.770

1.400

1.800

2.200

I rating

(Amp)

3.00

2.80

1.80

1.60

1.40

1.20

1.00

0.80

0.70

0.60

0.50

0.40

0.30

0.25

0.22

0.20

0.19

0.18

Q min

20 @ 200 KHz

25 @ 200 KHz

40 @ 200 KHz

30 @ 200 KHz

40 @ 200 KHz

40 @ 100 KHz

SRF typ

(MHz)

250

125

120

105

DS3L11

DS3031

DS3L05

DS3L06

DS3030

1-2

SDSP0402.PDF REV: D4 04/06

phone (305) 662-7276

e-fax: (520) 752-3268

e-mail:sales@falcomex.com

www.falco.com
