PGA224H003B1-1804R datasheet, PDF

Datasheet> All Categories > The connector> socket> PGA224H003B1-1804R

PGA224H003B1-1804R: DescriptionIC Socket, PGA224, 224 Contact(s); CategoryThe connector socket; File Size92KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

PGA224H003B1-1804R Overview

IC Socket, PGA224, 224 Contact(s)

PGA224H003B1-1804R Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	PGA SOCKET, UL 94V-0
Contact completed and terminated	GOLD (30)
Device slot type	IC SOCKET
Type of equipment used	PGA224
Shell material	GLASS FILLED POLYPHENYLENE SULFIDE
JESD-609 code	e4
Manufacturer's serial number	PGA224H
Number of contacts	224
Base Number Matches	1

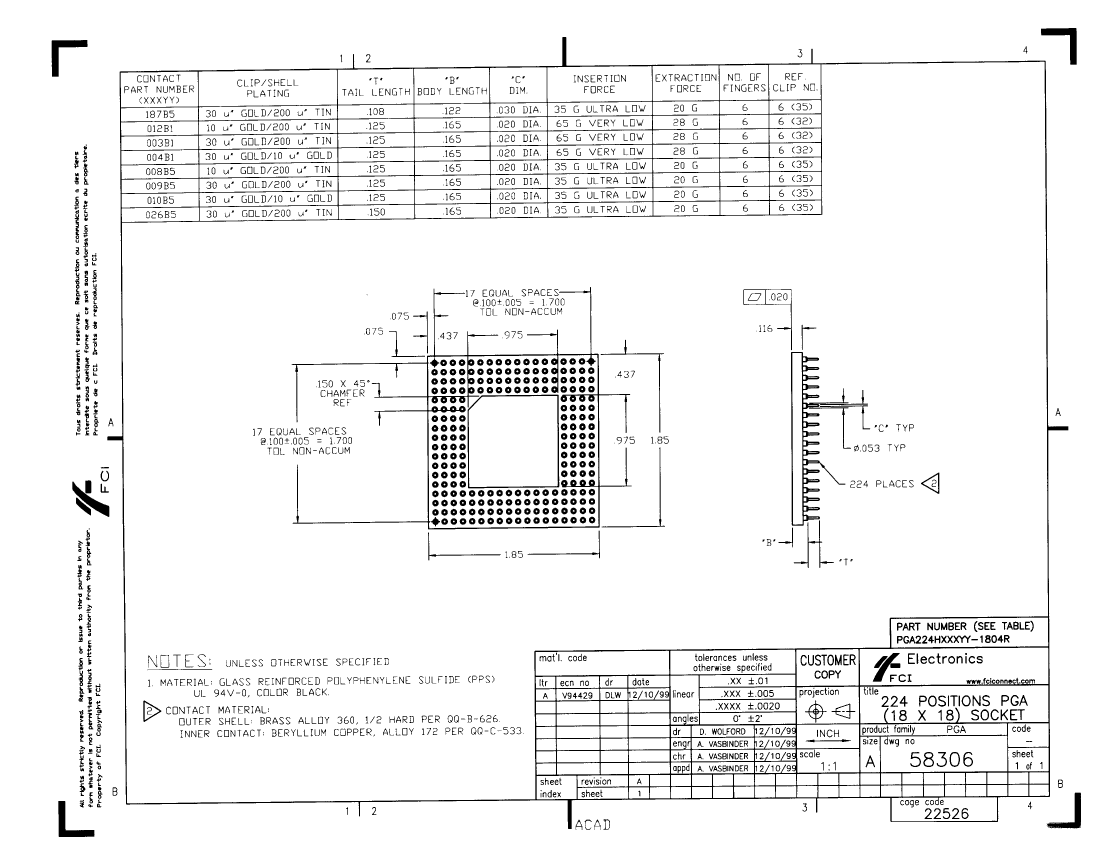

Preview

Download Datasheet

View All

PDM: Rev:A

STATUS:

Released

Printed: Feb 04, 2006

PGA224H003B1-1804R Related Products

	PGA224H003B1-1804R	PGA-224-H-026B-5-1804-R	PGA224H026B5-1804R	PGA-224-H-003B-1-1804-R	PGA224H009B5-1804R	PGA-224-H-009B-5-1804-R	PGA224H187B5-1804R	PGA-224-H-187B-5-1804-R	PGA-224-H-008B-5-1804-R	PGA224H008B5-1804R
Description	IC Socket, PGA224, 224 Contact(s)	PGA224, IC SOCKET	IC Socket, PGA224, 224 Contact(s)	PGA224, IC SOCKET	IC Socket, PGA224, 224 Contact(s)	PGA224, IC SOCKET	IC Socket, PGA224, 224 Contact(s), 2.54mm Term Pitch , 0.1inch Row Spacing, Solder	PGA224, IC SOCKET	PGA224, IC SOCKET	IC Socket, PGA224, 224 Contact(s)
Reach Compliance Code	unknown	unknown	compliant	unknown	compliant	unknown	compliant	compliant	unknown	compliant
Other features	PGA SOCKET, UL 94V-0	PGA SOCKET, UL 94V-0	PGA SOCKET, UL 94V-0	PGA SOCKET, UL 94V-0	PGA SOCKET, UL 94V-0	PGA SOCKET, UL 94V-0	PGA SOCKET, UL 94V-0	PGA SOCKET, UL 94V-0	PGA SOCKET, UL 94V-0	PGA SOCKET, UL 94V-0
Contact completed and terminated	GOLD (30)	GOLD (30)	GOLD (30)	GOLD (30)	GOLD (30)	GOLD (30)	GOLD (30)	GOLD (30)	GOLD (10)	GOLD (10)
Device slot type	IC SOCKET	IC SOCKET	IC SOCKET	IC SOCKET	IC SOCKET	IC SOCKET	IC SOCKET	IC SOCKET	IC SOCKET	IC SOCKET
Type of equipment used	PGA224	PGA224	PGA224	PGA224	PGA224	PGA224	PGA224	PGA224	PGA224	PGA224
Shell material	GLASS FILLED POLYPHENYLENE SULFIDE	GLASS FILLED POLYPHENYLENE SULFIDE	GLASS FILLED POLYPHENYLENE SULFIDE	GLASS FILLED POLYPHENYLENE SULFIDE	GLASS FILLED POLYPHENYLENE SULFIDE	GLASS FILLED POLYPHENYLENE SULFIDE	GLASS FILLED POLYPHENYLENE SULFIDE	GLASS FILLED POLYPHENYLENE SULFIDE	GLASS FILLED POLYPHENYLENE SULFIDE	GLASS FILLED POLYPHENYLENE SULFIDE
JESD-609 code	e4	e4	e4	e4	e4	e4	e4	e4	e4	e4
Number of contacts	224	224	224	224	224	224	224	224	224	224
Manufacturer's serial number	PGA224H	PGA224H	PGA224H	PGA224H	PGA224H	PGA224H	-	PGA224H	PGA224H	PGA224H
Maker	-	-	-	-	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol
