REVISION C
SFPK-PC-XX-XXX
PCI PRESS FIT
USE MECT-110-01-M-D-RA1 &
SFPC-PC (ONE EACH)
SFPC CAGE PKG OPTION
* -BOX: (SEE NOTE)
(LEAVE BLANK FOR TUBE PACKAGING)
MECT CONNECTOR OPTION
-TR: TAPE & REEL
USE MECT-110-01-M-D-RA1-TR &
SFPC-PC (ONE EACH)
D
(MECT CONNECTOR ONLY, SFPK'S TO BE TUBED
(LEAVE BLANK FOR TUBE PACKAGING)
* - PACKAGED IN BOXES OF 845 FROM PICOLIGHT.
NO REPACKAGING REQUIRED

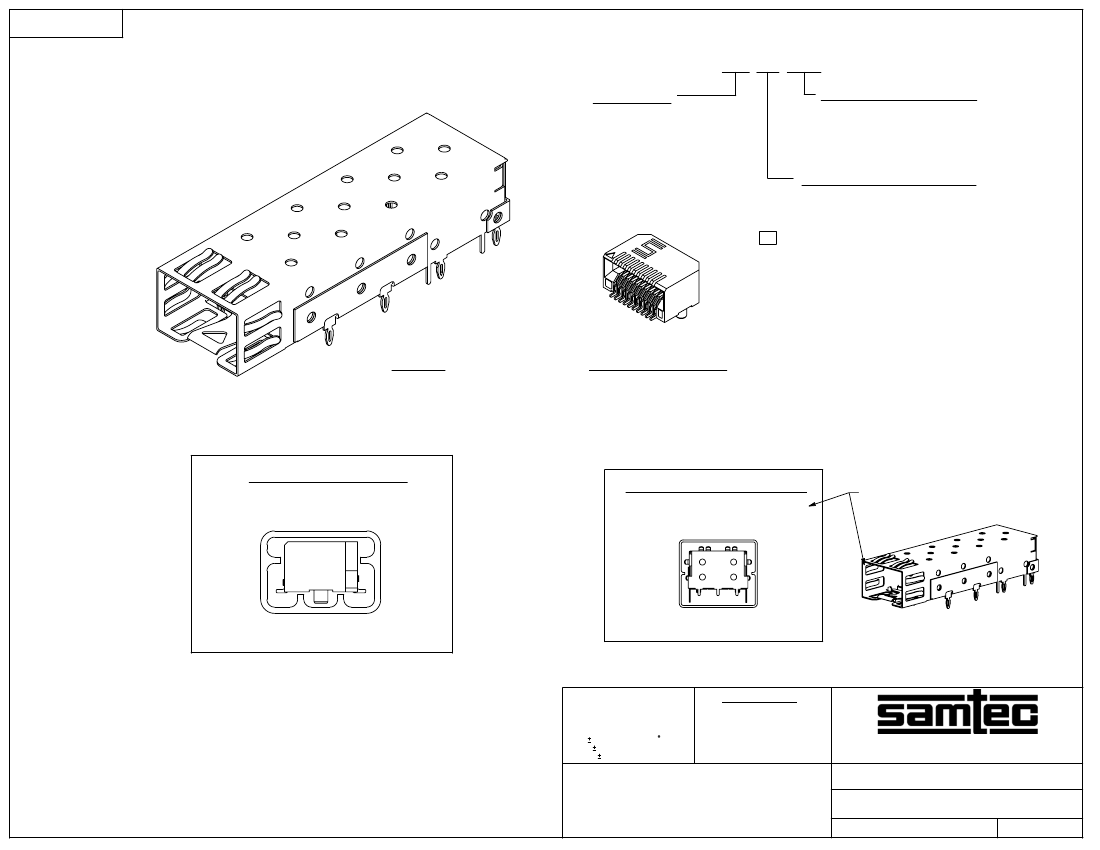

SFPC-PC
MECT-110-01-M-D-RA1
MECT PACKAGING VIEW
(LOAD PARTS WITH POSITION #1 INDICATOR
IN SAME DIRECTION AS ARROW ON TUBE)
SFPC-PC PACKAGING VIEW
(LOAD PARTS WITH OPEN END IN
DIRECTION OF ARROW ON TUBE)
OPEN END
TUBE: PT-1-24-01-113
PLUG: TP-03
TUBE: PT-1-24-04-56
PLUG: TP-25
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE IN INCHES.
TOLERANCES ARE:
DECIMALS
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
.XX: .01 [.3]
2
.XXX: .005 [.13]
.XXXX: .0020 [.051]
ANGLES
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail: info@SAMTEC.com
code: 55322
DESCRIPTION:
DWG. NO.
MATERIAL:
DO NOT SCALE DRAWING
SHEET SCALE: 2:1
INSULATOR: LCP, COLOR: BLACK
TERMINAL: PHOS BRONZE
SFPC-PC: C77000
F:\DWG\MISC\MKTG\SFPK-PC-XX-XXX-MKT.SLDDRW
PCI PRESS FIT COMBO
SFPK-PC-XX-XXX
10/02/02
SHEET
1
OF
1
BY:
KEVIN B
