MC54HCT04AJD datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> MC54HCT04AJD

MC54HCT04AJD: DescriptionHCT SERIES, HEX 1-INPUT INVERT GATE, CDIP14, CERAMIC, DIP-14; Categorylogic logic; File Size100KB，3 Pages; ManufacturerMotorola ( NXP ); Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

MC54HCT04AJD Overview

HCT SERIES, HEX 1-INPUT INVERT GATE, CDIP14, CERAMIC, DIP-14

MC54HCT04AJD Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Parts packaging code	DIP
package instruction	DIP, DIP14,.3
Contacts	14
Reach Compliance Code	unknown
series	HCT
JESD-30 code	R-GDIP-T14
JESD-609 code	e0
length	19.495 mm
Load capacitance (CL)	50 pF
Logic integrated circuit type	INVERTER
MaximumI(ol)	0.004 A
Number of functions	6
Number of entries	1
Number of terminals	14
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Encapsulate equivalent code	DIP14,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Prop。Delay @ Nom-Sup	26 ns
propagation delay (tpd)	26 ns
Certification status	Not Qualified
Schmitt trigger	NO
Maximum seat height	5.08 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	7.62 mm
Base Number Matches	1

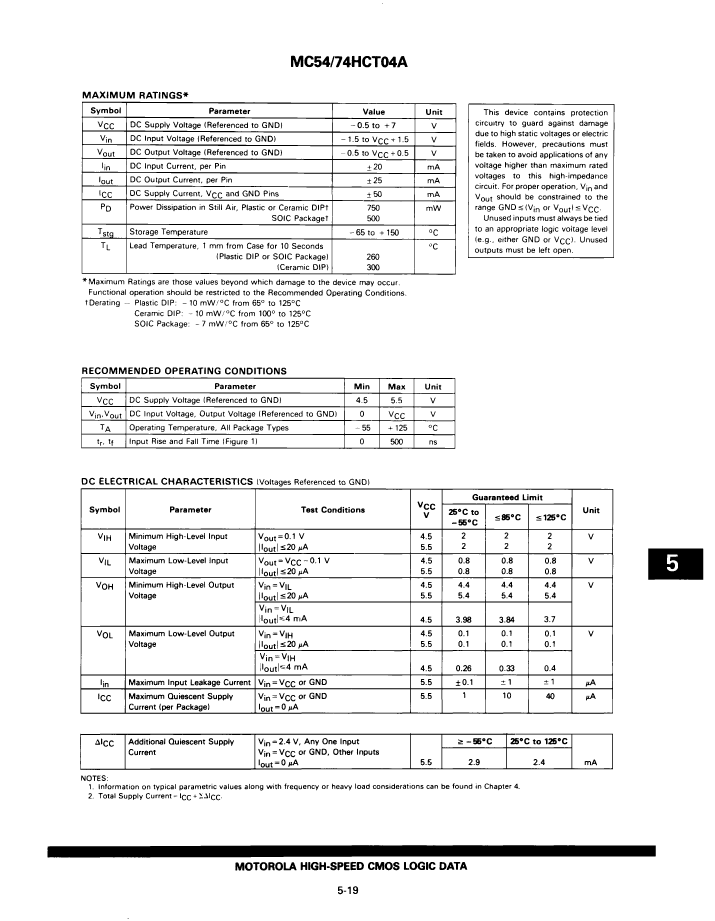

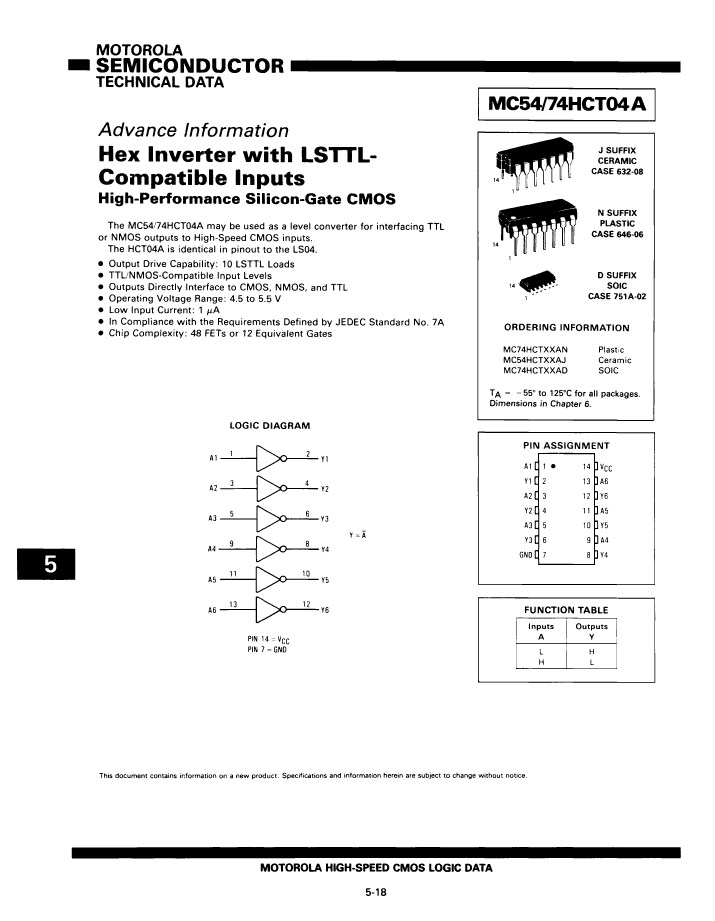

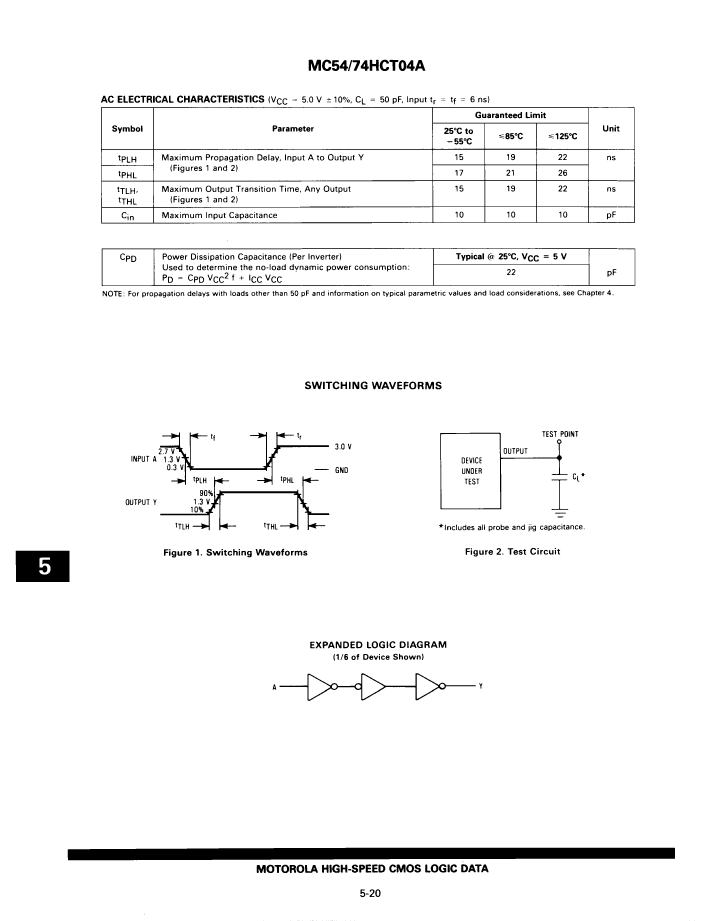

Preview

Download Datasheet

View All

MC54HCT04AJD Related Products

	MC54HCT04AJD	MC74HCT04AND	MC74HCT04ADD	MC74HCT04ADDR2
Description	HCT SERIES, HEX 1-INPUT INVERT GATE, CDIP14, CERAMIC, DIP-14	HCT SERIES, HEX 1-INPUT INVERT GATE, PDIP14, PLASTIC, DIP-14	HCT SERIES, HEX 1-INPUT INVERT GATE, PDSO14, SOIC-14	HCT SERIES, HEX 1-INPUT INVERT GATE, PDSO14, SOIC-14
Parts packaging code	DIP	DIP	SOIC	SOIC
package instruction	DIP, DIP14,.3	DIP,	SOP, SOP14,.25	SOP,
Contacts	14	14	14	14
Reach Compliance Code	unknown	unknown	unknown	unknown
series	HCT	HCT	HCT	HCT
JESD-30 code	R-GDIP-T14	R-PDIP-T14	R-PDSO-G14	R-PDSO-G14
length	19.495 mm	18.86 mm	8.65 mm	8.65 mm
Load capacitance (CL)	50 pF	50 pF	50 pF	50 pF
Logic integrated circuit type	INVERTER	INVERTER	INVERTER	INVERTER
Number of functions	6	6	6	6
Number of entries	1	1	1	1
Number of terminals	14	14	14	14
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C
Package body material	CERAMIC, GLASS-SEALED	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	DIP	SOP	SOP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	SMALL OUTLINE	SMALL OUTLINE
propagation delay (tpd)	26 ns	26 ns	26 ns	26 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	5.08 mm	4.69 mm	1.75 mm	1.75 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V
surface mount	NO	NO	YES	YES
technology	CMOS	CMOS	CMOS	CMOS
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY
Terminal form	THROUGH-HOLE	THROUGH-HOLE	GULL WING	GULL WING
Terminal pitch	2.54 mm	2.54 mm	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL
width	7.62 mm	7.62 mm	3.9 mm	3.9 mm
Is it lead-free?	Contains lead	Contains lead	Contains lead	-
Is it Rohs certified?	incompatible	incompatible	incompatible	-
JESD-609 code	e0	e0	e0	-
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	-
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	-
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	-
Maker	-	Motorola ( NXP )	Motorola ( NXP )	Motorola ( NXP )
