Preview

6323-T099: DescriptionSMPS Transformer, 0.2W, ROHS COMPLIANT; CategoryPower management transformer; File Size125KB，1 Pages; ManufacturerSUMIDA; Websitehttp://www.sumida.com/; Environmental Compliance

Download Datasheet Parametric View All

6323-T099 Overview

SMPS Transformer, 0.2W, ROHS COMPLIANT

6323-T099 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
ECCN code	EAR99
high	3.2 mm
length	6.5 mm
Manufacturer's serial number	CLS
Installation features	SURFACE MOUNT
Number of primary windings	2
Number of secondary windings	1
Maximum operating frequency	500 kHz
physical size	6.5mm X 6.5mm X 3.2mm
rated power	0.2 W
Primary inductance	110 µH
surface mount	YES
Transformer type	SMPS TRANSFORMER
width	6.5 mm
Base Number Matches	1

Preview

Download Datasheet

View All

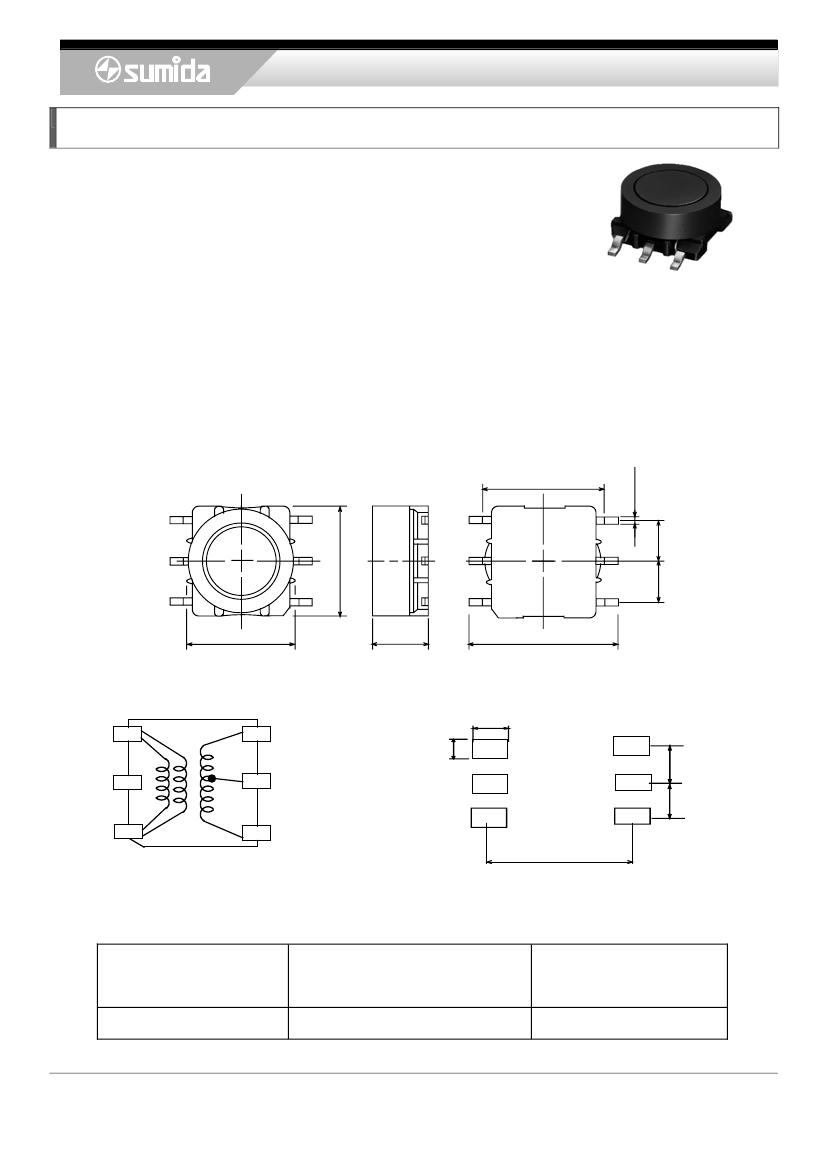

General Power Transformer <SMD Type: CLS Series>

Type: CLS63

◆

Product Description

・6.5×6.5mm

Max.(L×W), 3.2mm Max. Height.

・In

addition to the typical versions of parameters shown here,

custom designs are available to meet your exact requirements.

◆

Feature

・Magnetically

shielded construction.

・Max.

Operating frequency 2MHz as Inductor.

・Max.

Operating Power 200mW (@500kHz) as transformer.

・Ideally

used in power supply of DSC½DVC½Note PC.

・RoHS

Compliance.

0.5±0.1

◆

Dimensions (mm)

4

3

6.0±0.5

3

4

6

6.0±0.5

1

2.9±0.3

1

6

8.2±1.0

◆

Schematics (Bottom)

◆

Land Pattern (mm)

1

.6

0. 8

3

2

4

S

5

6

2.0

7

.0

2.0 ±0.2

2. 0

7.0

S

1

“ S” indicates winding start.

◆

Specification

Sample No.

6323-T099

Inductance (1-3)

1kHz/1V

110µH ± 30%

D.C.R. (1-3)

@20℃

Max.2.6Ω

Please refer to the sales offices on our website for a representative near you

www.sumida.com

1/1
