NHI-15LV650ETPBGA: DescriptionMil-Std-1553 Controller, 1 Channel(s), 0.125MBps, CMOS, PBGA81, 19 X 19 MM, 3 MM HEIGHT, PLASTIC, BGA-81; CategoryThe embedded processor and controller Microcontrollers and processors; File Size1MB，6 Pages; ManufacturerNational Hybrid Incorporated

Download Datasheet Parametric View All

NHI-15LV650ETPBGA Overview

Mil-Std-1553 Controller, 1 Channel(s), 0.125MBps, CMOS, PBGA81, 19 X 19 MM, 3 MM HEIGHT, PLASTIC, BGA-81

NHI-15LV650ETPBGA Parametric

Parameter Name	Attribute value
Parts packaging code	BGA
package instruction	BGA,
Contacts	81
Reach Compliance Code	unknown
boundary scan	NO
Bus compatibility	PCI
maximum clock frequency	20 MHz
Maximum data transfer rate	0.125 MBps
JESD-30 code	S-PBGA-B81
low power mode	NO
Number of serial I/Os	1
Number of terminals	81
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	BGA
Package shape	SQUARE
Package form	GRID ARRAY
Certification status	Not Qualified
Maximum supply voltage	3.45 V
Minimum supply voltage	3.15 V
Nominal supply voltage	3.3 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	BALL
Terminal location	BOTTOM
uPs/uCs/peripheral integrated circuit type	SERIAL IO/COMMUNICATION CONTROLLER, MIL-STD-1553
Base Number Matches	1

Preview

Download Datasheet

View All

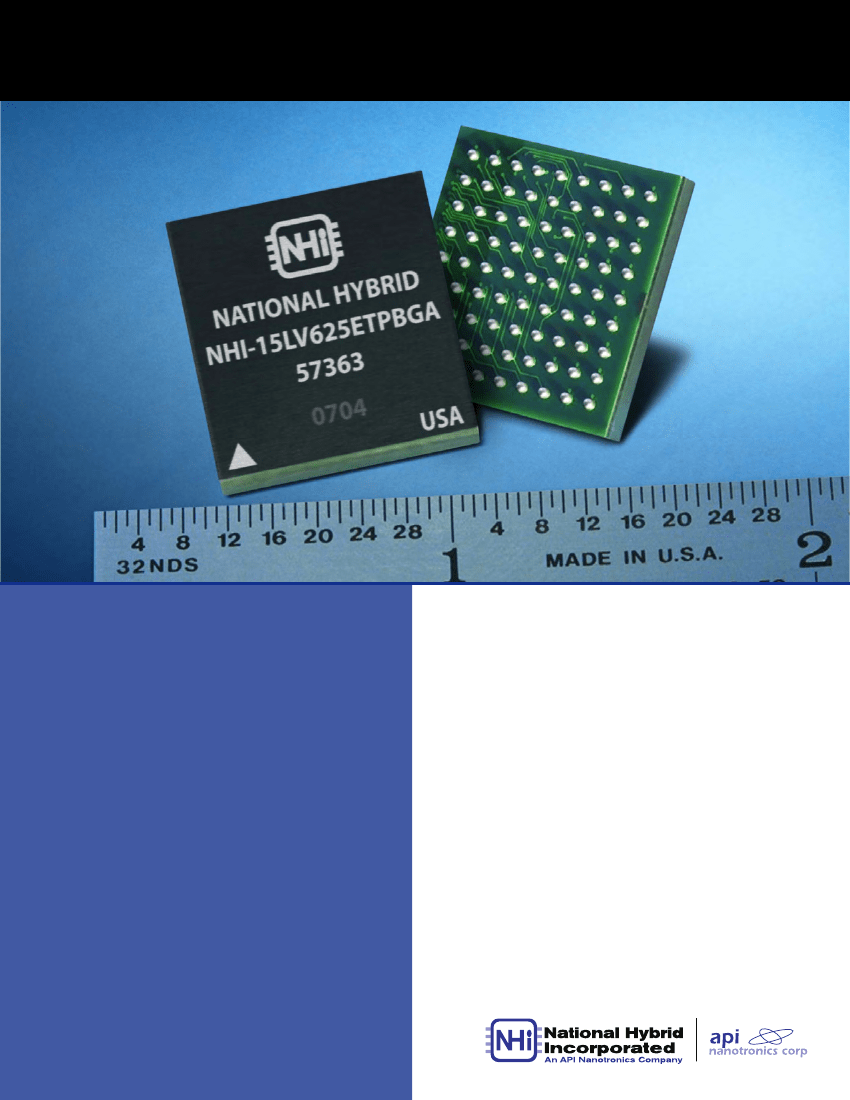

Multi-Protocol PBGA Mil- Std- Data Bus Interface

Model #

NHi-156XXPBGA

The NHi PBGA family of Mil-Std-1553

terminals address the requirements for

small, cost effective, reliable terminals

suitable for critical military applications.

NHi has solved the critical problem of

solder shorts between balls by providing

oversized solder balls with a generous

pitch. The PBGA family is designed as

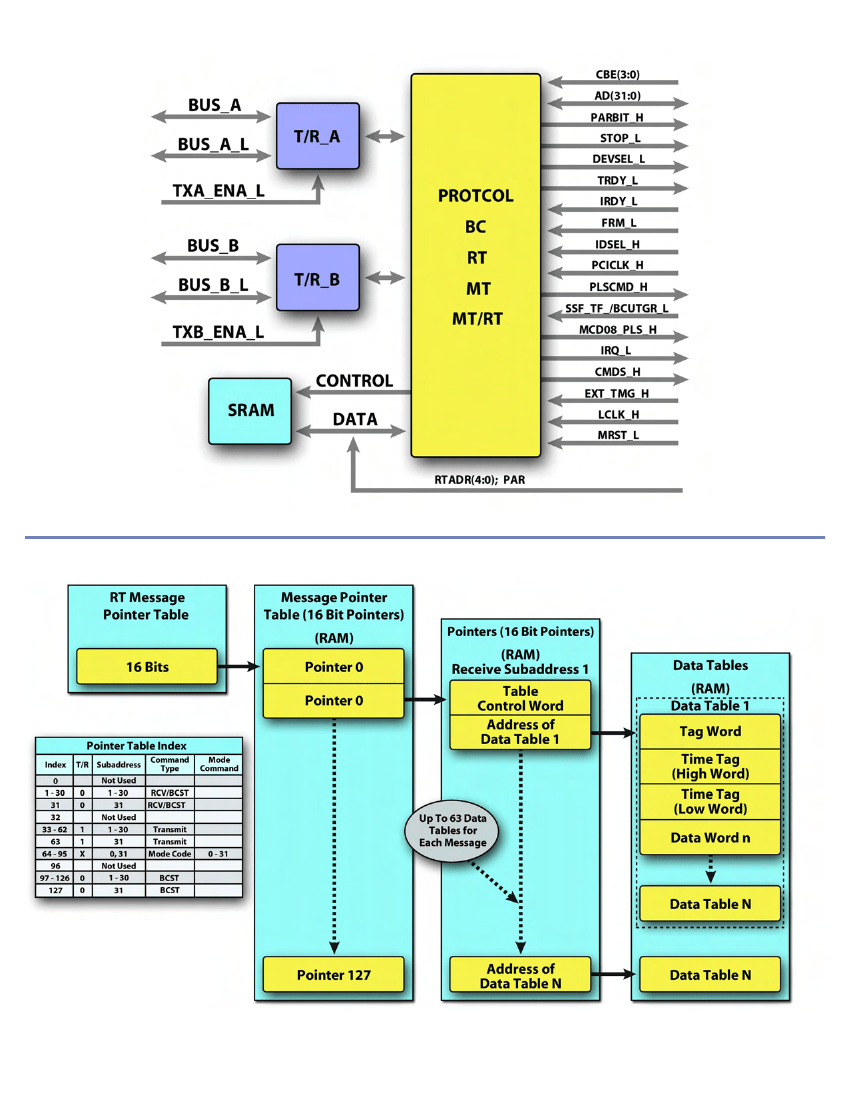

an autonomous interface between a

host processor and the terminal that

unburdens the CPU. The ET versions

function as a programmable BC/RT/MT

or simultaneous MT/RT. The RT devices

operate as Remote Terminal only.

FEATURES

•

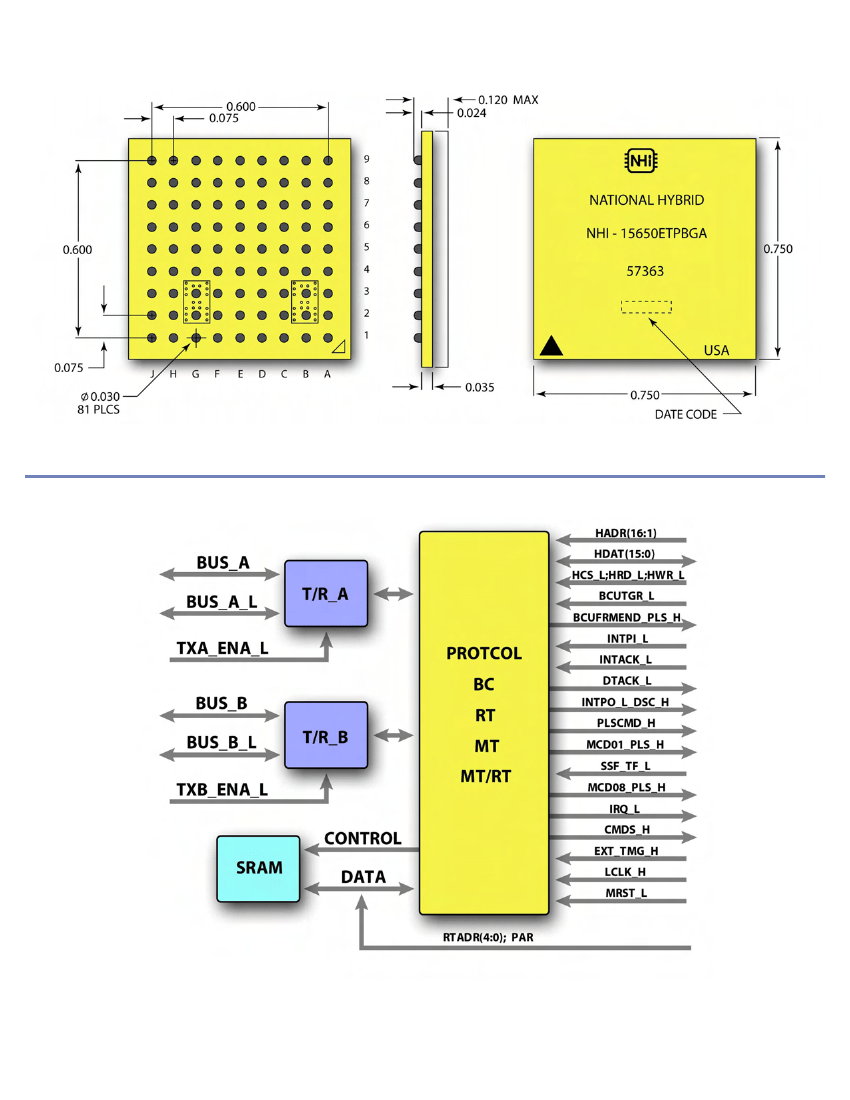

Dimensions: 0.75 x 0.75 Inch

•

Footprint Less Than 0.6 Square Inch

•

81 Over-Sized Balls with Large Pitch

Eliminates Solder Shorting

•

Solder Alloy: 63/37 or ROHS 95/5

•

+3.3V or +5V NHi Monolithic Transceivers

•

+3.3V Logic

•

Low Power CMOS Technology

•

Multi-Protocol Interface

•

PCI Bus or Local Bus Subsystem Interface

•

20 Mhz Clock

•

Dual Port Double Buffered 64K x 16 SRAM

•

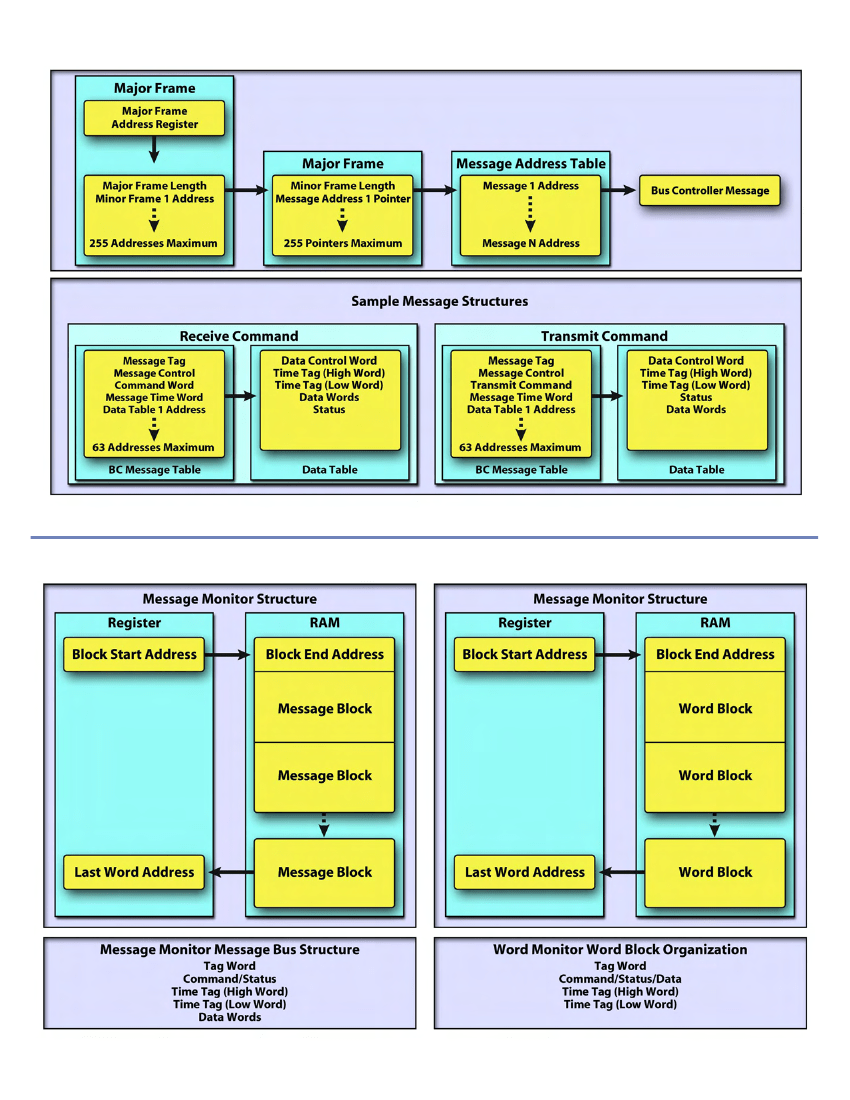

BC-RT-MT-MT/RT Terminals

•

RT Only Terminals

ISO 9001 : 2000 Certified
