Tantalum Surface Mount Capacitors – Space Grade
T493 Space Grade Commercial Off-The-Shelf (COTS)
MnO
2
(CWR11 Style)

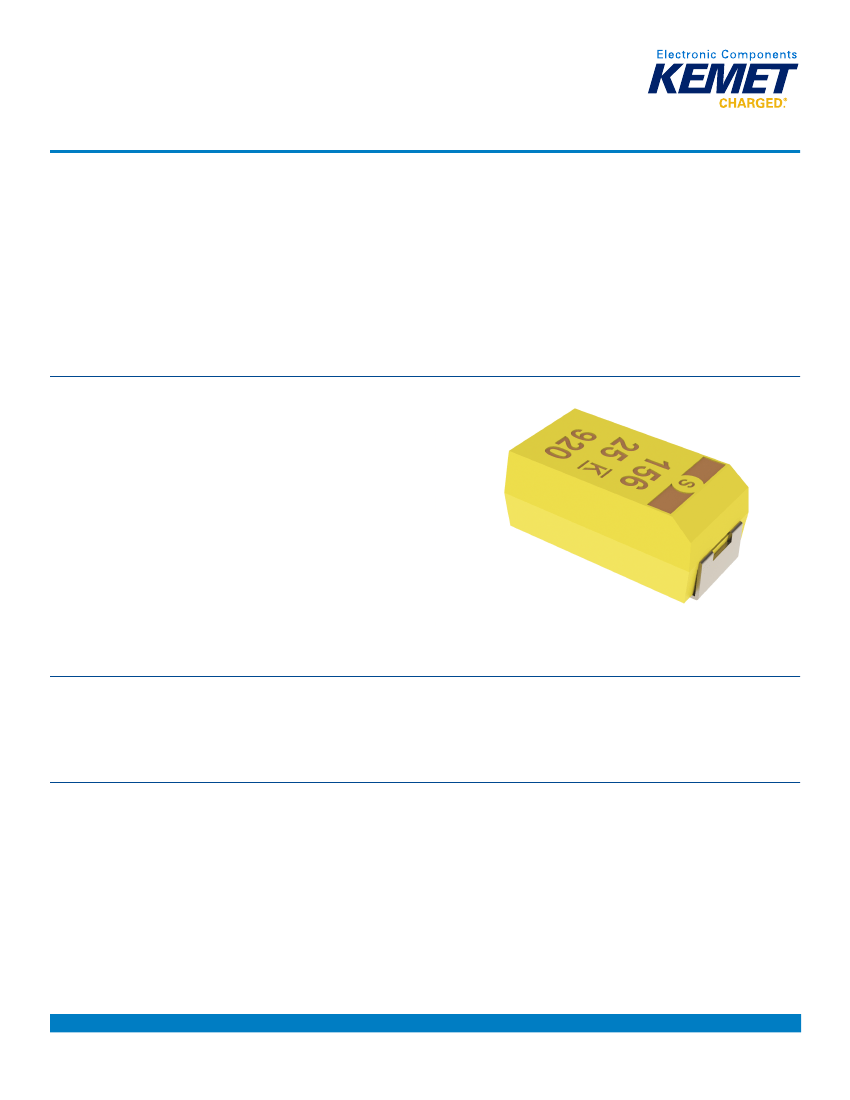

Overview
KEMET's Space Grade capacitors are suitable for use by
the defense/aerospace customers in high reliability space
applications. These capacitors meet the requirements
of MIL–PRF–55365 as well as MIL–STD–1580. These
capacitors incorporate an intensive testing and screening
protocol which is customizable depending upon
customer's specific needs.
The full part number allows for designation of surge
current level (10 cycles −55°C and +85°C before and/
or after Weibull grading, 10 cycles +25°C), performance
testing level (see chart for details on available options),
ESR (low and standard), and termination finish (see
description in each series). Fused versions are available
for built-in circuit protection, as well as multi-anode
designs for very low ESR values.
Benefits
• Standard case sizes per EIA 535BAAC
• Termination finishes options per MIL–PRF–55365:
Gold Plated B, Hot Solder Dipped C, Solder Plated H,
Solder Fused K
• Weibull Grading C (0.01%/1,000 hours)
• Surge current testing available per MIL–PRF–55365:
10 cycles at 25°C, 10 cycles at −55°C and +85°C
• Standard and low ESR options available
• Operating temperature range of −55°C to +125°C
• Capacitance values of 0.1 μF to 330 μF
• Voltage rating of 4 – 50 VDC
Click image above for interactive 3D content
Open PDF in Adobe Reader for full functionality
Applications
Typical applications include decoupling and filtering in defense and aerospace applications.
K-SIM
For a detailed analysis of specific part numbers, please visit ksim.kemet.com to access KEMET's K-SIM software. KEMET
K-SIM is designed to simulate behavior of components with respect to frequency, ambient temperature, and DC bias levels.
One world. One KEMET
© KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard
Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com
T2025_T493_SPACE • 8/28/2019
1
Tantalum Surface Mount Capacitors – Space Grade
T493 Space Grade Commercial Off-The-Shelf (COTS) MnO
2
(CWR11 Style)
Ordering Information
T
Capacitor
Class
T=
Tantalum
493
Series
CRW11
style -
Space
grade
D
227
K
006
Voltage
(V)
C
Failure
Rate/
Design
C=
0.01%
1,000
hours
H
Lead
Material
C = Hot
solder dipped
H = Standard
solder-
coated
(SnPb 5% Pb
minimum)
B = Gold-
plated
K = Solder
fused
64
Surge
61 = No Surge
62 = 10 Cycles
after Weibull,
25°C
63 = 10 Cycles,
after Weibull,
−55°C and 85°C
64 = 10 Cycles
before Weibull,
−55°C and 85°C
65 = 10 Cycles
before and after
Weibull, −55°C
and 85°C
2
ESR
A
Testing
Packaging
(C-Spec)
Blank = 7" Reel
7280 = 13" Reel
7610 = Bulk bag
7640 = Bulk
plastic box
WAFL = Waffle
pack
Case Capacitance Capacitance
Size
Code (pF)
Tolerance
A
B
C
D
X
First two
digits
represent
significant
figures.
Third digit
specifies
number of
zeros.
K = ±10% 004 = 4
M = ±20% 006 = 6.3
010 = 10
016 = 16
020 = 20
025 = 25
035 = 35
050 = 50
1 = ESR -
A = Option A
standard B = Option B
2 = ESR -
C* = Option C
low
* Option C
not available
for A case
size part
numbers
Performance Characteristics
Item
Operating Temperature
Rated Capacitance Range
Capacitance Tolerance
Rated Voltage Range
DF (120 Hz)
ESR (100 kHz)
Leakage Current
−55°C to 125°C
0.1 – 330 μF at 120 Hz/25°C
K Tolerance (10%), M Tolerance (20%)
4 – 50 V
Refer to Part Number Electrical Specification Table
Refer to Part Number Electrical Specification Table
≤ 0.01 CV (mA) at rated voltage after 5 minutes
Performance Characteristics
© KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard
Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com
T2025_T493_SPACE • 8/28/2019
2
Tantalum Surface Mount Capacitors – Space Grade
T493 Space Grade Commercial Off-The-Shelf (COTS) MnO
2
(CWR11 Style)
Qualification
Test
Endurance
Condition
Δ C/C
85°C at Rated Voltage, 2,000 hours
125°C at 2/3 Rated Voltage, 2,000 hours
DF
DCL
ESR
Δ C/C
DF
DCL
ESR
Δ C/C
MIL–STD–202, Method 107, Condition B, mounted,
−55C° to 125°C, 1,000 cycles
DF
DCL
ESR
+25°C
Extreme temperature exposure at a
succession of continuous steps at +25°C,
−55°C, +25°C, +85°C, +125°C, +25°C
Δ C/C
DF
DCL
25°C and 85°C, 1.32 x Rated Voltage 1,000 cycles.
(125°C, 1.2 x Rated Voltage)
IL*
IL
IL
Δ C/C
DF
DCL
ESR
Δ C/C
DF
DCL
Characteristics
Within ±10% of initial value
Within initial limits
Within 1.25 x initial limit
Within initial limits
Within ±10% of initial value
Within initial limits
Within 1.25 x initial limit
Within initial limits
Within ±5% of initial value
Within initial limits
Within 1.25 x initial limit
Within initial limits
−55°C
±10%
IL
n/a
+85°C
±10%
1.5 x IL
10 x IL
+125°C
±20%
1.5 x IL
12 x IL
Storage Life
125°C at 0 Volts, 2,000 hours
Thermal Shock
Temperature Stability
Within ±5% of initial value
Within initial limits
Within initial limits
Within initial limits
Within ±10% of initial value
Within initial limits
Within initial limits
Surge Voltage
Mechanical Shock/
Vibration
MIL–STD–202, Method 213, Condition I, 100 G peak.
MIL–STD–202, Method 204, Condition D,
10 Hz to 2,000 Hz, 20 G peak
Additional qualification tests per MIL–PRF–55365/8
*IL = Initial Limit
Certification
MIL–PRF–55365/8
© KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard
Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com
T2025_T493_SPACE • 8/28/2019
3
Tantalum Surface Mount Capacitors – Space Grade
T493 Space Grade Commercial Off-The-Shelf (COTS) MnO
2
(CWR11 Style)
Test Methods
Test Sequence
100% Serialization
100% IR Reflow
100% Thermal Shock
100% Electrical Verification
Read and Record Attributes/Variables Data
100% Surge Current, Option C with 5% PDA Calculation
100% Electrical Verification
Read and Record Attributes/Variables Data
100% Voltage Aging, 10 hours at 1.32 V
R
100% Electrical Verification
100% Weibull Grading C
100% Electrical Verification
Read and Record Attributes/Variables Data
100% Surge Current, Option A or B with 5% PDA Calculation
100% Electrical Verification
Read and Record Attributes/Variables Data
3 Sigma Screening – All Electricals
Read and Record Attributes/Variables Data
Destructive Physical Analysis (DPA) (5 pieces- each lot)
Group B Testing (22 pieces – each lot)
Temperature Stability – sample
Solderability – Sample
Group C Testing (57 pieces – each Lot)**
100% X-ray
100% X-ray – 2 Plane***
100% Physical Dimension Verification
Data Pack
Group A and C Summaries
2 Plane X-ray JPEG photos
DPA Report
Attributes/Variables Data for Cap/Df/DCL/ESR
X
X
X
X
X
X
X
Test Method
KEMET Standard
MIL–PRF–55365
MIL–PRF–55365
KEMET Standard
KEMET Standard
MIL–PRF–55365 with 5% PDA Calculation
KEMET Standard
KEMET Standard
MIL–PRF–55365
KEMET Standard
MIL–PRF–55365
KEMET Standard
KEMET Standard
MIL–PRF–55365 with 5% PDA Calculation
KEMET Standard
KEMET Standard
KEMET Standard
KEMET Standard
MIL–PRF–55365
* See Note Below
MIL–PRF–55365
MIL–PRF–55365
MIL–PRF–55365
MIL–PRF–55365
MIL–PRF–55365 and KEMET Standard
MIL–PRF–55365
Option A
X
X
Option B
X
X
Option C
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
= Included in test option
* Group B Testing = 10,000 Cycles Surge Current, 85°C, 40% Vr
** Group C Post Moisture ESR limit = 1.25 initial limit
*** 2 Plane X-ray = Top and side views, molded case wall thickness minimum 0.005" on all sides, negative/positive termination attachment criteria per
MIL–STD–1580
© KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard
Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com
T2025_T493_SPACE • 8/28/2019
4
Tantalum Surface Mount Capacitors – Space Grade
T493 Space Grade Commercial Off-The-Shelf (COTS) MnO
2
(CWR11 Style)

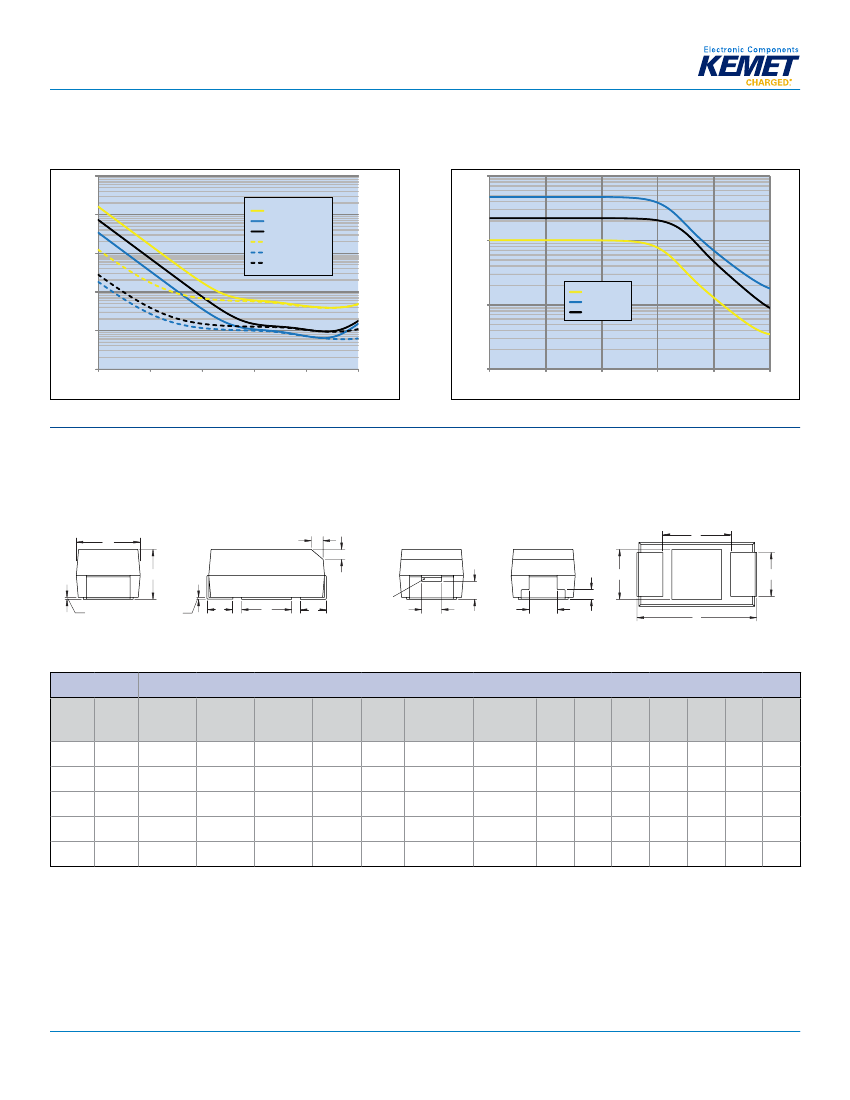

Electrical Characteristics
