FT1500DV80 datasheet, PDF - EEWORLD Datasheet

FT1500DV80: DescriptionSilicon Controlled Rectifier, 1500000mA I(T), 4000V V(DRM); CategoryAnalog mixed-signal IC Trigger device; File Size159KB，4 Pages; ManufacturerPOWEREX; Websitehttp://www.pwrx.com/Home.aspx

Download Datasheet Parametric View All

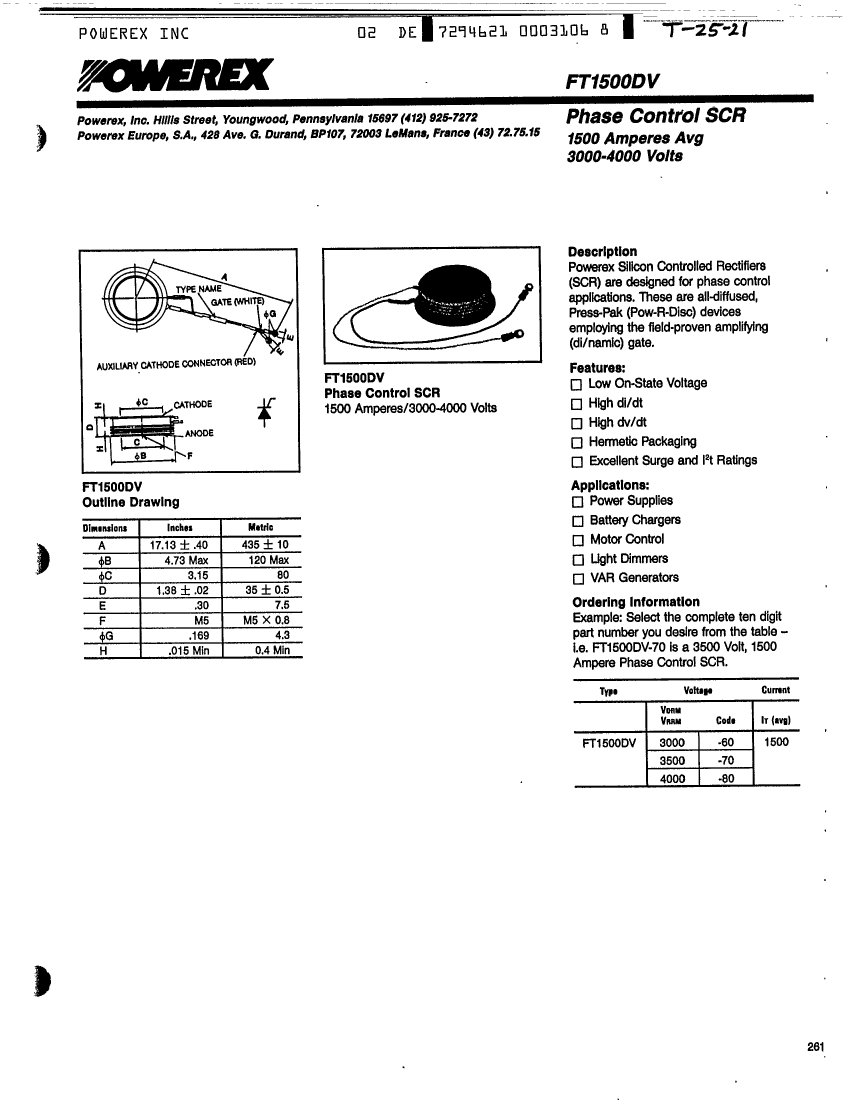

FT1500DV80 Overview

Silicon Controlled Rectifier, 1500000mA I(T), 4000V V(DRM)

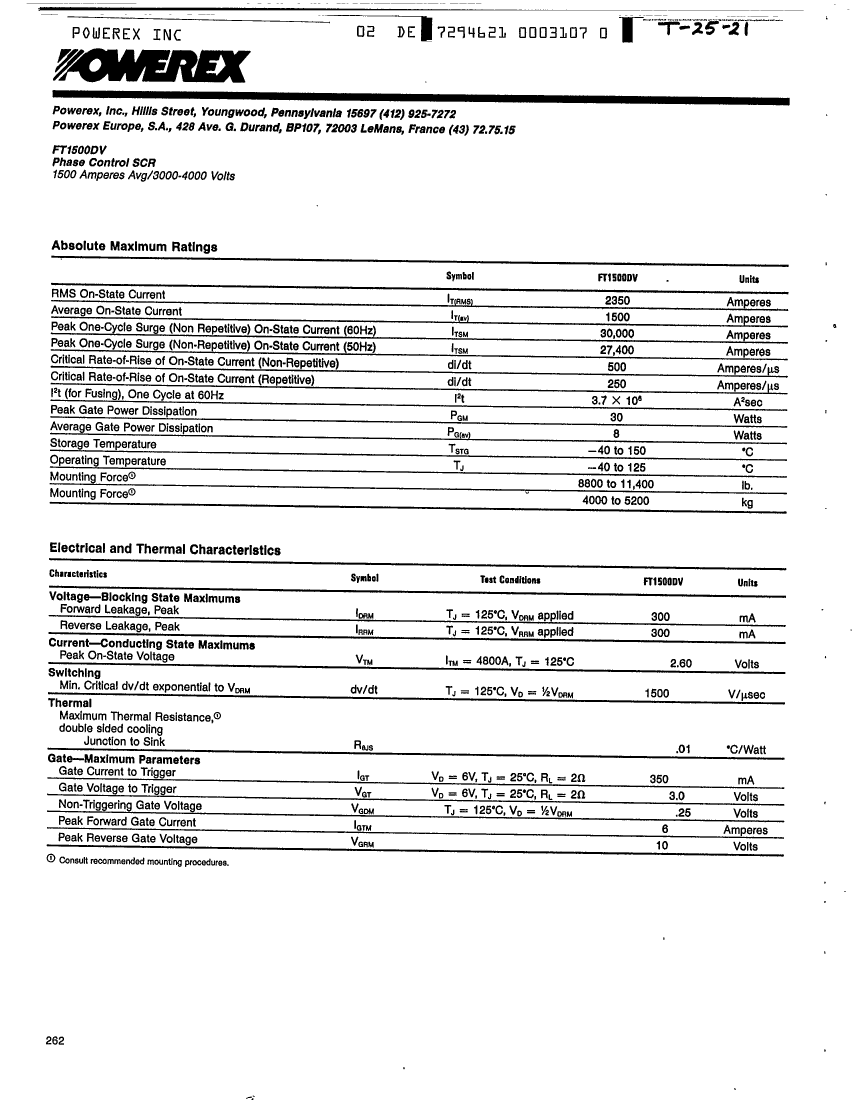

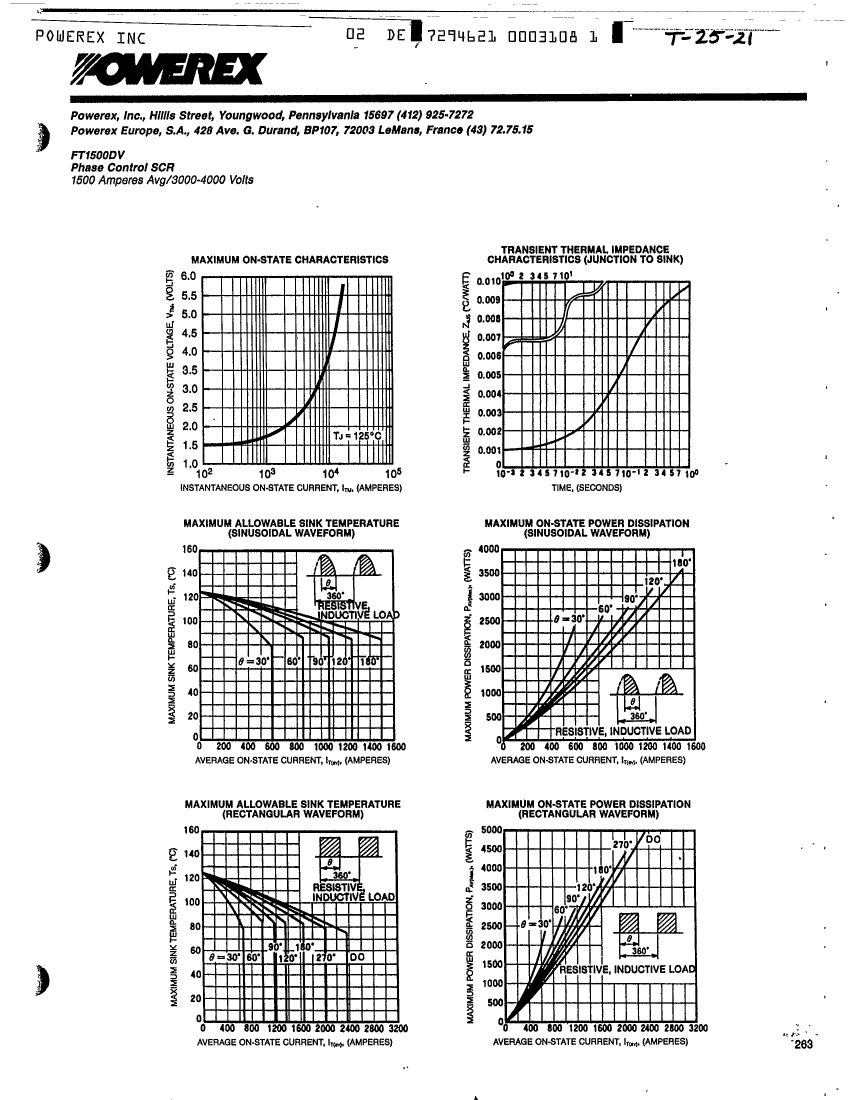

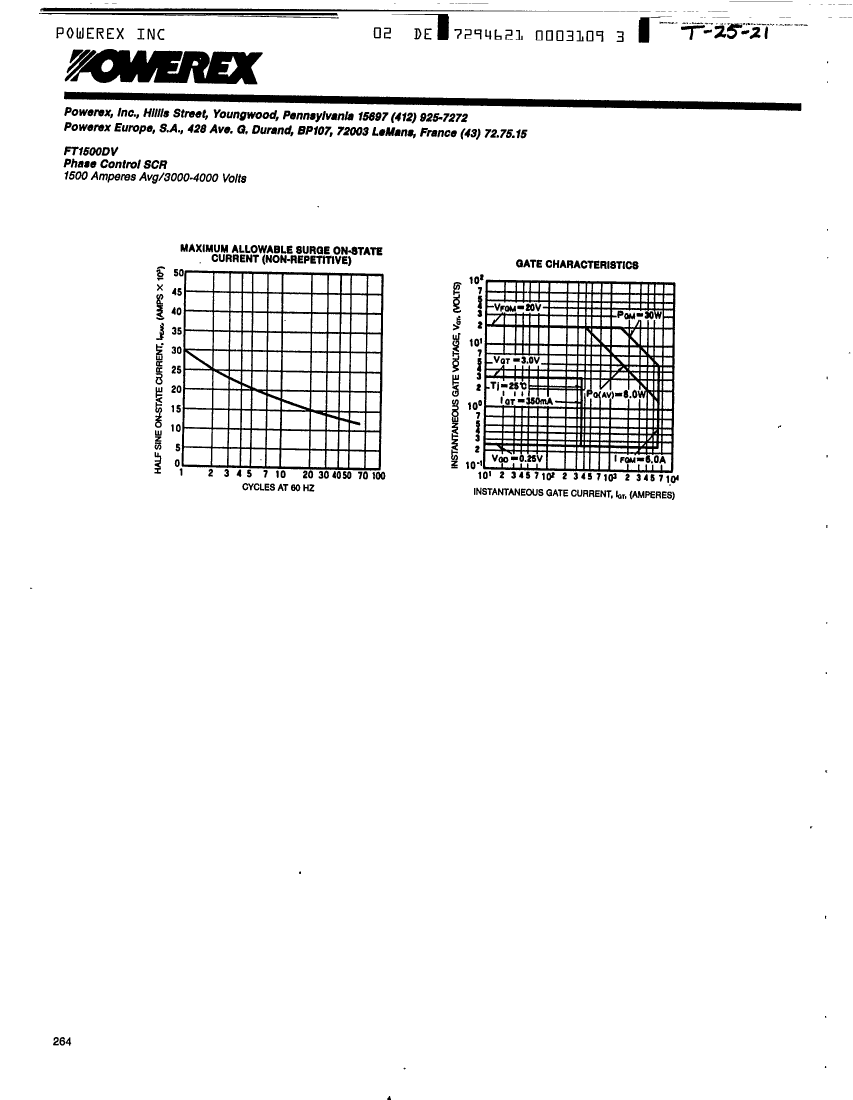

Parameter Name	Attribute value
package instruction	,
Reach Compliance Code	unknown
Critical rise rate of minimum off-state voltage	1500 V/us
Maximum DC gate trigger current	350 mA
Maximum DC gate trigger voltage	3 V
Maximum leakage current	300 mA
On-state non-repetitive peak current	30000 A
Maximum on-state voltage	2.6 V
Maximum on-state current	1500000 A
Maximum operating temperature	125 °C
Minimum operating temperature	-45 °C
Off-state repetitive peak voltage	4000 V
surface mount	NO
Trigger device type	SCR
Base Number Matches	1
