TRD855SCR-30: DescriptionCable Assembly, 8 Conductor(s), 26AWG,; CategoryThe connector Connector bracket; File Size78KB，2 Pages; ManufacturerL-com Global Connectivity; Environmental Compliance

Download Datasheet Parametric Compare View All

TRD855SCR-30 Overview

Cable Assembly, 8 Conductor(s), 26AWG,

TRD855SCR-30 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	unknown
Certification	CE; UL
conductor material	COPPER
ConnectorSide1	RJ45 PLUG
ConnectorSide2	RJ45 PLUG
Connector bracket type	CABLE ASSEMBLY
structure	STRANDED
Jacket material	POLYVINYL CHLORIDE
Number of conductors	8
Maximum operating temperature	60 °C
Minimum operating temperature
shield	YES
stay	7X34
Wire gauge	26 AWG
Base Number Matches	1

Preview

Download Datasheet

View All

8

7

6

5

4

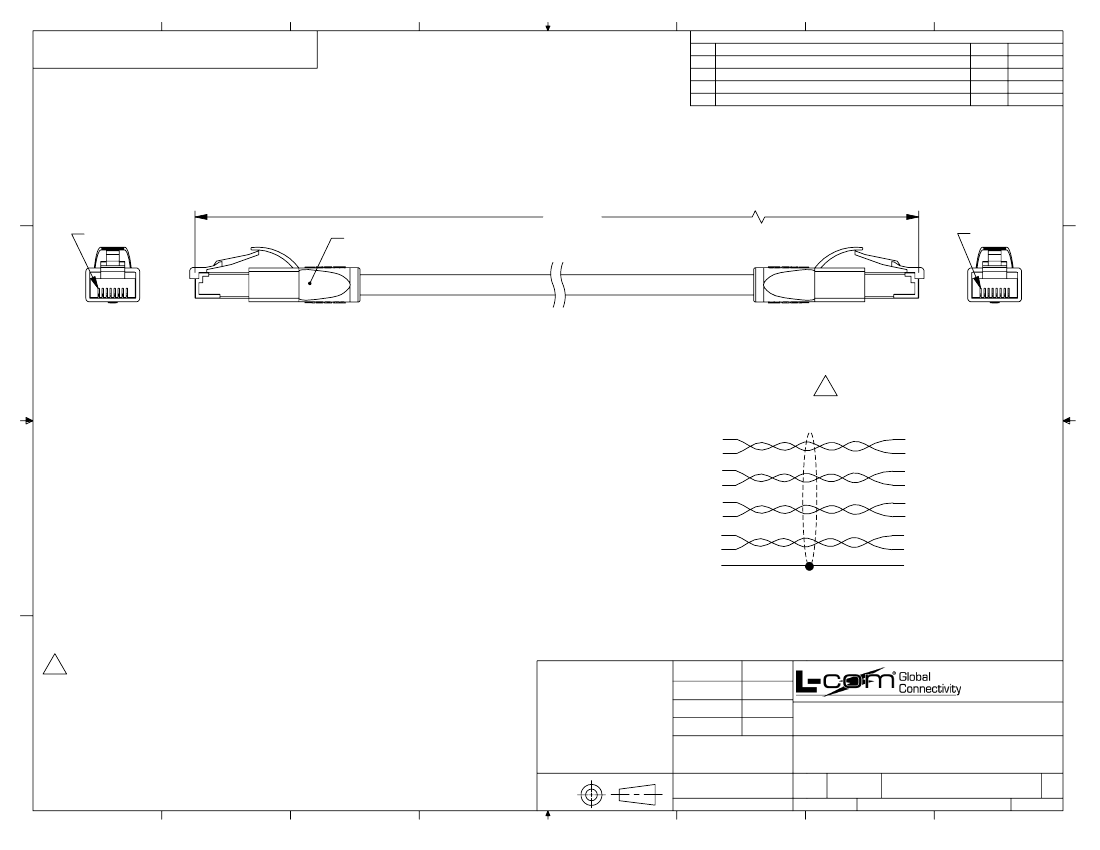

REV

N

3

DESCRIPTION

ECN 8337; ADD WIRING MAP; NEW FORMAT

2

REVISIONS

DATE

1

APPROVED

05/15/2016 B.ZHANG

THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE

PROPERTY OF L-COM, INC. ANY REPRODUCTION IN PART OR WHOLE

WITHOUT THE WRITTEN PERMISSION OF L-COM, INC. IS PROHIBITED.

D

"P1"

LENGTH

POSITION 1

2X SNAGLESS BOOT

"P2"

POSITION 1

C

2X RJ45 (8P8C)

SHIELDED PLUG

N

P1

C

WIRING MAP

P2

1 WHT/ORN

2 ORN

3 WHT/GRN

6 GRN

5 WHT/BLU

4 BLU

7 WHT/BRN

8 BRN

SHIELD

NOTES:

MATERIAL:

PLUG HOUSING: POLYCARBONATE, CLEAR, UL94V-0

CONTACTS: PHOSPHOR BRONZE

CABLE JACKET: PVC, SEE CHARTS (SHEET 2 OF 2)

SNAGLESS BOOT: BLACK, LSZH THERMOPLASTIC

FINISH:

CONTACTS: 50

µINCHES

GOLD IN CONTACT AREA

OVER 100

µINCHES

NICKEL PLATE OVERALL.

PLUG SHIELDING: NICKEL PLATED

CABLE CHARACTERISTICS:

SHIELD: ALUMINUM/POLYESTER WITH DRAIN WIRE

FOUR TWISTED PAIR MODULAR CABLE, 26 AWG (7X34)

STRANDED COPPER; UL STYLE 2835 COMMUNICATIONS CABLE

N

A

ELECTRICAL:

NOMINAL IMPEDANCE: 100Ω

MISCELLANEOUS:

PLUG CONFORMS TO TIA-1096

OPERATING TEMPERATURE RANGE: 0°C TO +60°C.

CABLES TO BE TESTED FOR CONTINUITY.

CABLES TO BE INDIVIDUALLY PACKAGED IN ACCORDANCE

WITH L-COM SPECIFICATION PS-0031.

REGULATORY COMPLIANCE:

CE2011/65/EU(RoHS DIRECTIVE)

8

7

6

5

UNLESS OTHERWISE SPECIFIED,

DIMENSIONS ARE IN INCHES [mm]

OVERALL CABLE LENGTH TOLERANCE:

≤12 [305] = +1 [25] / -0

>12 [305] ≤60 [1524] = +2 [51] / -0

>60 [1524] ≤120 [3048] = +4 [102] / -0

>120 [3048] ≤300 [7620] = +6 [152] / -0

>300 [7620] = +5% / -0%

ALL OTHER DIMENSIONAL TOLERANCES:

.X = ± .2 [5.08]

.XX = ± .02 [.51]

.XXX = ±.005 [.13]

PROJECTION

1

2

3

6

5

4

7

8

SHIELD

B

APPROVALS

DRAWN BY

DATE

10/2/2000

10/3/2000

10/03/2000

TRD855SCR-30 Related Products

	TRD855SCR-30	TRD855SCR-20	TRD855SCR-75	TRD855SCRBLK-2	TRD855SCRBL-50	TRD855SCRY-75	TRD855SCRRD-7
Description	Cable Assembly, 8 Conductor(s), 26AWG,	Cable Assembly, 8 Conductor(s), 26AWG,	Cable Assembly, 8 Conductor(s), 26AWG,	Cable Assembly, 8 Conductor(s), 26AWG,	Cable Assembly, 8 Conductor(s), 26AWG,	Cable Assembly, 8 Conductor(s), 26AWG,	Cable Assembly, 8 Conductor(s), 26AWG,
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Certification	CE; UL	CE; UL	CE; UL	CE; UL	CE; UL	CE; UL	CE; UL
conductor material	COPPER	COPPER	COPPER	COPPER	COPPER	COPPER	COPPER
ConnectorSide1	RJ45 PLUG	RJ45 PLUG	RJ45 PLUG	RJ45 PLUG	RJ45 PLUG	RJ45 PLUG	RJ45 PLUG
ConnectorSide2	RJ45 PLUG	RJ45 PLUG	RJ45 PLUG	RJ45 PLUG	RJ45 PLUG	RJ45 PLUG	RJ45 PLUG
Connector bracket type	CABLE ASSEMBLY	CABLE ASSEMBLY	CABLE ASSEMBLY	CABLE ASSEMBLY	CABLE ASSEMBLY	CABLE ASSEMBLY	CABLE ASSEMBLY
structure	STRANDED	STRANDED	STRANDED	STRANDED	STRANDED	STRANDED	STRANDED
Jacket material	POLYVINYL CHLORIDE	POLYVINYL CHLORIDE	POLYVINYL CHLORIDE	POLYVINYL CHLORIDE	POLYVINYL CHLORIDE	POLYVINYL CHLORIDE	POLYVINYL CHLORIDE
Number of conductors	8	8	8	8	8	8	8
Maximum operating temperature	60 °C	60 °C	60 °C	60 °C	60 °C	60 °C	60 °C
shield	YES	YES	YES	YES	YES	YES	YES
stay	7X34	7X34	7X34	7X34	7X34	7X34	7X34
Wire gauge	26 AWG	26 AWG	26 AWG	26 AWG	26 AWG	26 AWG	26 AWG
Base Number Matches	1	1	1	1	1	1	-
