QS74LVCR2245Q datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> QS74LVCR2245Q

QS74LVCR2245Q: DescriptionBus Driver/Transceiver, 1-Func, 8-Bit, True Output, CMOS, PDSO20; Categorylogic logic; File Size309KB，6 Pages; ManufacturerIDT (Integrated Device Technology)

Download Datasheet Parametric Compare View All

QS74LVCR2245Q Overview

Bus Driver/Transceiver, 1-Func, 8-Bit, True Output, CMOS, PDSO20

QS74LVCR2245Q Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
package instruction	SSOP, SSOP20,.25
Reach Compliance Code	not_compliant
Control type	COMMON CONTROL
Counting direction	BIDIRECTIONAL
JESD-30 code	R-PDSO-G20
JESD-609 code	e0
MaximumI(ol)	0.012 A
Humidity sensitivity level	1
Number of digits	8
Number of functions	1
Number of terminals	20
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output characteristics	3-STATE
Output polarity	TRUE
Package body material	PLASTIC/EPOXY
encapsulated code	SSOP
Encapsulate equivalent code	SSOP20,.25
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, SHRINK PITCH
Peak Reflow Temperature (Celsius)	260
power supply	3.3 V
Prop。Delay @ Nom-Sup	6.3 ns
Certification status	Not Qualified
Nominal supply voltage (Vsup)	3.3 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn85Pb15)
Terminal form	GULL WING
Terminal pitch	0.635 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	6
translate	N/A
Base Number Matches	1

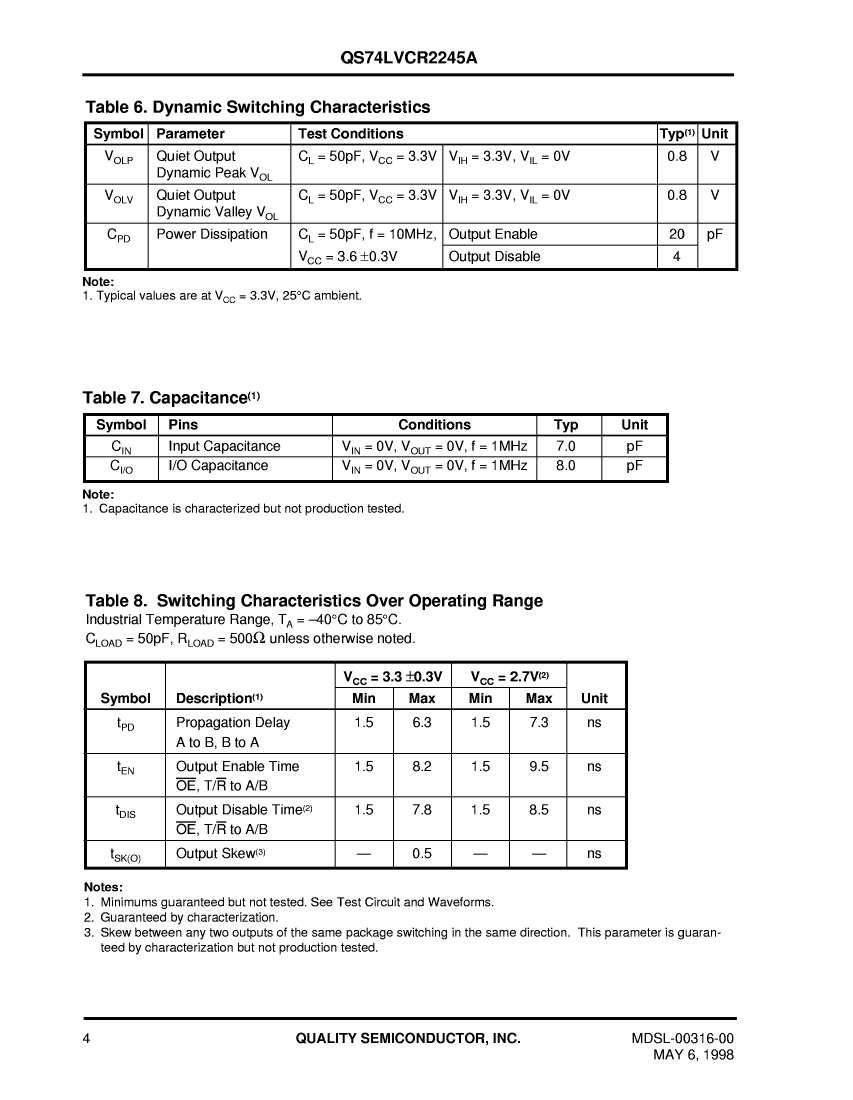

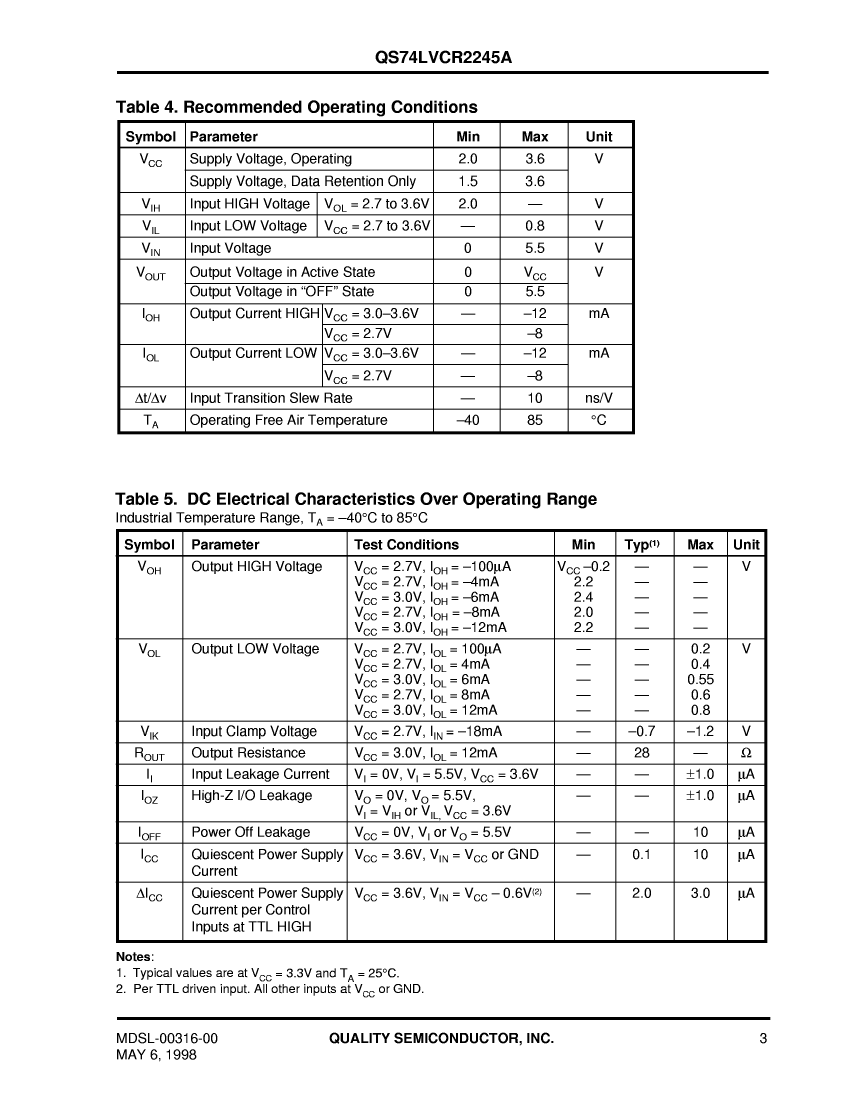

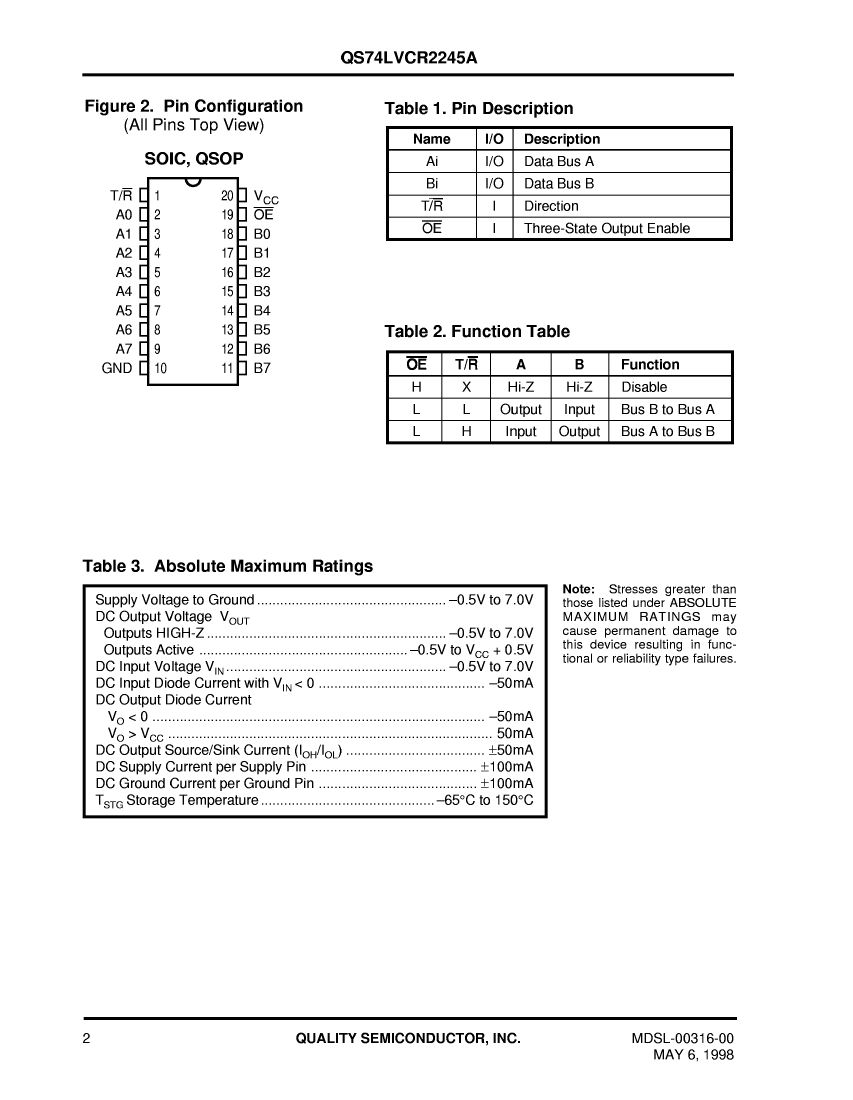

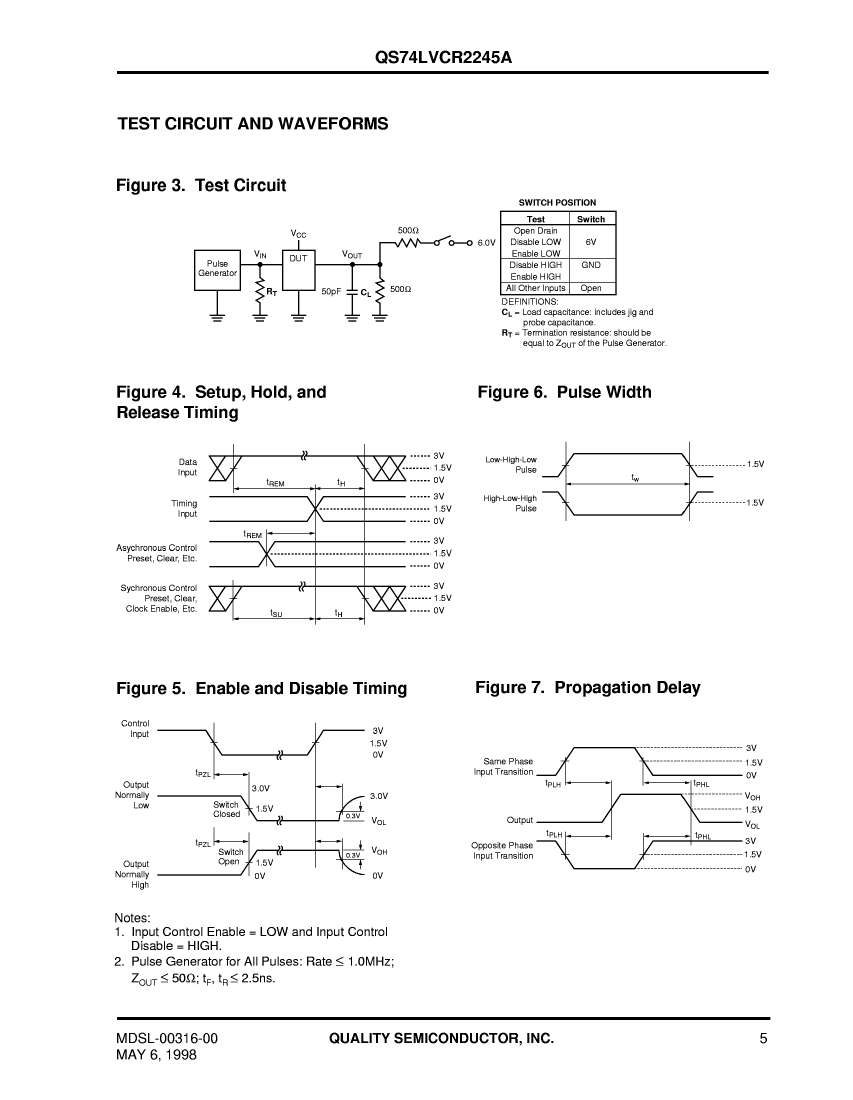

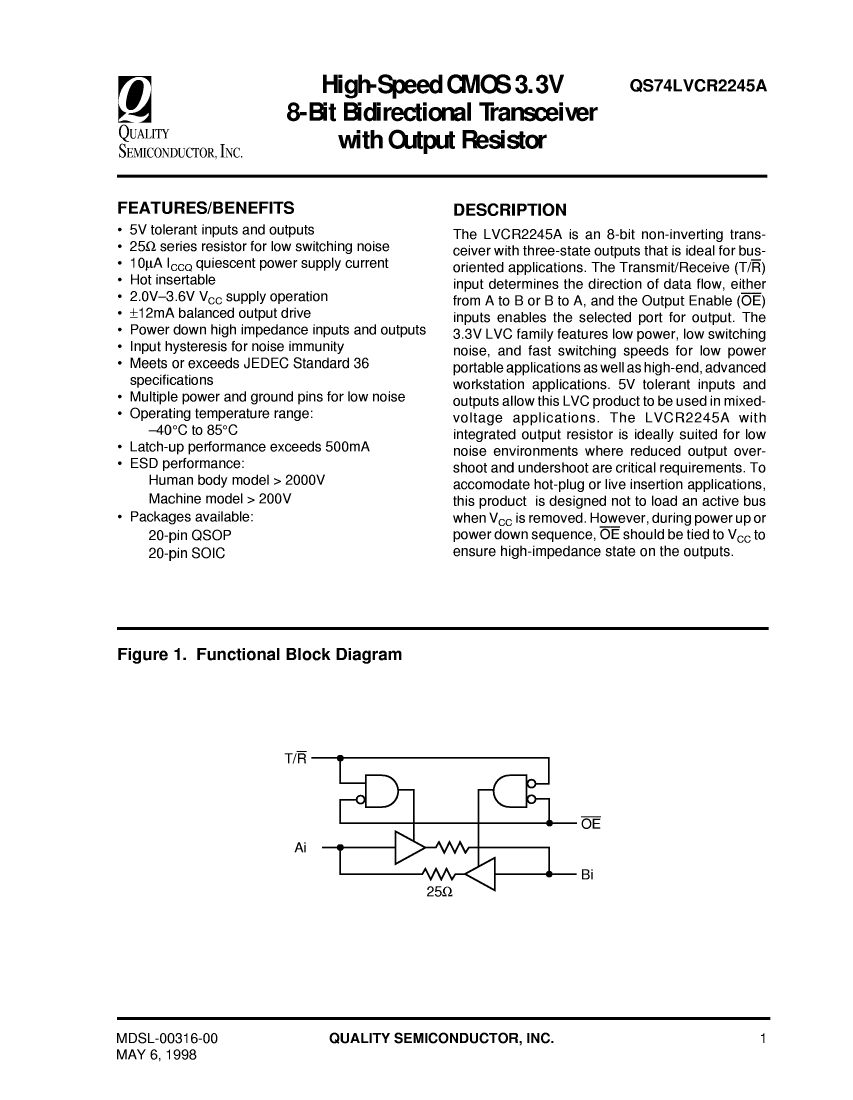

Preview

Download Datasheet

View All

QS74LVCR2245Q Related Products

	QS74LVCR2245Q	QS74LVCR2245QX	QS74LVCR2245SO	QS74LVCR2245SOX
Description	Bus Driver/Transceiver, 1-Func, 8-Bit, True Output, CMOS, PDSO20	Bus Driver/Transceiver, 1-Func, 8-Bit, True Output, CMOS, PDSO20	Bus Driver/Transceiver, 1-Func, 8-Bit, True Output, CMOS, PDSO20	Bus Driver/Transceiver, 1-Func, 8-Bit, True Output, CMOS, PDSO20
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible
package instruction	SSOP, SSOP20,.25	SSOP, SSOP20,.25	SOP, SOP20,.4	SOP, SOP20,.4
Reach Compliance Code	not_compliant	not_compliant	not_compliant	not_compliant
Control type	COMMON CONTROL	COMMON CONTROL	COMMON CONTROL	COMMON CONTROL
Counting direction	BIDIRECTIONAL	BIDIRECTIONAL	BIDIRECTIONAL	BIDIRECTIONAL
JESD-30 code	R-PDSO-G20	R-PDSO-G20	R-PDSO-G20	R-PDSO-G20
JESD-609 code	e0	e0	e0	e0
MaximumI(ol)	0.012 A	0.012 A	0.012 A	0.012 A
Humidity sensitivity level	1	1	1	1
Number of digits	8	8	8	8
Number of functions	1	1	1	1
Number of terminals	20	20	20	20
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE
Output polarity	TRUE	TRUE	TRUE	TRUE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SSOP	SSOP	SOP	SOP
Encapsulate equivalent code	SSOP20,.25	SSOP20,.25	SOP20,.4	SOP20,.4
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, SHRINK PITCH	SMALL OUTLINE, SHRINK PITCH	SMALL OUTLINE	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260	260	260	260
power supply	3.3 V	3.3 V	3.3 V	3.3 V
Prop。Delay @ Nom-Sup	6.3 ns	6.3 ns	6.3 ns	6.3 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Nominal supply voltage (Vsup)	3.3 V	3.3 V	3.3 V	3.3 V
surface mount	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal surface	Tin/Lead (Sn85Pb15)	Tin/Lead (Sn85Pb15)	Tin/Lead (Sn85Pb15)	Tin/Lead (Sn85Pb15)
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	0.635 mm	0.635 mm	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	6	6	6	6
translate	N/A	N/A	N/A	N/A
Base Number Matches	1	1	1	1
