LC/APC-SM-GR-09-5CF datasheet, PDF

Datasheet> All Categories > The connector> The connector> LC/APC-SM-GR-09-5CF

LC/APC-SM-GR-09-5CF: DescriptionFiber Optic LC Connector, 125um, Single Mode, Simplex; CategoryThe connector The connector; File Size94KB，2 Pages; ManufacturerMethode Electronics Inc.

Download Datasheet Parametric View All

LC/APC-SM-GR-09-5CF Overview

Fiber Optic LC Connector, 125um, Single Mode, Simplex

LC/APC-SM-GR-09-5CF Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
Other features	STANDARD: IEC 61754-20
Connection Type	SIMPLEX
Connector type	FIBER OPTIC LC CONNECTOR
Coupling type	SNAP
DIN compliance	NO
Fiber size	125um
IEC compliance	NO
Insertion loss	0.1 dB
MIL compliance	NO
Manufacturer's serial number	LC
model	SINGLE
Installation type	CABLE
Options	GENERAL PURPOSE
Base Number Matches	1

Preview

Download Datasheet

View All

FIBER OPTIC TECHNOLOGY

CALIBRATION LABORATORY

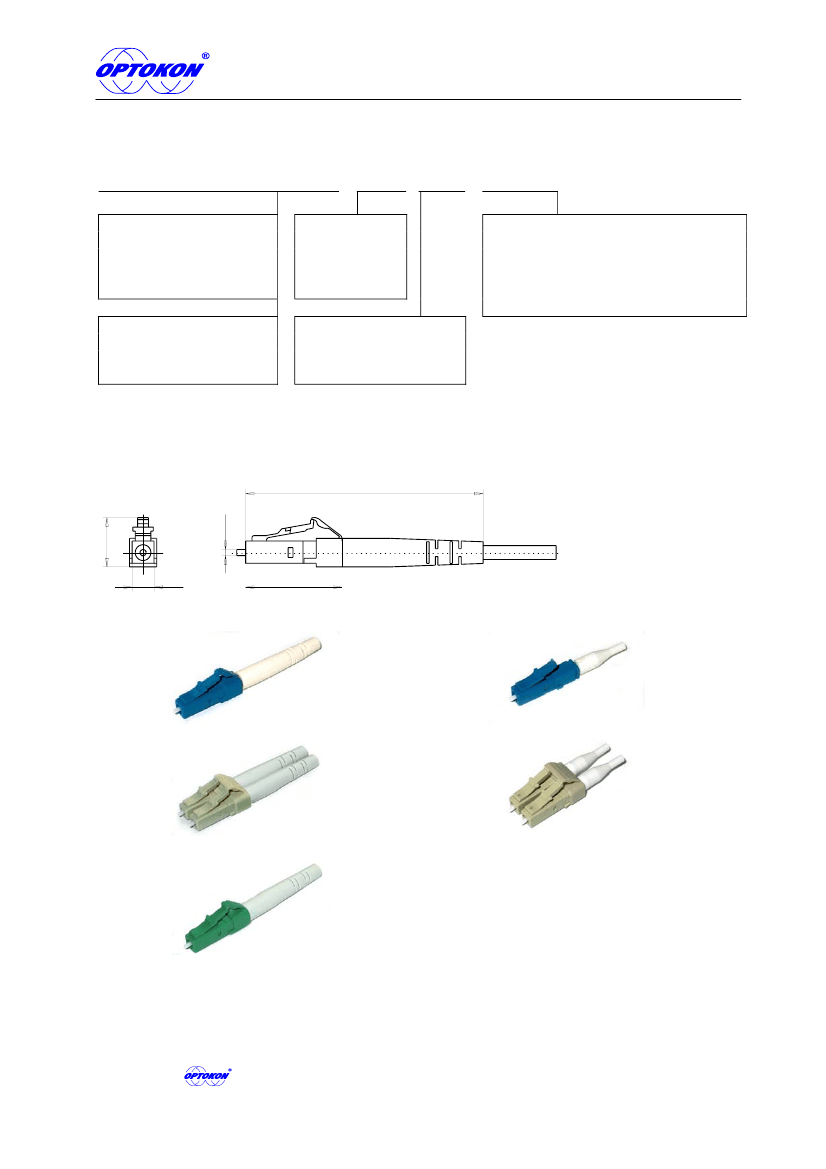

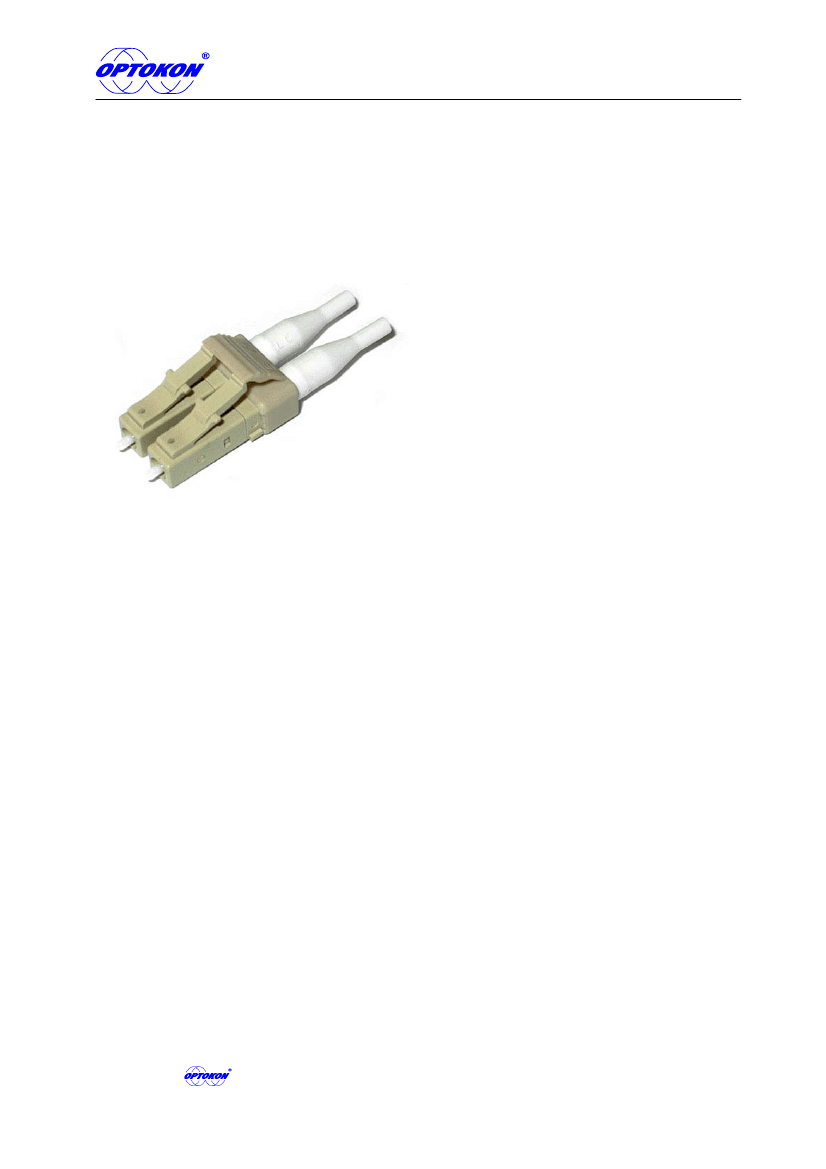

LC Connector

Description:

The innovative LC design offers a form factor one-half the size of current industry standards, and simple

features create a new definition of user-friendliness.

The LC connector is manufactured to meet EIA/TIA 568A, FOCIS 10, IEC 61754-20 and CENELEC

specifications for optical performance and intermateability. The LC Duplex fits into the RJ-45 standard

cutout and uses the smallest diameter cable jacket in the industry.

Features:

•

one-half the size of current industry

standards

increases panel density – provides

duplex connection in 50% less space

duplex fits RJ-45 footprint

available in SM, MM versions with

Super, Ultra and Angle (APC) polishing

user-friendly audible latch to indicate

proper mating

simplex and duplex version available

pull – proof 1.7 mm simplex mini-cord,

1.8 x 3.6 mm duplex minizip cable

Specifications:

Insertion loss (IL)

Return loss (RL)

Strain relief

Operating temperature

Durability

Assembly procedure

Connection

Lock mechanism

Standards

Ferrule material

Connector material

typ: 0.10 dB

>60 dB for jumpers up to 3 m

90 N

-40°C to +80°C

min 1000 cycles

glue and polish

physical contact

snap-on

ISO/IEC 11801, TIA 568A, IEC 61754-20, CENELEC

full ceramic zirconia

thermoplastic

Application:

•

Telecom

LAN, WAN

CATV

Sensor systems

Measuring Technique

Utilities

Railways

is registered trademark of Optokon Co., Ltd. Other names and trademarks mentioned herein may be the trademarks of their respective owners.

Optokon Co., Ltd., Cerveny Kriz 250, 586 02 Jihlava, Czech Republic

tel. +420 564 040 111, fax +420 564 040 134, +420 567 311 292, www.optokon.com, info@optokon.cz

CON_07-02_EN

21/07/2003
