MCM2833P20-5 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > storage> storage> MCM2833P20-5

MCM2833P20-5: DescriptionEEPROM, 4KX8, 200ns, Parallel, MOS, PDIP28; Categorystorage storage; File Size693KB，9 Pages; ManufacturerMotorola ( NXP ); Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

MCM2833P20-5 Overview

EEPROM, 4KX8, 200ns, Parallel, MOS, PDIP28

MCM2833P20-5 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Reach Compliance Code	unknown
Maximum access time	200 ns
command user interface	NO
Data polling	NO
JESD-30 code	R-PDIP-T28
JESD-609 code	e0
memory density	32768 bit
Memory IC Type	EEPROM
memory width	8
Number of terminals	28
word count	4096 words
character code	4000
Maximum operating temperature	70 °C
Minimum operating temperature
organize	4KX8
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP28,.6
Package shape	RECTANGULAR
Package form	IN-LINE
page size	32/128 words
Parallel/Serial	PARALLEL
power supply	5 V
Certification status	Not Qualified
Maximum standby current	0.035 A
Maximum slew rate	0.13 mA
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	MOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
switch bit	NO
Base Number Matches	1

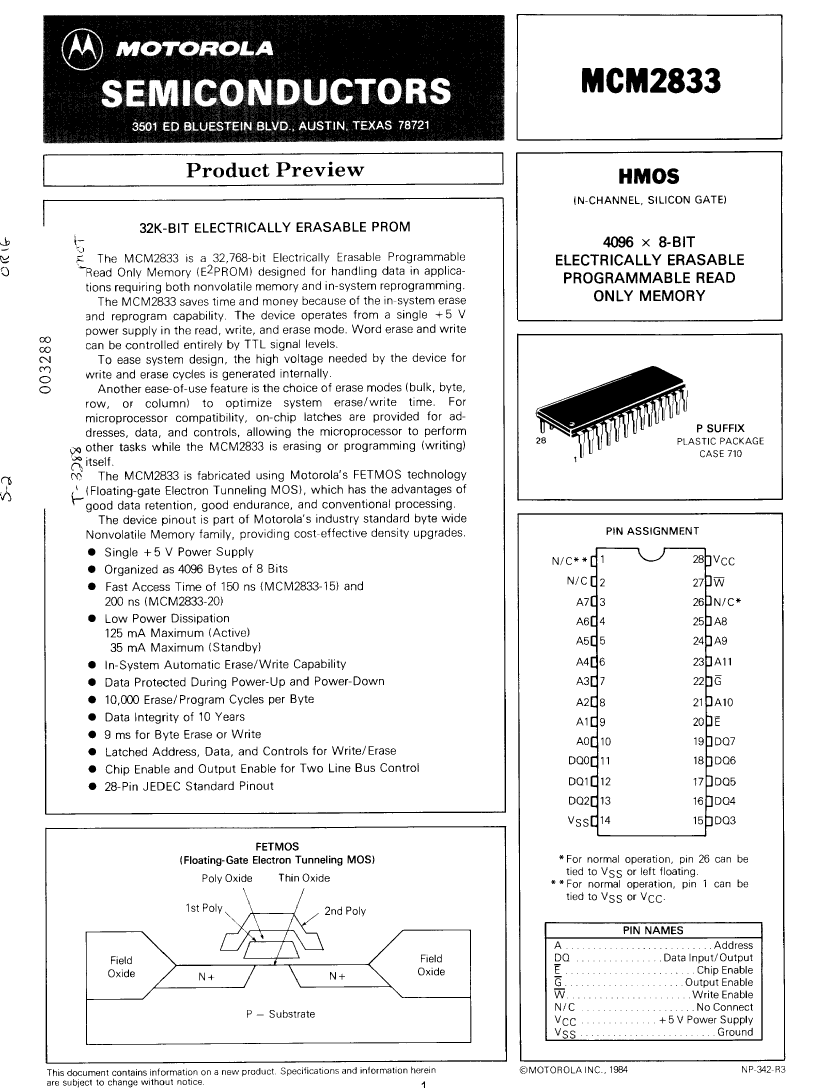

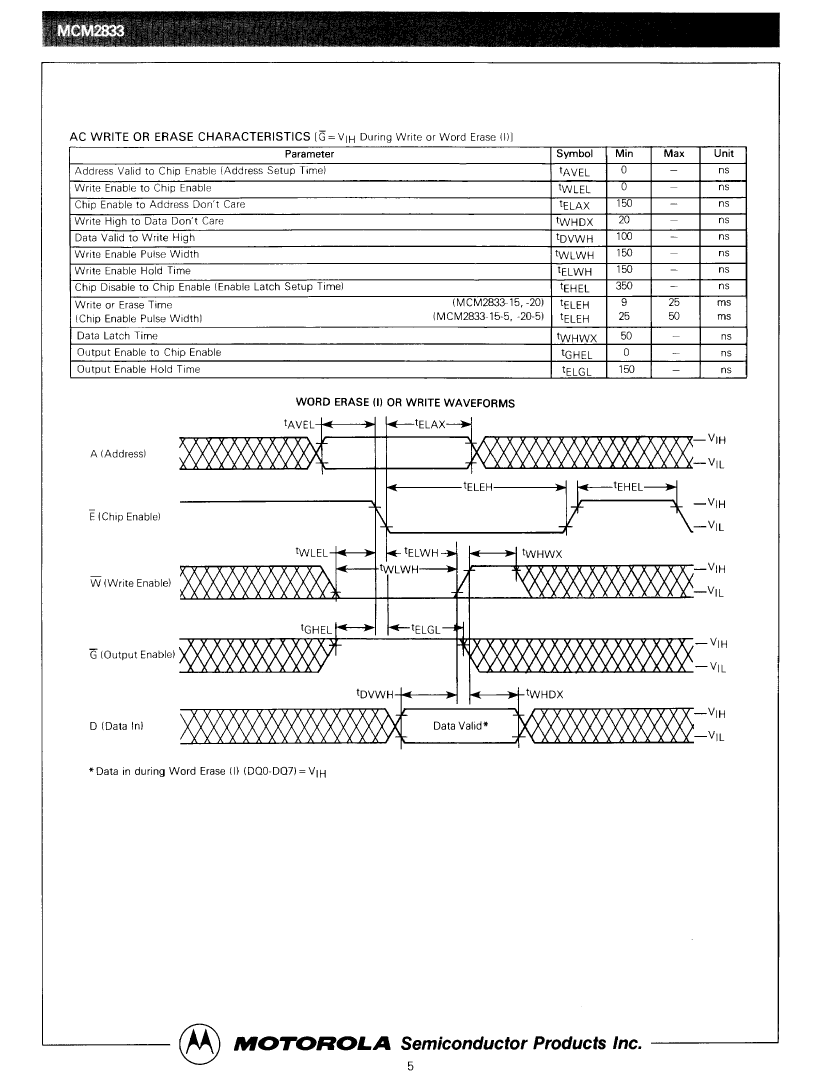

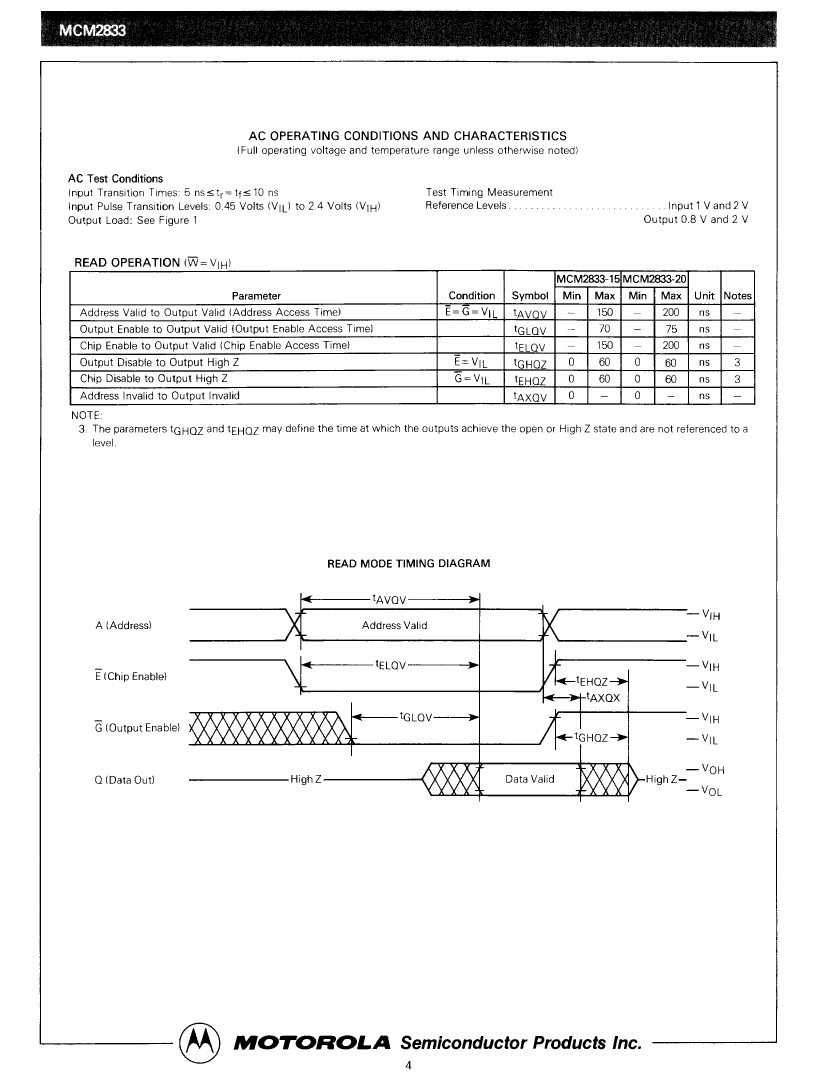

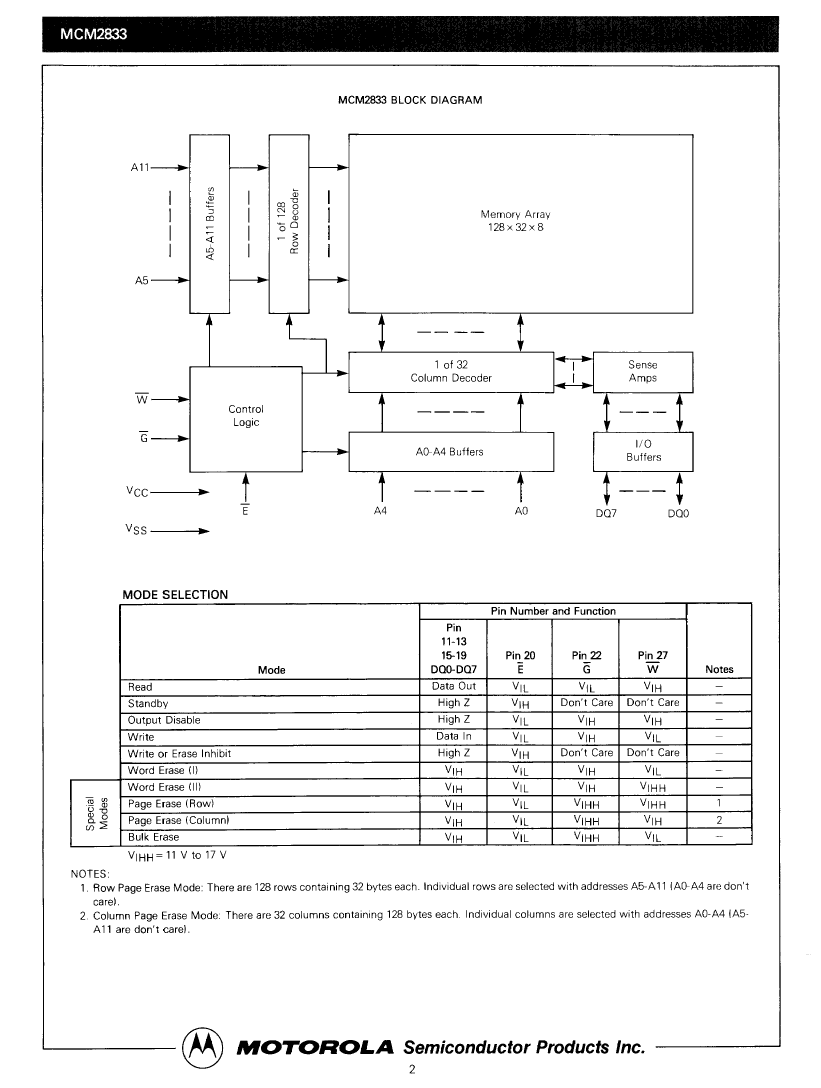

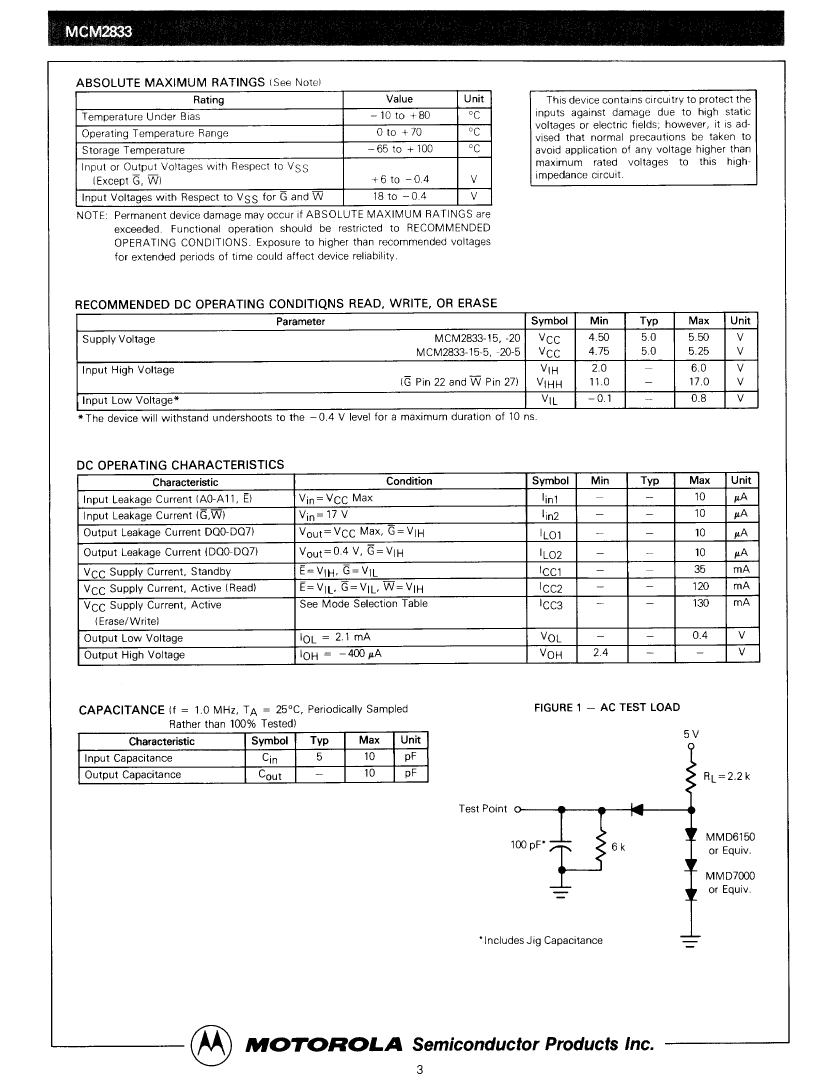

Preview

Download Datasheet

View All

MCM2833P20-5 Related Products

	MCM2833P20-5	MCM2833P20DS	MCM2833P20S	MCM2833P15-5S	MCM2833P15	MCM2833P20-5DS
Description	EEPROM, 4KX8, 200ns, Parallel, MOS, PDIP28	EEPROM, 4KX8, 200ns, Parallel, MOS, PDIP28	EEPROM, 4KX8, 200ns, Parallel, MOS, PDIP28	EEPROM, 4KX8, 150ns, Parallel, MOS, PDIP28	EEPROM, 4KX8, 150ns, Parallel, MOS, PDIP28	EEPROM, 4KX8, 200ns, Parallel, MOS, PDIP28
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknow
Maximum access time	200 ns	200 ns	200 ns	150 ns	150 ns	200 ns
command user interface	NO	NO	NO	NO	NO	NO
Data polling	NO	NO	NO	NO	NO	NO
JESD-30 code	R-PDIP-T28	R-PDIP-T28	R-PDIP-T28	R-PDIP-T28	R-PDIP-T28	R-PDIP-T28
JESD-609 code	e0	e0	e0	e0	e0	e0
memory density	32768 bit	32768 bit	32768 bit	32768 bit	32768 bit	32768 bi
Memory IC Type	EEPROM	EEPROM	EEPROM	EEPROM	EEPROM	EEPROM
memory width	8	8	8	8	8	8
Number of terminals	28	28	28	28	28	28
word count	4096 words	4096 words	4096 words	4096 words	4096 words	4096 words
character code	4000	4000	4000	4000	4000	4000
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
organize	4KX8	4KX8	4KX8	4KX8	4KX8	4KX8
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	DIP	DIP	DIP	DIP	DIP
Encapsulate equivalent code	DIP28,.6	DIP28,.6	DIP28,.6	DIP28,.6	DIP28,.6	DIP28,.6
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE
page size	32/128 words	32/128 words	32/128 words	32/128 words	32/128 words	32/128 words
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL
power supply	5 V	5 V	5 V	5 V	5 V	5 V
Maximum standby current	0.035 A	0.035 A	0.035 A	0.035 A	0.035 A	0.035 A
Maximum slew rate	0.13 mA	0.13 mA	0.13 mA	0.13 mA	0.13 mA	0.13 mA
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	NO	NO	NO	NO	NO
technology	MOS	MOS	MOS	MOS	MOS	MOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
switch bit	NO	NO	NO	NO	NO	NO
Certification status	Not Qualified	-	Not Qualified	Not Qualified	Not Qualified	-
Base Number Matches	1	1	1	1	1	-
