ABM8L-3.68640MHZ-12-B-3-T datasheet, PDF

Datasheet> All Categories > Passive components> Crystal/resonator> ABM8L-3.68640MHZ-12-B-3-T

ABM8L-3.68640MHZ-12-B-3-T: DescriptionParallel - Fundamental Quartz Crystal, 3.6864MHz Nom, ROHS COMPLIANT, ULTRA MINIATURE, CERAMIC, SMD, 4 PIN; CategoryPassive components Crystal/resonator; File Size913KB，2 Pages; ManufacturerAbracon; Websitehttp://www.abracon.com/index.htm; Environmental Compliance

Download Datasheet Parametric View All

ABM8L-3.68640MHZ-12-B-3-T Overview

Parallel - Fundamental Quartz Crystal, 3.6864MHz Nom, ROHS COMPLIANT, ULTRA MINIATURE, CERAMIC, SMD, 4 PIN

ABM8L-3.68640MHZ-12-B-3-T Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT, ULTRA MINIATURE, CERAMIC, SMD, 4 PIN
Reach Compliance Code	compliant
Other features	TAPE AND REEL
Ageing	5 PPM/FIRST YEAR
Crystal/Resonator Type	PARALLEL - FUNDAMENTAL
Drive level	5 µW
frequency stability	0.005%
frequency tolerance	25 ppm
load capacitance	12 pF
Manufacturer's serial number	ABM8L
Installation features	SURFACE MOUNT
Nominal operating frequency	3.6864 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
physical size	L3.2XB2.5XH0.65 (mm)/L0.126XB0.098XH0.026 (inch)
Series resistance	500 Ω
surface mount	YES
Base Number Matches	1

Preview

Download Datasheet

View All

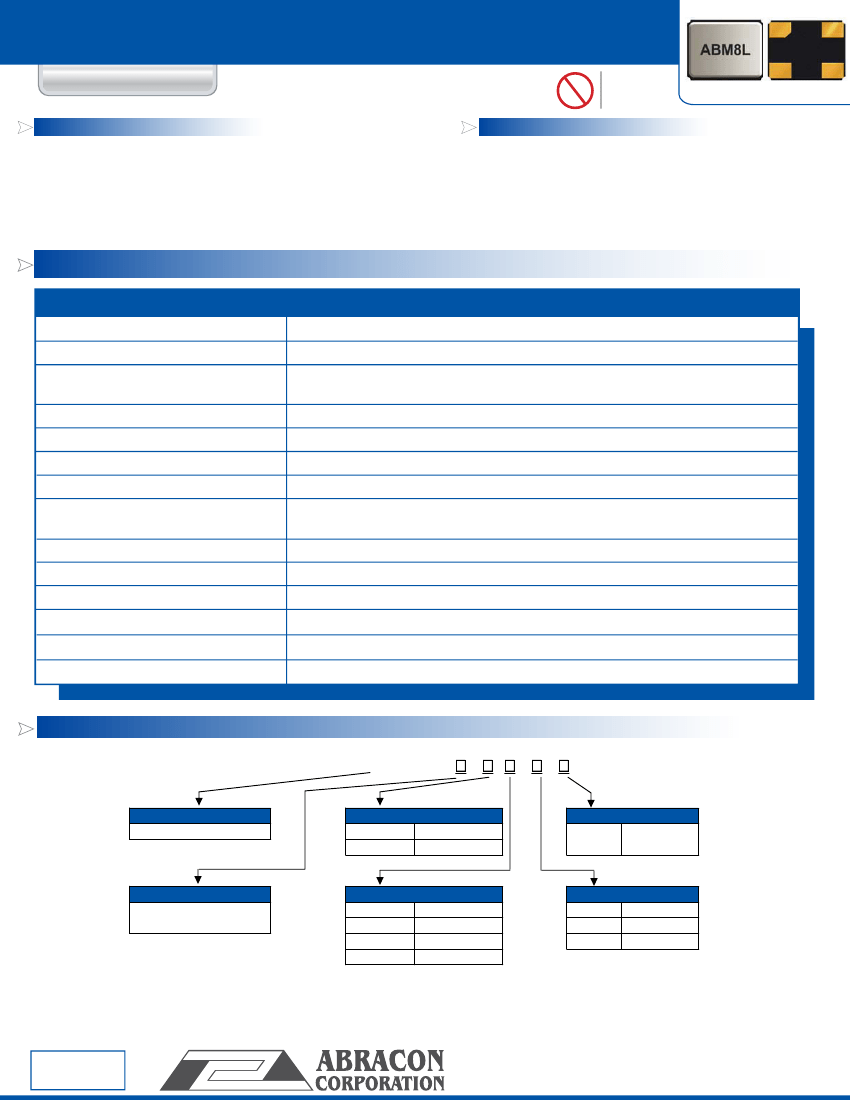

CERAMIC SMD ULTRA MINIATURE

CONTOUR MODE QUARTZ CRYSTAL

ABM8L

FEATURES:

• 3.0 to 4.5MHz in 3.2 x 2.5mm package

• Ceramic package and metal lid assures high reliability

• Tight tolerance and stability available

• Contour mode high precision crystal

• Wide frequency pullability

RoHS

Compliant

APPLICATIONS:

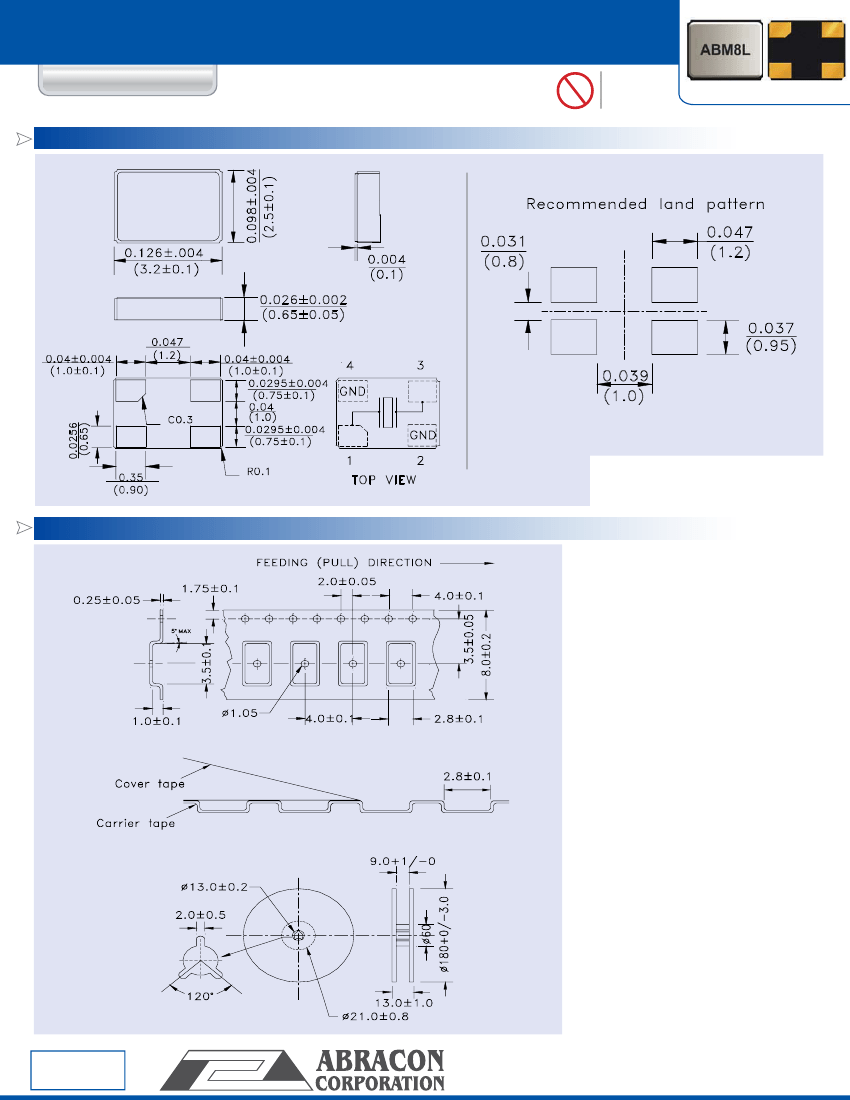

3.2 x 2.5 x 0.65mm

| | | | | | | | | | | | | | |

• Computers, Modems, Communication equipment

• Thin equipment

• High density applications

• Wireless Remote Control, PMCIA, Wireless applications

• Portable games, music player

STANDARD SPECIFICATIONS:

PARAMETERS

ABRACON P/N

Frequency Range

Standard Frequencies

Operation Mode

Operating Temperature

Storage Temperature

Frequency Tolerance at +25°C

Frequency Stability over the

Operating Temp. (Ref. to +25°C)

Equivalent Series Resistance

Shunt Capacitance C0

Load Capacitance CL

Drive Level

Aging (first year) at 25°C ± 3°C

Insulation Resistance

ABM8L

3.000 MHz to 4.500 MHz

3.579545MHz, 3.68640MHz, 4.0000MHz, 4.18560MHz, 4.194304MHz

(Contact ABRACON for other frequency availabilities)

Fundamental

-10°C to + 60°C (see options)

-40°C to +85°C

± 50ppm max. (see options)

500 Ω max. (Ask ABRACON for tighter ESR availabilities)

7pF max

12pF (see options)

5µW ± 0.5µW typ.; 200µW max.

± 5 ppm max.

500 M

Ω

min. at 100 Vdc

±15V

OPTIONS & PART IDENTIFICATION:

(Left blank if standard)

ABM8L - Frequency -

Frequency

X.XXX MHz

- -

Packaging

Tape and

Reel

Freq. Tolerance

Blank

± 50 ppm

± 25 ppm

± 30 ppm

Operating Temp.

Blank

-10°C to + 60°C

-20°C to +70°C

Freq. Stability

Blank

± 50 ppm

± 70 ppm

± 100 ppm

± 150 ppm

Tighter stability available for

-20 ~ +70ºC, please call

Abracon for more details.

Load Capacitance

Please specify CL in pF

or S for Series

ABRACON IS

ISO 9001 / QS 9000

CERTIFIED

Revised: 12.01.08

30332 Esperanza, Rancho Santa Margarita, California 92688

tel 949-546-8000

fax 949-546-8001

| www.abracon.com

Visit www.abracon.com for Terms & Conditions of Sale
