ECWF2W275JA

Description
Film Capacitor, Polypropylene, 450V, 5% +Tol, 5% -Tol, 2.7uF, Through Hole Mount, RADIAL LEADED
CategoryPassive components    capacitor
File Size78KB，2 Pages
ManufacturerPanasonic
Websitehttp://www.panasonic.co.jp/semicon/e-index.html
Environmental Compliance
Download Datasheet Parametric Compare View All

ECWF2W275JA Overview

Film Capacitor, Polypropylene, 450V, 5% +Tol, 5% -Tol, 2.7uF, Through Hole Mount, RADIAL LEADED

ECWF2W275JA Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
package instruction,
Reach Compliance Codecompliant
ECCN codeEAR99
capacitance2.7 µF
Capacitor typeFILM CAPACITOR
dielectric materialsPOLYPROPYLENE
high16.5 mm
JESD-609 codee3
length26.3 mm
Installation featuresTHROUGH HOLE MOUNT
negative tolerance5%
Number of terminals2
Maximum operating temperature105 °C
Minimum operating temperature-40 °C
Package shapeRECTANGULAR PACKAGE
Package formRadial
method of packingAMMO PACK
positive tolerance5%
Rated (DC) voltage (URdc)450 V
surface mountNO
Terminal surfaceTin (Sn)
Terminal pitch22.5 mm
Terminal shapeWIRE
width10.6 mm
Base Number Matches1

Preview

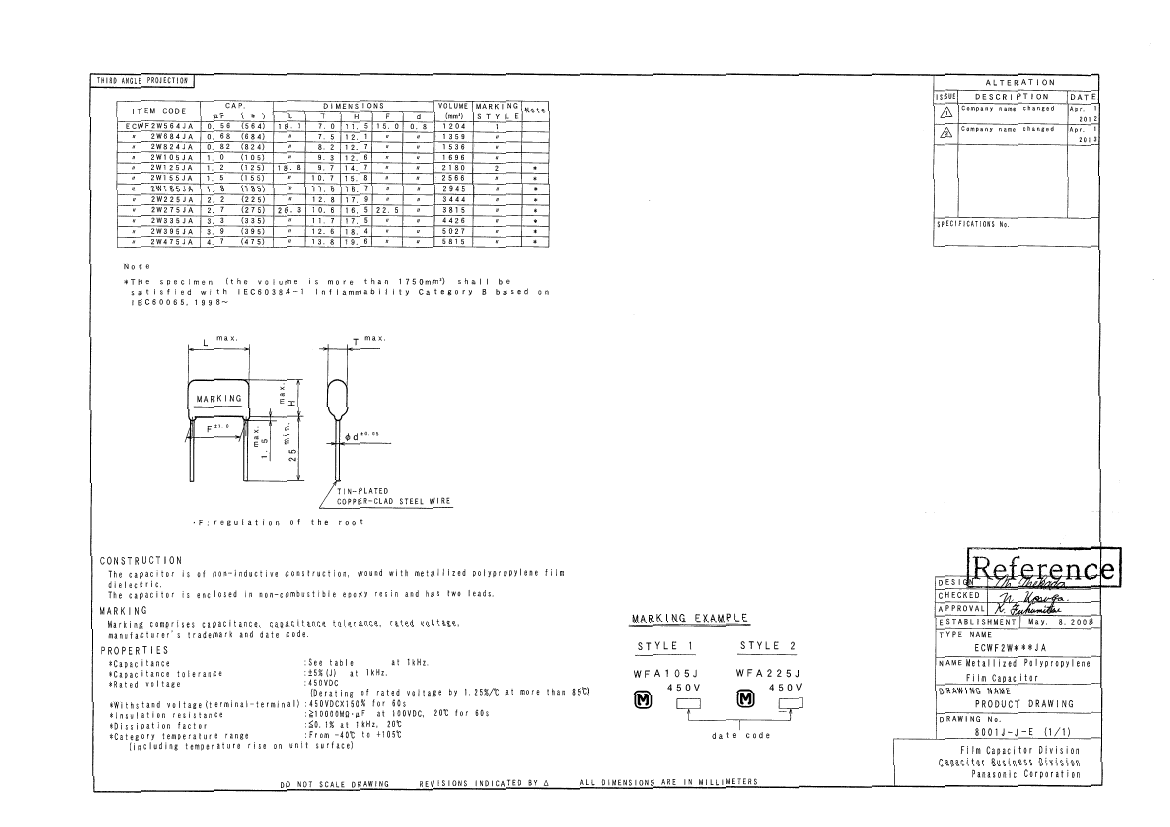

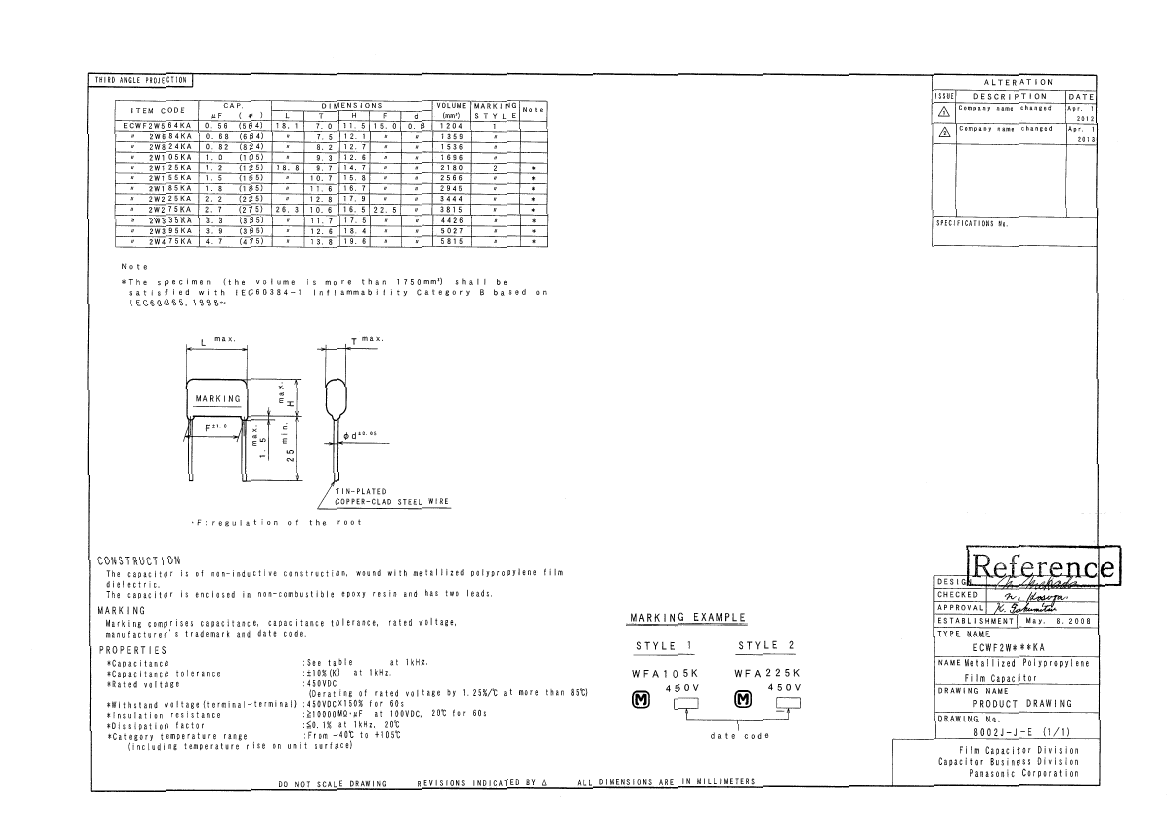

Download Datasheet
