53M15-01-1-24N-C datasheet, PDF

Datasheet> All Categories > Mechanical and electronic products> switch> 53M15-01-1-24N-C

53M15-01-1-24N-C: DescriptionRotary Switch, 24 Positions, SP24T, On-on, Latched, 0.25A, 30VDC, Solder Terminal, Shaft Type Actuator, Panel Mount-threaded, ROHS COMPLIANT; CategoryMechanical and electronic products switch; File Size379KB，4 Pages; ManufacturerGrayhill; Websitehttp://www.grayhill.com; Environmental Compliance

Download Datasheet Parametric Compare View All

53M15-01-1-24N-C Overview

Rotary Switch, 24 Positions, SP24T, On-on, Latched, 0.25A, 30VDC, Solder Terminal, Shaft Type Actuator, Panel Mount-threaded, ROHS COMPLIANT

53M15-01-1-24N-C Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compli
ECCN code	EAR99
Actuator length	0.437 inch
Actuator material	STAINLESS STEEL
Actuator type	SHAFT TYPE
Other features	CONTINUOUS ROTATION
body height	22.46 mm
Body length or diameter	32.54 mm
Casing diameter	0.375 inch
Nozzle length	0.437 inch
Casing type	3/8-32
center contact material	SILVER
Center contact plating	GOLD
Contact (AC) maximum rated R load	.25A@115VAC
Maximum contact current (AC)	0.25 A
Maximum contact current (DC)	0.25 A
Contact (DC) maximum rated R load	.25A@30VDC
Contact function	ON-ON
Contact resistance	0.05 mΩ
contact time	BREAK-BEFORE-MAKE
Maximum contact voltage (AC)	115 V
Maximum contact voltage (DC)	30 V
Dielectric withstand voltage	500VAC V
Electrical life	10000 Cycle(s)
End contact material	SILVER
End contact plating	GOLD
Graduation angle	15 deg
Insulation resistance	1000000000 Ω
insulator material	DIALLYL
JESD-609 code	e4
Installation features	PANEL MOUNT-THREADED
Number of positions	24
Number of switching segments	1
surface mount	NO
Switch action	LATCHED
switch function	SP24T
Switch type	ROTARY SWITCH
Terminal surface	Gold (Au) - with Nickel (Ni) barrie
Terminal material	BRASS
Termination type	SOLDER
Base Number Matches	1

Preview

Download Datasheet

View All

Multi-Deck Rotary Switches

SERIES 53, 57 and 59

1.125" Diameter, 1/4 Amp

FEAtuRES

• Smallest Diameter Rotary Switch

with this Number of Positions and

Current Capacity

• Military Qualified MIL-DTL-3786/36

• Gold-plated Contact System

Compatible with Logic Circuitry

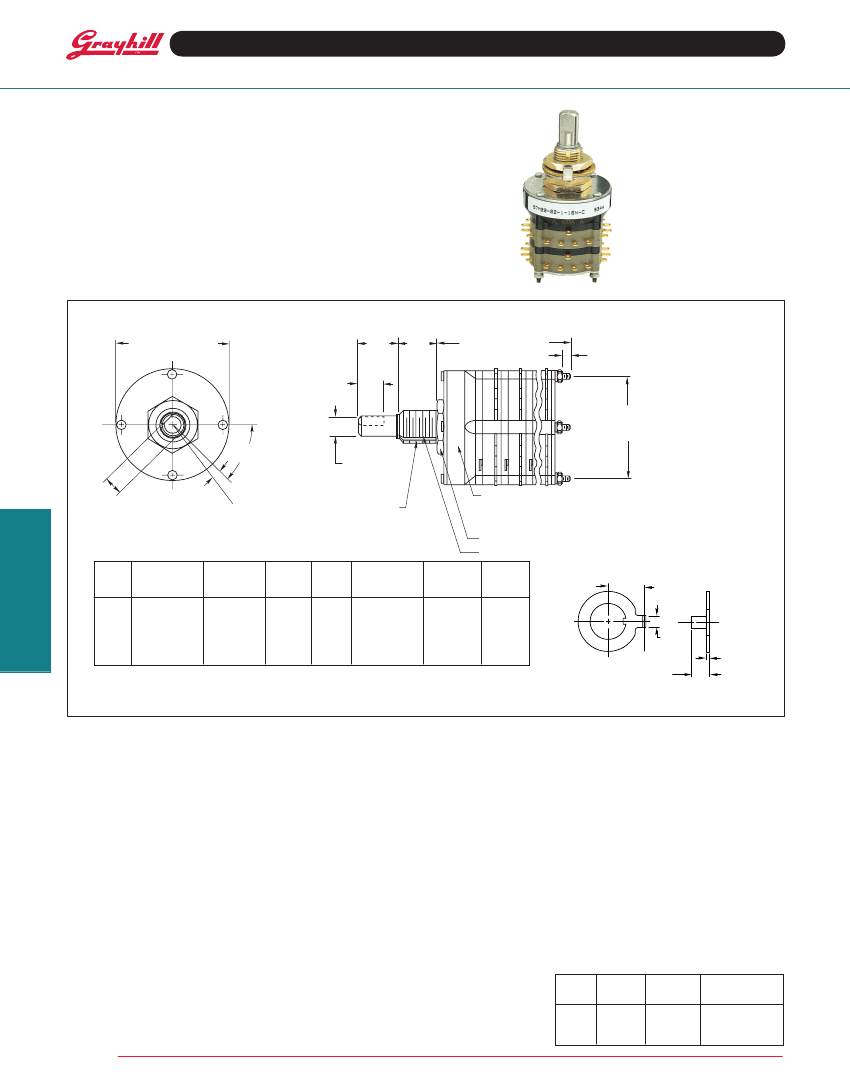

DIMENSIONS

in inches (and millimeters)

Military Style

Ser. 53—1.281 (32,54)

Ser. 57 & 59—

1.125 ± .010 (28,58 ± 0,25)

.250 ± .020

(6,35 ± 0,51)

45°

OF BUSHING

KEYWAY

OF POSITION

NO. 1

.250 + .001

–.002 DIA.

(6,35 + 0,03

–0,05)

BUSHING KEYWAY

.066 ± .002 (1,68 ± 0,05) WIDE

BY .036 ± .003 (0,91 ± 0,08)

DEEP FROM A .375 (9,53) DIA.

1.000 (25.4) SER. 57 & 59

1.156 (29.36) SER. 53

± .010 (0,25)

Rear views

shown with circuit

diagrams

.437

±.020

(11,10

±0,51)

.437

±.020

(11,10

±0,51)

DIM. A

+ .046 (1,17)

– .020 (0,51)

DIM. B REF. STUD

PROJECTION

.219 ± .004

(5.56 ± 0,10)

SEE

CIRCUIT

DIAGRAM

MILITARY NUMBERS MARKED HERE

INTEGRAL ASSEMBLY NUT. DO NOT REMOVE.

3/8-32 UNEF-2A THREAD

Approx.

Weight

Grams

110

120

130

140

150

160

Rotary Switches

No. of

Decks

Dimension

.916 (23,27)

1.249 (31,72)

1.582 (40,18)

1.915 (48,64)

2.248 (57,10)

2.831 (71,91)

Dimension

.032 (0,81)

.281 (7,14)

Approx.

Weight

Grams

100

No. of

Decks

Dimension

3.164 (80,37)

3.497 (88,82)

3.830 (97,28)

4.163 (105,74)

4.496 (114,20)

4.829 (122,66)

Dimension

.281 (7,14)

Non-turn Washer Detail D

.375 ± .005

(9,53 ± 0,13)

Mounting Hardware: Two mounting nuts, .094" (2,39) thick by .562" (14,27) across flats, one internal tooth lockwasher

and one non-turn washer (see detail D for dimensions), are supplied with switch.

Grayhill part number and date code marked on detent cover label. Customer part number marked on request. Military

part number marked when required.

.125

± .003

(3,18

± 0,08)

STyLE M—.187 (4,75)

STyLE HS—.125 (3,18)

± .010 (0,25)

.032 ± .003

(0,81 ± 0,08)

StANDARD StyLE

MILItARy QuALIFIED

The line drawings shown above are applicable

to the Style M and Style HS. The only difference

The Series 53, 57 and 59 rotary switches are between the two is the length of the tab of the

all military type switches. Grayhill manufactures non-turn washer. The shorter tab for the HS is

these switches in two styles: M and HS. Style explained in the following paragraph.

M is unsealed and is not qualified; Style HS is

shaft and panel sealed and

qualified. The The Series 53, 57 and 59 Style HS rotary switches

non-qualified Style M can be regarded as our are qualified to MIL-DTL-3786/36. The Style HS

Standard Style for types of switches. Although is shaft and panel sealed. The panel is sealed by

it is not qualified, Style M is constructed of the an O-ring at the base of the bushing. The shaft

same military grade materials and will provide is sealed by an O-ring inside the bushing. These

comparable performance in all areas. For seals do not alter the dimensions shown in the

example, the Style ‘M’ switches, in addition to line drawings when the switch is mounted.

the electrical ratings listed elsewhere in these

pages, will meet the following requirements of A non-turn washer, supplied with the mounting

hardware, may be used with the Style HS

MIL-DTL-3786:

Moisture Resistance: Medium and High Shock; switches. It is suggested that the non-turn washer

Vibration (10 to 500 cps); Thermal Shock (-65 be mounted in the following manner to preserve

°C to 125 °C); Salt Spray; Explosion; Terminal the seal: from the front of the panel into a hole

Strength (pull, 2 lbs. minimum); and Stop Strength that does not go through the panel.

(15 pound-inches minimum).

The qualification of the Series 53, 57 and

59 rotary switches does not extend to all

possible combinations listed in the Choices

and Limitations chart. The limitations on the

qualification are described in the chart shown

below.

Standard variations, such as shaft and/or

bushing length, etc., that do not affect switch

performance can also be marked as qualified

product. For complete details contact Grayhill.

Military qualified Series 53, 57 and 59 Style HS

rotary switches may be ordered by the M’ number

‘

listed in MIL-DTL-3786/36 or by the Grayhill part

number. Military style switches will be marked

to the specification.

Style HS Switches are MIL-DtL-3786/36

Qualified for the Following Characteristics

Series

Max. No.

of Decks

Max. No.

Poles/Deck

Max. No.

total Poles/Switch

Grayhill, Inc. • 561 Hillgrove Avenue • LaGrange, Illinois

60525-5997 • USA • Phone: 708-354-1040 • Fax: 708-354-2820 • www.grayhill.com

53M15-01-1-24N-C Related Products

	53M15-01-1-24N-C	57M22-10-1-16N-C	59M18-01-1-20N-F	57HS22-01-1-16N-F	53M15-08-1-24N-C	TFCDH8VT155BW	57M22-04-1-16S-F	57M22-05-1-16S-C	57M22-08-1-16N-C	53M15-06-1-24N-F
Description	Rotary Switch, 24 Positions, SP24T, On-on, Latched, 0.25A, 30VDC, Solder Terminal, Shaft Type Actuator, Panel Mount-threaded, ROHS COMPLIANT	Rotary Switch, 16 Positions, SP16T, On-on, Latched, 0.25A, 30VDC, Solder Terminal, Shaft Type Actuator, Panel Mount-threaded, ROHS COMPLIANT	Rotary Switch, 20 Positions, SP20T, On-on, Latched, 0.25A, 30VDC, Solder Terminal, Shaft Type Actuator, Panel Mount-threaded, ROHS COMPLIANT	Rotary Switch, 16 Positions, SP16T, Latched, 0.25A, 28VDC, Solder Terminal, Shaft Type Actuator, Panel Mount-threaded, ROHS COMPLIANT	Rotary Switch, 24 Positions, SP24T, On-on, Latched, 0.25A, 30VDC, Solder Terminal, Shaft Type Actuator, Panel Mount-threaded, ROHS COMPLIANT	SNAP ACTING/LIMIT SWITCH, SPST, MOMENTARY, 4.24mm, PANEL MOUNT, ROHS COMPLIANT	Rotary Switch, 16 Positions, SP16T, On-on, Latched, 0.25A, 30VDC, Solder Terminal, Shaft Type Actuator, Panel Mount-threaded, ROHS COMPLIANT	Rotary Switch, 16 Positions, SP16T, On-on, Latched, 0.25A, 30VDC, Solder Terminal, Shaft Type Actuator, Panel Mount-threaded, ROHS COMPLIANT	Rotary Switch, 16 Positions, SP16T, On-on, Latched, 0.25A, 30VDC, Solder Terminal, Shaft Type Actuator, Panel Mount-threaded, ROHS COMPLIANT	Rotary Switch, 24 Positions, SP24T, On-on, Latched, 0.25A, 30VDC, Solder Terminal, Shaft Type Actuator, Panel Mount-threaded, ROHS COMPLIANT
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
package instruction	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
Reach Compliance Code	compli	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Actuator type	SHAFT TYPE	SHAFT TYPE	SHAFT TYPE	SHAFT TYPE	SHAFT TYPE	LEVER	SHAFT TYPE	SHAFT TYPE	SHAFT TYPE	SHAFT TYPE
body height	22.46 mm	104.93 mm	22.46 mm	22.46 mm	88.01 mm	15.7 mm	41.5 mm	56.29 mm	88.01 mm	71.1 mm
Body length or diameter	32.54 mm	28.58 mm	28.58 mm	28.58 mm	32.54 mm	29 mm	28.58 mm	28.58 mm	28.58 mm	32.54 mm
Contact (AC) maximum rated R load	.25A@115VAC	.25A@115VAC	.25A@115VAC	.15A@115VAC	.25A@115VAC	5A@277VAC	.25A@115VAC	.25A@115VAC	.25A@115VAC	.25A@115VAC
Maximum contact current (AC)	0.25 A	0.25 A	0.25 A	0.15 A	0.25 A	5 A	0.25 A	0.25 A	0.25 A	0.25 A
Maximum contact voltage (AC)	115 V	115 V	115 V	115 V	115 V	277 V	115 V	115 V	115 V	115 V
Electrical life	10000 Cycle(s)	10000 Cycle(s)	10000 Cycle(s)	10000 Cycle(s)	10000 Cycle(s)	300000 Cycle(s)	10000 Cycle(s)	10000 Cycle(s)	10000 Cycle(s)	10000 Cycle(s)
Installation features	PANEL MOUNT-THREADED	PANEL MOUNT-THREADED	PANEL MOUNT-THREADED	PANEL MOUNT-THREADED	PANEL MOUNT-THREADED	PANEL MOUNT	PANEL MOUNT-THREADED	PANEL MOUNT-THREADED	PANEL MOUNT-THREADED	PANEL MOUNT-THREADED
surface mount	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Switch action	LATCHED	LATCHED	LATCHED	LATCHED	LATCHED	MOMENTARY	LATCHED	LATCHED	LATCHED	LATCHED
switch function	SP24T	SP16T	SP20T	SP16T	SP24T	SPST	SP16T	SP16T	SP16T	SP24T
Switch type	ROTARY SWITCH	ROTARY SWITCH	ROTARY SWITCH	ROTARY SWITCH	ROTARY SWITCH	SNAP ACTING/LIMIT SWITCH	ROTARY SWITCH	ROTARY SWITCH	ROTARY SWITCH	ROTARY SWITCH
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	QUICK CONNECT	SOLDER	SOLDER	SOLDER	SOLDER
Actuator length	0.437 inch	0.437 inch	0.437 inch	0.437 inch	0.437 inch	-	0.437 inch	0.437 inch	0.437 inch	0.437 inch
Actuator material	STAINLESS STEEL	STAINLESS STEEL	STAINLESS STEEL	STAINLESS STEEL	STAINLESS STEEL	-	STAINLESS STEEL	STAINLESS STEEL	STAINLESS STEEL	STAINLESS STEEL
Other features	CONTINUOUS ROTATION	CONTINUOUS ROTATION	STOP B/W LAST & FIRST POSITION	-	CONTINUOUS ROTATION	-	STOP B/W LAST & FIRST POSITION	CONTINUOUS ROTATION	CONTINUOUS ROTATION	STOP B/W LAST & FIRST POSITION
Casing diameter	0.375 inch	0.375 inch	0.375 inch	-	0.375 inch	-	0.375 inch	0.375 inch	0.375 inch	0.375 inch
Nozzle length	0.437 inch	0.437 inch	0.437 inch	0.437 inch	0.437 inch	-	0.437 inch	0.437 inch	0.437 inch	0.437 inch
Casing type	3/8-32	3/8-32	3/8-32	3/8-32	3/8-32	-	3/8-32	3/8-32	3/8-32	3/8-32
center contact material	SILVER	SILVER	SILVER	SILVER ALLOY	SILVER	-	SILVER	SILVER	SILVER	SILVER
Center contact plating	GOLD	GOLD	GOLD	GOLD	GOLD	-	GOLD	GOLD	GOLD	GOLD
Maximum contact current (DC)	0.25 A	0.25 A	0.25 A	0.25 A	0.25 A	-	0.25 A	0.25 A	0.25 A	0.25 A
Contact (DC) maximum rated R load	.25A@30VDC	.25A@30VDC	.25A@30VDC	.25A@28VDC	.25A@30VDC	-	.25A@30VDC	.25A@30VDC	.25A@30VDC	.25A@30VDC
Contact function	ON-ON	ON-ON	ON-ON	-	ON-ON	-	ON-ON	ON-ON	ON-ON	ON-ON
Contact resistance	0.05 mΩ	0.05 mΩ	0.05 mΩ	0.05 mΩ	0.05 mΩ	-	0.05 mΩ	0.05 mΩ	0.05 mΩ	0.05 mΩ
contact time	BREAK-BEFORE-MAKE	BREAK-BEFORE-MAKE	BREAK-BEFORE-MAKE	-	BREAK-BEFORE-MAKE	-	MAKE-BEFORE-BREAK	MAKE-BEFORE-BREAK	BREAK-BEFORE-MAKE	BREAK-BEFORE-MAKE
Maximum contact voltage (DC)	30 V	30 V	30 V	28 V	30 V	-	30 V	30 V	30 V	30 V
Dielectric withstand voltage	500VAC V	500VAC V	500VAC V	-	500VAC V	-	500VAC V	500VAC V	500VAC V	500VAC V
End contact material	SILVER	SILVER	SILVER	SILVER ALLOY	SILVER	-	SILVER	SILVER	SILVER	SILVER
End contact plating	GOLD	GOLD	GOLD	GOLD	GOLD	-	GOLD	GOLD	GOLD	GOLD
Graduation angle	15 deg	22.5 deg	18 deg	22.5 deg	15 deg	-	22.5 deg	22.5 deg	22.5 deg	15 deg
Insulation resistance	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	-	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω
insulator material	DIALLYL	DIALLYL	DIALLYL	DIALLYL	DIALLYL	-	DIALLYL	DIALLYL	DIALLYL	DIALLYL
JESD-609 code	e4	e4	e4	-	e4	-	e4	e4	e4	e4
Number of positions	24	16	20	16	24	-	16	16	16	24
Number of switching segments	1	10	1	1	8	-	4	5	8	6
Terminal surface	Gold (Au) - with Nickel (Ni) barrie	Gold (Au) - with Nickel (Ni) barrier	Gold (Au) - with Nickel (Ni) barrier	Gold (Au) - with Silver (Ag) barrier	Gold (Au) - with Nickel (Ni) barrier	-	Gold (Au) - with Nickel (Ni) barrier	Gold (Au) - with Nickel (Ni) barrier	Gold (Au) - with Nickel (Ni) barrier	Gold (Au) - with Nickel (Ni) barrier
Terminal material	BRASS	BRASS	BRASS	BRASS	BRASS	-	BRASS	BRASS	BRASS	BRASS
Maker	-	Grayhill	Grayhill	Grayhill	Grayhill	-	Grayhill	Grayhill	Grayhill	Grayhill
