DN20AG1-16.000MHZ datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> Crystal/resonator> DN20AG1-16.000MHZ

Preview

DN20AG1-16.000MHZ: DescriptionParallel - Fundamental Quartz Crystal, 16MHz Nom, ROHS COMPLIANT, MICRO MINIATURE PACKAGE-2; CategoryPassive components Crystal/resonator; File Size154KB，2 Pages; ManufacturerMMD Monitor/Quartztek; Websitehttp://mmdcomp.com; Environmental Compliance

Download Datasheet Parametric View All

DN20AG1-16.000MHZ Overview

Parallel - Fundamental Quartz Crystal, 16MHz Nom, ROHS COMPLIANT, MICRO MINIATURE PACKAGE-2

DN20AG1-16.000MHZ Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT, MICRO MINIATURE PACKAGE-2
Reach Compliance Code	compliant
Other features	AT-CUT
Ageing	3 PPM/YEAR
Crystal/Resonator Type	PARALLEL - FUNDAMENTAL
Drive level	1 µW
frequency stability	0.01%
frequency tolerance	50 ppm
load capacitance	20 pF
Installation features	SURFACE MOUNT
Nominal operating frequency	16 MHz
Maximum operating temperature	65 °C
Minimum operating temperature	-10 °C

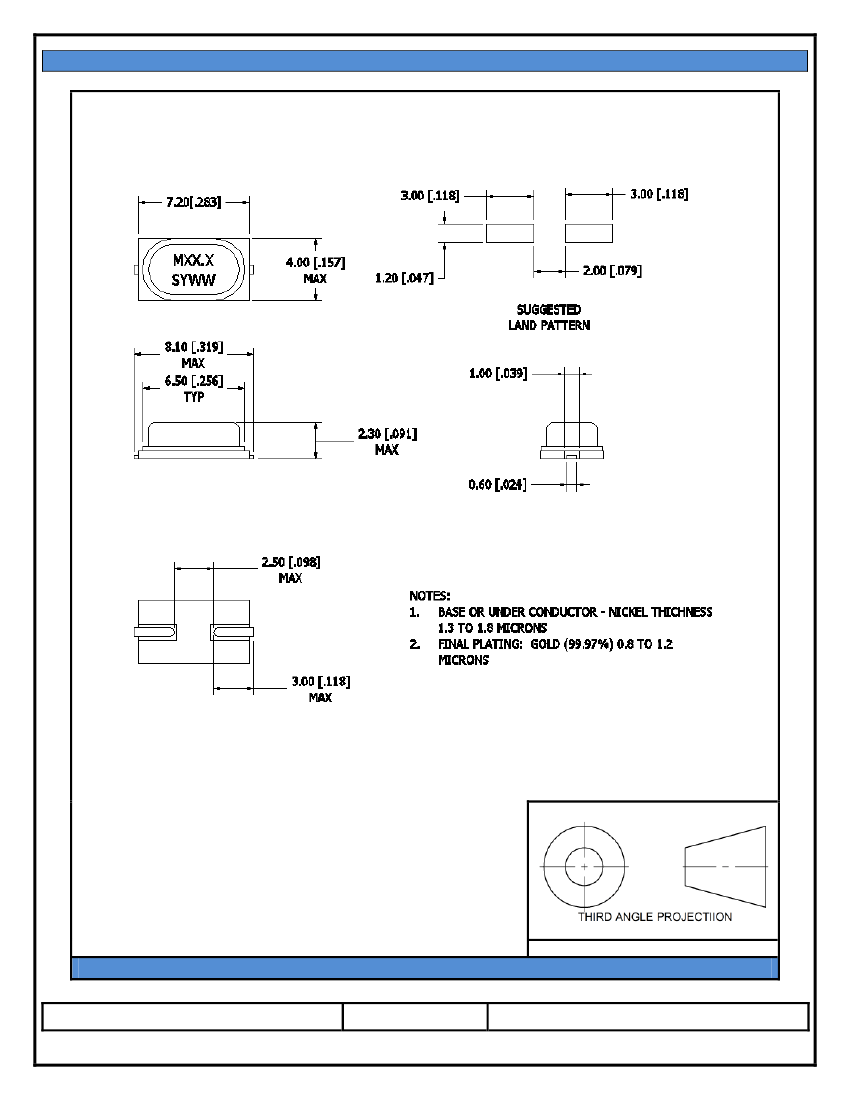

physical size	L7.2XB4.0XH2.3 (mm)/L0.283XB0.157XH0.091 (inch)
Series resistance	50 Ω
surface mount	YES
Base Number Matches	1

Preview

Download Datasheet

View All

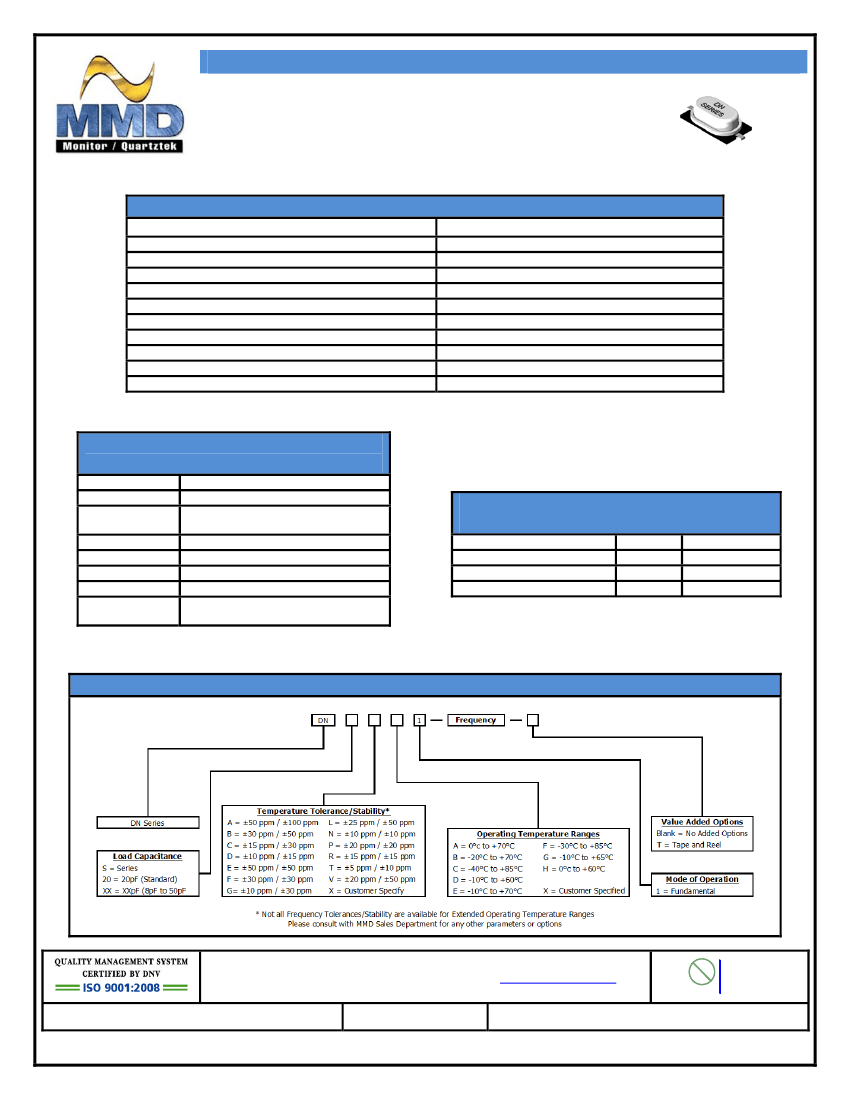

DN Series Crystal



Micro Miniature SM Crystal

Frequency Range 12.000MHz to 40.000MHz

RoHS Compliant

ELECTRICAL CHARACTERISTICS

Parameter

Frequency Range

Frequency Tolerance / Stability

Operating Temperature Range

Storage Temperature Range

Aging at +25°C

Shunt Capacitance

Load Capacitance

Equivalent Series Resistance (ESR)

Mode of Operation

Drive Level

Value

12.000MHz to 40.000MHz

(See Part Number Guide for Option)

-40°C to +85°C

±3 ppm / year max

Less than 5pF

(See Part Number Guide for Option)

(See ESR Chart)

1µW to 100µW

ENVIRONMENTAL & MECHANICAL

SPEC

Shock

Solderability

Solvent

Resistance

Vibration

Gross Leak Test

Fine Leak Test

MSL

Reflow

Conditions

MIL-STD-883, Method 2002 Cond B

MIL-STD-883, Method 2003

MIL-STD-202, Method 215

MIL-STD-883, Method 2007, Cond A

MIL-STD-883, Method 1014, Cond C

MIL-STD-883, Method 1014, Cond A2

Level 1 per IPC/JEDEC J-STD 20

260°C max 10 sec per

IPC/JEDEC J-STD 20

EQUIVALENT SERIES RESISTANCE

CHART

Frequency Range

12.000MHz to 16.000MHz

16.000MHz to 30.000MHZ

30.000MHz to 40.000MHz

ESR

60Ω max

50Ω max

40Ω max

Mode / Cut

Fund / AT

PART NUMBER GUIDE

MMD Components,

30400 Esperanza, Rancho Santa Margarita, CA, 92688

Phone: (949) 709-5075, Fax: (949) 709-3536,

www.mmdcomp.com

Sales@mmdcomp.com

Specifications subject to change without notice

Pb

RoHS

Free

Compliant

Page 1 of 2

Revision: DN121113A
