BT138B500G: DescriptionTRIAC, 500V V(DRM), 12A I(T)RMS; CategoryAnalog mixed-signal IC Trigger device; File Size280KB，5 Pages; ManufacturerPhilips Semiconductors (NXP Semiconductors N.V.); Websitehttps://www.nxp.com/

Download Datasheet Parametric Compare View All

BT138B500G Overview

TRIAC, 500V V(DRM), 12A I(T)RMS

BT138B500G Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Philips Semiconductors (NXP Semiconductors N.V.)
package instruction	,
Reach Compliance Code	unknown
Critical rise rate of minimum off-state voltage	200 V/us
Maximum DC gate trigger current	50 mA
Maximum DC gate trigger voltage	1.5 V
Maximum holding current	60 mA
JESD-609 code	e0
Maximum leakage current	0.5 mA
Maximum on-state voltage	1.7 V
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Maximum rms on-state current	12 A
Off-state repetitive peak voltage	500 V
surface mount	NO
Terminal surface	Tin/Lead (Sn/Pb)
Trigger device type	TRIAC

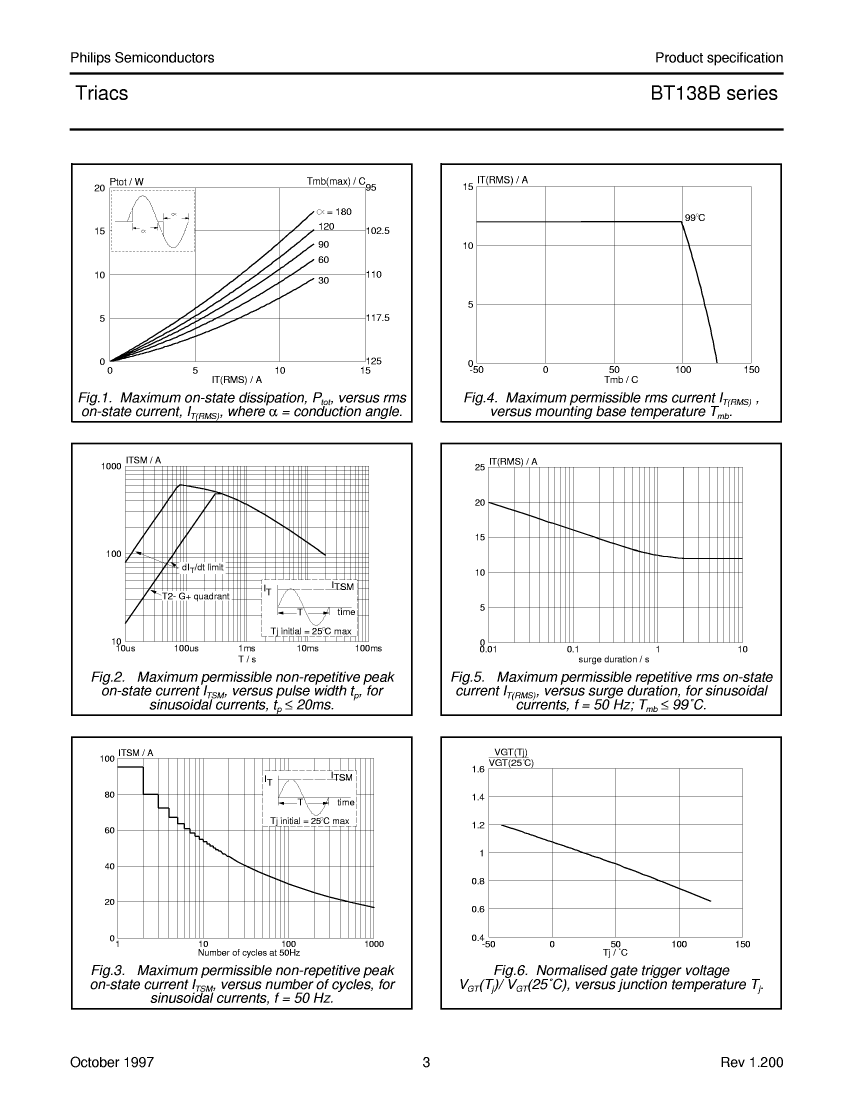

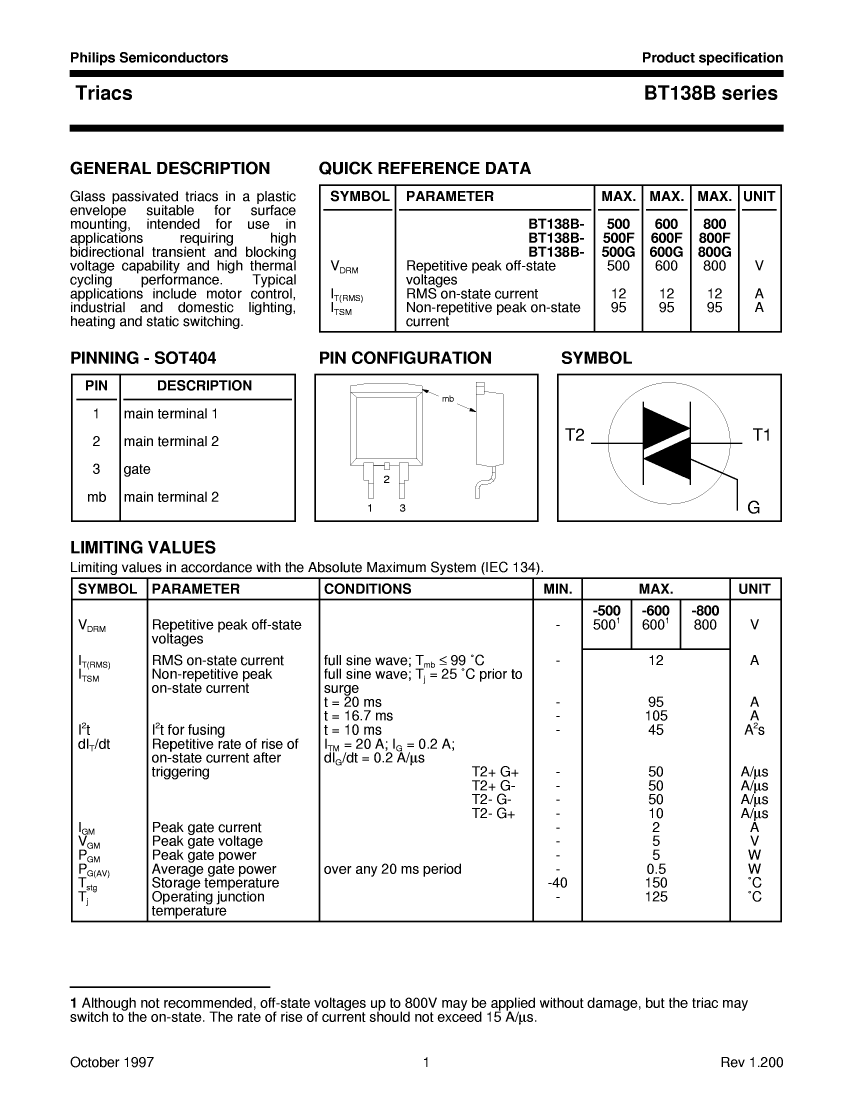

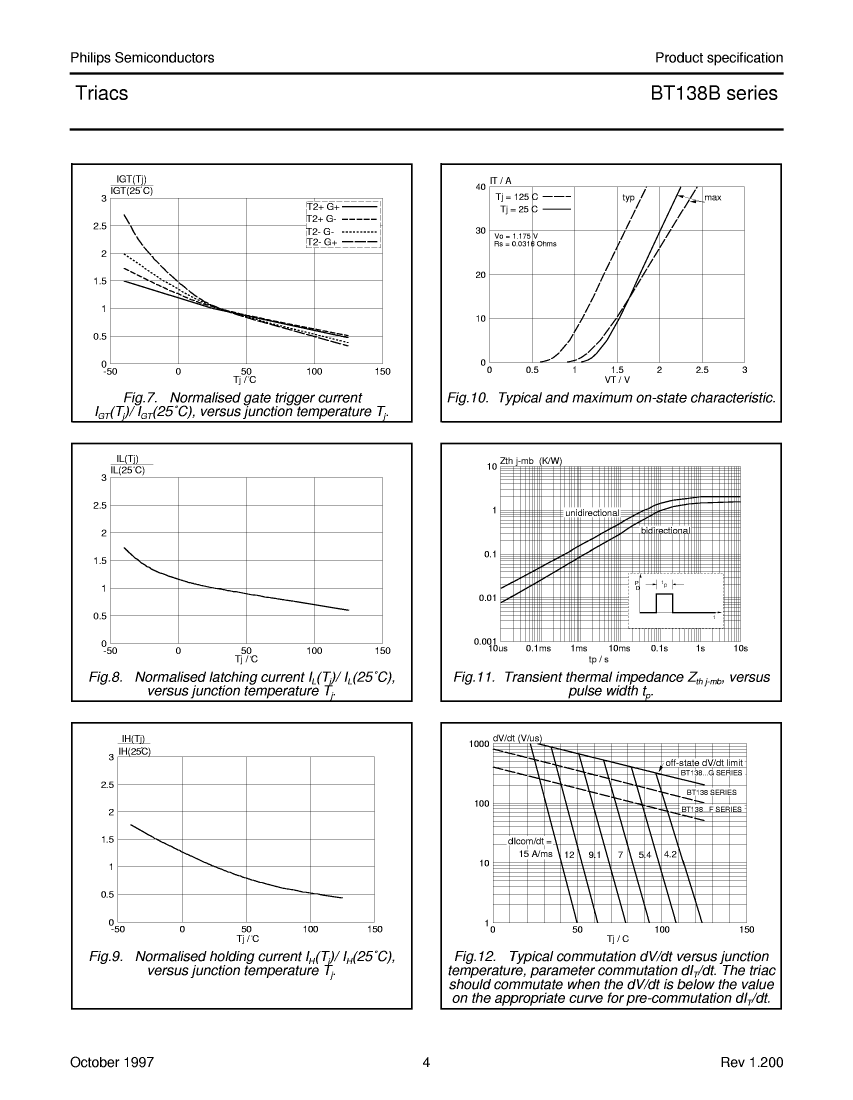

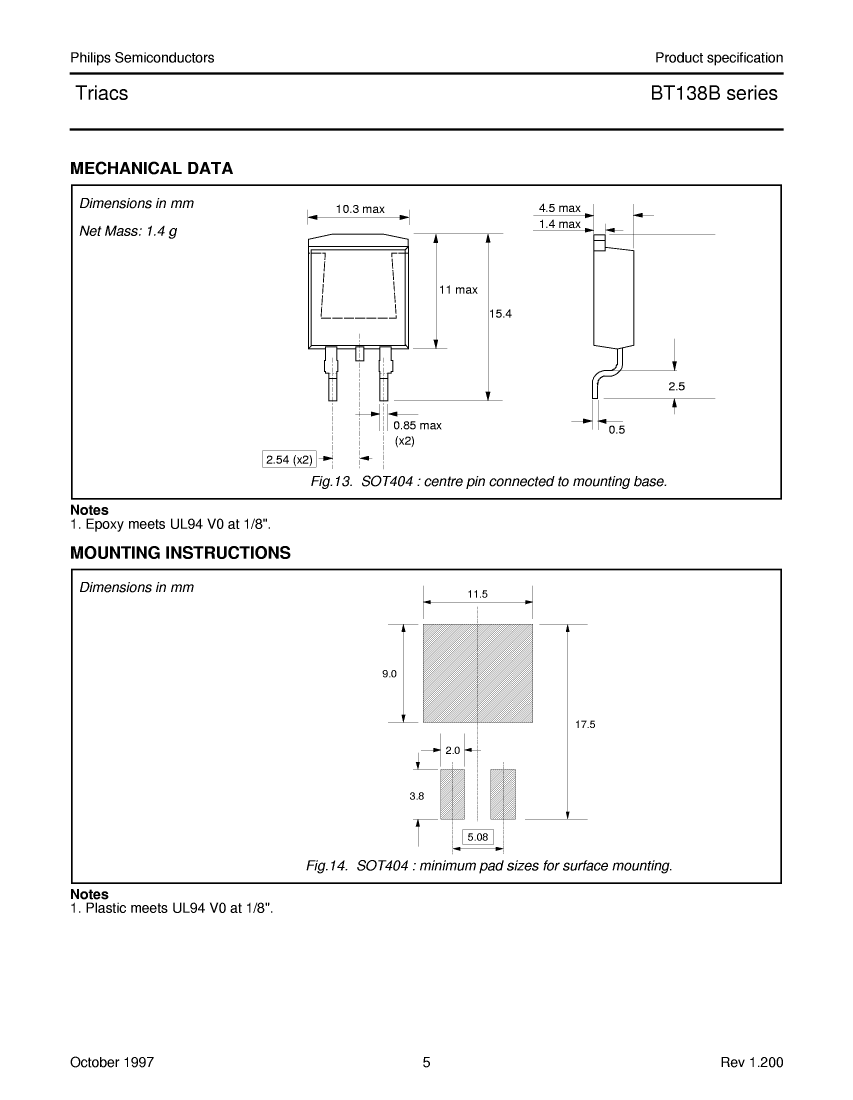

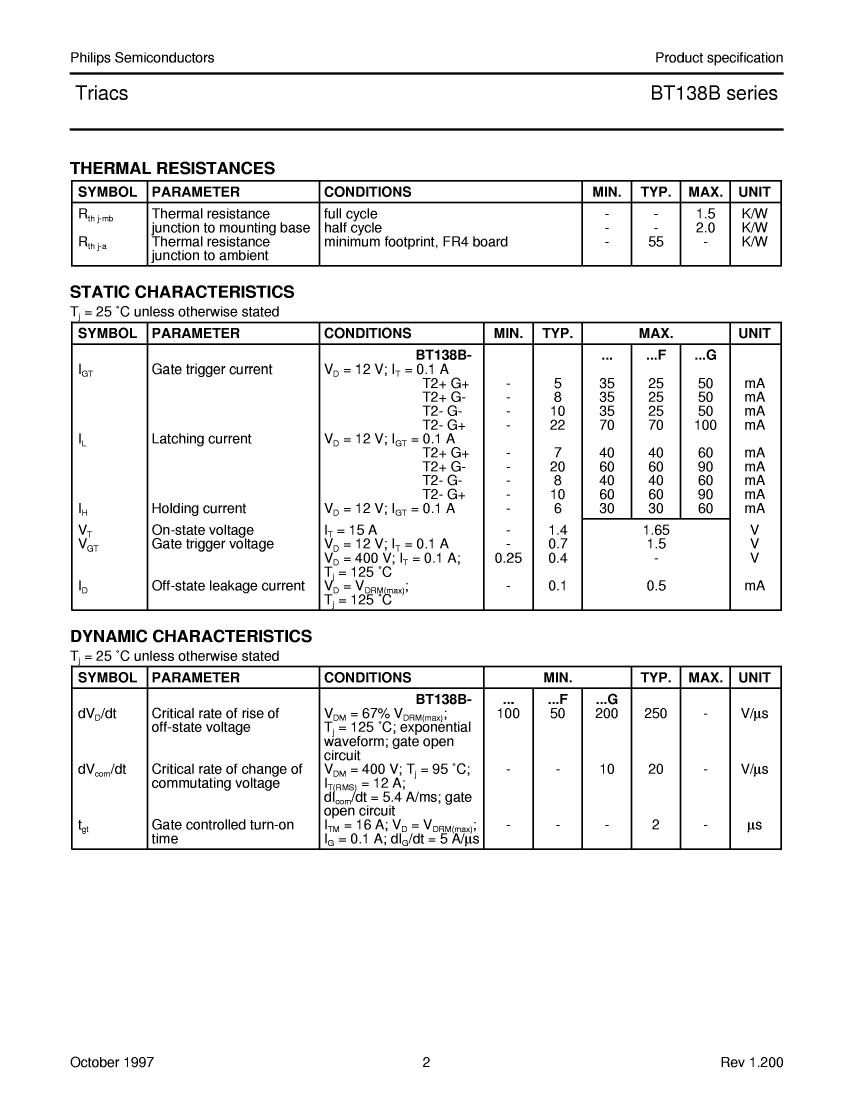

Preview

Download Datasheet

View All

BT138B500G Related Products

	BT138B500G	BT138B500	BT138B500T/R	BT138B800	BT138B800F	BT138B800G
Description	TRIAC, 500V V(DRM), 12A I(T)RMS	TRIAC, 500V V(DRM), 12A I(T)RMS	TRIAC, 500V V(DRM), 12A I(T)RMS	TRIAC, 800V V(DRM), 12A I(T)RMS	TRIAC, 600V V(DRM), 12A I(T)RMS	TRIAC, 800V V(DRM), 12A I(T)RMS
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	Philips Semiconductors (NXP Semiconductors N.V.)	Philips Semiconductors (NXP Semiconductors N.V.)	Philips Semiconductors (NXP Semiconductors N.V.)	Philips Semiconductors (NXP Semiconductors N.V.)	Philips Semiconductors (NXP Semiconductors N.V.)	Philips Semiconductors (NXP Semiconductors N.V.)
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
Critical rise rate of minimum off-state voltage	200 V/us	100 V/us	100 V/us	100 V/us	50 V/us	200 V/us
Maximum DC gate trigger current	50 mA	35 mA	35 mA	35 mA	25 mA	50 mA
Maximum DC gate trigger voltage	1.5 V	1.5 V	1.5 V	1.5 V	1.5 V	1.5 V
Maximum holding current	60 mA	30 mA	30 mA	30 mA	30 mA	60 mA
JESD-609 code	e0	e0	e0	e0	e0	e0
Maximum leakage current	0.5 mA	0.5 mA	0.5 mA	0.5 mA	0.5 mA	0.5 mA
Maximum on-state voltage	1.7 V	1.7 V	1.7 V	1.7 V	1.7 V	1.7 V
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Maximum rms on-state current	12 A	12 A	12 A	12 A	12 A	12 A
Off-state repetitive peak voltage	500 V	500 V	500 V	800 V	600 V	800 V
surface mount	NO	NO	NO	NO	NO	NO
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Trigger device type	TRIAC	TRIAC	TRIAC	TRIAC	TRIAC	TRIAC
