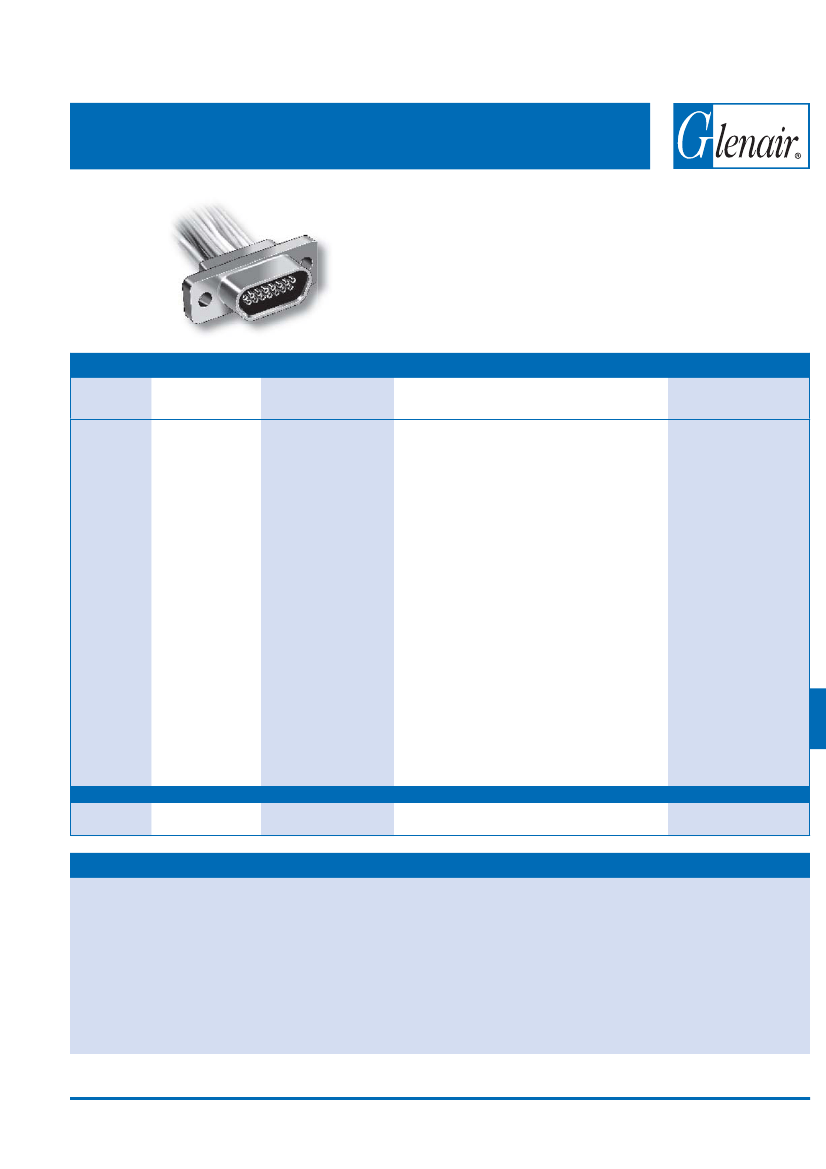

MIL-DTL-83513/03 & /04 Micro-D Connectors
Metal Shell Crimp, Pre-Wired
Micro-D Pre-Wired Pigtails
— These connectors feature gold-
plated TwistPin contacts and mil spec crimp termination.
Specify aluminum shells for best availability. 100% tested
and backpotted, ready for use.
Choose the Wire Type To Fit Your Application
— For lightest
weight and smallest diameter, select M22759/33 space
grade insulated wire.
HOW TO ORDER METAL SHELL PRE-WIRED CRIMP MIL-DTL-83513 MICRO-D CONNECTORS
Base Part
Number
Slash Number
/03
Pin Connector
(Plug)
Shell Size
Wire Type
Shell Finish
M83513
/04
Socket Connector
(Receptacle)
A
B
C
D
E
F
G
H
Codes A - H specify the
shell size. The number
of contacts is shown
below for reference.
A – 9
B – 15
C – 21
D – 25
E – 31
F – 37
G – 51
H – 100
M22759/11-26 Teflon
®
-Insulated Hookup Wire
01
– 18 Inches (457mm), White
02
– 36 Inches (914mm), White
03
– 18 Inches (457mm), 10 Color Repeating
04
– 36 Inches (914mm), 10 Color Repeating
13
– 72 Inches (1829mm), White
C
– Cadmium
N
– Electroless Nickel
P
– Passivated SST
14
– 72 Inches (1829mm), 10 Color Repeating
M22759/33-26 Irradiated Tefzel
®
Insulated
Hookup Wire
09
– 18 Inches (457mm), White
10
– 36 Inches (914mm), White
11
– 18 Inches (457mm), 10 Color Repeating
12
– 36 Inches (914mm), 10 Color Repeating
15
– 72 Inches (1829mm), White
16
– 72 Inches (1829mm), 10 Color Repeating
Single Strand Uninsulated Wire
05
06
07
08
– .500 Inch (12.7mm), Gold Plated
– 1.000 Inch (25.4mm), Gold Plated
– .500 Inch (12.7mm), Tin-Lead Plated
(2)
– 1.000 Inch (25.4mm), Tin-Lead Plated
(2)
J
Sample Part Number
M83513
/04
— B
09
N
APPLICATION NOTES
1. Shell Material & Finish: Cadmium plating offers better corrosion resistance compared to nickel, but cad is not acceptable for
space or RoHS applications. Electroless nickel plated aluminum is recommended for new design activity.
Or, choose stainless steel shells for corrosive environments.
2. Tin-Plated Wire:
The next revision of the mil spec is expected to prohibit the use of pure tin. Glenair M83513 connectors
do not contain any components exceeding 97% tin.
3. M22759/33 Corrosion: The M83513 spec contains a cautionary note regarding M22759/33 wire. The wire insulation is known to
cause corrosion to metal parts when stored in a sealed environment. This corrosion has been observed
on M83513 connectors. Glenair has implemented a packaging procedure to minimize or eliminate this
problem. Connectors are individually wrapped with teflon tape, and the unit pack is a perforated paper
envelope. M22759/33 continues to be the preferred wire for space applications.
© 2006 Glenair, Inc.
CAGE Code 06324/0CA77
Printed in U.S.A.
GLENAIR, INC.
www.glenair.com
• 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
J-5
E-Mail: sales@glenair.com
MIL-DTL-83513/03 & /04 Micro-D Connectors
Metal Shell Crimp, Pre-Wired
A
B
C
E
D
9-51 CONTACTS
.094/.088 (2.39/2.23) DIA.
100 CONTACTS
.150/.145 (3.81/3.68) DIA.
F
G
.093 ± .005
(2.36 ± 0.13)
H
J
WIRE LENGTH
+1.0/-0.0 (+25.4/-0.0)
LENGTH FOR INSULATED STRANDED WIRE
LENGTH +0.2/-0.0
(+5.08/-0.0)
J
LENGTH FOR UNINSULATED WIRE
DIMENSIONS
A Max.
In .
Layout
9P
9S
15P
15S
21P
21S
25P
25S
31P
31S
37P
37S
51P
51S
100P
100S
In.
.785
.785
.935
.935
1.085
1.085
1.185
1.185
1.335
1.335
1.485
1.485
1.435
1.435
2.170
2.170
B
mm.
± 0.08
14.35
14.35
18.16
18.16
21.97
21.97
24.51
24.51
28.32
28.32
32.13
32.13
30.86
30.86
45.72
45.72
± .003
.565
.565
.715
.715
.865
.865
.965
.965
1.115
1.115
1.265
1.265
1.215
1.215
1.800
1.800
C Max.
In.
.333
.400
.483
.551
.633
.701
.733
.801
.883
.951
1.033
1.101
.983
1.051
1.383
1.451
D Max.
In.
.184
.250
.184
.250
.184
.250
.184
.250
.184
.250
.184
.250
.224
.293
.270
.333
E Max.
In.
In.
.310
.310
.310
.310
.310
.310
.310
.310
.310
.310
.310
.310
.351
.351
.394
.394
F
mm.
± 0.08
4.65
4.95
4.65
4.95
4.65
4.95
4.65
4.95
4.65
4.95
4.65
4.95
4.65
4.95
4.65
4.95
± .003
.183
.195
.183
.195
.183
.195
.183
.195
.183
.195
.183
.195
.183
.195
.183
.195
G Max.
In.
.416
.429
.416
.429
.416
.429
.416
.429
.416
.429
.416
.429
.416
.429
.416
.429
H Max.
In.
.400
.400
.550
.550
.700
.700
.800
.800
.950
.950
1.100
1.100
1.050
1.050
1.442
1.442
J Max.
In.
.270
.270
.270
.270
.270
.270
.270
.270
.270
.270
.270
.270
.310
.310
.360
.360
mm.
19.94
19.94
23.75
23.75
27.56
27.56
30.01
30.01
33.91
33.91
37.72
37.72
36.45
36.45
55.12
55.12
mm.
8.46
10.16
12.27
14.00
16.08
17.81
18.62
20.35
22.43
24.16
26.24
27.96
24.97
26.70
35.13
36.86
mm.
4.67
6.35
4.67
6.35
4.67
6.35
4.67
6.35
4.67
6.35
4.67
6.35
5.69
7.44
6.86
8.46
mm.
7.87
7.87
7.87
7.87
7.87
7.87
7.87
7.87
7.87
7.87
7.87
7.87
8.92
8.92
10.01
10.01
mm.
10.57
10.90
10.57
10.90
10.57
10.90
10.57
10.90
10.57
10.90
10.57
10.90
10.57
10.90
10.57
10.90
mm.
10.16
10.16
13.97
13.97
17.78
17.78
20.32
20.32
24.13
24.13
27.94
27.94
26.67
26.67
36.63
36.63
mm.
6.86
6.86
6.86
6.86
6.86
6.86
6.86
6.86
6.86
6.86
6.86
6.86
7.87
7.87
9.14
9.14
© 2006 Glenair, Inc.
CAGE Code 06324/0CA77
Printed in U.S.A.
GLENAIR, INC.
www.glenair.com
• 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
J-6
E-Mail: sales@glenair.com
