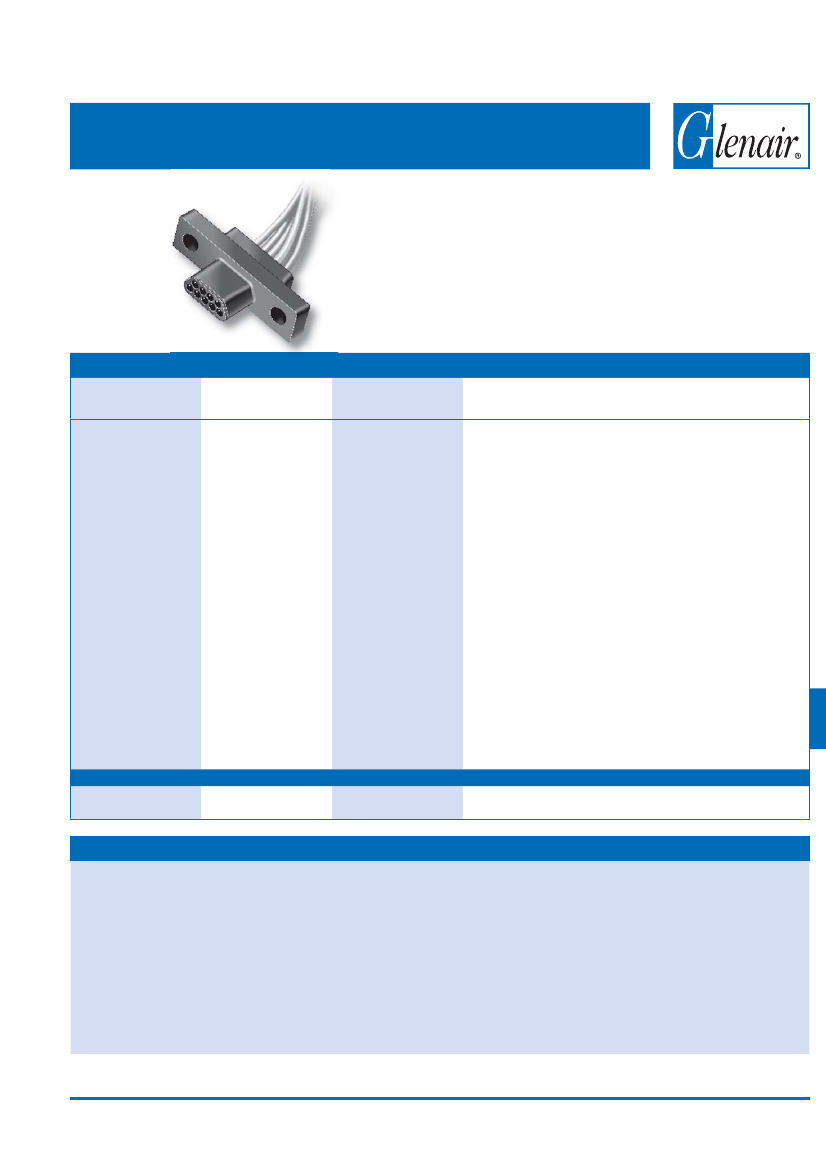

MIL-DTL-83513/08 & /09 Micro-D Connectors
Plastic Shell Crimp, Pre-Wired
Micro-D Pre-Wired Pigtails
— These connectors feature
gold-plated TwistPin contacts and mil spec crimp
termination. 100% tested and backpotted, ready for use.
Choose the Wire Type To Fit Your Application
— For
lightest weight and smallest diameter, select M22759/33
space grade insulated wire.
HOW TO ORDER PLASTIC SHELL PRE-WIRED CRIMP MIL-DTL-83513/08 AND /09 CONNECTORS
Base Part
Number
Slash Number
Insert Arrangement
Wire Type
M83513
/08
Pin Connector
(Plug)
/09
Socket Connector
(Receptacle)
A
B
C
D
E
F
G
M22759/11-26 Teflon
®
-Insulated Hookup Wire
01
02
03
04
–
–
–
–
13
–
18 Inches (457mm), White
36 Inches (914mm), White
18 Inches (457mm), 10 Color Repeating
36 Inches (914mm), 10 Color Repeating
72 Inches (1829mm), White
Codes A - G specify the
shell size. The number
of contacts is shown
below for reference.
A – 9
B – 15
C – 21
D – 25
E – 31
F – 37
G – 51
14
– 72 Inches (1829mm), 10 Color Repeating
M22759/33-26 Irradiated Tefzel
®
Insulated Hookup Wire
09
– 18 Inches (457mm), White
10
– 36 Inches (914mm), White
11
– 18 Inches (457mm), 10 Color Repeating
12
– 36 Inches (914mm), 10 Color Repeating
15
– 72 Inches (1829mm), White
16
– 72 Inches (1829mm), 10 Color Repeating
Single Strand Uninsulated Wire
05
– .500 Inch (12.7mm), Gold Plated
06
– 1.000 Inch (25.4mm), Gold Plated
07
– .500 Inch (12.7mm), Tin-Lead Plated
(2)
08
– 1.000 Inch (25.4mm), Tin-Lead Plated
(2)
J
Sample Part Number
M83513
/09
— G
12
APPLICATION NOTES
1. Intermatability:
2. Tin-Plated Wire:
M83513 plastic shell connectors are not intermateable with metal shell M83513 connectors.
The next revision of the mil spec is expected to prohibit the use of pure tin. Glenair M83513
connectors do not contain any components exceeding 97% tin.
The M83513 spec contains a cautionary note regarding M22759/33 wire. The wire insulation is known
to cause corrosion to metal parts when stored in a sealed environment. This corrosion has been
observed on M83513 connectors. Glenair has implemented a packaging procedure to minimize or
eliminate this problem. Connectors are individually wrapped with teflon tape, and the unit pack is a
perforated paper envelope. M22759/33 continues to be the preferred wire for space applications.
3. M22759/33 Corrosion:
© 2006 Glenair, Inc.
CAGE Code 06324/0CA77
Printed in U.S.A.
GLENAIR, INC.
www.glenair.com
• 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
J-9
E-Mail: sales@glenair.com
MIL-DTL-83513 Micro-D Connectors
Plastic Shell Crimp, Pre-Wired M83513/08 & /09
LENGTH FOR INSULATED STRANDED WIRE
A
B
C
J
D
PIN CONNECTOR
.096/.088 (2.43/2.23) DIA.
D
.100/.088
(2.54/2.24)
E
F
D
H
LENGTH + 1.0/-0.0
(+25.4/-0.0)
H
LENGTH + 1.0/-0.0
(+25.4/-0.0)
H
SOCKET CONNECTOR
LENGTH FOR UNINSULATED WIRE
LENGTH + 0.2/-0.0
(+5.08/-0.0)
SOCKET CONNECTOR
G
J
PIN CONNECTOR
LENGTH + 0.2/-0.0
(+5.08/-0.0)
H
DIMENSIONS
A Max.
In .
Layout
9P
9S
15P
15S
21P
21S
25P
25S
31P
31S
37P
37S
51P
51S
In.
.785
.785
.935
.935
1.080
1.080
1.185
1.185
1.335
1.335
1.485
1.485
1.435
1.435
B
mm.
± 0.08
14.35
14.35
18.16
18.16
21.97
21.97
24.51
24.51
28.32
28.32
32.13
32.13
30.86
30.86
± .003
.565
.565
.715
.715
.865
.865
.965
.965
1.115
1.115
1.265
1.265
1.215
1.215
C Max.
In.
.292
.380
.442
.530
.592
.680
.692
.780
.842
.930
.992
1.080
.942
1.030
D Max.
In.
.218
.218
.218
.218
.218
.218
.218
.218
.218
.218
.218
.218
.260
.260
E Max.
In.
.202
.185
.202
.185
.202
.185
.202
.185
.202
.185
.202
.185
.202
.185
F Max.
In.
.395
.375
.395
.375
.395
.375
.395
.375
.395
.375
.395
.375
.395
.375
G Max.
In.
.408
.408
.558
.558
.708
.708
.808
.808
.958
.958
1.108
1.108
1.058
1.058
H Max.
In.
.173
.173
.173
.173
.173
.173
.173
.173
.173
.173
.173
.173
.220
.220
J Max.
In.
.139
.139
.139
.139
.139
.139
.182
mm.
19.94
19.94
23.75
23.75
27.43
27.43
30.01
30.01
33.91
33.91
37.72
37.72
36.45
36.45
mm.
7.42
9.65
11.23
13.46
15.04
17.27
17.58
19.81
21.39
23.62
25.20
27.43
23.93
26.16
mm.
5.54
5.54
5.54
5.54
5.54
5.54
5.54
5.54
5.54
5.54
5.54
5.54
6.60
6.60
mm.
5.13
4.70
5.13
4.70
5.13
4.70
5.13
4.70
5.13
4.70
5.13
4.70
5.13
4.70
mm.
10.03
9.53
10.03
9.53
10.03
9.53
10.03
9.53
10.03
9.53
10.03
9.53
10.03
9.53
mm.
10.36
10.36
14.17
14.17
17.98
17.98
20.52
20.52
24.33
24.33
28.14
28.14
26.87
26.87
mm.
4.39
4.39
4.39
4.39
4.39
4.39
4.39
4.39
4.39
4.39
4.39
4.39
5.59
5.59
mm.
3.53
3.53
3.53
3.53
3.53
3.53
4.62
© 2006 Glenair, Inc.
CAGE Code 06324/0CA77
Printed in U.S.A.
GLENAIR, INC.
www.glenair.com
• 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
J-10
E-Mail: sales@glenair.com
