ASTX-11-B-13.0MHZ datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> ASTX-11-B-13.0MHZ

ASTX-11-B-13.0MHZ: DescriptionClipped Sine Output Oscillator, 13MHz Nom, ROHS COMPLIANT, SMT, 4 PIN; CategoryPassive components oscillator; File Size182KB，2 Pages; ManufacturerAbracon; Websitehttp://www.abracon.com/index.htm; Environmental Compliance

Download Datasheet Parametric View All

ASTX-11-B-13.0MHZ Overview

Clipped Sine Output Oscillator, 13MHz Nom, ROHS COMPLIANT, SMT, 4 PIN

ASTX-11-B-13.0MHZ Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
Other features	BULK
Ageing	1 PPM/FIRST YEAR
Frequency Adjustment - Mechanical	NO
frequency stability	2.5%
JESD-609 code	e4
Manufacturer's serial number	ASTX-11
Installation features	SURFACE MOUNT
Nominal operating frequency	13 MHz
Maximum operating temperature	75 °C
Minimum operating temperature	-30 °C
Oscillator type	CLIPPED SINE
Output level	0.8 V
physical size	3.2mm x 2.5mm x 1.0mm
Maximum supply voltage	2.94 V
Minimum supply voltage	2.66 V
Nominal supply voltage	2.8 V
surface mount	YES
Terminal surface	Nickel/Gold (Ni/Au)
Base Number Matches	1

Preview

Download Datasheet

View All

TEMPERATURE COMPENSATED CRYSTAL OSCILLATOR

ASTX-11, ASVTX-11

FEATURES:

• Compact and low in height.

• Low current consumption.

• Suitable for high-density SMT.

• Vc function corresponds to PLL circuits.

• IR reflow possible.

RoHS

Compliant

APPLICATIONS:

• Cellular and cordless phones.

• Standard OSC for exact equipment.

• Mobile communication equipment.

• Portable radio equipment and music player.

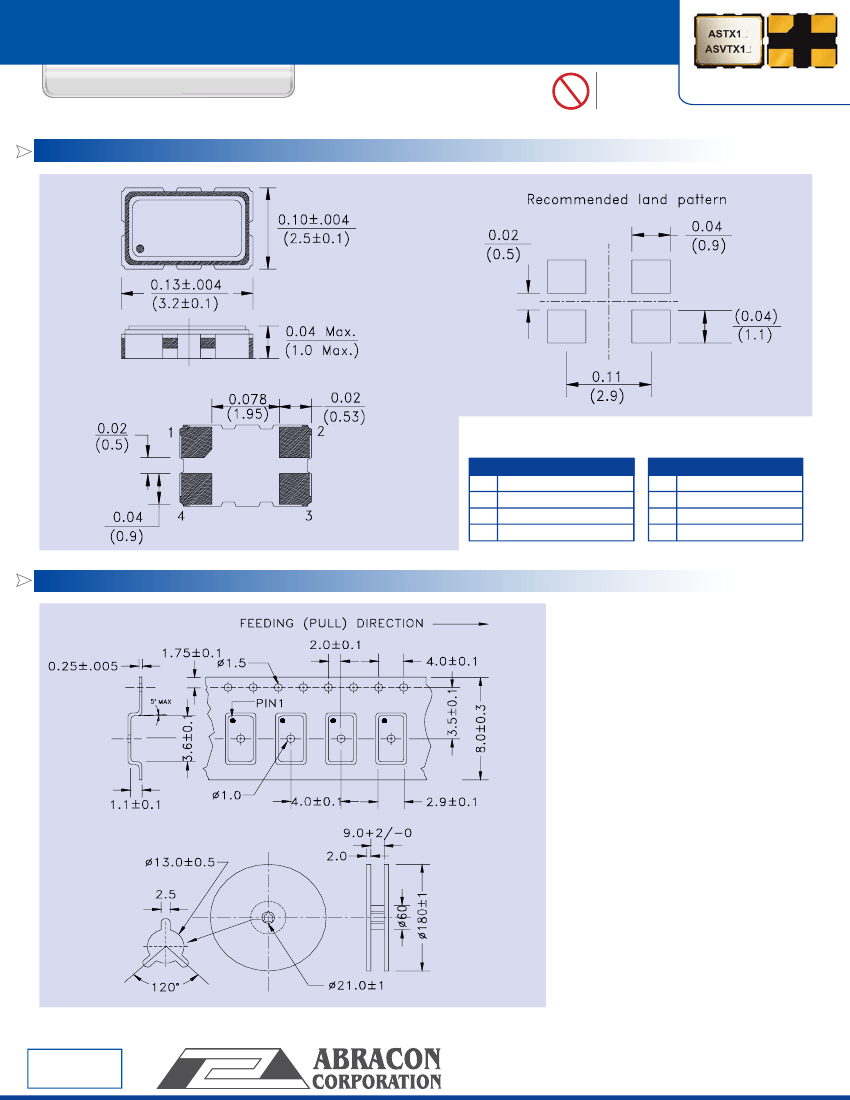

3.2 X 2.5 X 1.0mm

| | | | | | | | | | | | | | |

STANDARD SPECIFICATIONS:

PARAMETERS

ABRACON P/N

Frequency Range

Standard Frequencies

Frequency Stability

∆f/f

Operating Temperature

Storage Temperature

Supply Voltage (Vdd)

Frequency Adjustment Range

Supply Current (Icc)

Output Voltage

Output Load

Start-up Time

Aging (first year)

ASTX-11 Series or ASVTX-11 Series

13.000 MHz to 38.400 MHz

13.0 MHz, 14.4 MHz, 19.2 MHz, 19.68 MHz, 26.0 MHz, 33.6 MHz, 38.4 MHz

± 2.5 ppm (- 30° C ~ + 75° C)

- 30° C to + 75° C

- 40° C to + 85° C

2.4V ~ 3.0V (see option)

±8 ppm Min.

1.5mA Max/(13MHz~19.68MHz), 2.0mA Max/(>26MHz)

0.8 V p-p min. Clipped Sine Wave

10 kΩ // 10 pF

5.0msec Max. <14.400MHz, 3.5msec Max. >15.000MHz

± 1.0ppm / year max.

OPTIONS & PART IDENTIFICATION:

(Left blank if standard)

ASTX or ASVTX - 11 -

- Frequency -

Vdd (V)

3.0±5%

2.8±5%

2.75±5%

2.4±5%

Blank

Packaging

Bulk

Tape and Reel

1,000 or 2,000pcs

Please contact ABRACON if parts are intended for life dependent applications.

ABRACON IS

ISO 9001 / QS 9000

CERTIFIED

Revised: 10.10.07

30332 Esperanza, Rancho Santa Margarita, California 92688

tel 949-546-8000

fax 949-546-8001

| www.abracon.com

Visit www.abracon.com for Terms & Conditions of Sale
